Tech Specs
Light Source & Optical
  • Main LEDs: 14 × 6W RGBW (4-in-1)

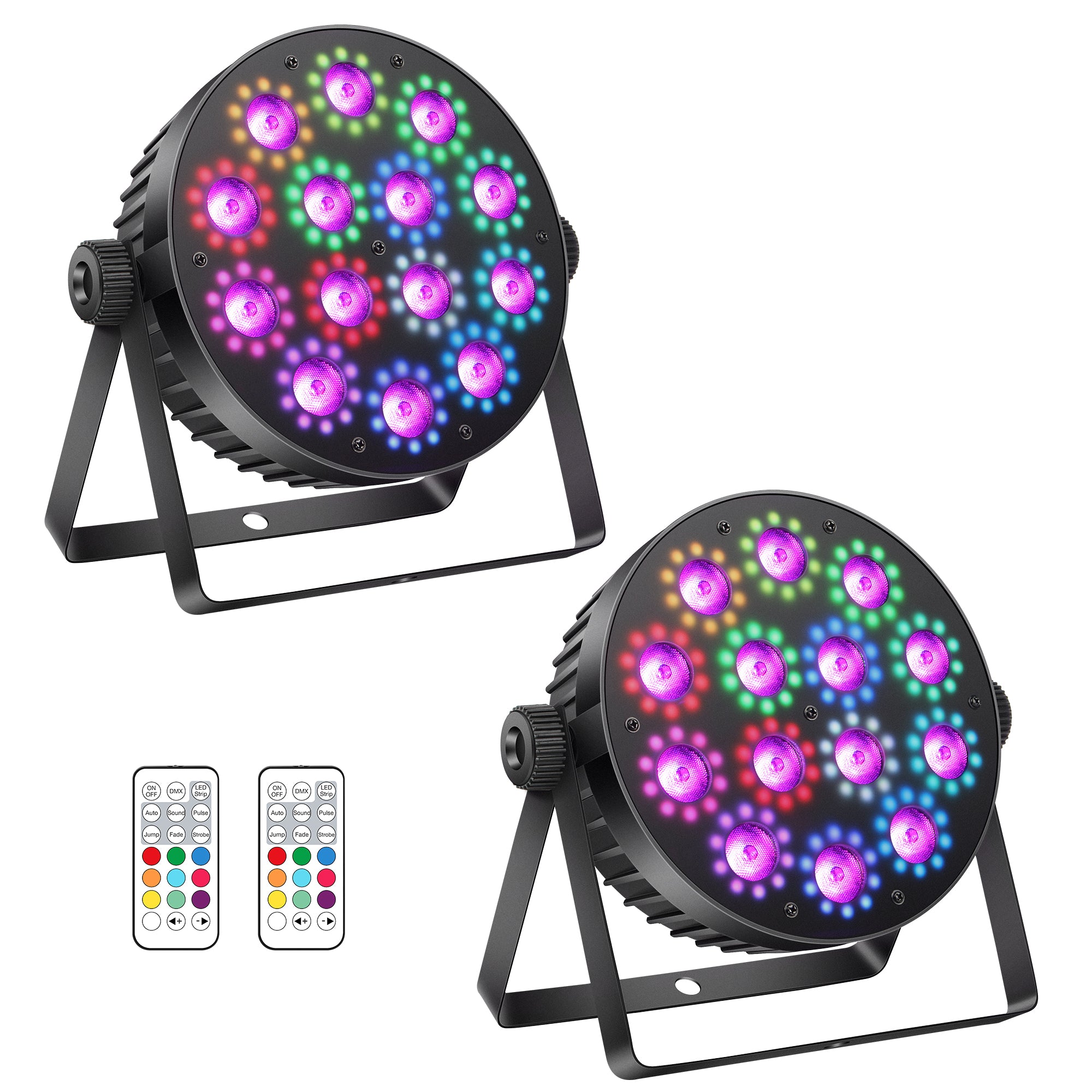

  • Ring LEDs: 140 × RGB (3-in-1), arranged in 10 rings
  • Beam Angle: 25°

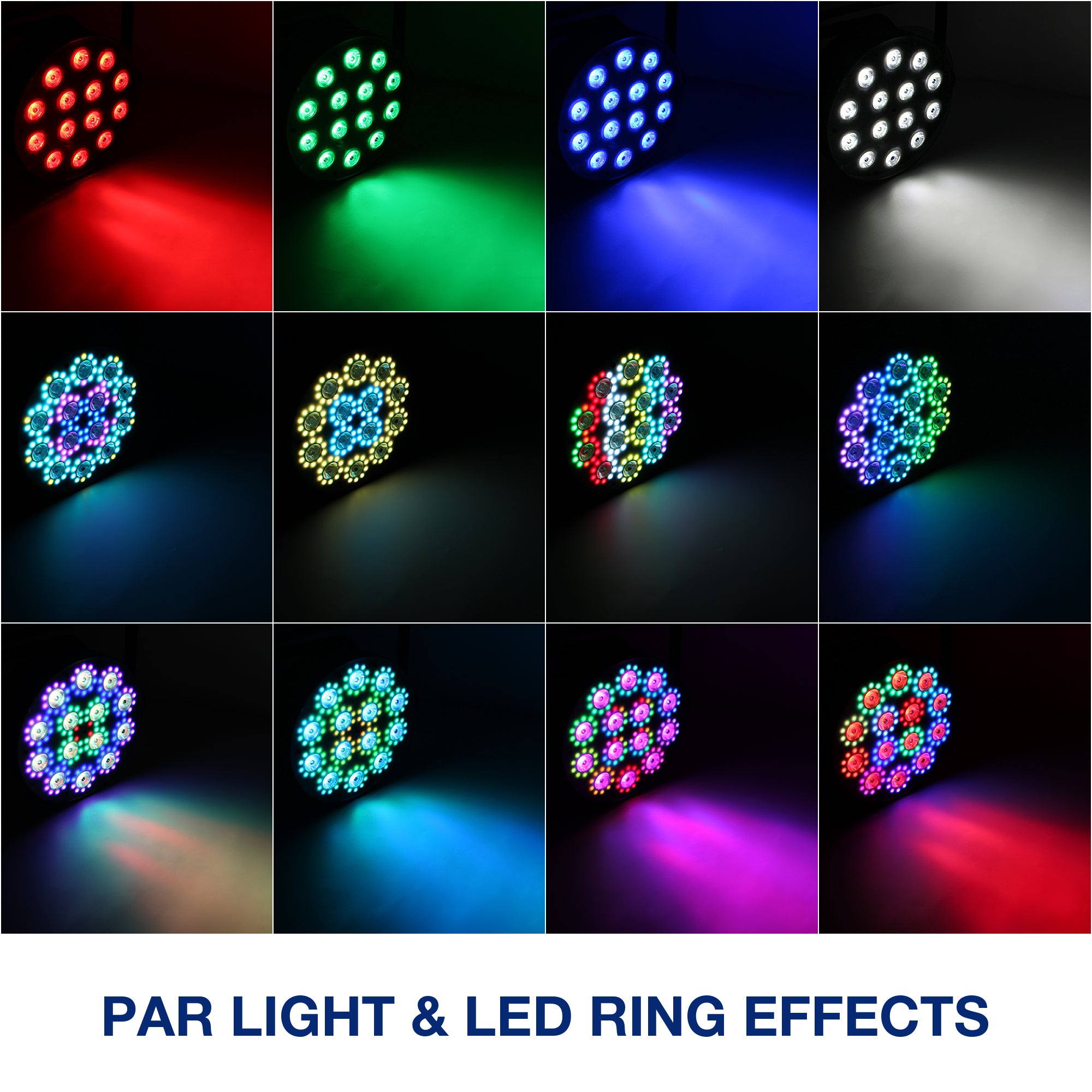

  • Color Mixing: Red, Green, Blue, White (main) / Red, Green, Blue (ring)
Control & Connections

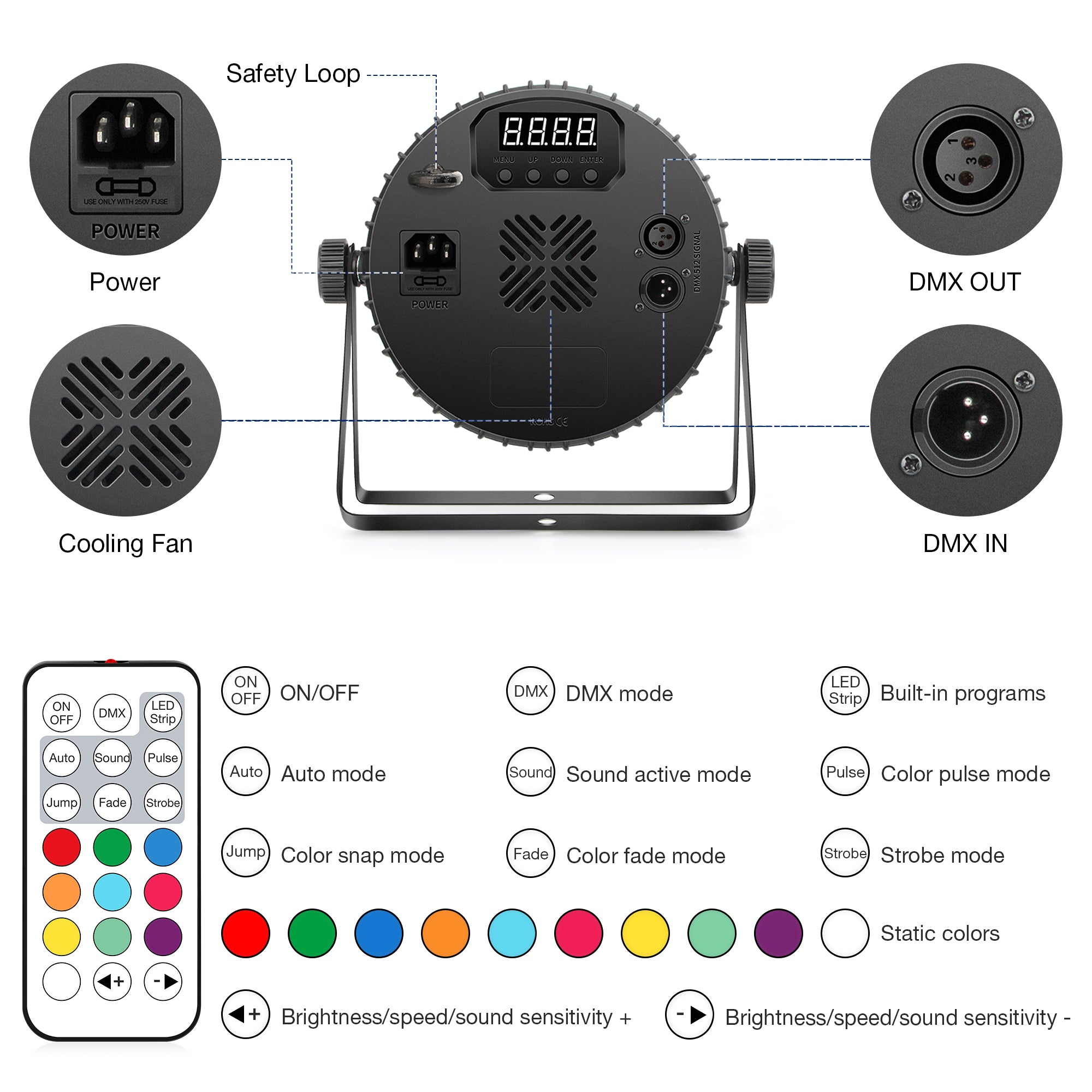

  • Control Modes: DMX512, Sound Active, Master-Slave, Auto, Static Color (14 colors), Built-in Programs (25), Color Snap, Color Fade, Color Pulse, Strobe
  • DMX Channels: 8 Channels
  • DMX Connectors: 3-Pin XLR In/Out
  • Remote Control: IR remote, 33 ft (10 m) range
  • Master-Slave Capacity: Up to 64 slave units
Electrical & Physical
  • Power Consumption: 100W
  • Input Voltage: AC 110–240V, 50/60 Hz (auto-ranging)
  • Dimensions (L × W × H): 8.9 × 6.9 × 9.4 in (22.5 × 17.5 × 23 cm)
  • Weight: 4.9 lb (2.2 kg) per unit
  • Housing Material: Plastic (ABS)
  • IP Rating: IP20 (indoor use only)
  • Cooling: Built-in fan (~45 dB)
  • Max Ambient Temperature: 104°F (40°C)
Installation, Cleaning & Maintenance
Installation

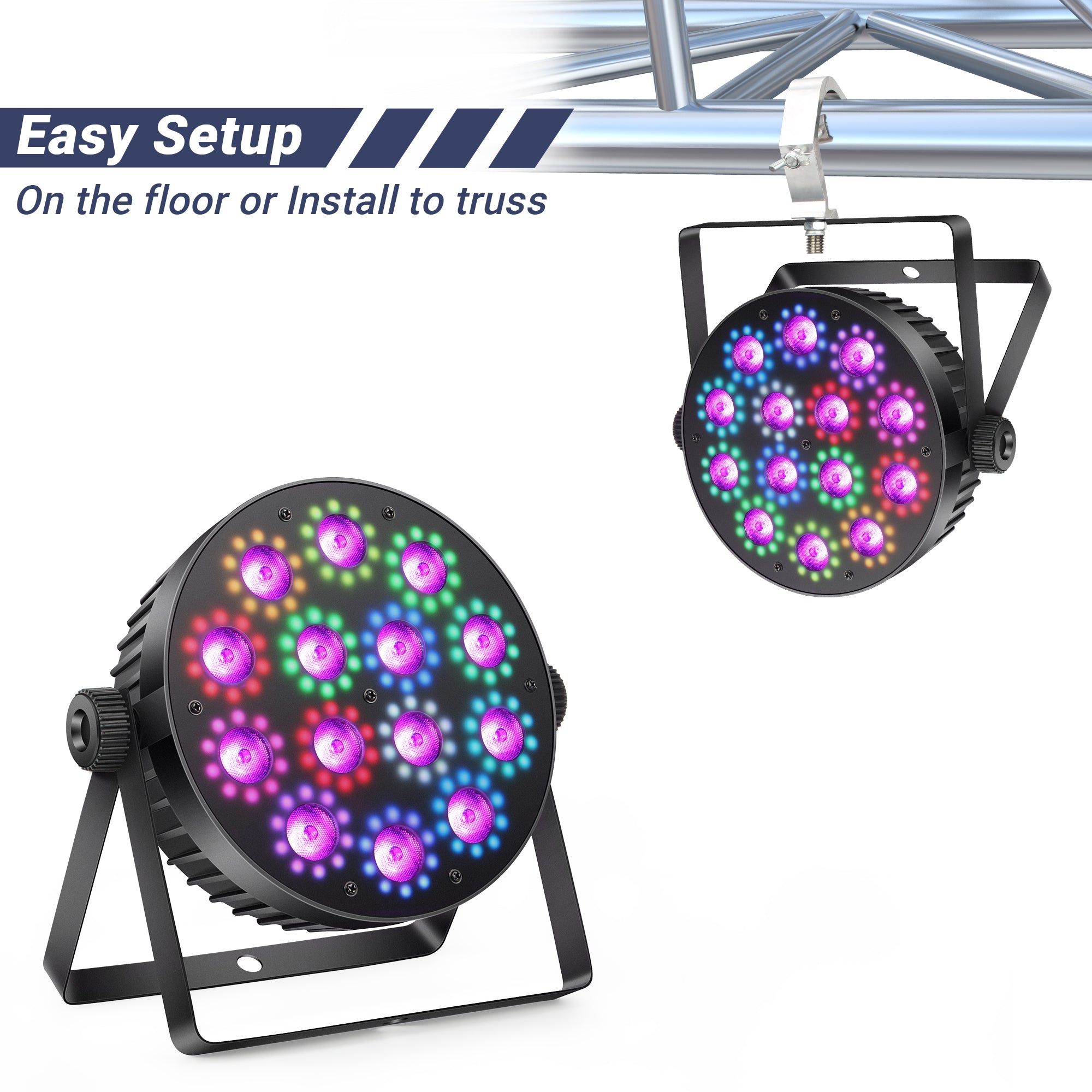

  • Mounting: The fixture includes a metal bracket with adjustment knob. Use it as a floor stand, mount sideways on trussing, or hang upside-down with a mounting clamp (not included, M10 thread). All three positions are fully operational.
  • Safety: Always attach a safety cable when rigging overhead. Never stand directly below the fixture during installation or removal.
  • Clearance: Keep the fixture at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from objects or surfaces.
  • Ventilation: Ensure adequate airflow around the cooling fan. Do not operate where ambient temperature exceeds 104°F (40°C).
  • Power: The unit supports AC 110–240V (auto-ranging). Have a qualified electrician handle all electrical connections and installations.
Cleaning
  • Housing: Wipe down the exterior with a soft, dry cloth. Disconnect from power before cleaning.
  • Lens: Gently clean the front lens with a lint-free cloth to maintain light output. Do not use solvents.
Maintenance
  • Cool Down: Allow approximately 15 minutes for the fixture to cool before handling, storing, or servicing.
  • Inspection: Periodically check power cables, XLR connectors, and the mounting bracket for wear or damage.
  • Storage: Use original packaging and materials when transporting or storing the fixture.

For detailed instructions, check out the user guide.

Compliance & Certification

The 100W RGBW LED PAR Lights with RGB Halo Rings is designed to comply with applicable CE and RoHS requirements.

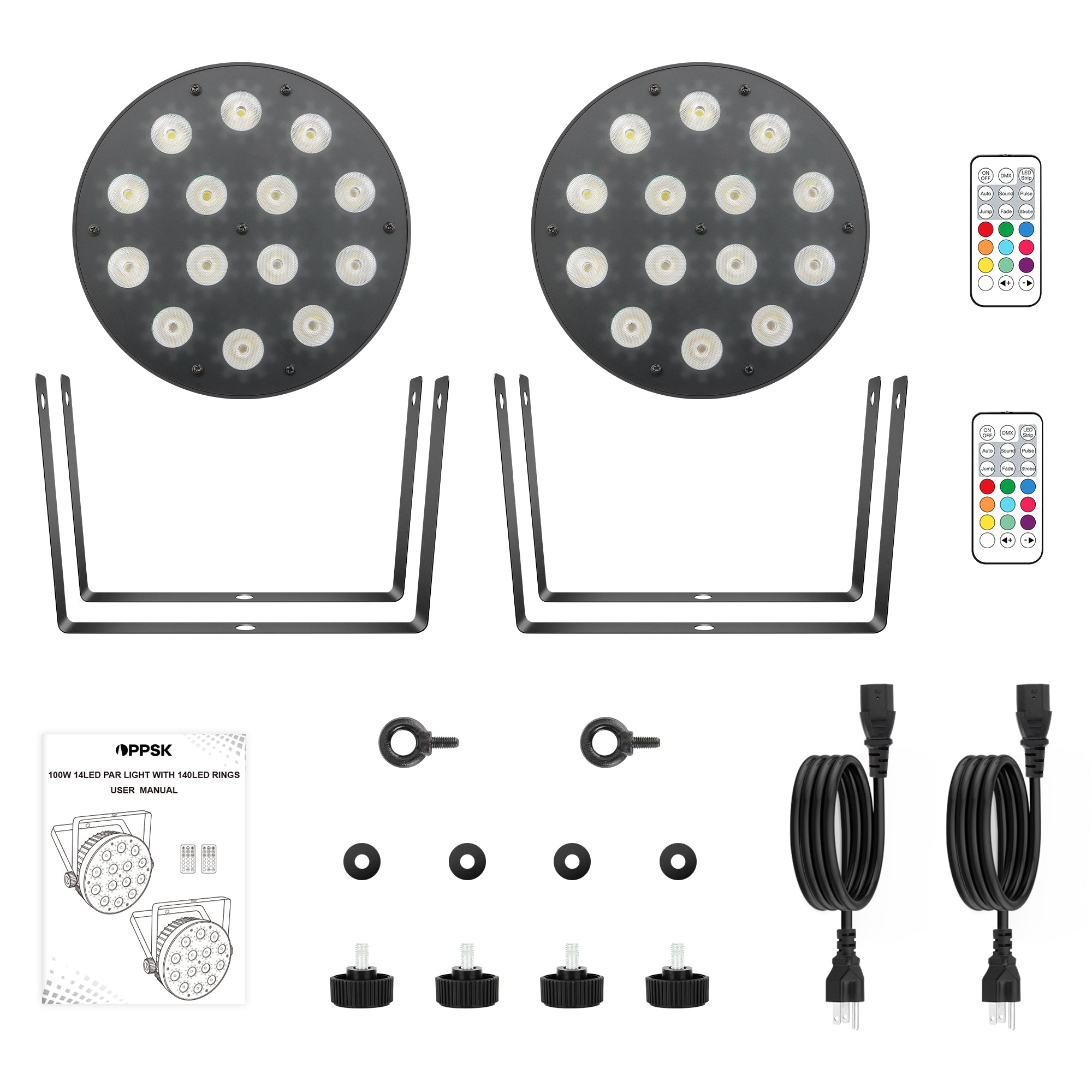

In The Box

  • The Lights × 2

  • Installation Kits × 4

  • Power Cables × 2

  • Safety Cables × 2

  • Remote Controls × 2

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Can this light be used outdoors?

No. The fixture is rated IP20, meaning it is designed for indoor / dry-location use only. Do not expose it to rain or moisture.

How loud is the cooling fan?

The built-in fan operates at approximately 45 dB — comparable to a quiet computer fan or residential air conditioner. It is audible in silent rooms but generally unobtrusive during performances with ambient sound.

Can I use it without a DMX controller?

Yes. You can operate the light using the included IR remote, the onboard control panel, or in Sound Active / Auto mode — no DMX controller required.

Does the remote work through walls or crowds?

The included IR remote has a 33 ft (10 m) range and works best with a direct line of sight to the fixture's receiver. Walls, glass, or large crowds may block the signal. For those situations, use a DMX controller instead.
