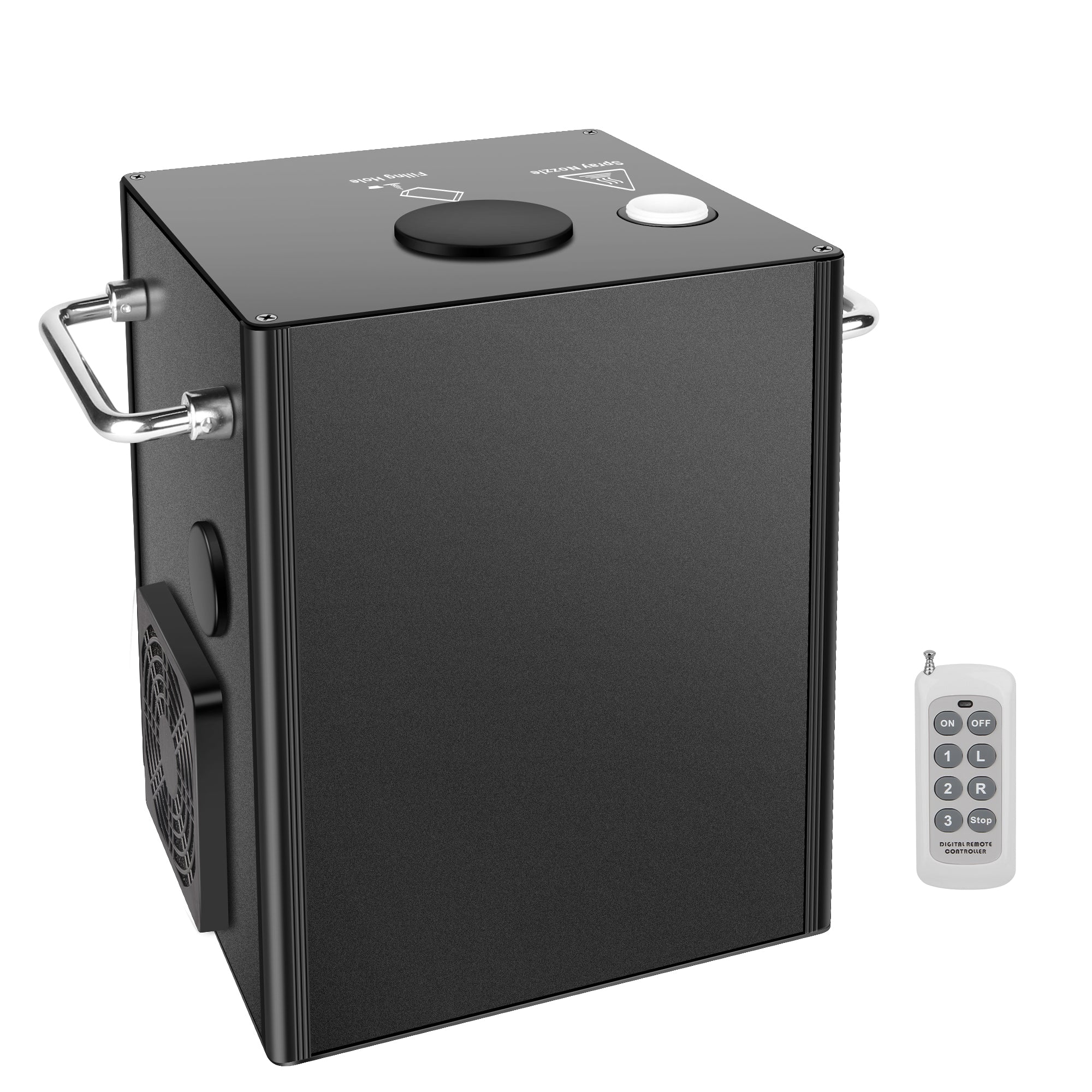

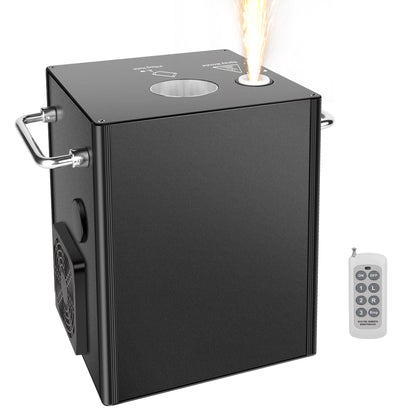

600W Cold Spark Machine

Output & Performance

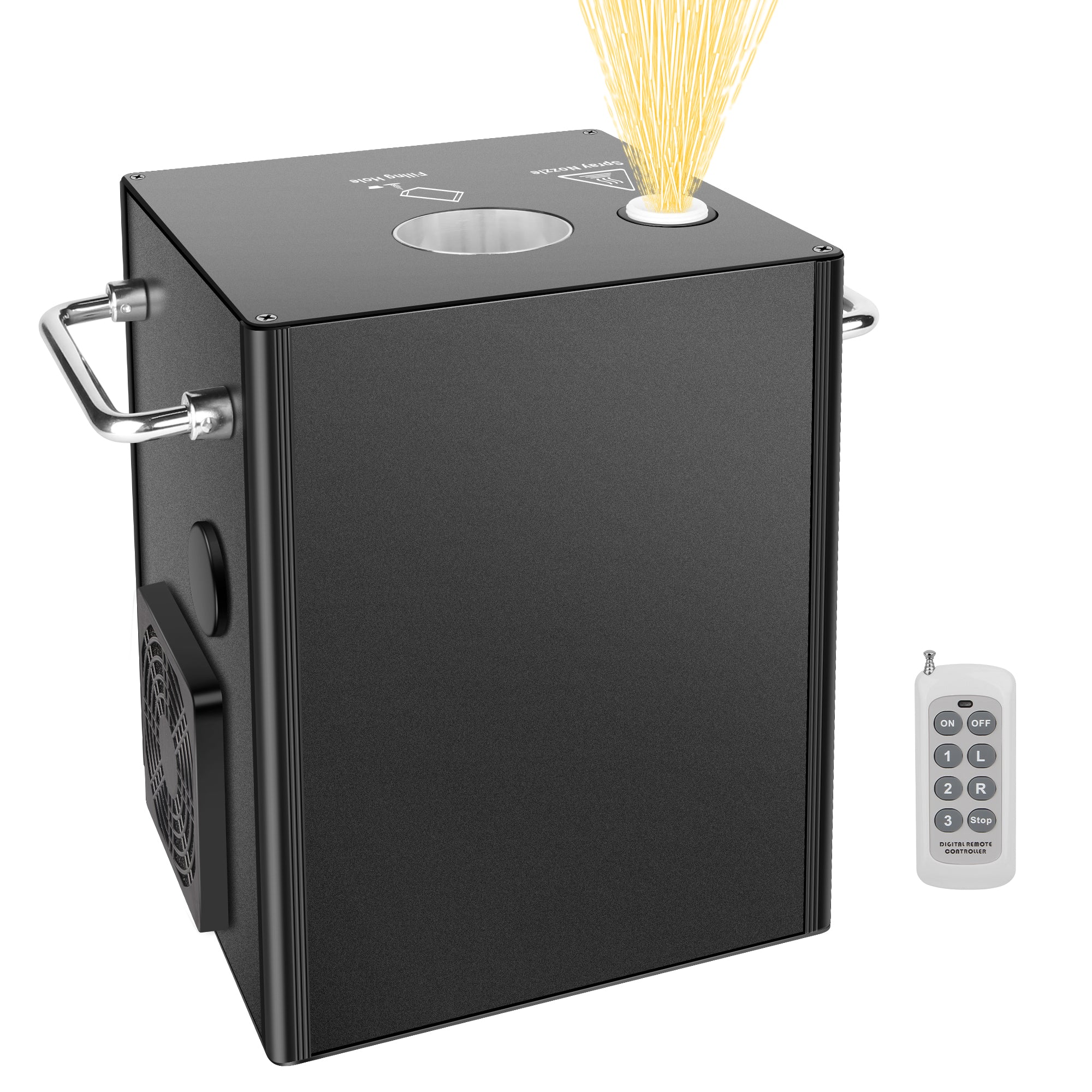

• Effect Type: Cold Spark (flameless, low-temperature)
• Spray Height: 10–16 ft (3–5 m)
• Spray Duration: 2–60 seconds (adjustable)
• Spark Temperature: Approx. 150°F (65°C) at the plume; cools rapidly
• Safe Distance: 10 ft (3 m) from machine
• Operating Temperature (heating element): 374°C / 705°F

Fluid/Material System

• Material Type: Titanium-based granular spark powder (sold separately)
• Loading: Top filling hole with rubber lid
• Nozzle: White silicone spray nozzle
• Cleaning Function: Hold "Stop" 2 sec — runs 5 sec then auto-off

Control & Connections

• Control Modes: DMX512, Wireless Remote, Master-Slave, Manual
• DMX Channels: 2 (CH1 Heating, CH2 Spray Height)
• Spray Height Levels (DMX CH2): Low (0–79), Medium (80–159), High (160–255)
• Wireless Remote: 433MHz — On/Off, 1/L, 2/R, 3/Stop
• Master-Slave: Up to 30 units, ID 001 = host, 002+ = slaves, 0.2s default interval

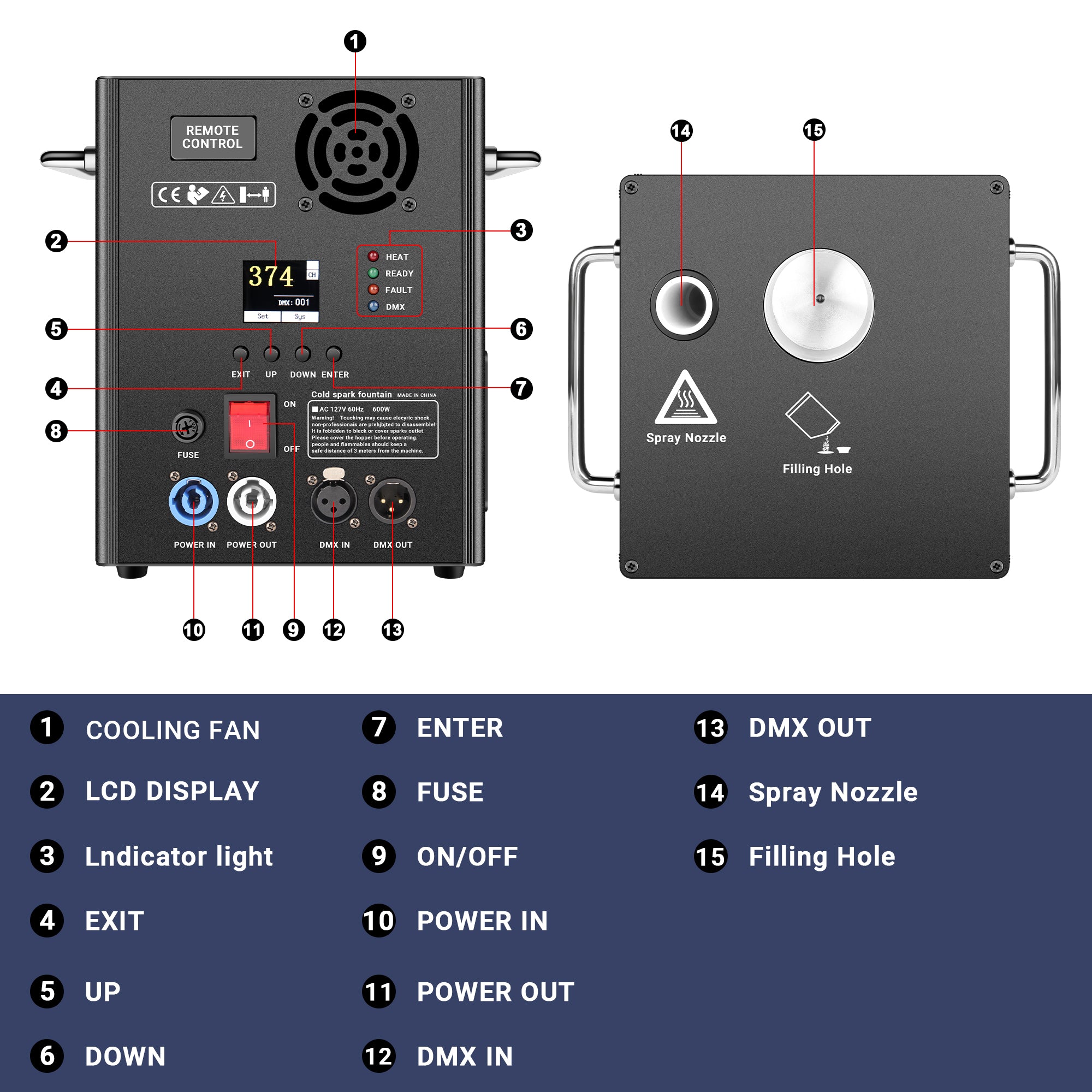

• Display: LCD (temperature + DMX address)
• Status LEDs: Heat, Ready, Fault, DMX

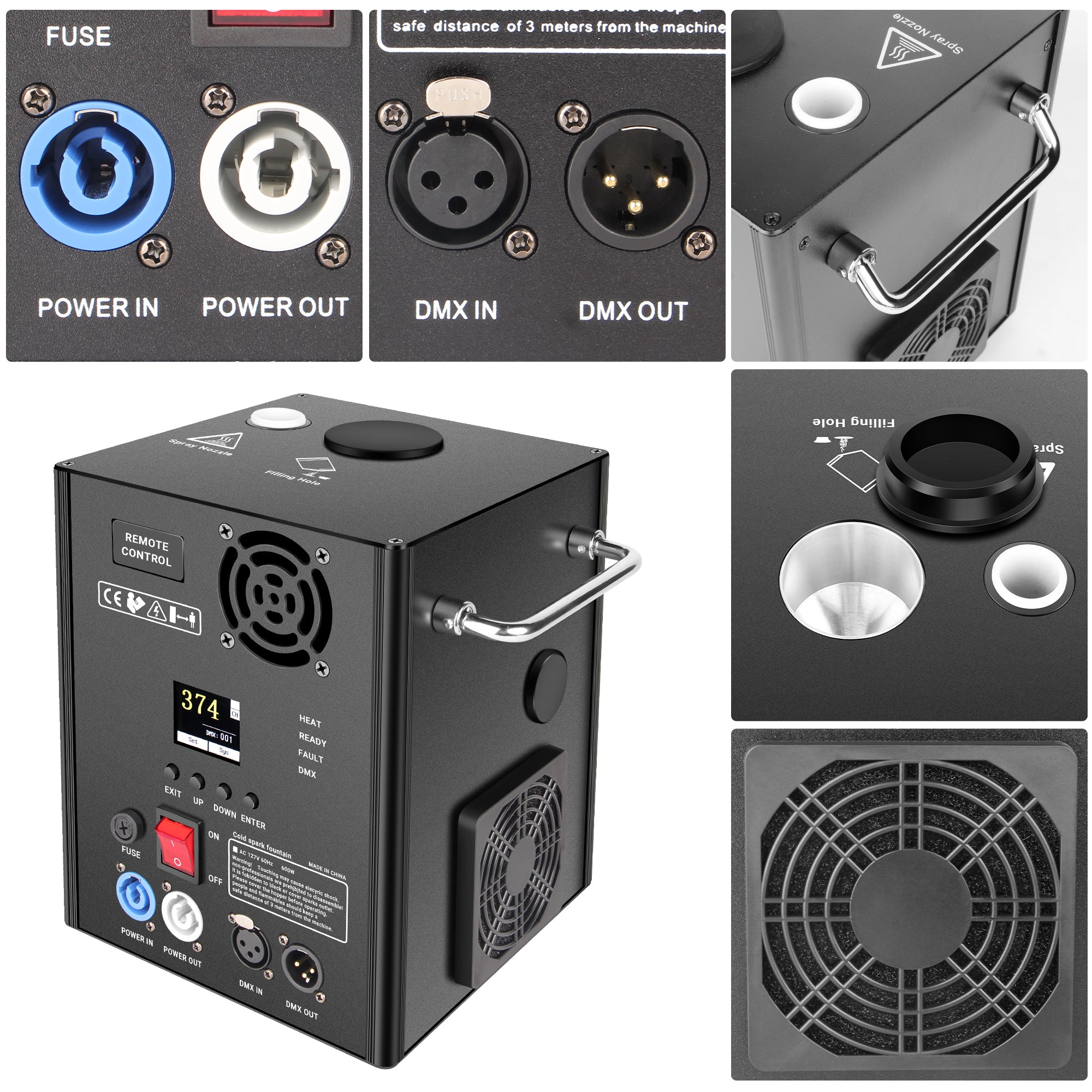

• Connectors: PowerCon In/Out, 3-Pin XLR DMX In/Out

Electrical & Physical

• Power Consumption: 600W
• Input Voltage: AC110V, 50/60Hz
• Fuse: 110V / 5A
• Cooling: Rear-mounted fan with mesh filter
• Carry Handles: Chrome metal handles on both sides

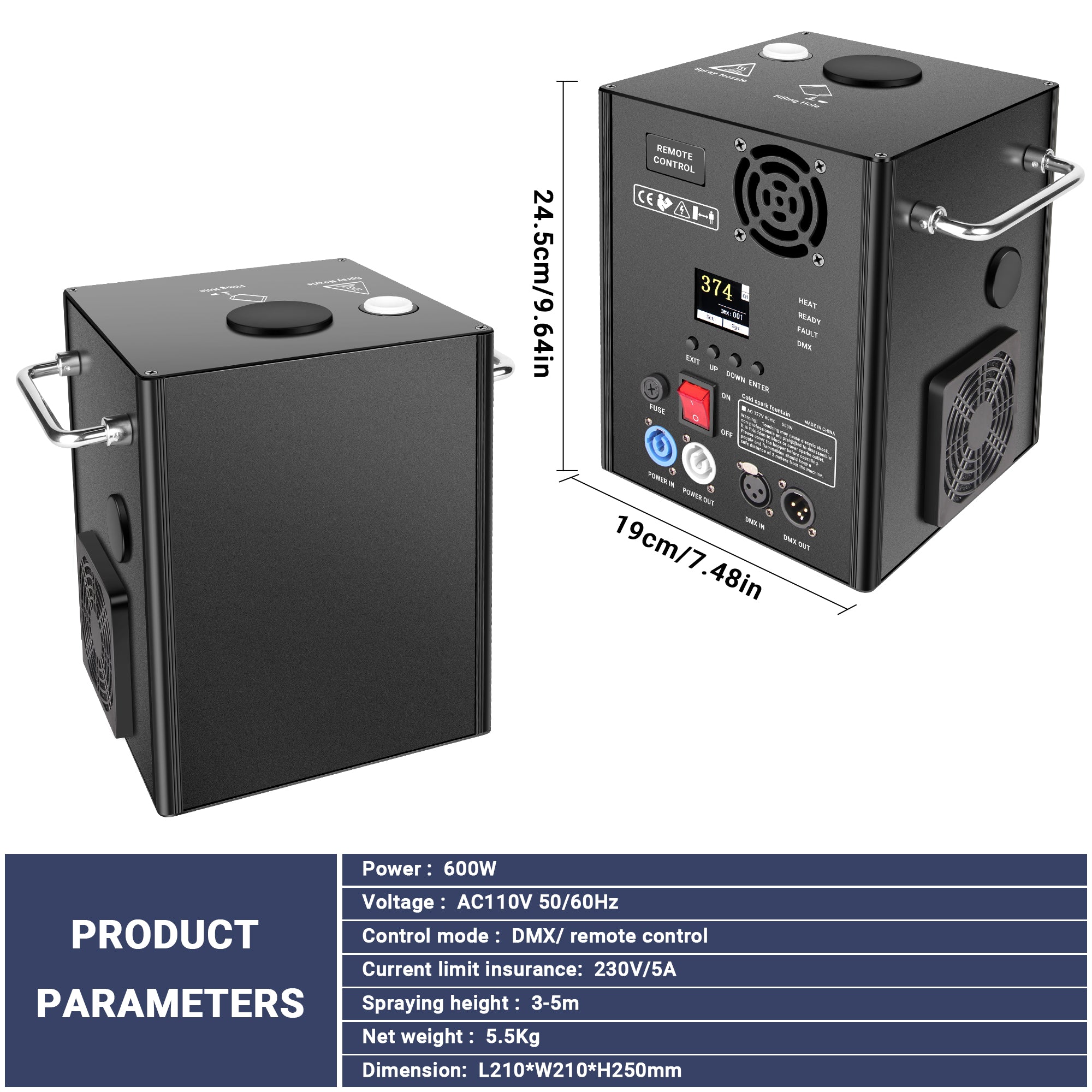

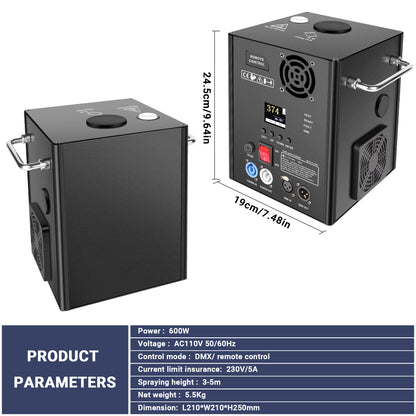

• Dimensions: 8.27 × 8.27 × 9.84 in (210 × 210 × 250 mm)
• Weight: 12.1 lb (5.5 kg)

Installation

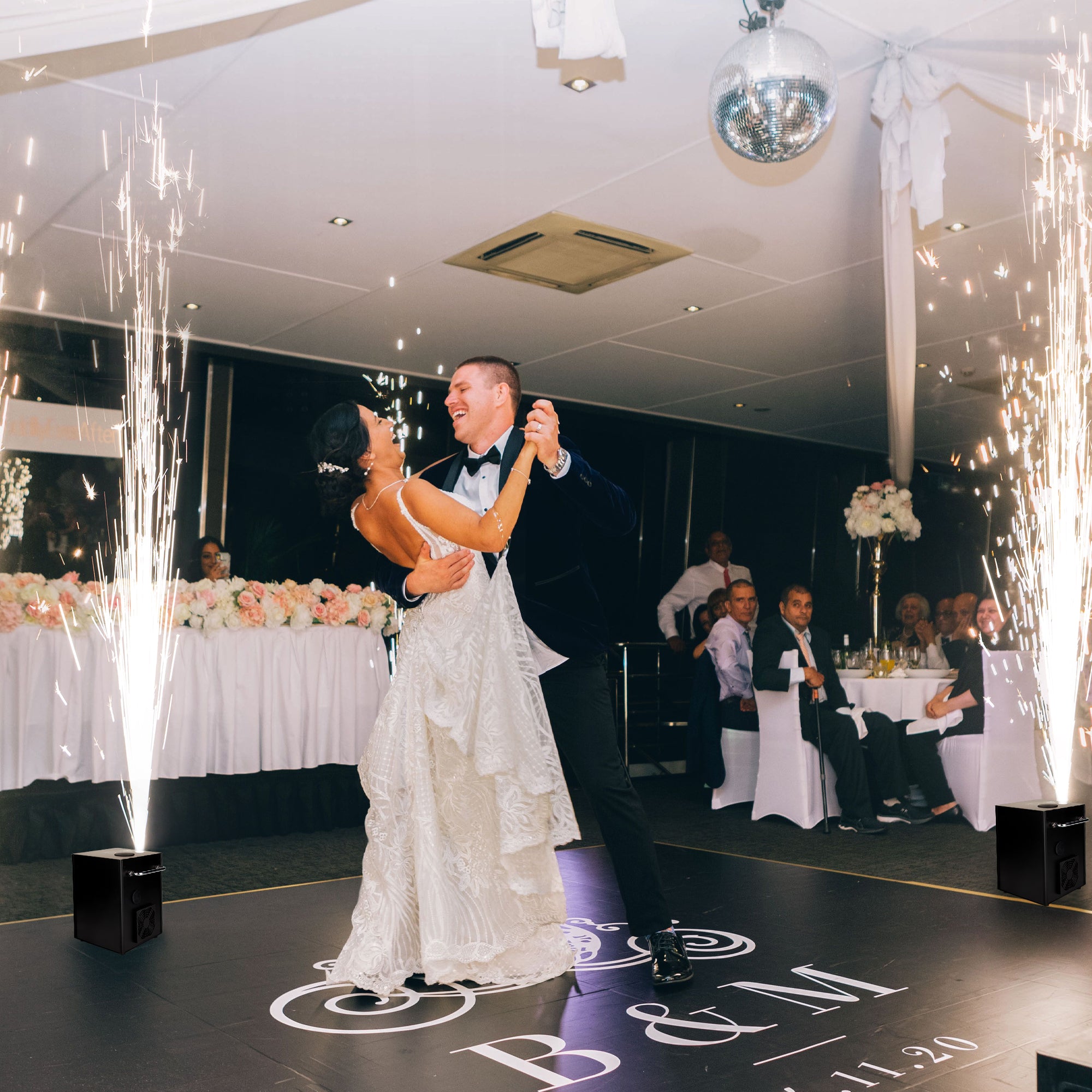

• Placement: Set the machine on a stable, flat, non-flammable surface. Floor placement is the standard deployment.
• Clearance: Maintain at least 10 ft (3 m) of clear space above and around the spray nozzle. Keep people, fabrics, drapes, and decorations outside the spark zone.

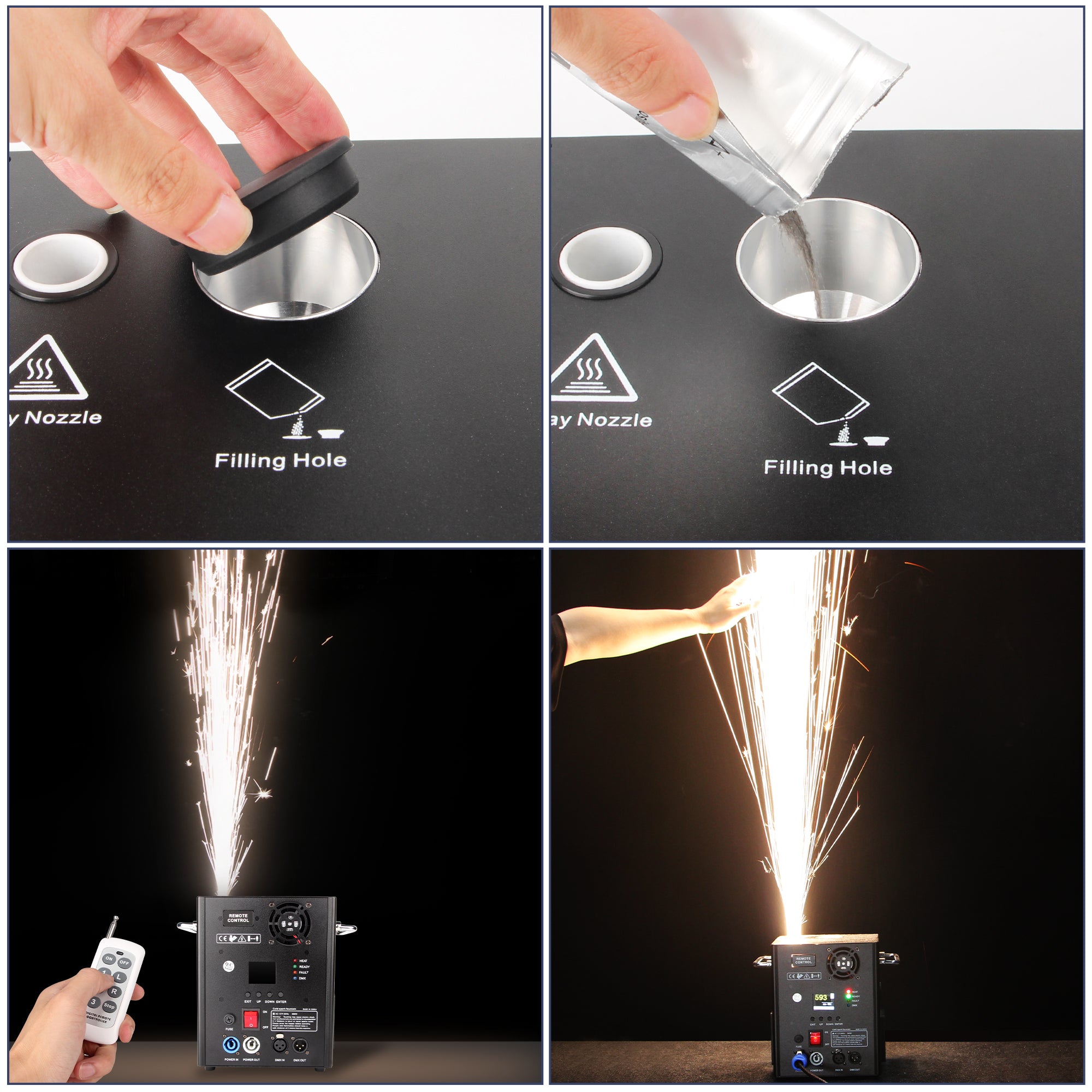

• Loading Granules: Power off the unit, open the top filling lid, pour in the titanium-based granules per the user guide, and reseal the lid before powering on.
• DMX/Linking: Use 3-pin XLR cables to chain DMX signal. For master-slave, set the host to ID 001 and assign 002+ to follower units.
• Grounding: The unit must be properly grounded via the PowerCon cable. Never bypass the ground pin.

Cleaning

• Auto-Clean Cycle: Hold the "Stop" button on the remote for 2 seconds to run the built-in clean cycle (5 seconds, then auto-off). Run after every event.
• Housing & Nozzle: Wipe the exterior and silicone nozzle with a dry or lightly damp cloth. Do not use solvents.
• Cooling Fan Grille: Vacuum or dust the rear fan grille periodically to prevent airflow restriction.

Maintenance

• Cool-Down: Allow the unit to cool fully (10+ minutes) before repacking. The heating element reaches 374°C in operation.
• Storage: Empty all granules from the filling chamber before storing or transporting the machine.
• Inspection: Before each event, check that all four status LEDs (Heat, Ready, Fault, DMX) behave normally during power-on.

For detailed instructions, check out the user guide.
