120W 6-in-1 Disco Ball DJ Party Light with Tripod Stand

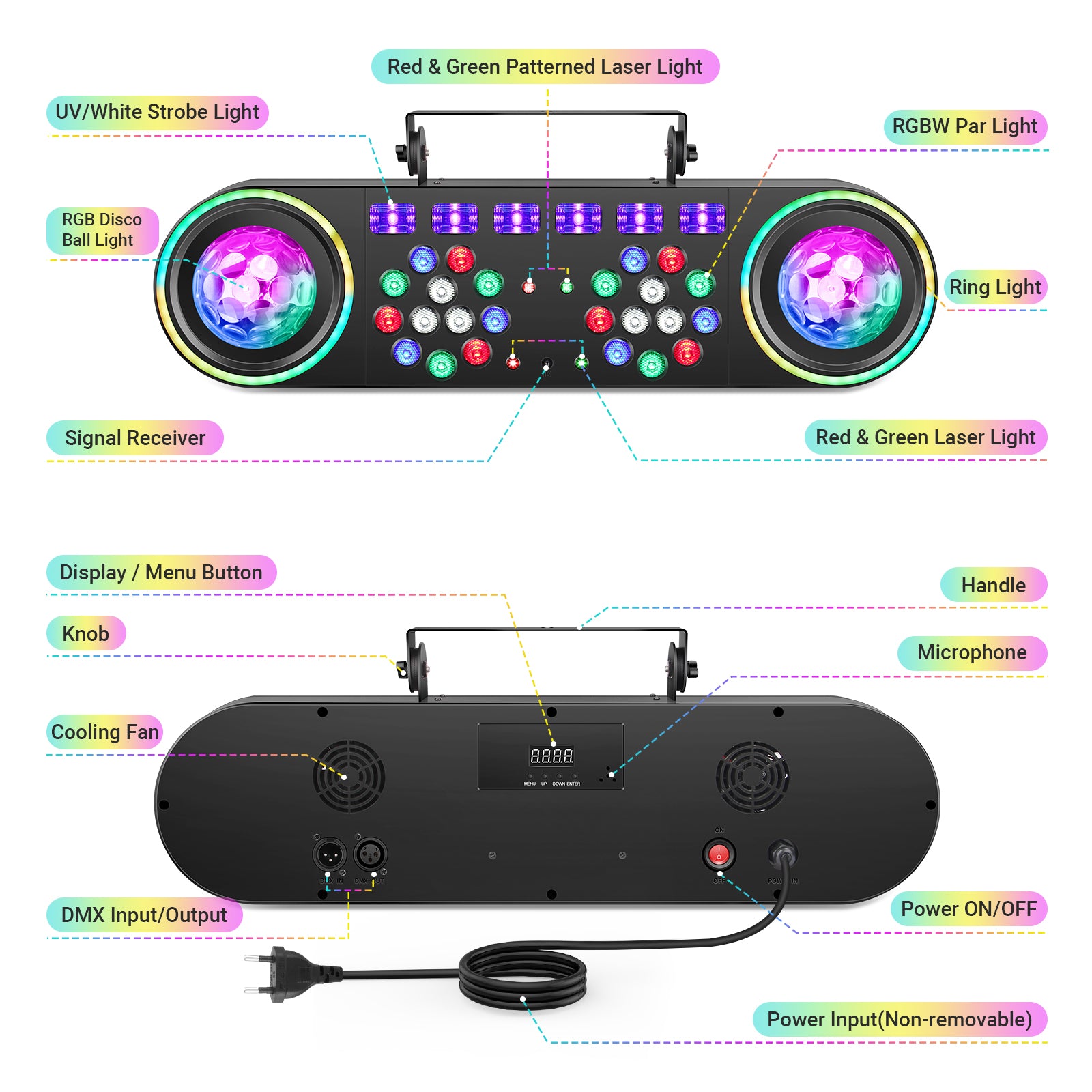

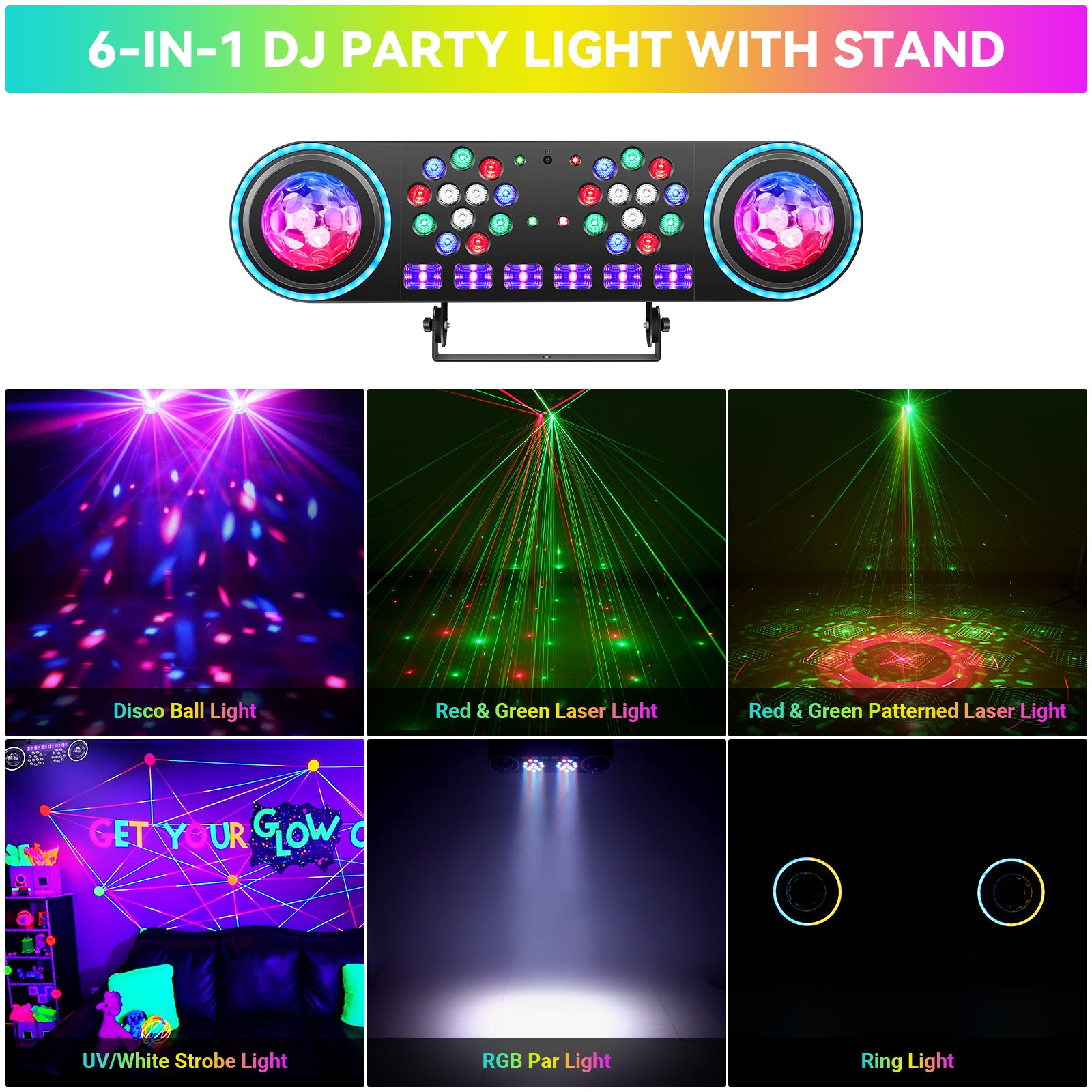

Light Source & Optical

• PAR Lights: 2 × (12 pcs × 1W RGBW LEDs)
• Disco Ball Lights: 2 × (6 pcs × 3W RGB LEDs)
• RGB Ring Lights: 2 × (24 pcs × 5050 RGB 3-in-1 SMD LEDs)
• UV/White Strobe: 6 × 4W LEDs (white + UV 395–400nm)
• Laser: Red 100mW + Green 50mW pattern laser (Class 3R)
• Color Mixing: RGBW (PAR), RGB (Disco Ball, Ring)
• Strobe: Independent UV/white strobe with adjustable speed
• Cooling: Dual cooling fans

Control & Connections

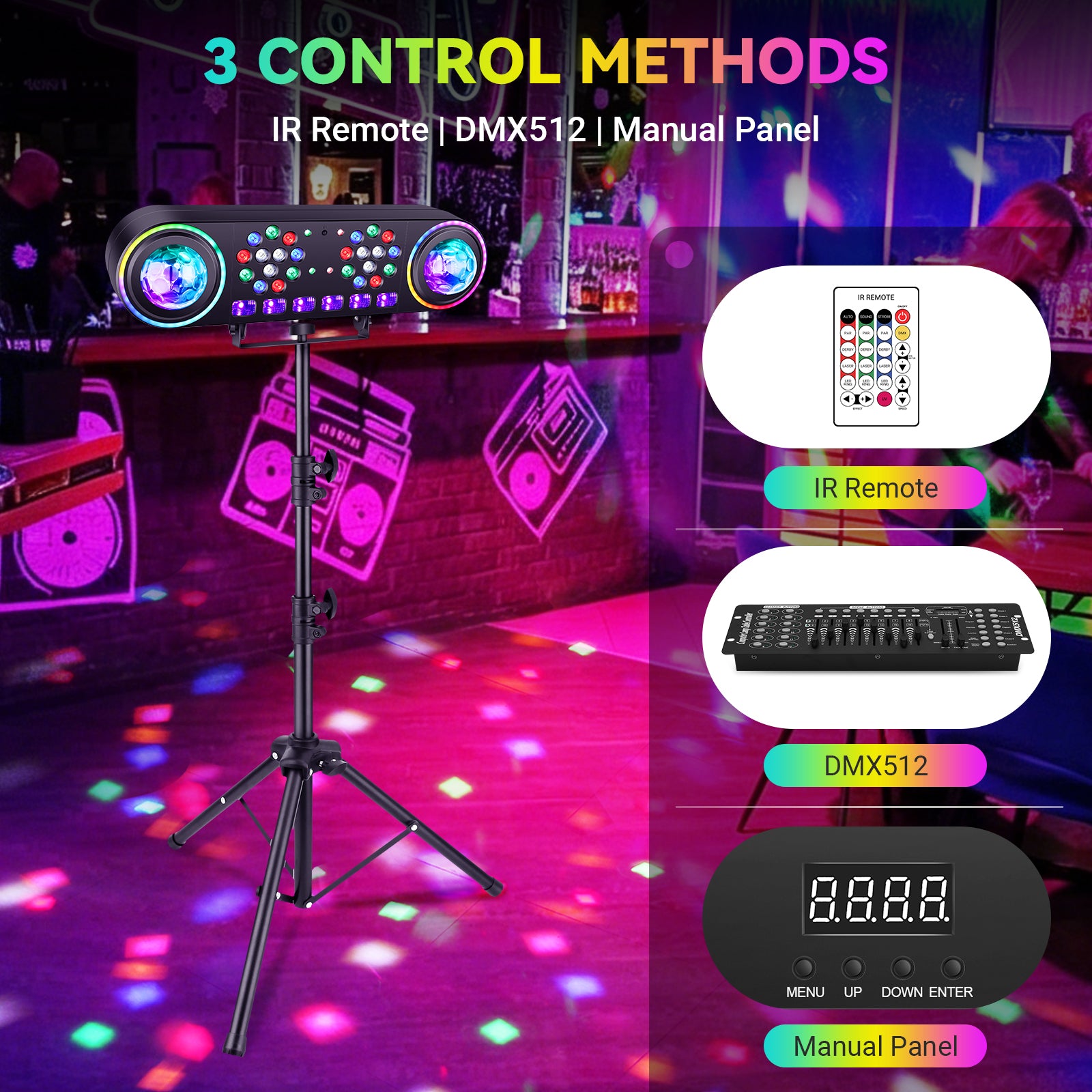

• Control Modes: DMX512, Sound Active, Auto, IR Remote
• DMX Channels: 20 / 39 / 46 (3 modes)
• Sound Trigger: Built-in microphone with adjustable sensitivity (Sn00–Sn16)
• Display: LCD with Menu / Up / Down / Enter buttons
• Data Connectors: 3-Pin XLR DMX In / Out
• Power Connector: Non-removable power cord

Electrical & Physical

• Power Consumption: 120W
• Input Voltage: AC 110–240V, 50/60Hz (Auto-ranging)
• Ambient Temp: Max 104°F (40°C)
• IP Rating: IP20 (Indoor Use Only)

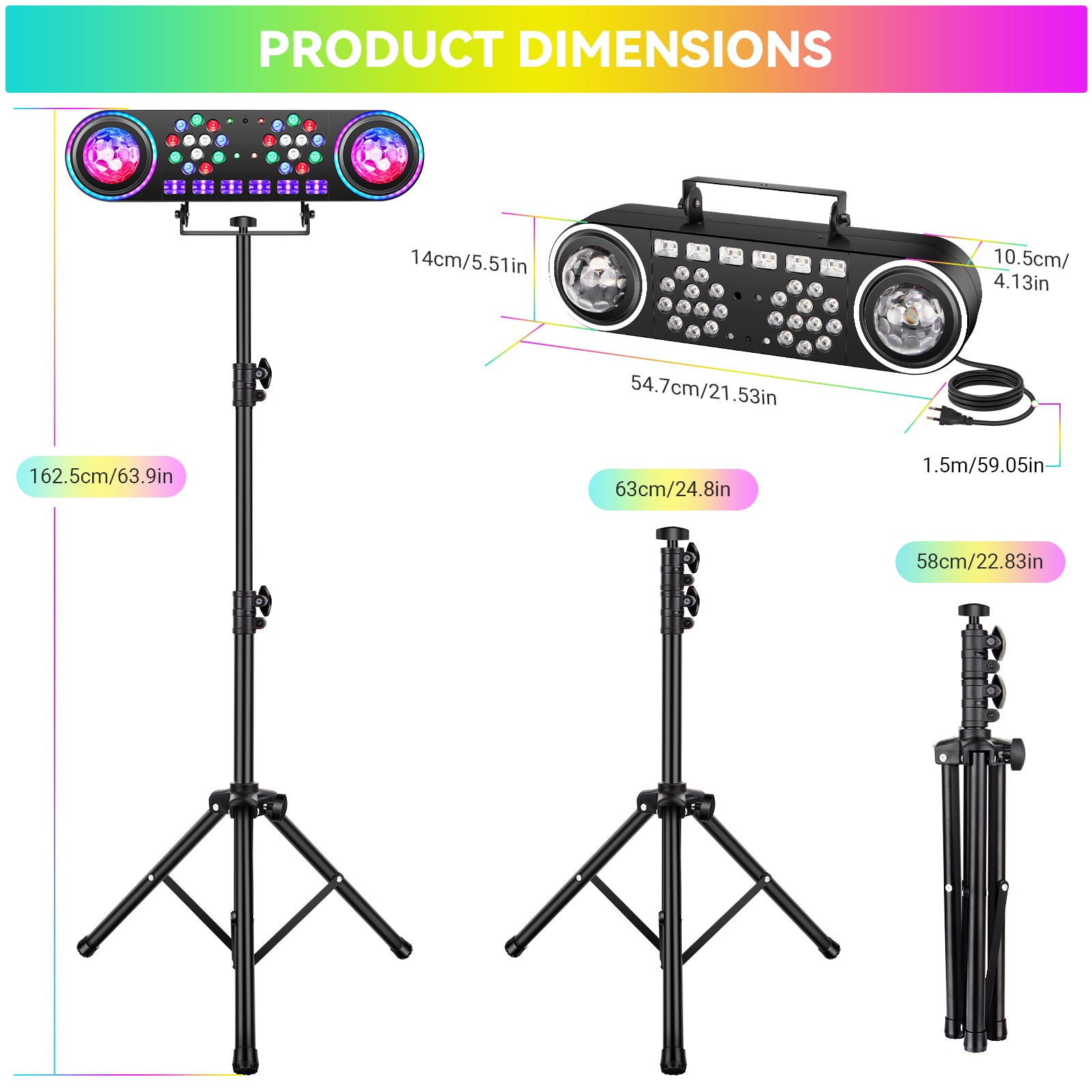

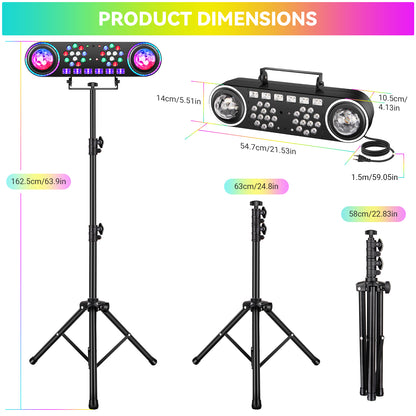

• Fixture Dimensions: 21.5 × 5.5 × 4.1 in (54.7 × 14 × 10.5 cm)

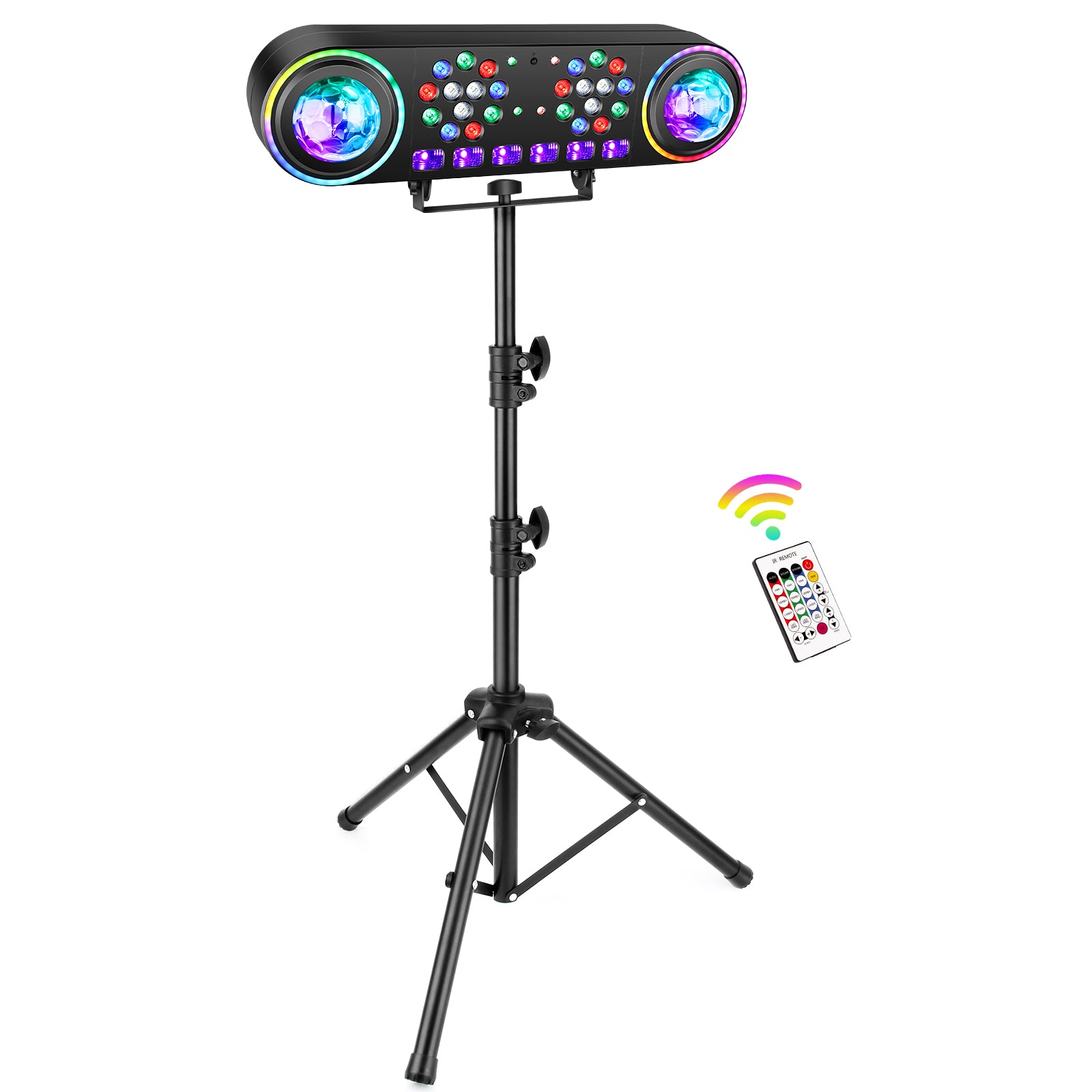

• Tripod Extended: 1.5 m (4.9 ft) integrated support
• Tripod Folded: 24.8 in (63 cm)
• Weight: 4.4 lb (2 kg)

Installation

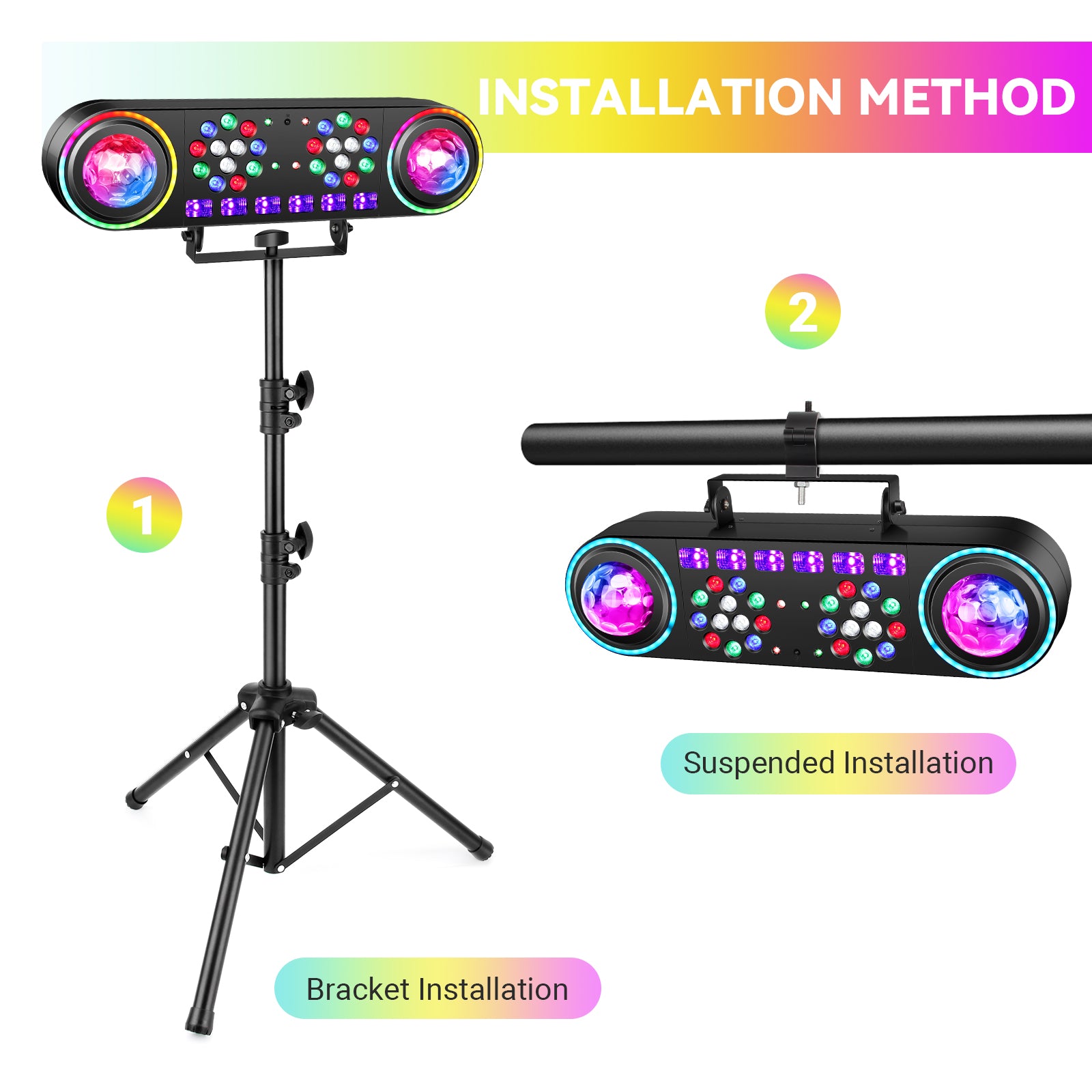

• Mounting: Extend the tripod legs on a flat, stable surface, raise the support rod, then secure the light connector to the fixture with the included screws. Insert the support rod into the connector and lock all screws firmly.
• Truss mounting: A clamp attachment point is built into the handle. Use an appropriately rated clamp (not included) and always secure with an independently rated safety cable.
• Grounding: The fixture is Protection Class 1 and must be properly grounded. Do not plug into a dimmer pack.
• Ventilation: Allow at least 6 in (15 cm) of clearance around the fixture. Do not operate when ambient temperature exceeds 104°F (40°C).
• Minimum distance: Keep at least 1.6 ft (0.5 m) from any surface and 8 in (20 cm) from flammable materials.
• Laser safety: Never aim the laser at people, aircraft, or reflective surfaces. Maintain at least 11 ft (3.3 m) from any audience.

Cleaning

• Housing: Wipe the housing with a dry, lint-free cloth. Do not use solvents or abrasive cleaners.
• Lenses: Clean PAR, disco-ball, and laser lenses gently with a soft cloth to preserve output.

Maintenance

• Cool-Down: Allow approximately 15 minutes for the fixture to cool before packing or servicing.
• Storage: Fold the tripod and store the fixture in a dry, temperature-stable environment.
• Inspection: Periodically check that all screws, cables, and tripod locking collars remain secure. Contact YeeSite support if performance changes noticeably.

For detailed instructions, check out the user guide.
