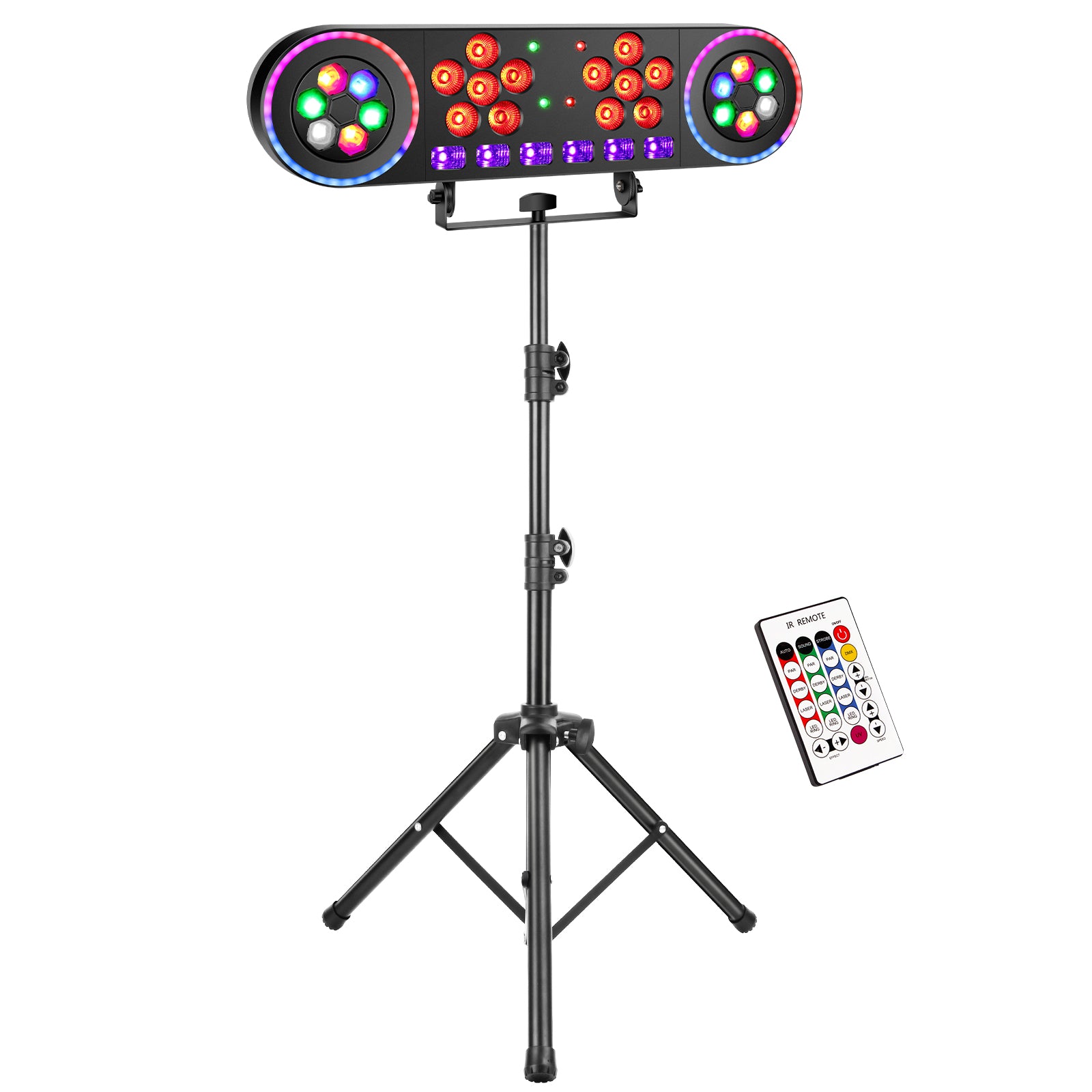

120W 6-in-1 DJ Party Light with Tripod Stand

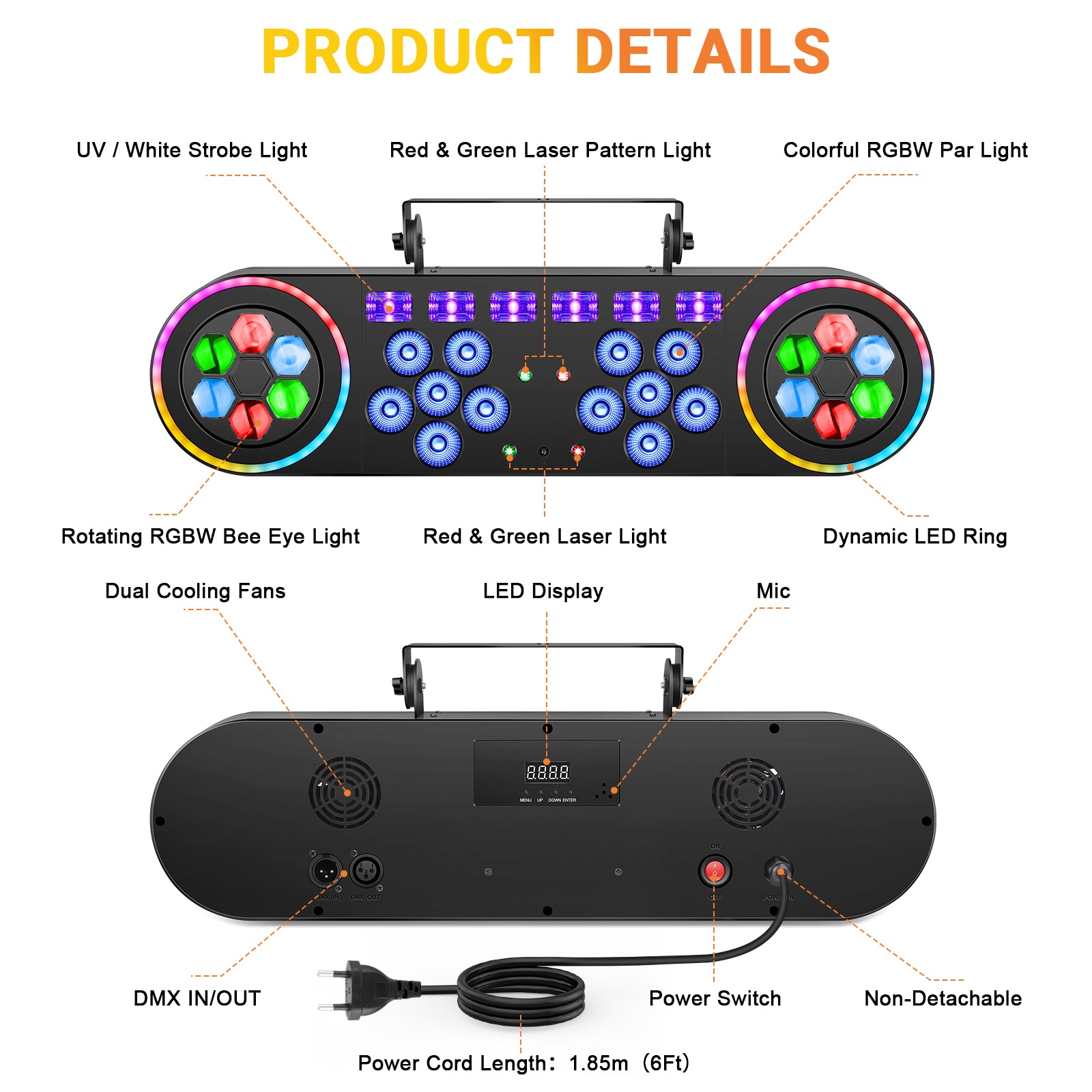

Light Source & Optical

• PAR: 2 × (6 × 10W RGBW 4-in-1 LEDs)
• Bee Eye: 2 × (6 × 8W RGBW 4-in-1 LEDs), Motorized Rotating Honeycomb Lens
• Strobe: 6 × 4W White + UV LEDs (UV 395–400nm)
• LED Rings: 2 × 24 × 5050 RGB 3-in-1 LEDs
• Laser: 50mW Green + 100mW Red
• Laser Pattern: 50mW Green + 100mW Red, Motorized Pattern Movement
• Total Power: 120W

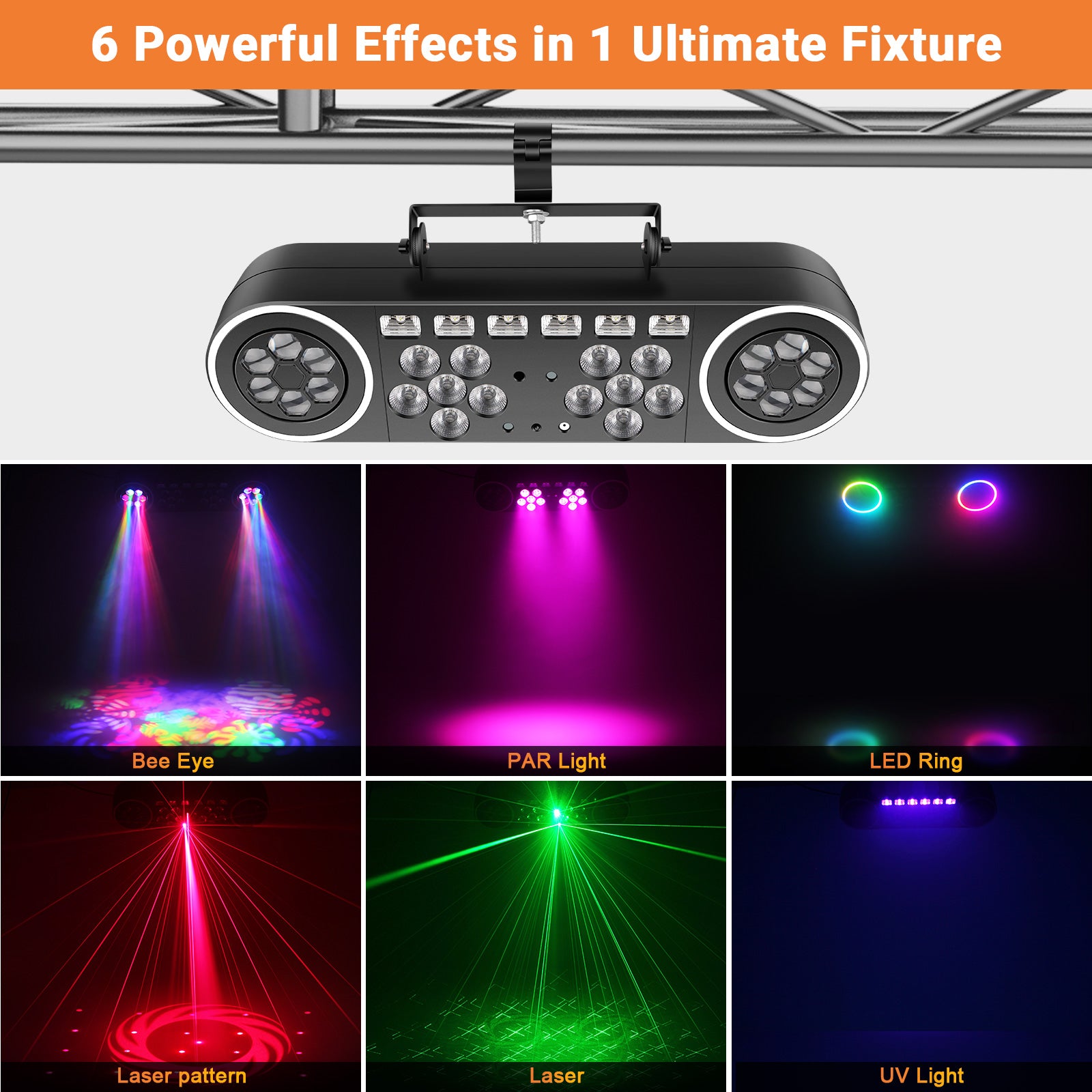

• Built-In Effects: 118 Auto Effects (6 PAR / 10 Bee Eye / 6 UV / 84 Ring / 6 Laser / 6 Laser Pattern)
• Static Colors: 15 PAR / 15 Bee Eye / 7 Ring / 3 UV-White / 3 Laser / 3 Laser Pattern
• Dimming: 0–100% per color, per section; Variable-Speed Strobe

Control & Connections

• Control Modes: DMX512, Auto, Sound Active (2 Modes), IR Remote, Master-Slave
• DMX Channels: 3 Modes — 21 / 40 / 48 Channels
• Sound Sensitivity: Adjustable 0–99
• Display: LED Display with Menu / Up / Down / Enter
• Data Connectors: DMX In/Out
• Remote: 21-Key IR Remote (Included); IR On/Off via System Menu
• DMX Fail Modes: Blackout or Hold Last Value

Electrical & Physical

• Power Consumption: 120W
• Input Voltage: AC 120V, 50/60Hz (Auto-ranging)
• Power Input: DC Port
• Max Ambient Temperature: 104°F (40°C)
• Protection Rating: IP20 (Indoor Use Only)

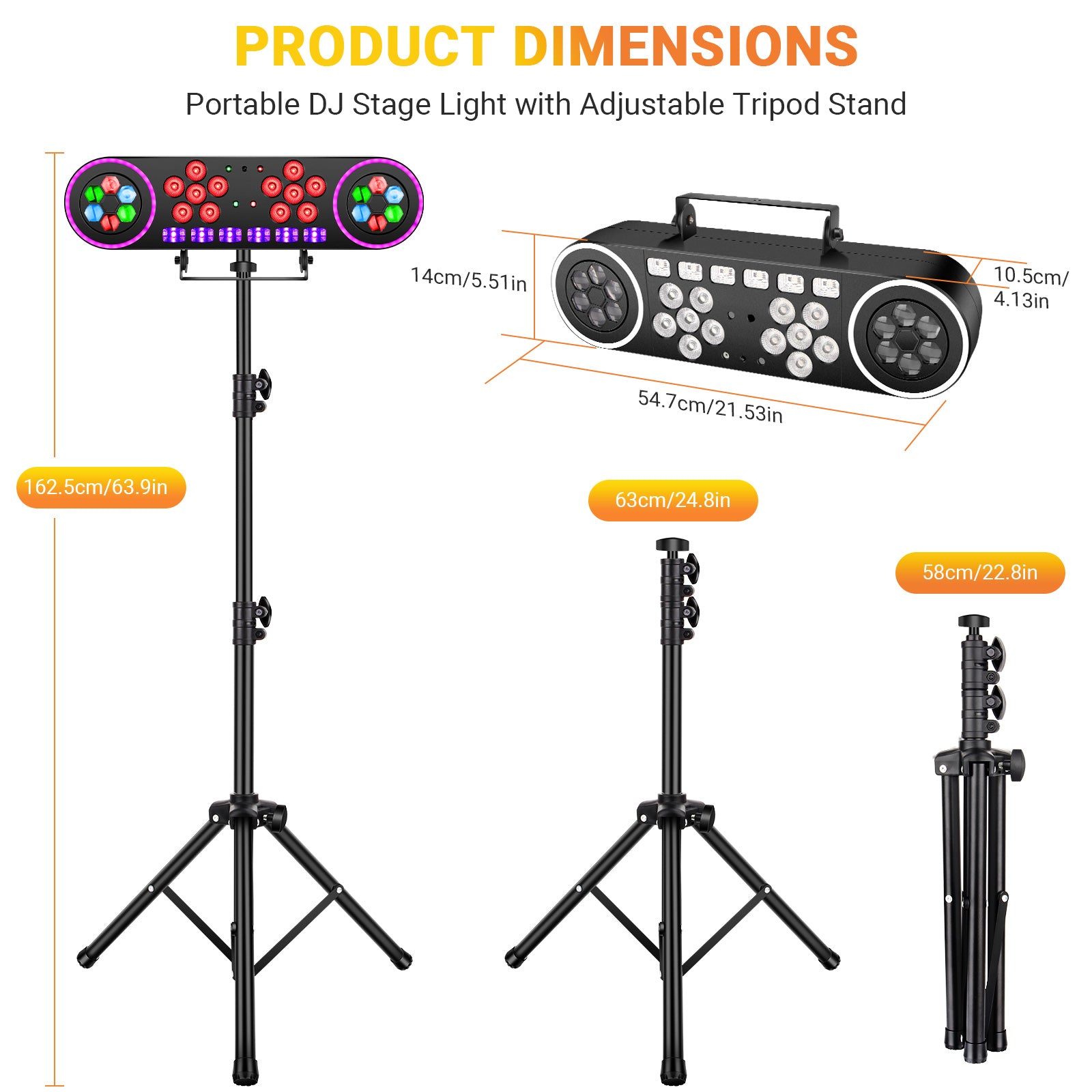

• Tripod: Height-Adjustable, 22.8–56.1 in (58–142.5 cm)
• Dimensions: 21.5 × 5.5 × 4.1 in (54.7 × 14 × 10.5 cm)
• Weight: 4.4 lb (2.0 kg)

Installation

• Mounting: Extend the tripod's three legs, insert the support rod into the fixture's connector interface, and secure with the screws and mounting knob. The fixture can also be rigged overhead using M10-rated hardware and a safety cable.
• Placement: Keep a minimum of 1.6 ft (0.5 m) from objects and surfaces, and at least 8 in (20 cm) from flammable materials. Position the tripod on flat, stable ground away from foot traffic.
• Laser Safety: Mount so the laser apertures project above head height and never aim laser output at people, animals, aircraft, vehicles, or reflective surfaces. Do not operate the fixture with damaged or missing lens covers.
• UV Safety: The strobe section emits high-intensity UV light (395–400nm, Risk Group 3). Avoid direct eye and skin exposure, and never stare into the fixture during operation.
• Safety: When suspending overhead, always attach an appropriately rated safety cable — never rely on the clamp alone. Never stand directly below the fixture during rigging.
• Power: Connect to a properly grounded outlet. This is a Class 1 fixture — never remove the ground prong, and never connect it to a dimmer pack.
• DMX Wiring: Connect DMX In/Out in a daisy chain and set each unit's starting address (e.g., in 21-CH mode: unit 1 = 1, unit 2 = 22, unit 3 = 43).

Cleaning

• Lenses: Wipe the bee eye, PAR, ring, and laser aperture lenses with a soft microfiber cloth — dust dulls beam definition and laser pattern sharpness.
• Housing: Wipe the chassis with a dry or lightly damp cloth. Do not use alcohol or solvents, and never spill liquid onto the fixture, power system, or remote.
• Ventilation: Keep vent openings clear of dust to maintain proper cooling.

Maintenance

• Inspection: Periodically check the tripod locks, mounting screws, and any rigging hardware for tightness and wear.
• Cooling: Power the fixture down when not in use, and allow about 15 minutes of cool-down before handling or servicing.
• Operating Limit: Do not operate when ambient temperature exceeds 104°F (40°C).

For detailed instructions, check out the user guide.
