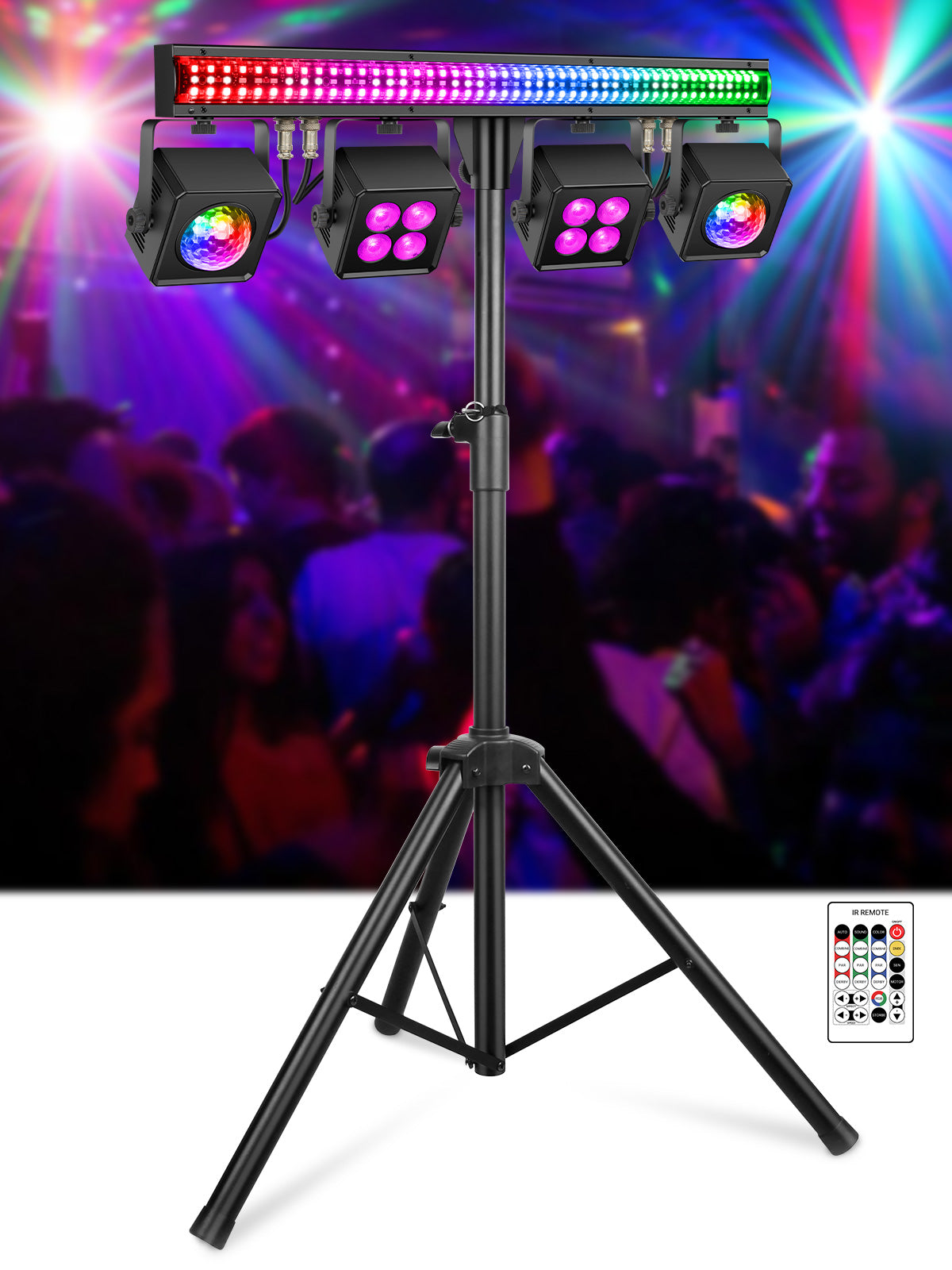

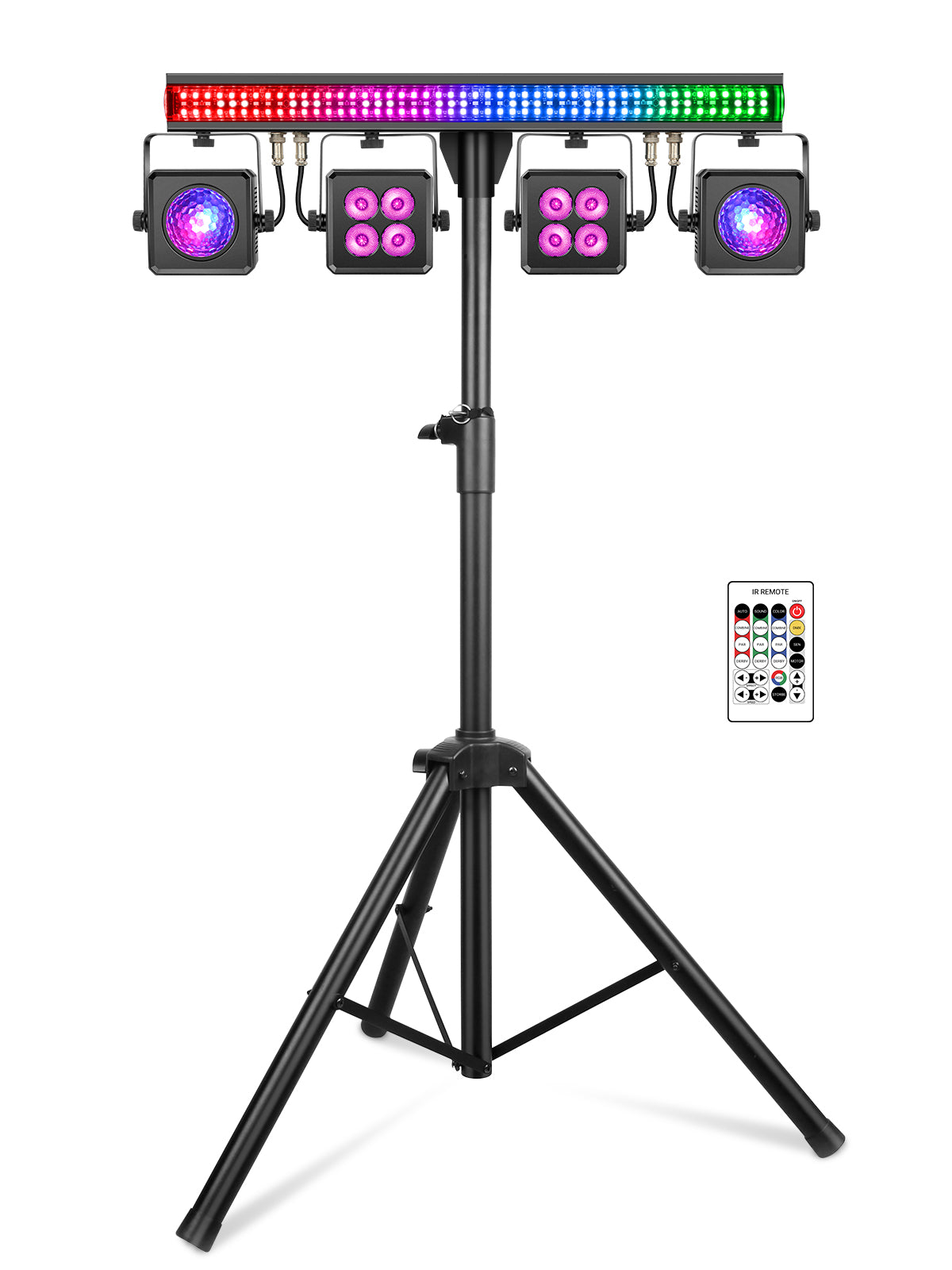

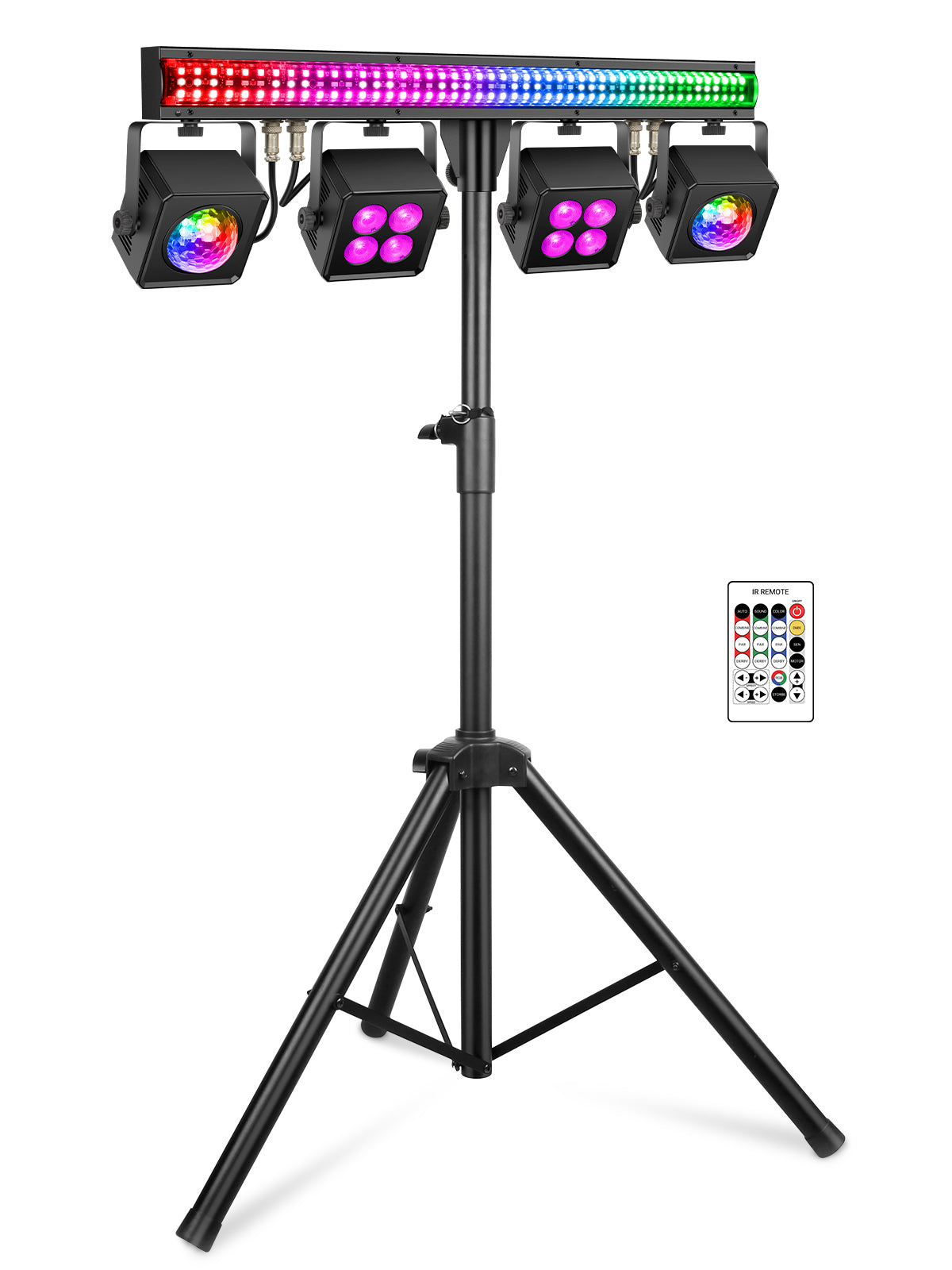

150W 5-in-1 DJ Party Light with Tripod Stand

Light Source & Optical

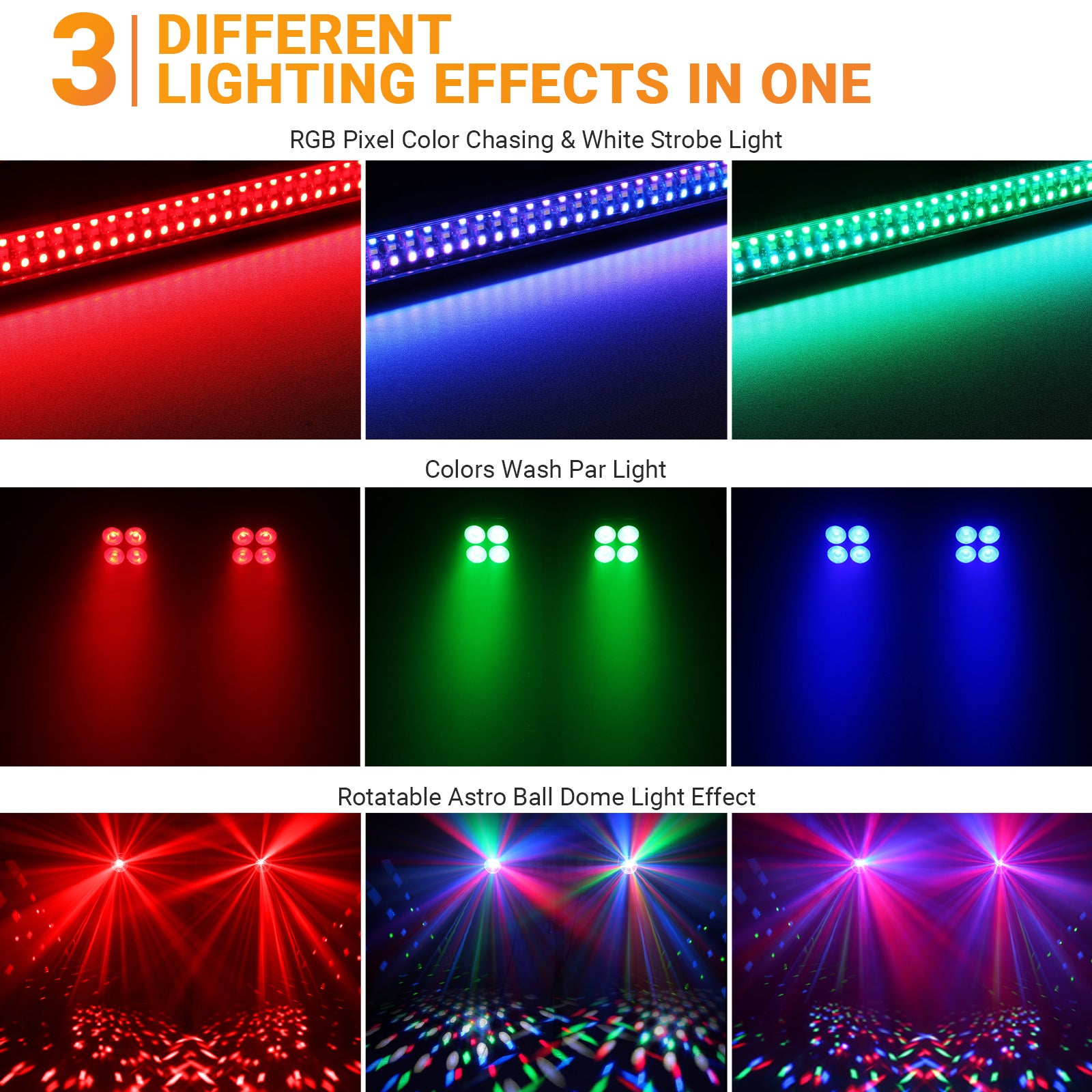

• PAR Lights: 2 × (4 × 10W RGBW 4-in-1 LEDs)
• Derby (Magic Ball) Lights: 2 × (4 × 10W RGBW LEDs), Motorized Rotation (Bidirectional, Variable Speed)
• Pixel Bar: 96 × 5050 RGB 3-in-1 SMD LEDs + 48 × 1W White LEDs
• Total Power: 150W
• Built-In Effects: 73 Pixel Bar RGB / 51 Pixel Bar White / 35 PAR + Derby Auto Effects
• Static Colors: 15 (PAR) / 15 (Derby) / 7 (Pixel Bar RGB)
• Strobe: Independent White Strobe Bar, Variable Speed
• Dimming: 0–100% per color, per section

Control & Connections

• Control Modes: DMX512, Auto, Sound Active (8 Modes), IR Remote, Master-Slave
• DMX Channels: 4 Modes — 12 / 29 / 33 / 46 Channels
• Sound Sensitivity: Adjustable 0–99

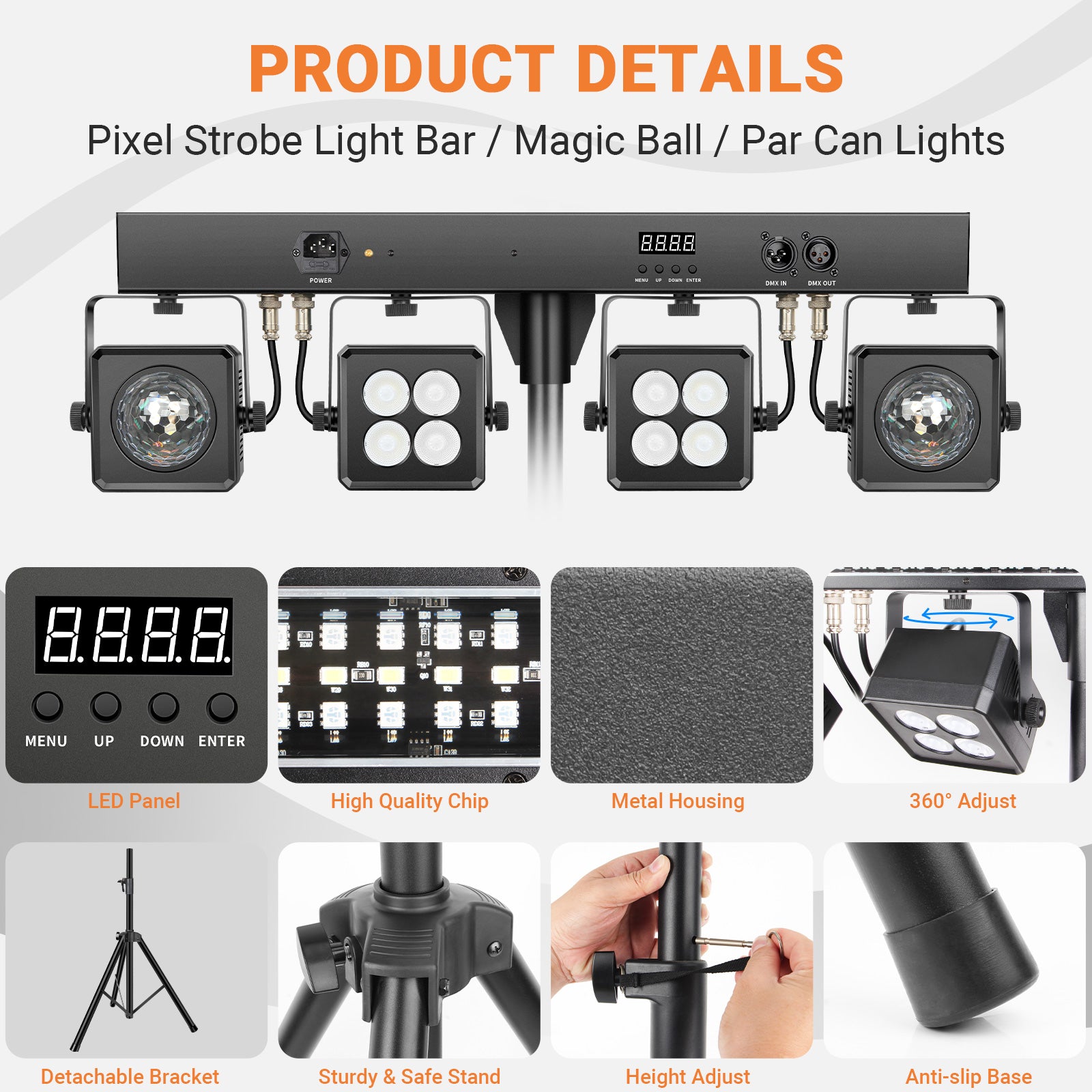

• Display: LED Display with Menu / Up / Down / Enter
• Data Connectors: DMX In/Out
• Remote: 21-Key IR Remote (Included); IR On/Off via System Menu
• DMX Fail Modes: Blackout or Hold Last Value

Electrical & Physical

• Power Consumption: 150W
• Input Voltage: AC 110–240V, 50/60Hz (Auto-ranging)
• Fuse: 250V
• Max Ambient Temperature: 104°F (40°C)
• Protection Rating: IP20 (Indoor Use Only)

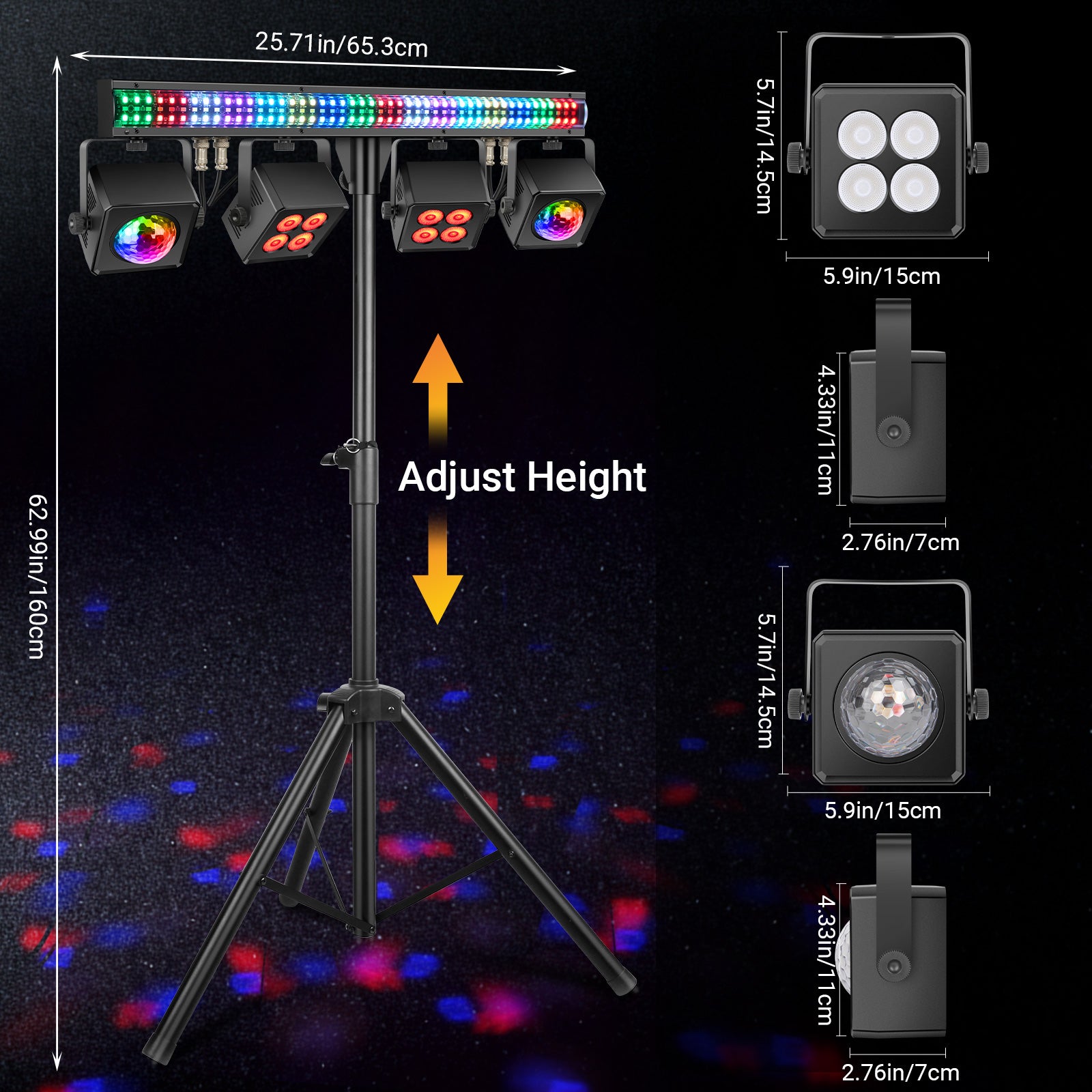

• Tripod: Height-Adjustable, 35.4–63 in (89–160 cm)

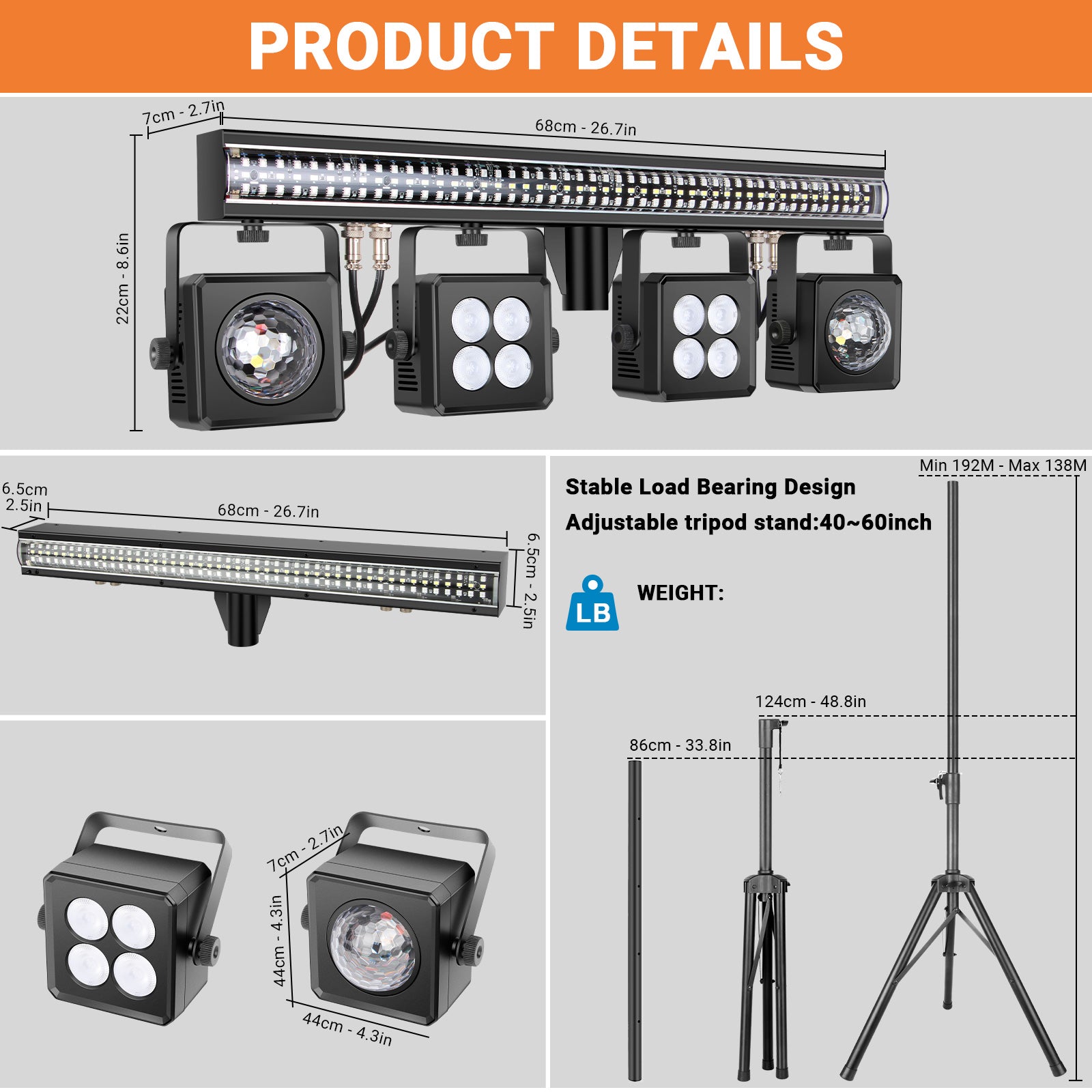

• Fixture Dimensions: 15.3 × 7.8 × 32.7 in (38.8 × 19.8 × 83 cm)
• Weight: 17.6 lb (8.0 kg)

Installation

• Mounting: Extend the tripod's three legs, raise the support rod to the desired height, and seat the fixture head on the bracket. The fixture can also be rigged overhead using M10-rated hardware and a safety cable.
• Placement: Keep a minimum of 1.6 ft (0.5 m) from objects and surfaces, and at least 8 in (20 cm) from flammable materials. Position the tripod on flat, stable ground away from foot traffic.
• Safety: When suspending overhead, always attach an appropriately rated safety cable — never rely on the clamp alone. Never stand directly below the fixture during rigging.
• Power: Connect to a properly grounded outlet. This is a Class 1 fixture — never remove the ground prong, and never connect it to a dimmer pack.
• DMX Wiring: Connect DMX In/Out in a daisy chain and set each unit's starting address (e.g., in 12-CH mode: unit 1 = 1, unit 2 = 13, unit 3 = 25).

Cleaning

• Lenses: Wipe the PAR, derby, and pixel bar lenses with a soft microfiber cloth — dust dulls both color output and the derby beam patterns.
• Housing: Wipe the chassis with a dry or lightly damp cloth. Do not use alcohol or solvents, and never spill liquid onto the fixture or remote.
• Ventilation: Keep vent openings clear of dust to maintain proper cooling.

Maintenance

• Inspection: Periodically check the tripod locks, mounting bracket, and any rigging hardware for tightness and wear.
• Cooling: Power the fixture down when not in use, and allow about 15 minutes of cool-down before handling or servicing.
• Operating Limit: Do not operate when ambient temperature exceeds 104°F (40°C).

For detailed instructions, check out the user guide.
