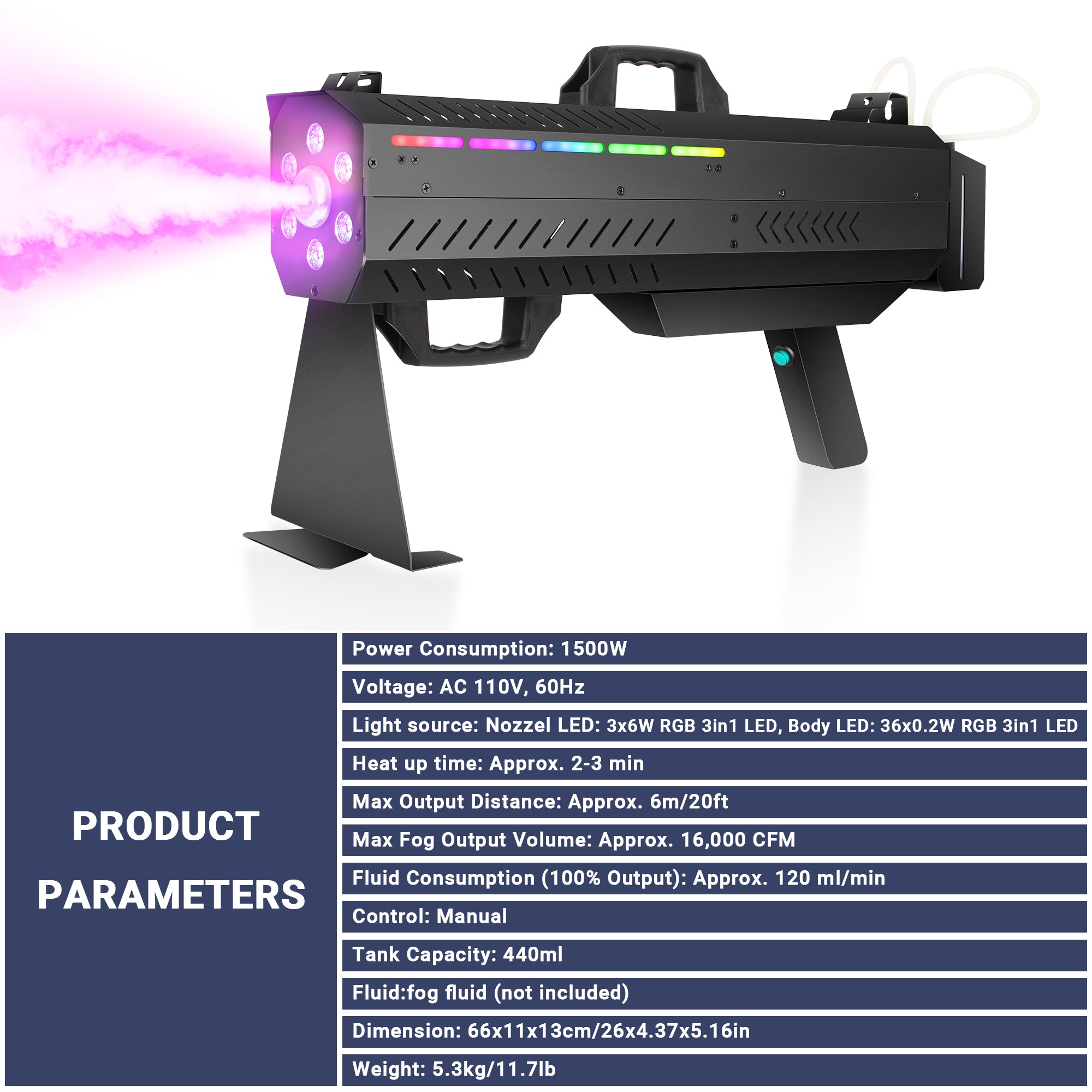

Tech Specs
Light Source & Output
  • Heater Power: 1500 Watts

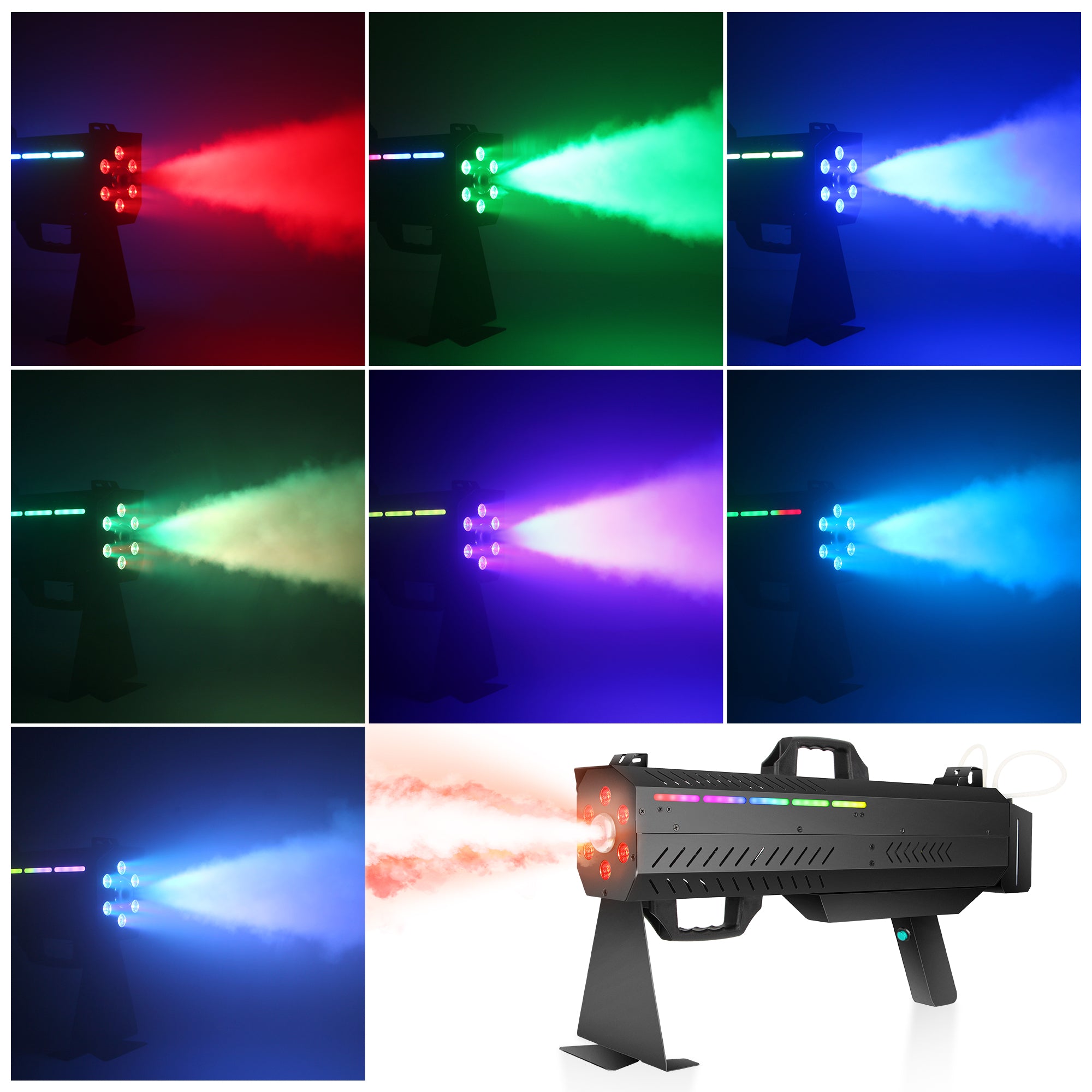

  • Nozzle LEDs: 3pcs x 6W RGB (3-in-1)
  • Body LEDs: 36pcs x 0.2W RGB (3-in-1)
  • Max Fog Output: Approx. 16,000 CFM
  • Output Distance: Approx. 20 ft (6 m)
  • Warm-Up Time: Approx. 2-3 Minutes
Fluid System
  • Fluid Tank Capacity: 0.12 Gal (440ml)
  • Fluid Consumption: Approx. 120ml/min (at 100% output)
  • Max Continuous Duration: Approx. 30 seconds
Electrical & Physical
  • Input Voltage: AC 110V, 60Hz
  • Control: On-device Manual Control (LCD)

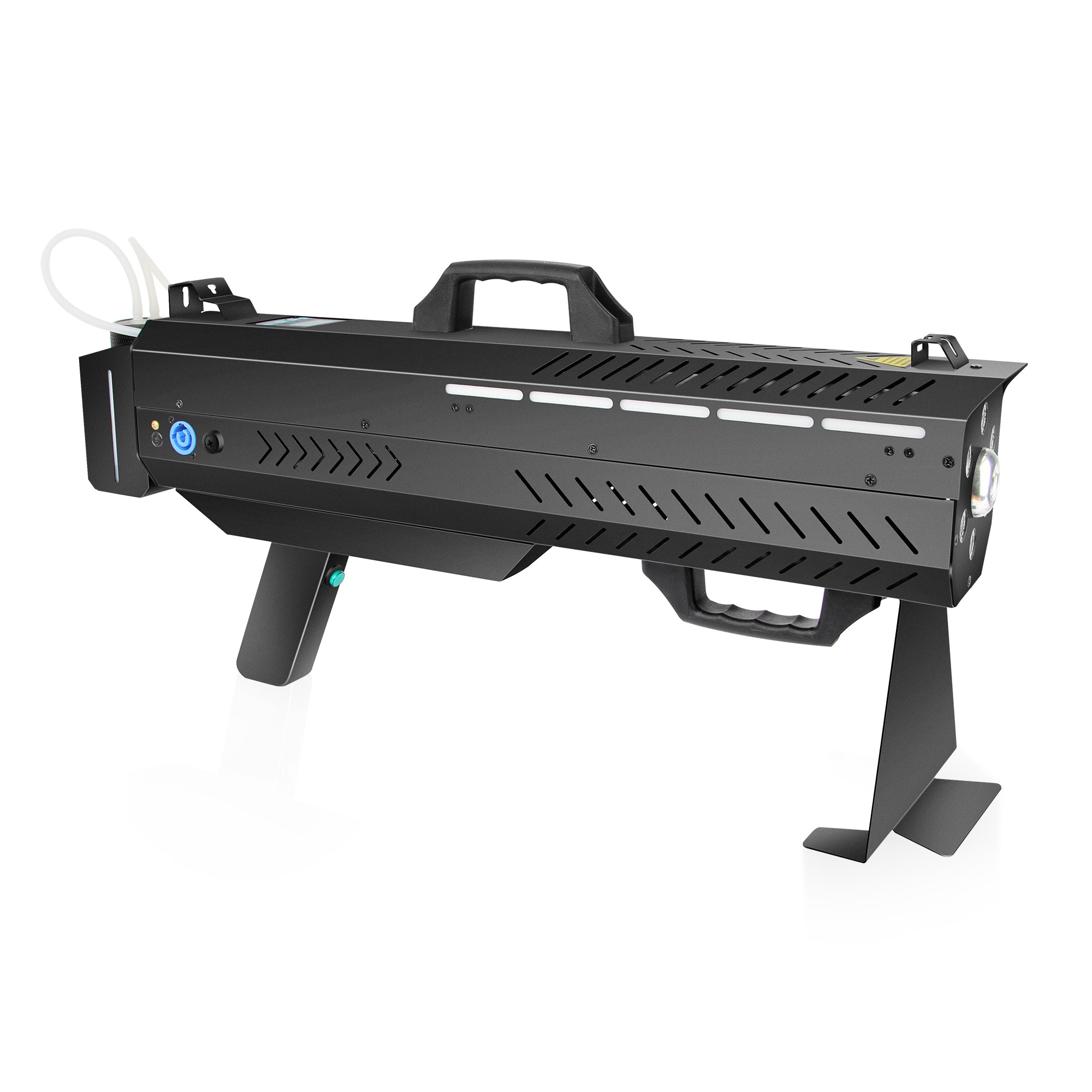

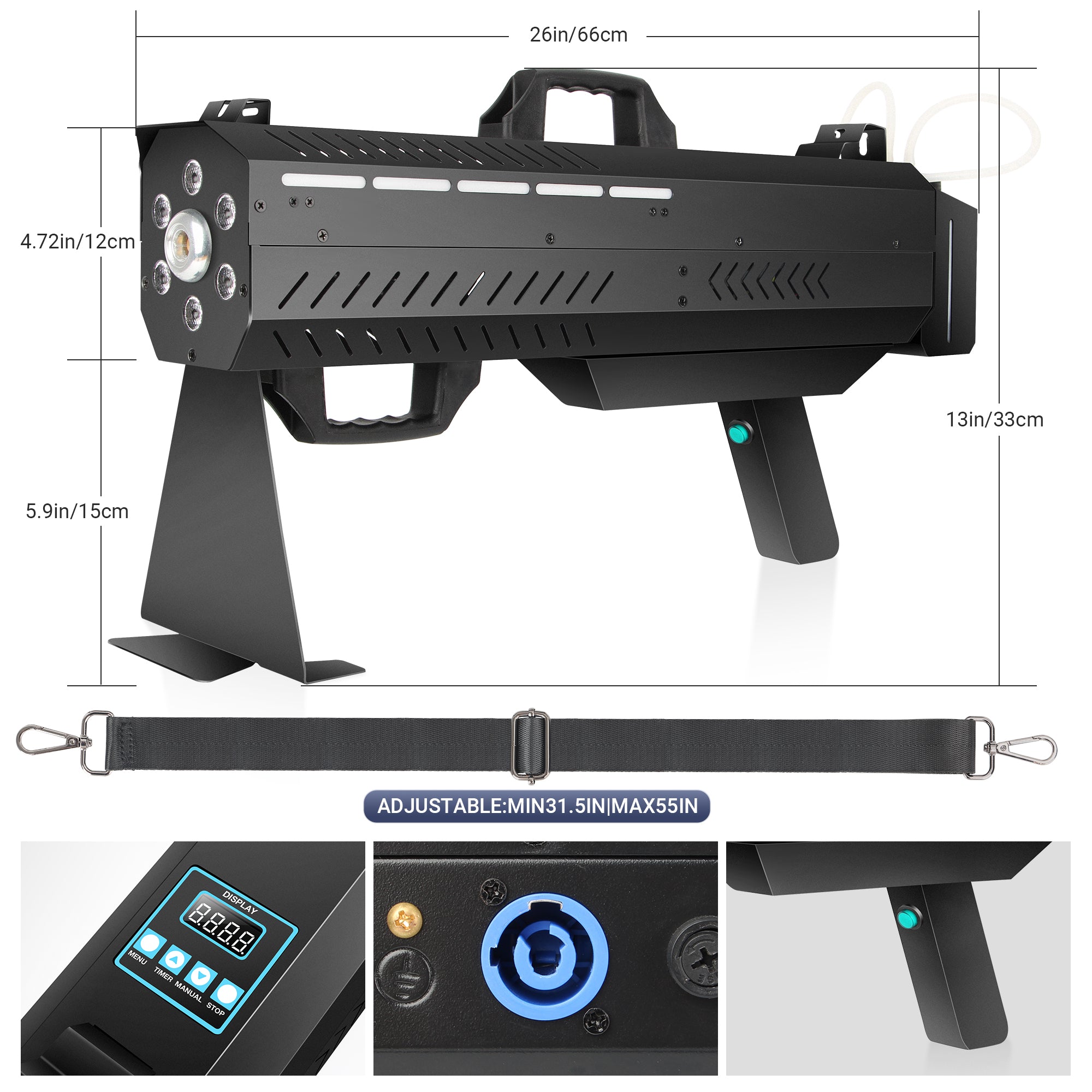

  • Dimensions: 26.0 × 4.4 × 5.2 in (66 × 11 × 13 cm)
  • Weight: 11.7 lb (5.3 kg)
Installation, Cleaning & Maintenance
Installation
  • Mounting Orientation: This unit allows Horizontal placement and Rigging/Trussing. Do NOT mount inclined, sidelong, or upside down.

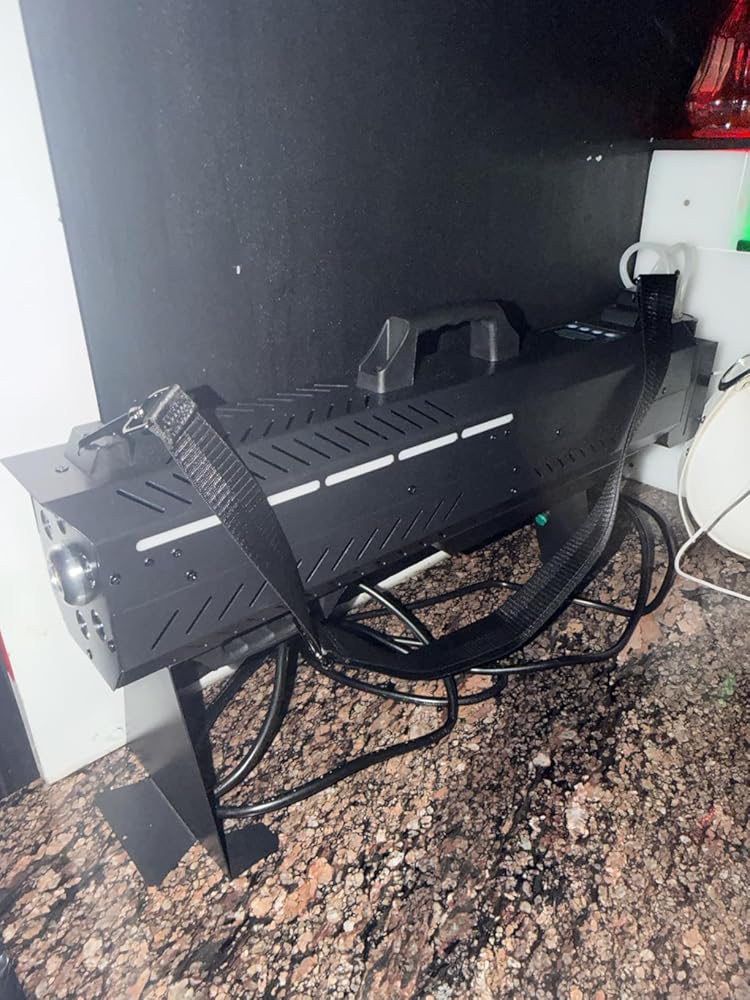

  • Setup: For handheld use, verify the shoulder strap is securely locked. For static use, place on a stable flat surface using the floor stand.
  • Ventilation: Ensure the intake fans and exhaust vents are not blocked by fabric or walls during operation.
Cleaning
  • Fluid System: To prevent heater clogging, run a cleaning solution (distilled water + vinegar) through the system after every 40 hours of use.
  • Nozzle: Wipe the LED nozzle area with a damp cloth to remove fluid residue that can obscure the lights.
Maintenance
  • Storage: Always empty the 440ml fluid tank before transport to prevent internal leakage into the electronics.
  • Cool Down: Allow the unit to cool for 10 minutes before placing it in a case or bag.

For detailed instructions, check out the user guide.

Compliance & Certification

The 1500W Handheld LED Fog Machine is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Machine

  • Stand

  • Strap

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Can I hold the trigger down forever?

No, the maximum continuous burst duration is approximately 30 seconds, after which the unit may need to reheat briefly.

Does this require CO2 tanks?

No, it uses standard water-based fog fluid, making it safer and cheaper than traditional CO2 systems.

Is it heavy to carry?

It weighs 11.7 lbs (5.3kg). The included shoulder strap distributes the weight for easier handling.

How long does a full tank last?

With a 440ml tank and 120ml/min consumption, a full tank lasts approximately 3.5 minutes of total blasting time.
