Dive Deeper

Tech Specs
Performance
  • Power: 600 Watts
  • Warm-up Time: Approx. 6 Minutes
  • Tank Capacity: 0.53 Gallons (2.0 Liters)
  • Haze Volume Levels: 3 Adjustable Levels (1-3) via Manual/Remote
Control & Connections
  • Control Protocol: DMX512, Wireless Remote, Manual Menu
  • DMX Channels: 1 Channel (Value 0-5: Off, 6-255: Volume Low to High)
  • Connectors: 3-Pin XLR In/Out
  • Display: Digital LED Menu
Electrical & Physical
  • Voltage: AC 110V, 60Hz (Fixed Voltage)

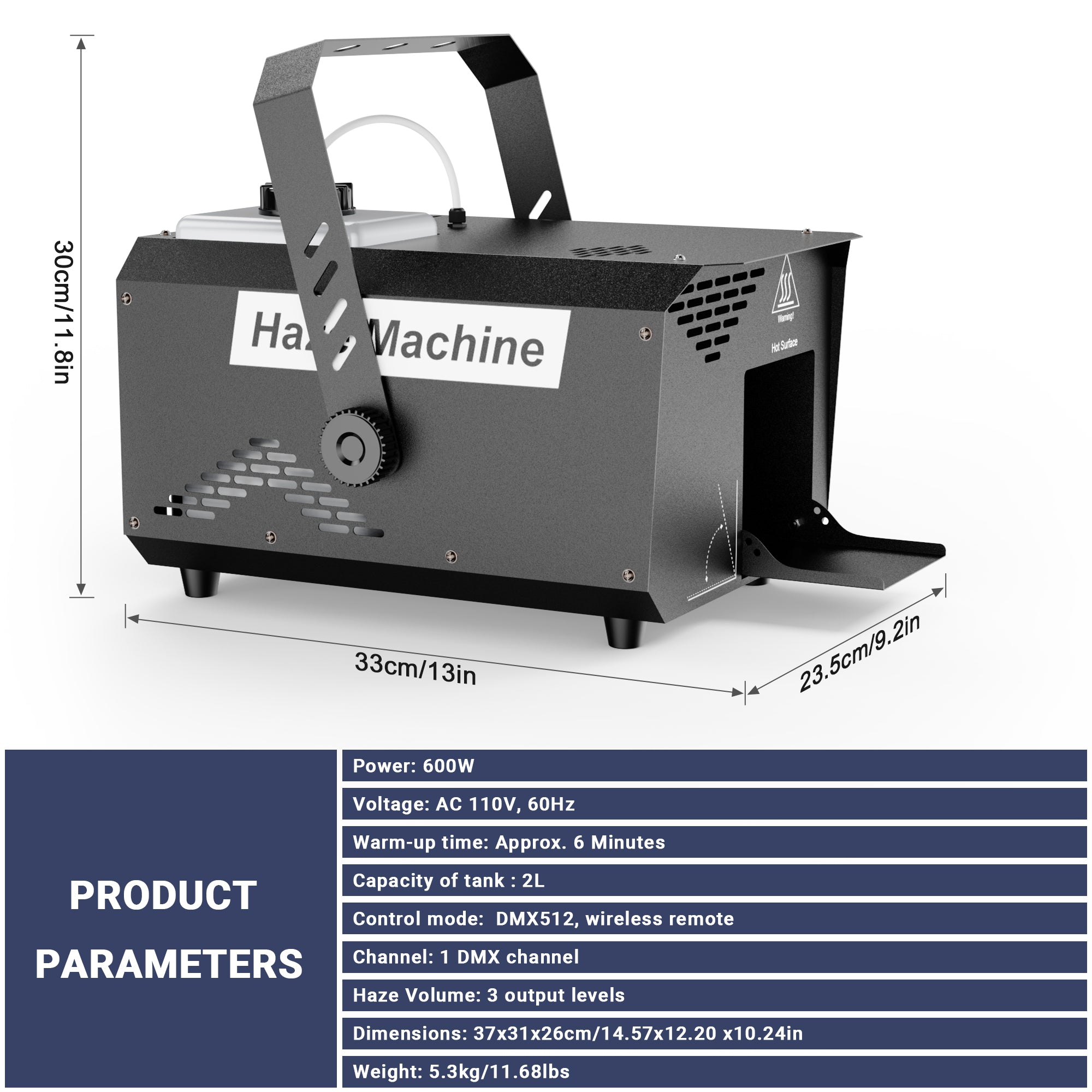

  • Dimensions: 14.57 × 12.20 × 10.24 in (37 × 31 × 26 cm)
  • Weight: 11.68 lbs (5.3 kg)
  • Housing Material: Metal
  • IP Rating: IP20 (Indoor Use Only)
Installation, Cleaning & Maintenance
Installation
  • Orientation: The machine must be installed on a flat surface or hung from a truss. It must NOT be tilted. Ensure it is level.

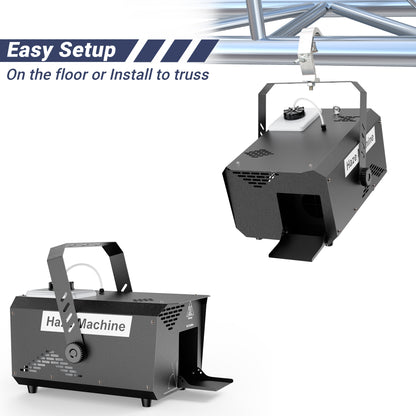

  • Rigging: If suspending from a truss, use a rated mounting clamp (M10 bolt hole) and always attach a safety cable to the safety loop.
  • Clearance: Maintain at least 20 inches (50 cm) of clearance from adjacent surfaces for ventilation. Do not place near flammable materials (12 inches / 0.3m distance).
Cleaning
  • Schedule: Clean the system after every 40 hours of operation to prevent heater clogging.

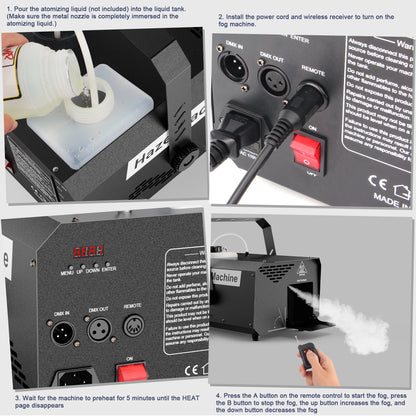

  • Procedure: Empty the haze fluid, then fill the tank with cleaning water (distilled water recommended). Run the machine in a well-ventilated area until the tank is almost empty. Refill with haze fluid and run briefly to clear water from the pump.
Maintenance
  • Storage: Before storing, run the cleaning cycle. Do NOT store with fluid in the tank. Disconnect power completely.
  • Fuse Replacement: If the unit fails to power on, check the fuse located in the power socket. Replace only with the exact same type and rating.

For detailed instructions, check out the user guide.

Compliance & Certification

The 600W Haze Machine is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Machine

  • Remote Control

  • Wireless Receiver

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

How long does it take to warm up?

The initial heat-up time is approximately 6 minutes.

Can I hang this upside down?

Yes, it can be suspended from a truss using the mounting bracket, but ensure the unit itself remains relatively level to prevent fluid leakage.

Does it run continuously?

Yes, the specialized heating system allows for continuous output at full power without needing to stop and reheat constantly.

Does it come with a remote?

Yes, a wireless remote control and receiver are included in the box.
