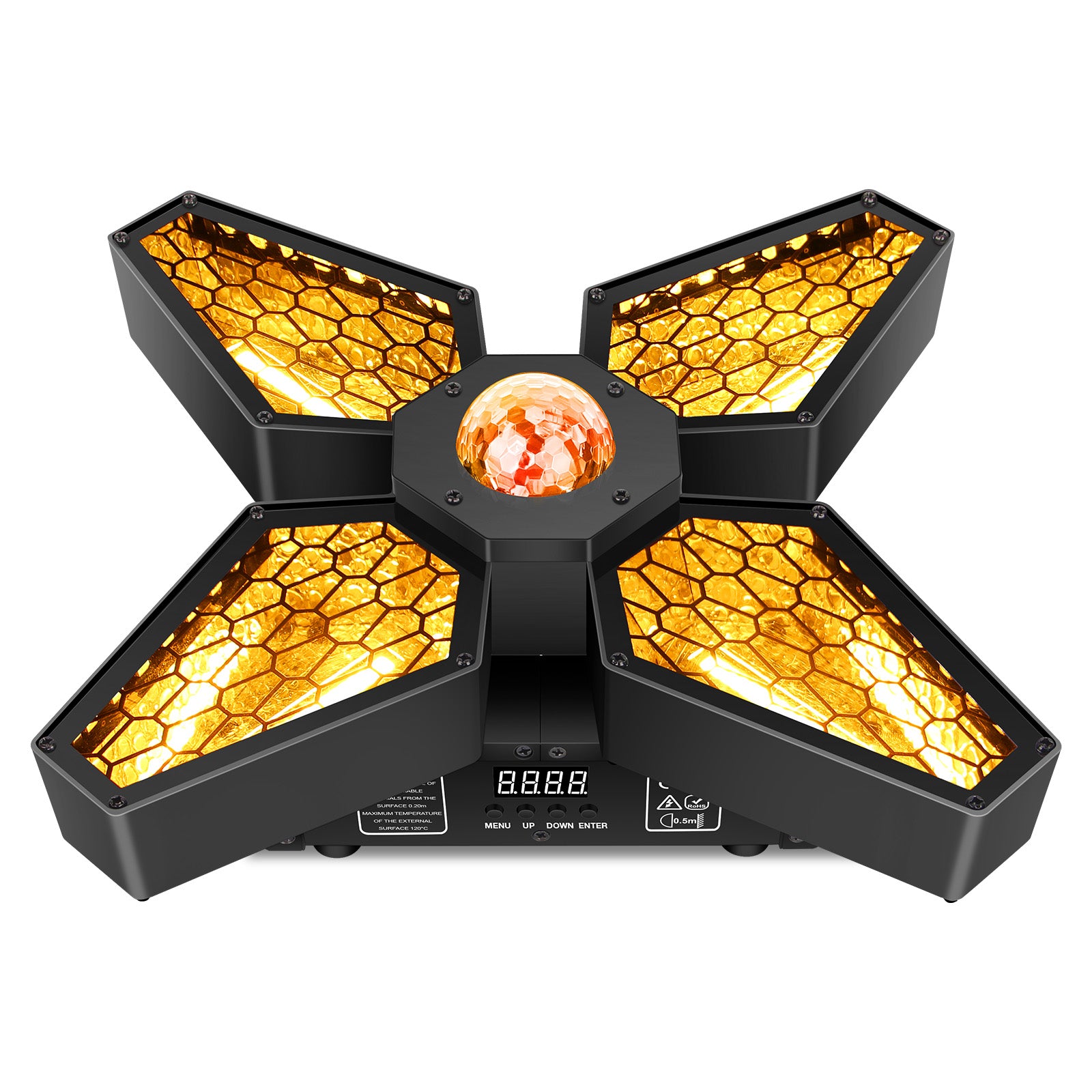

100W 3-in-1 Effect / RGBW LED 4-Leaves Moving Head Effect Light

Light Source & Optical

• LEDs: 4 × 20W Golden LED + 56 × 5050 RGB SMD LED + 1 × 20W 5050 RGBW Magic Ball LED

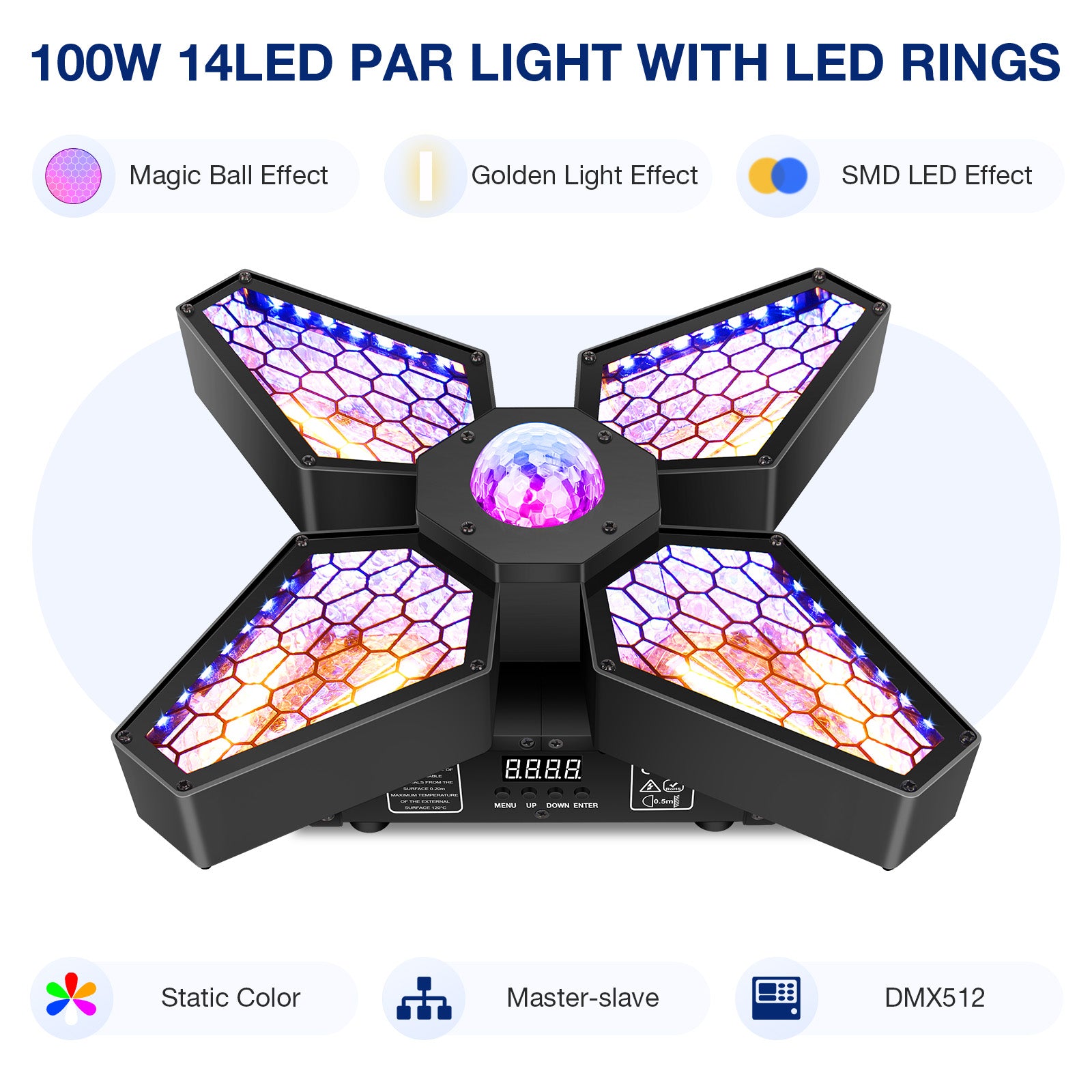

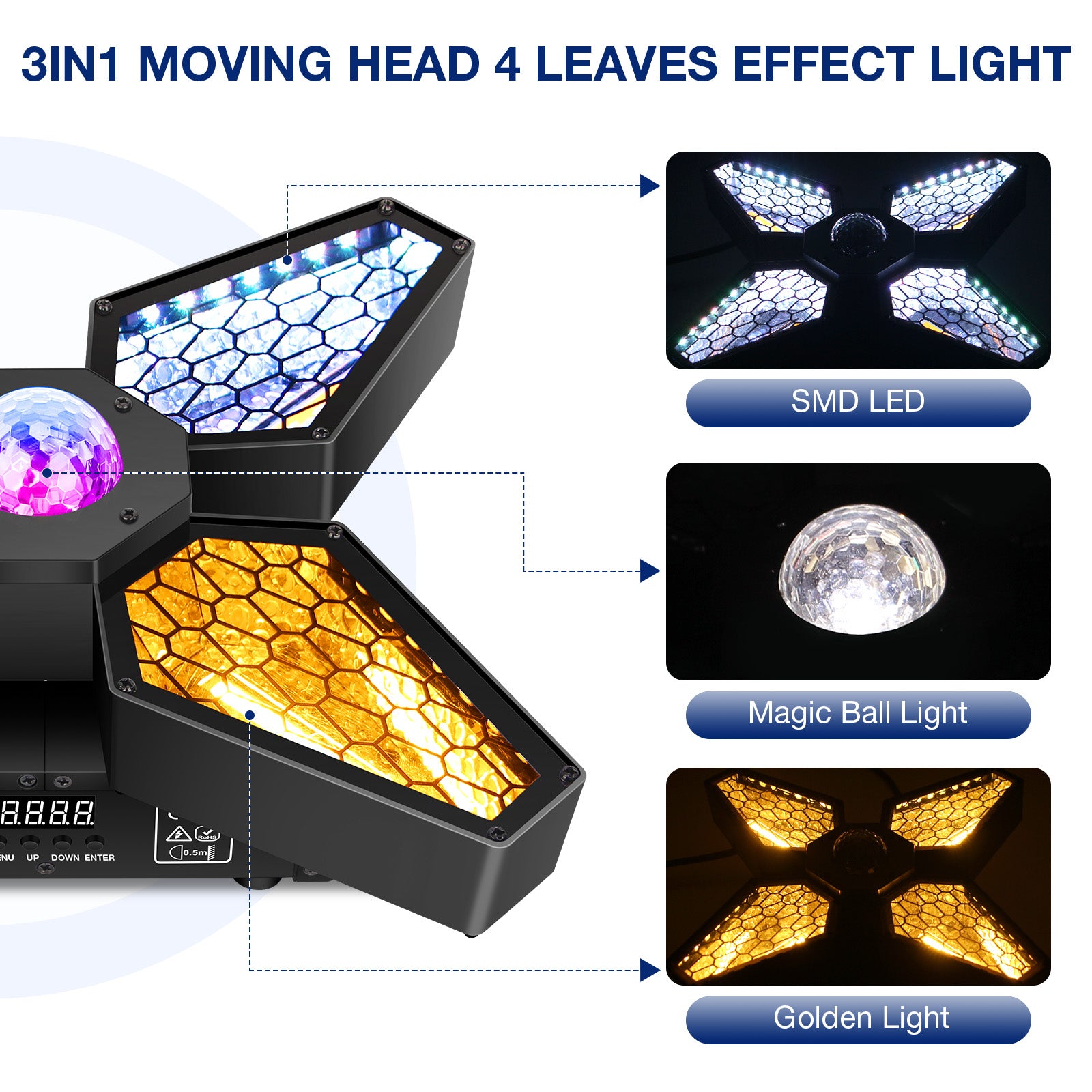

• Effect systems: 4 folding SMD RGB leaves, spinning RGBW magic ball, retro amber golden array
• Built-in effects: 9 golden light × 5 magic ball × 28 SMD LED
• Beam behavior: Endless X-axis rotation, adjustable speed (slow to fast)
• Strobe: Independent strobe on magic ball, SMD LED, and golden channels

Control & Connections

• Control modes: DMX-512, master-slave, auto (3 built-in banks), sound-reactive
• DMX channel modes: 13 CH / 17 CH / 26 CH / 29 CH / 36 CH
• DMX map (17 CH, mid-tier): CH1 X-direction, CH2 X-endless rotation, CH3 X-fine, CH4 X-speed, CH5 master dim, CH6 strobe, CH7–10 magic ball R/G/B/W, CH11–14 golden 1–4 dim, CH15–17 SMD LED R/G/B + reset
• DMX map (26 CH): adds independent magic ball / SMD LED strobe channels, mode + speed selectors, and split R/G/B/W dimmers per effect bank
• DMX map (29 CH): full per-leaf SMD LED control (R1/G1/B1 through R4/G4/B4) + magic ball RGBW + golden 1–4 + built-in programs

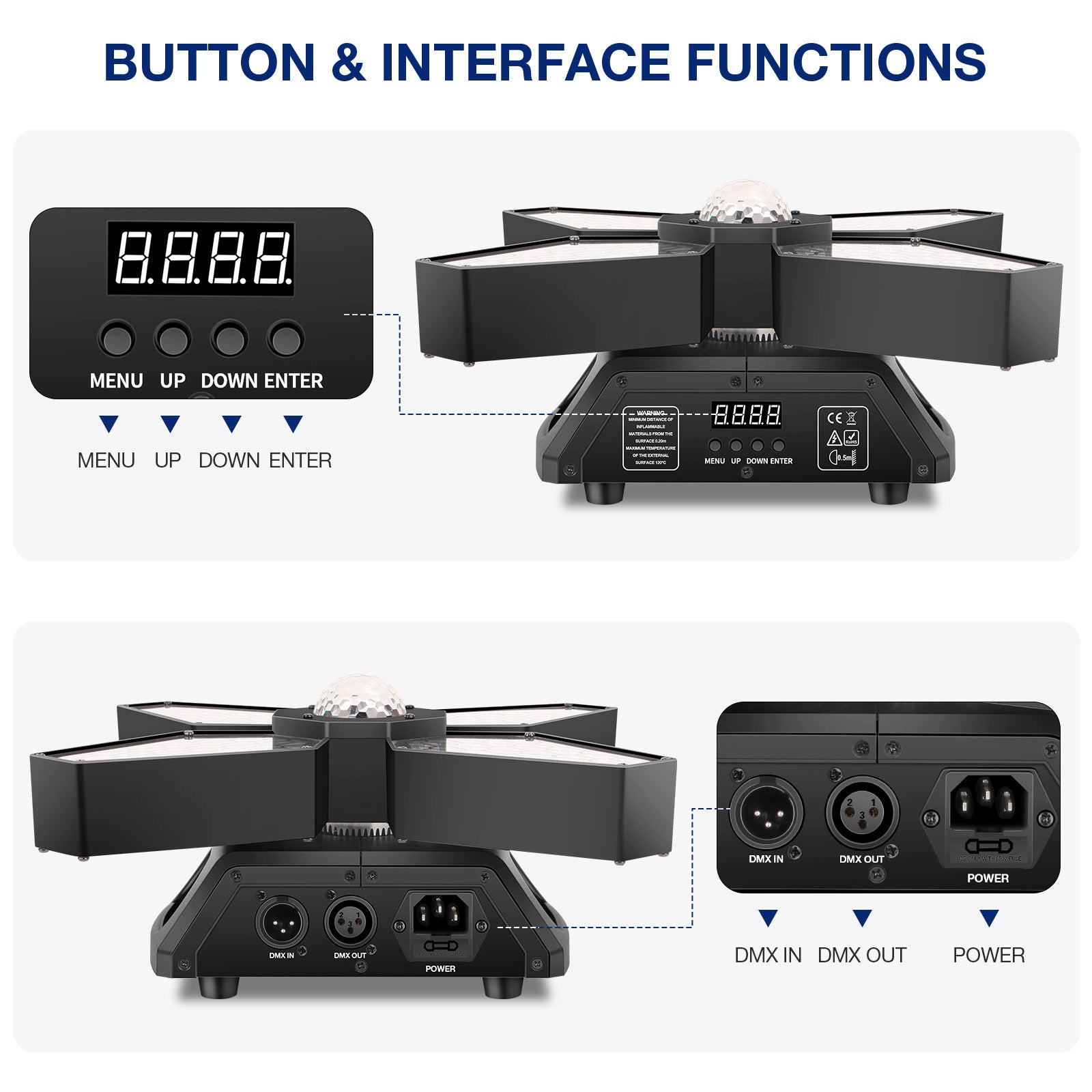

• Connectors: 3-pin XLR DMX In / DMX Out
• Display: 4-digit LCD with MENU / UP / DOWN / ENTER buttons
• Daisy-chain: Up to 64 slave units per master

Electrical & Physical

• Power consumption: 100W
• Input voltage: AC 110–240V, 50/60Hz (wide-voltage, universal)
• Fuse: 250V
• Housing: Metal + ABS plastic, IP20 (indoor use only)
• Max ambient temperature: 104°F (40°C)
• Max surface temperature: 248°F (120°C)
• Minimum distance to flammable materials: 8 in (0.20 m)
• Minimum distance to objects/surfaces: 1.6 ft (0.5 m)
• Mounting: Floor stand, hanging upside-down, or side truss (M10 mount bracket + safety cable required for overhead)
• Dimensions (L × W × H): 15.0 × 13.4 × 7.1 in (38 × 34 × 18 cm)
• Weight: 6.0 lb (2.7 kg)

Installation

• Position: Mount on a floor surface, hang upside-down from truss, or clamp sideways — all three orientations are fully supported.
• Overhead safety: Always use an M10 mounting clamp (not included) plus a safety cable when rigging overhead.
• Clearance: Keep the fixture at least 8 in (0.20 m) away from flammable materials and 1.6 ft (0.5 m) from any object or surface.
• Ventilation: Ensure open airflow around all four leaves; do not enclose the fixture.
• Electrical: Use a qualified electrician for permanent installation; the unit runs on any AC 110–240V outlet worldwide.

Cleaning

• Housing: Wipe the base and leaves with a soft, dry cloth after each event to remove dust and fog residue.
• Lens: Use a lens-safe cleaner on the magic ball dome and SMD leaf covers monthly for consistent brightness.
• Power off: Always disconnect from the mains before cleaning.

Maintenance

• Cool-down: Allow 15 minutes for the fixture to cool before servicing or repacking.
• Storage: Store in original packaging in a dry, dust-free space between events.
• Inspection: Check clamps, safety cable, and DMX connectors before every install.

For detailed instructions, check out the user guide.
