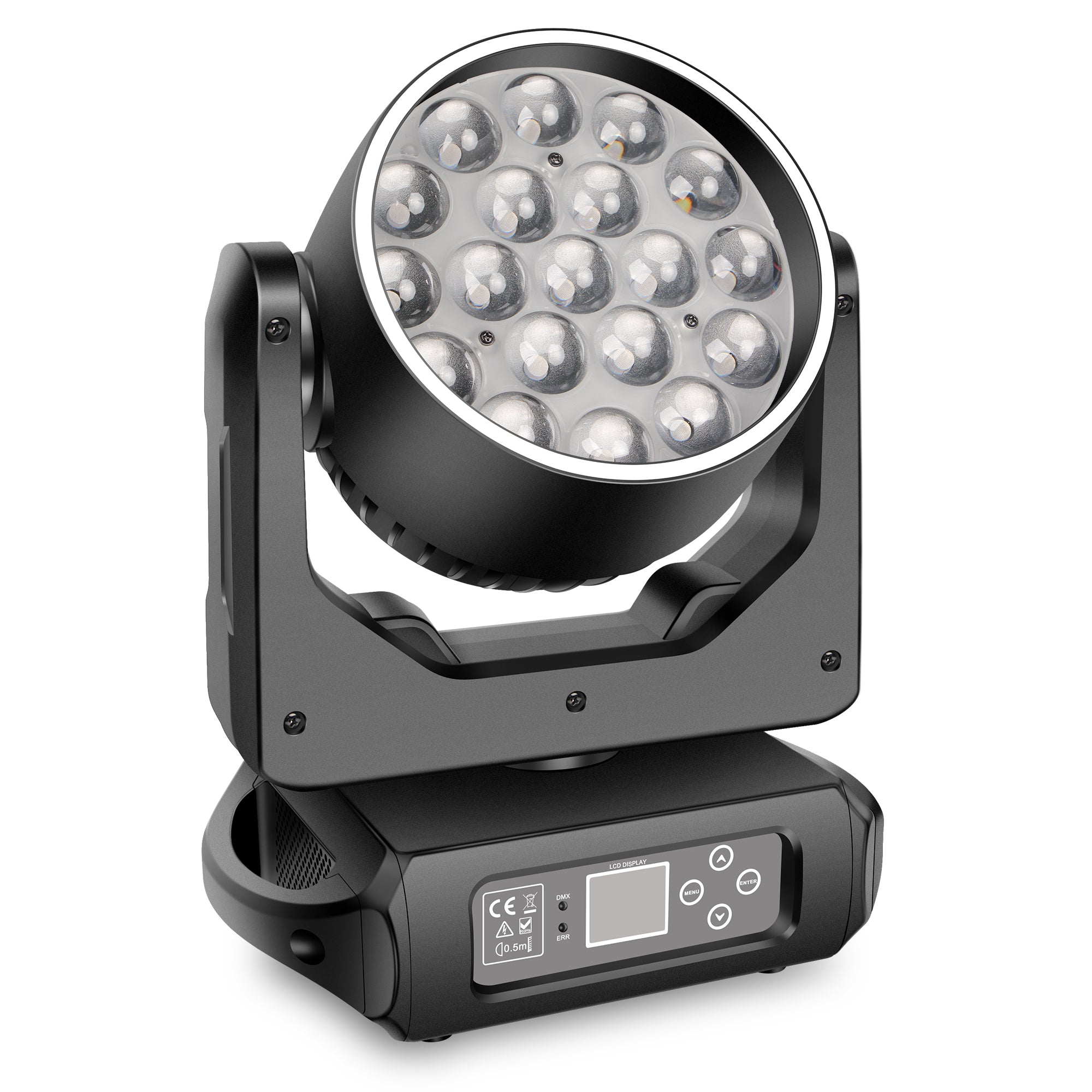

260W 19×15W RGBW LED Zoom Moving Head Light

Light Source & Optical

• LED Configuration: 19 Pcs × 15W RGBW (4-in-1)
• Total LED Power: 260W
• Beam Angle: 10°–60° Motorized Zoom

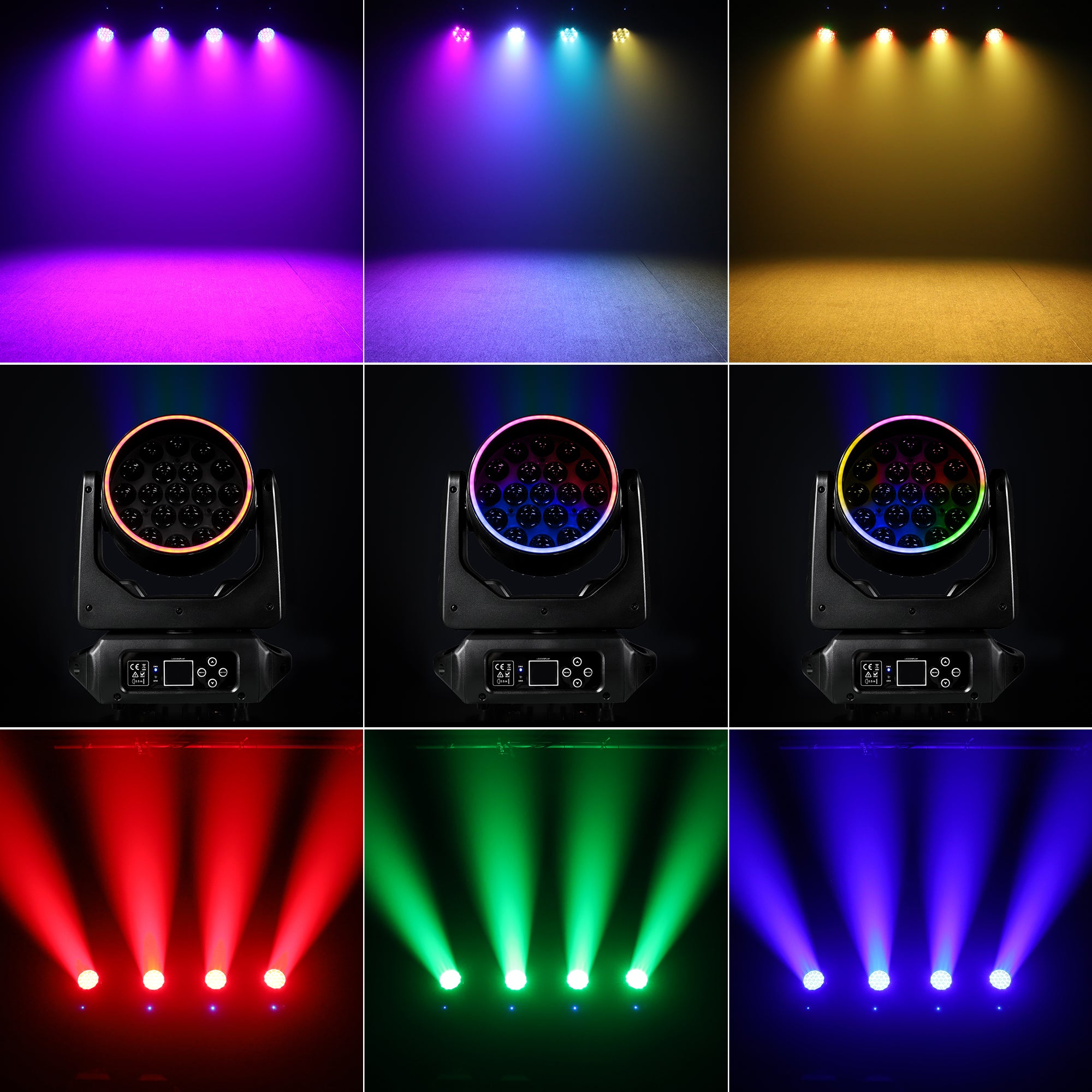

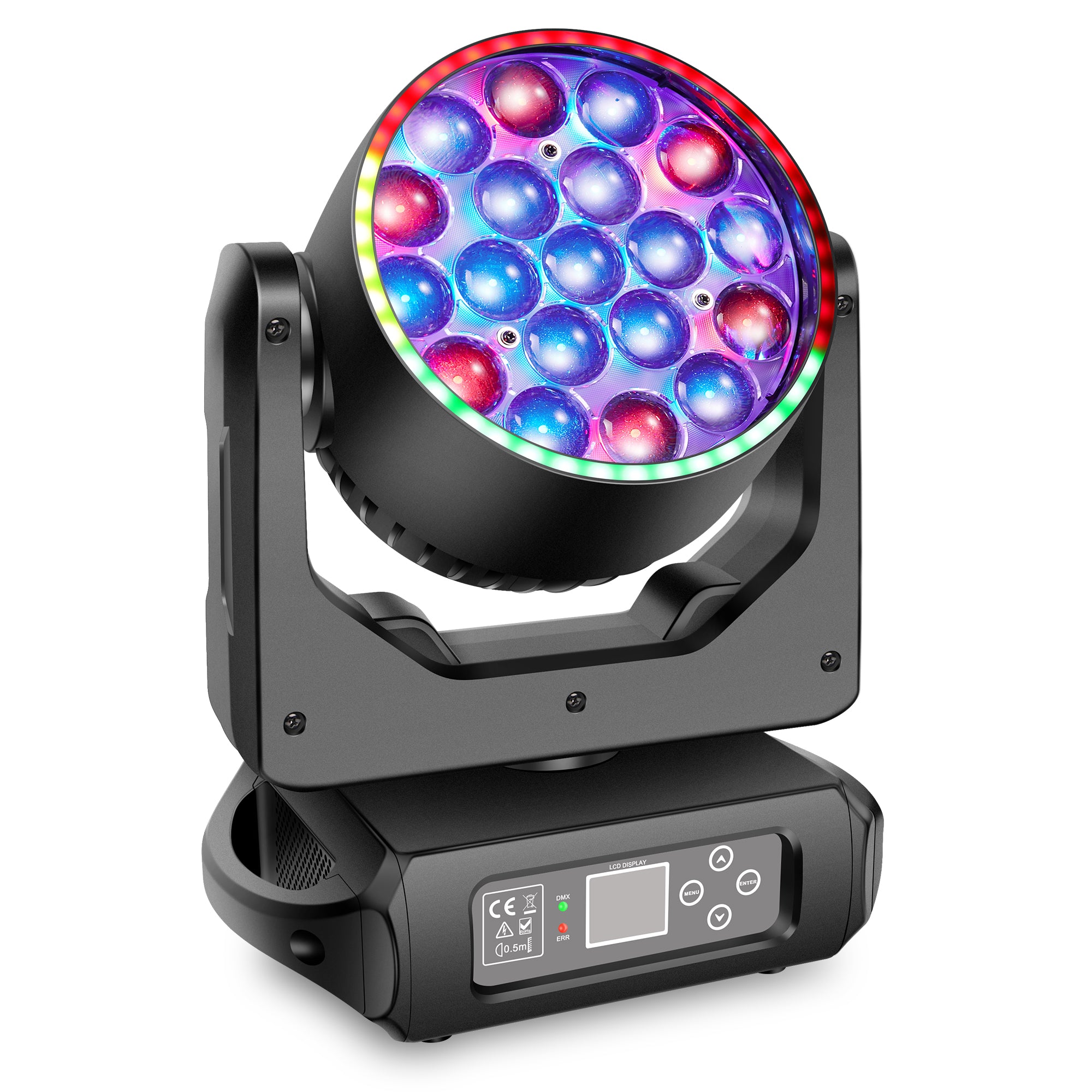

• Effect Layer: Outer RGB Halo Strip (pixel-mappable)
• Color Mixing: Red, Green, Blue, White
• Dimming: 0–100% Linear Electronic Dimming
• Strobe: 0–25 Flashes/Sec Ultra-High-Speed

Control & Connections

• Control Modes: DMX512, Master-Slave, Auto, Sound Active
• DMX Channels: 17 / 25 Channel Modes
• Pan / Tilt: 540° / 213° with X/Y Fine Tuning
• Display: LED LCD Display with Reversible Menu (Chinese / English)

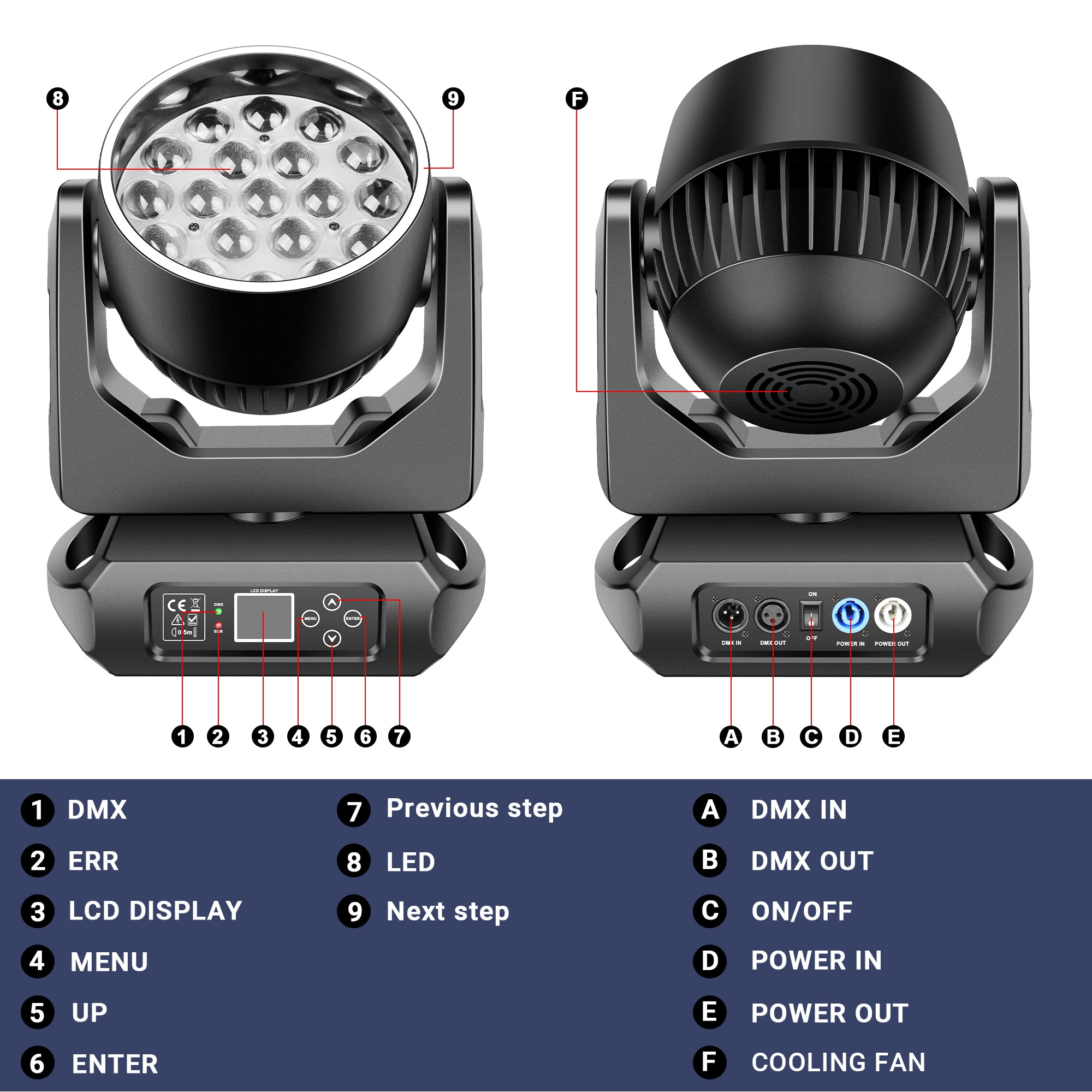

• Connectors: 3-Pin and 5-Pin XLR DMX In/Out, Power In

Electrical & Physical

• Power Consumption: 260W
• Input Voltage: AC110–240V, 50/60Hz (Auto-ranging)
• Protection Rating: IP20 (Indoor Use Only)

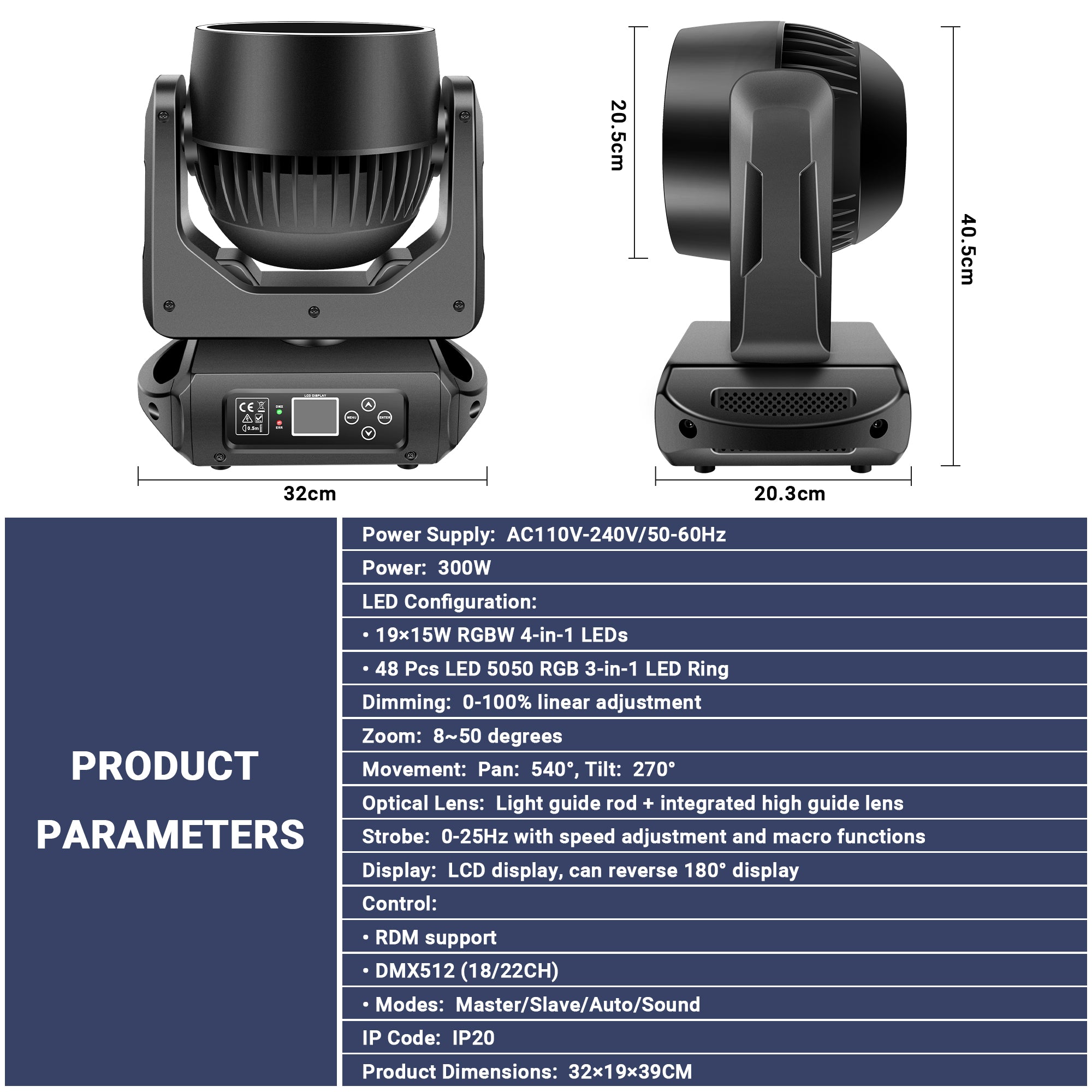

• Dimensions: 12.7 × 8.3 × 15.8 in (32.4 × 21.0 × 40.1 cm)
• Net Weight: 13.0 lb (5.9 kg)
• Gross Weight: 16.1 lb (7.3 kg)
• Package Size: 18.1 × 11.4 × 14.6 in (46 × 29 × 37 cm)
• Ambient Temp: Max 140°F / 60°C

Installation

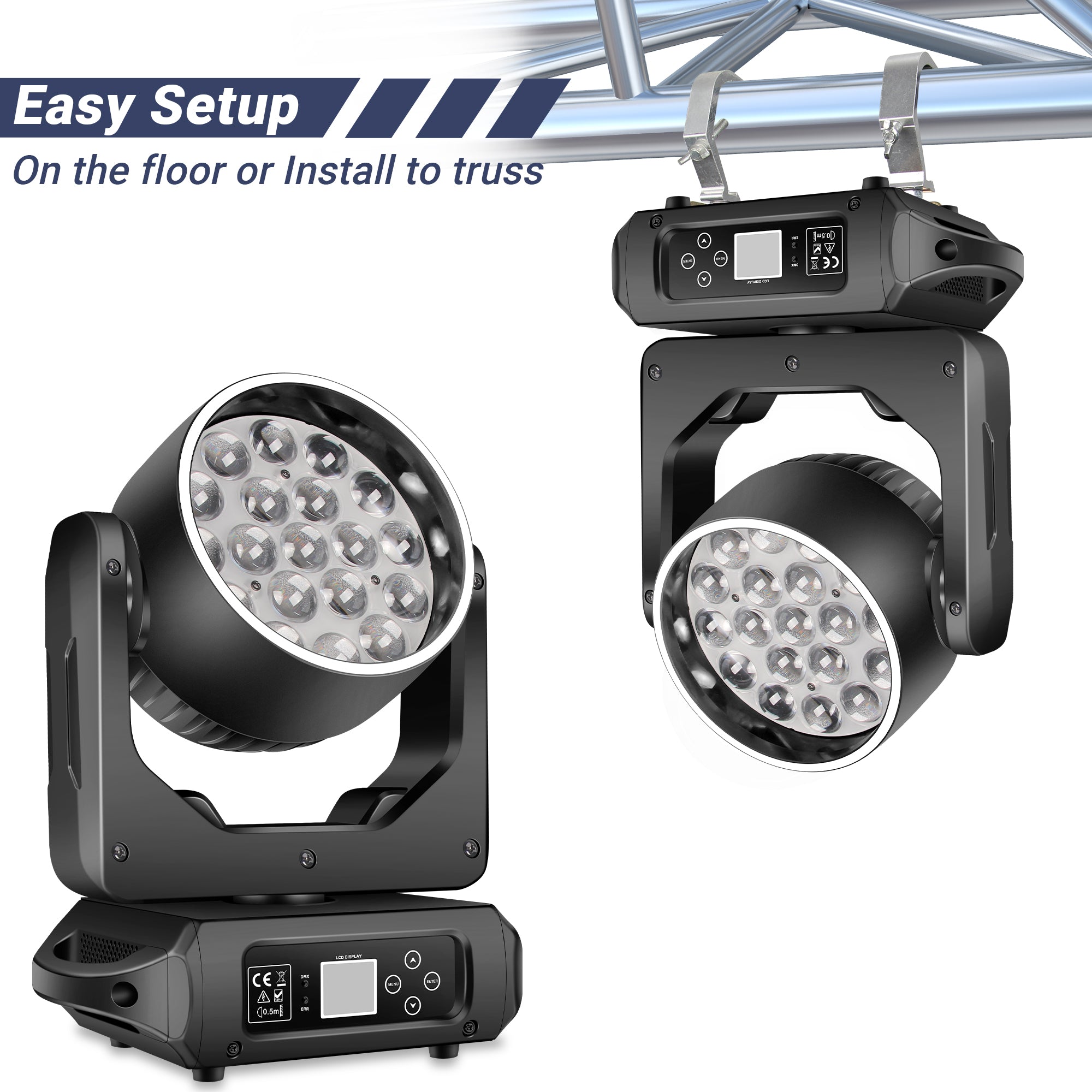

• Mounting: Can be installed horizontally, obliquely, or hung upside down via the dual-yoke bracket. Use a mounting clamp (not included) to attach to standard truss.
• Safety: When rigging overhead, always attach a safety cable through the yoke and base — never carry or hang the fixture by the head alone.
• Grounding: Connect the yellow/green earth conductor to a proper ground before powering on to prevent electric shock.
• Ventilation: Maintain clearance around the chassis fans. Do not operate where ambient temperature exceeds 140°F (60°C).
• DMX Wiring: Use shielded twisted-pair DMX cable. Terminate the final fixture in the chain with a 120Ω resistor across pins 2 and 3.

Cleaning

• Housing: Wipe with a dry or lightly damp cloth. Never use alcohol or organic solvents.
• Lens Array: Clean the front lenses periodically with a soft microfiber cloth — dust buildup reduces beam clarity.
• Fans & Vents: Vacuum or air-blow dust out of the fan grilles and heat-sink fins every 200 hours of use.

Maintenance

• Cool-Down: After a power-off, allow approximately 20 minutes for the fixture to cool fully before relocating or re-powering.
• Inspection: Periodically check that yoke screws, safety cable, and hanging hardware are tight; verify the lens, lamp module, and internal wiring are free of cracks or moisture.
• Service: There are no user-serviceable parts inside. If a fault persists, stop using the fixture and contact authorized service.

For detailed instructions, check out the user guide.
