60W LED Rechargeable Wireless Moving Head Spotlight

Light Source & Optical

• Power Draw: 60 W
• Light Source: LED

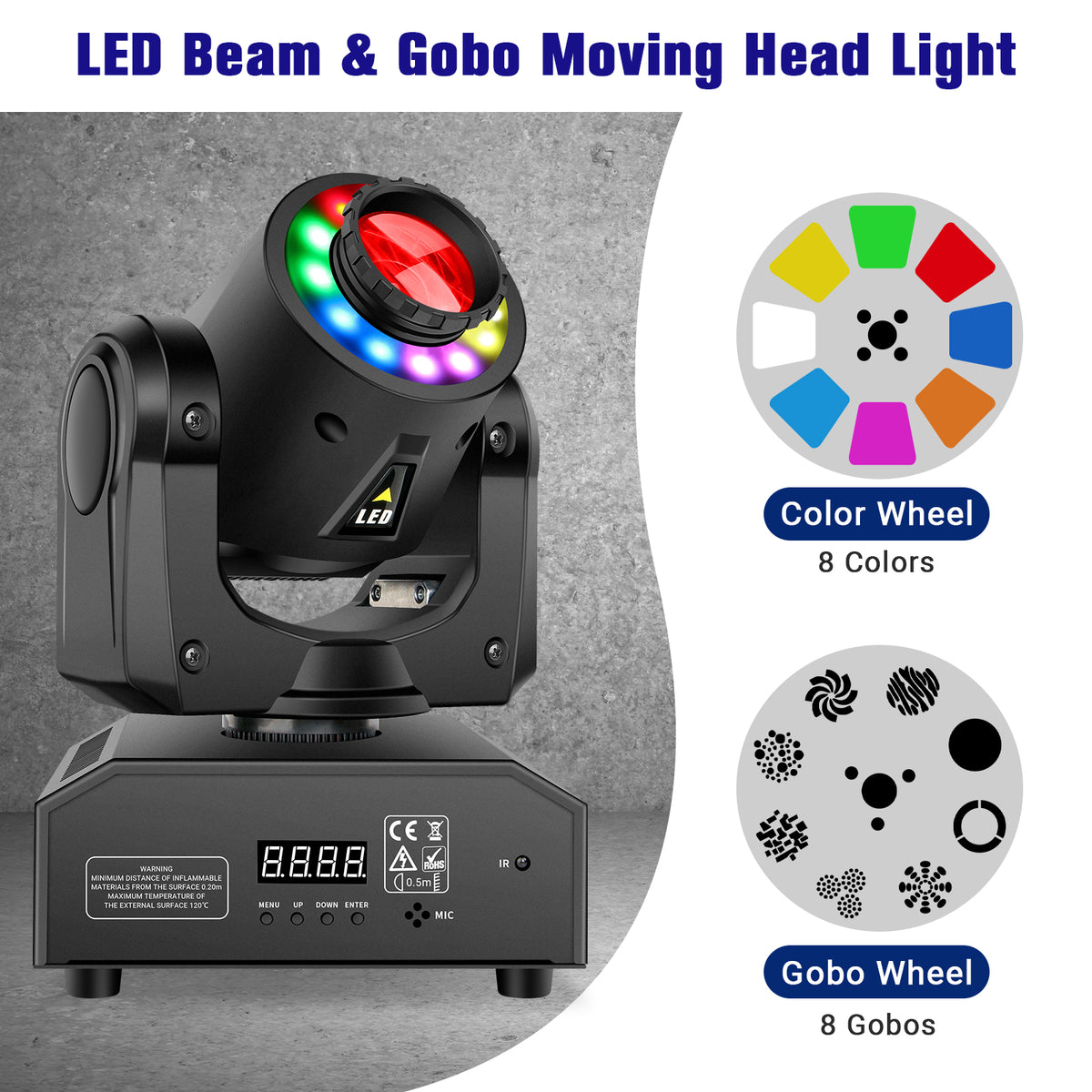

• Gobos: 8 gobos with static, gobo shake, and auto gobo change from slow to fast
• Colors: color selection with auto color change from slow to fast
• LED Ring: lens ring with selectable colors and auto mode
• Strobe: adjustable speed, slow to fast
• Dimmer: 0–100% master dimmer
• Movement: 540° pan, 270° tilt, adjustable motor speed, pan and tilt invert settings

Control & Connections

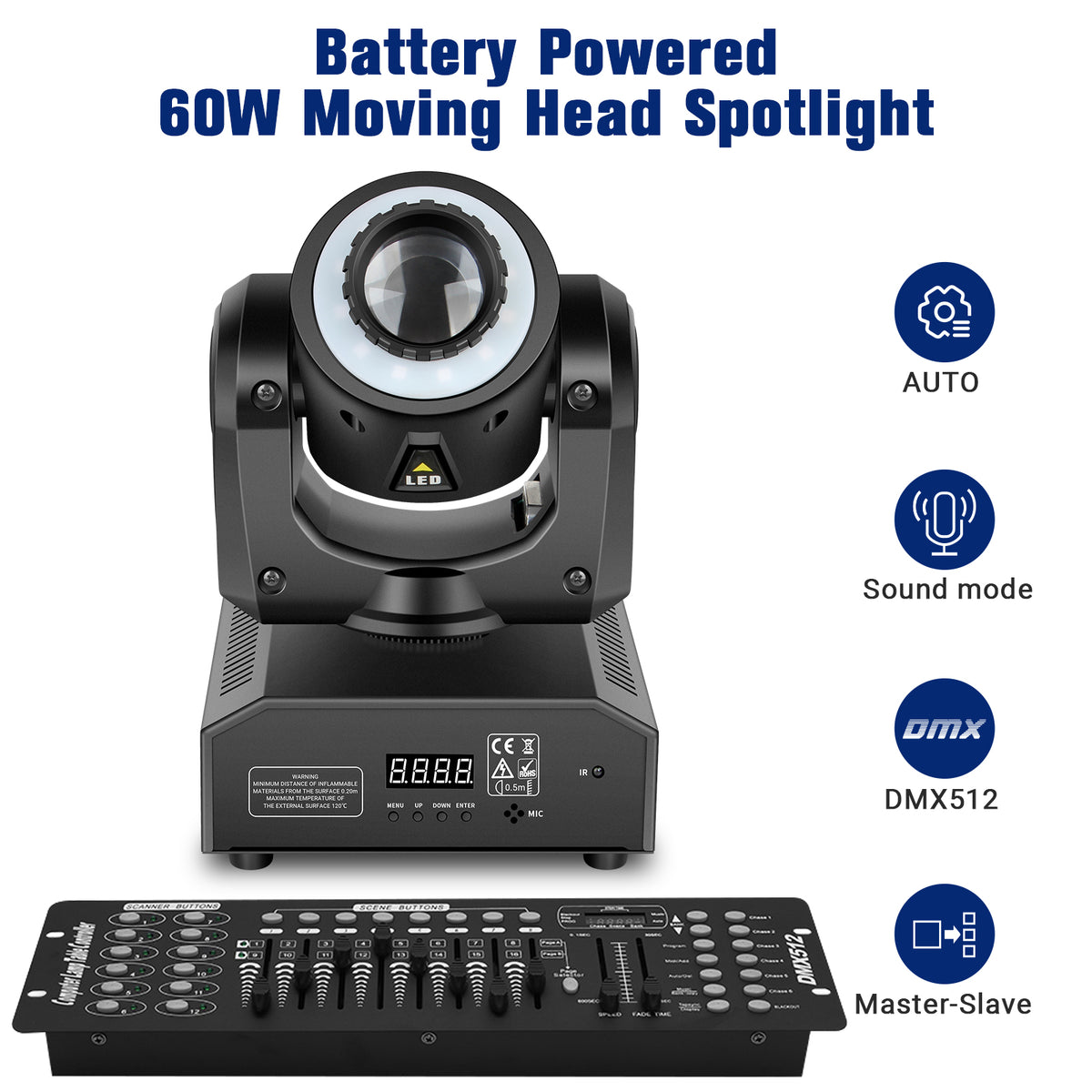

• Operating Modes: DMX512, master-slave, auto, sound activated
• DMX Channel Modes: 10CH / 12CH
• 10CH Map: CH1 pan, CH2 tilt, CH3 color select / auto color change, CH4 static gobo / gobo shake / auto gobo change, CH5 strobe, CH6 master dimmer, CH7 motor speed, CH8 auto / sound activated, CH9 programs 1–3 / reset, CH10 LED ring color / auto
• 12CH Map: CH1 pan, CH2 pan fine, CH3 tilt, CH4 tilt fine, CH5 color select / auto color change, CH6 static gobo / gobo shake / auto gobo change, CH7 strobe, CH8 master dimmer, CH9 motor speed, CH10 auto / sound activated, CH11 programs 1–3 / reset, CH12 LED ring color / auto
• Built-In Programs: 4 programs selectable from the menu
• Sound Active: sound control on/off with sensitivity adjustable 0–100
• Master-Slave: link up to 64 slave units, with synchronized or non-synchronized slave modes

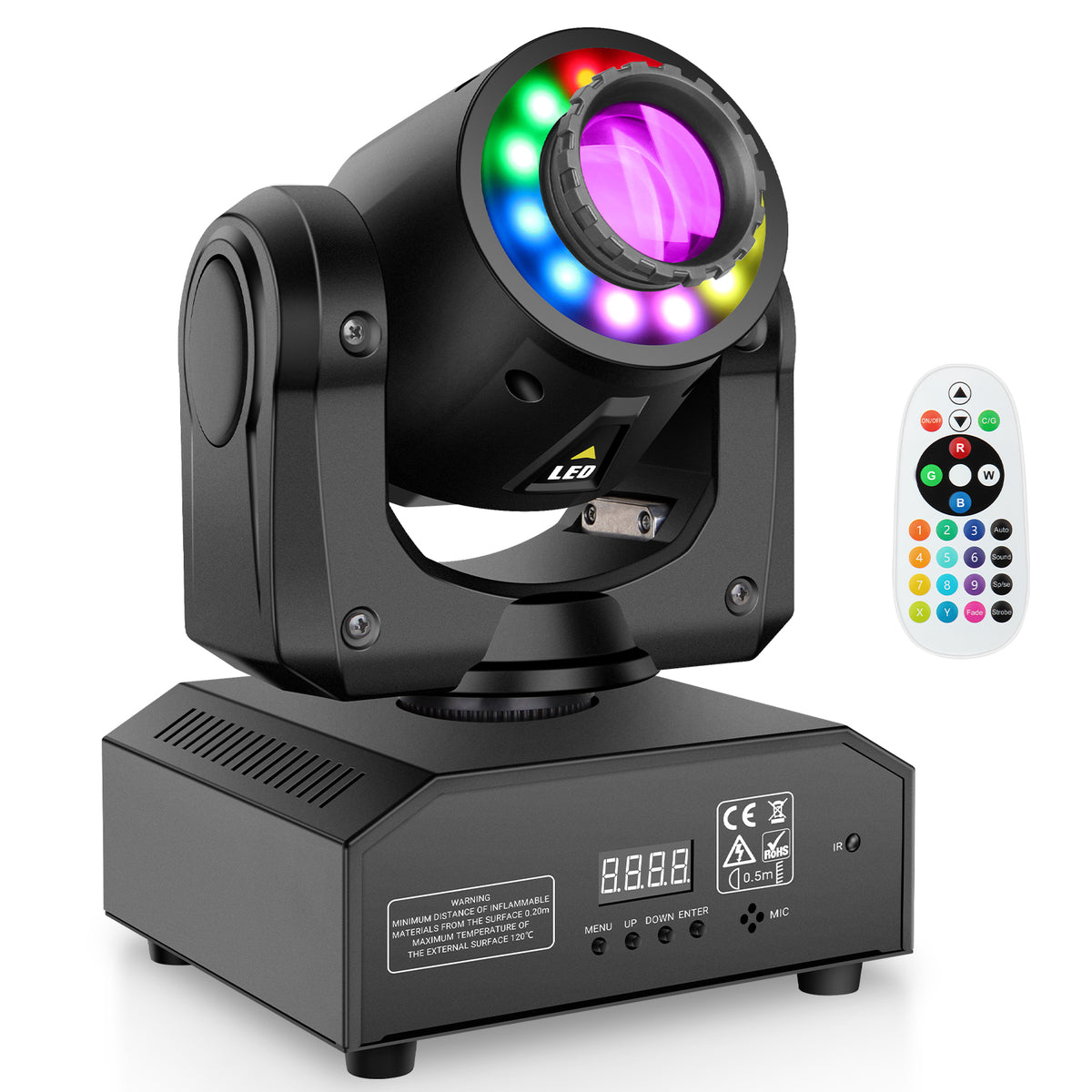

• Remote Control: infrared remote (AAA battery) for pan/tilt, color and gobo switching, red / green / blue / white, auto, sound, strobe, fade, and LED ring modes
• Control Panel: 4-button digital display with MENU / UP / DOWN / ENTER, backlight auto-off after 5 seconds or always on, display invert
• Connectors: 3-pin XLR DMX in/out, charging port, power on/off switch, battery indicator

Electrical & Physical

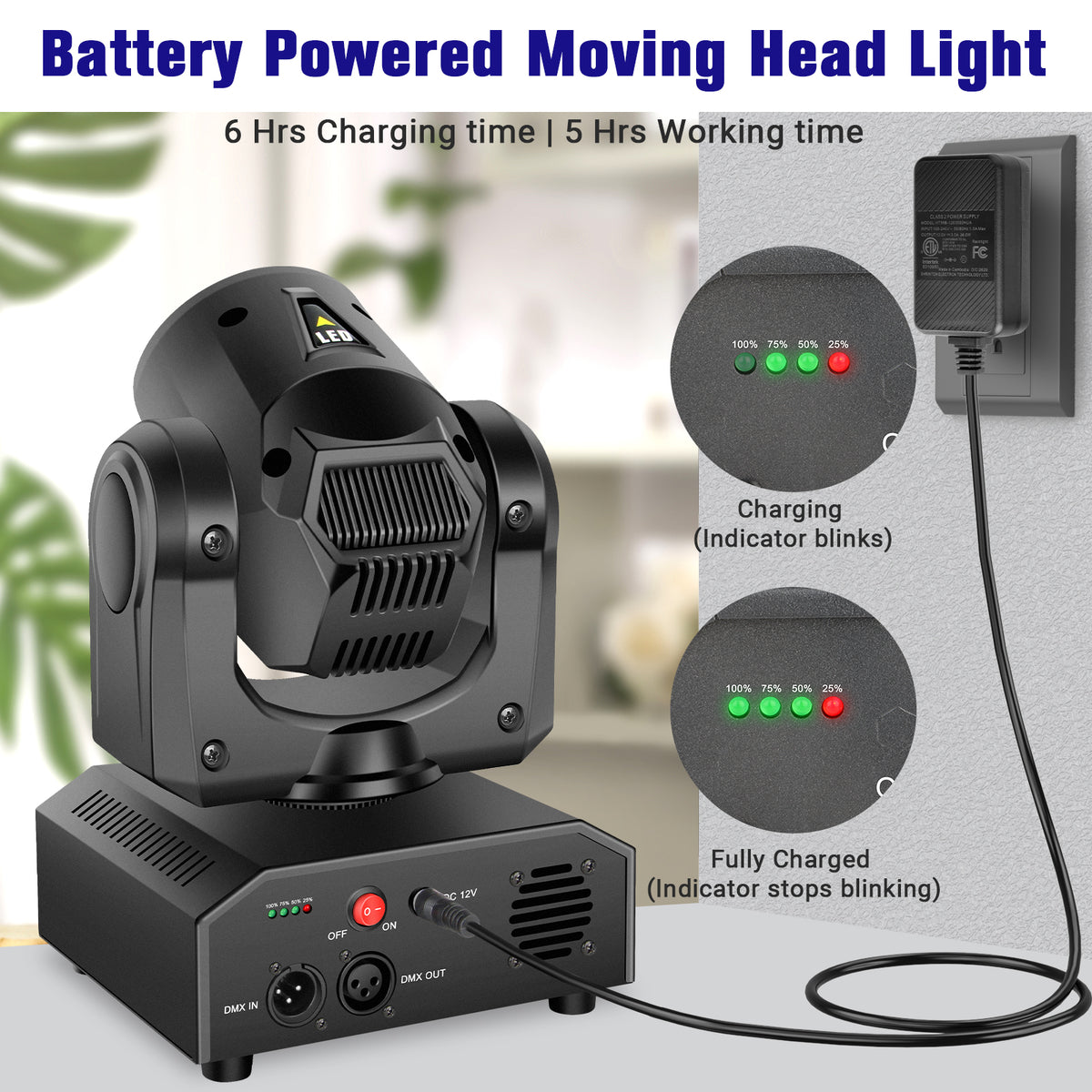

• Battery: 12000mAh rechargeable
• Charging Time: approximately 6 hours
• Runtime: up to 5 hours per full chargePower Adapter: input AC 110–240 V, 50–60 Hz; output DC 12 V, 3 A
• Cooling: built-in cooling fan
• IP Rating: IP20, indoor and dry locations only
• Maximum Ambient Operating Temperature: 104°F (40°C)
• Housing: plastic
• Mounting: bracket with M10 fixing point; mounts hanging upside down or on a flat surface
• Dimensions (L × W × H): 11.4 × 8.1 × 9.1 in (29 × 20.5 × 23 cm)
• Weight: 8.4 lb (3.8 kg)

Installation

• Set the fixture on a flat, level surface or hang it upside down from trussing using the included bracket with M10 fixing point (mounting clamp not included).
• Always attach a safety cable when installing the fixture overhead (safety cable not included).
• Keep the fixture at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from any object or surface.
• Allow about 6 in (15 cm) of clearance for ventilation and never block the cooling fan.
• Use the fixture and charging system indoors in dry locations only.
• Never connect the fixture to a dimmer pack.

Cleaning

• Turn off the fixture, disconnect the charger, and allow about 15 minutes to cool before handling.
• Wipe the housing and lens with a soft, dry cloth.
• Never spill water or other liquids on the fixture, charger, or remote.

Maintenance

• No user-serviceable parts inside — do not open the fixture, disassemble the battery, or attempt repairs, as this voids the warranty.
• Store the fixture at room temperature with at least a 50% charge, and recharge it every 6 months so the battery never falls below 30%.
• Stop using the fixture if the battery case is deformed or leaking, or if the charger cord is frayed, and contact customer support for battery replacement.
• Dispose of the battery according to local regulations.

For detailed instructions, check out the user guide.
