Dive Deeper

Tech Specs
Light Source & Optical
  • Power Draw: 60 W
  • Beam & Derby LEDs: 11 × 3W single-color LEDs
  • Par LEDs: 4 × 4W RGB LEDs
  • Starry Laser: 1 × 100mW red + 1 × 50mW green
  • Strobe LEDs: 4 × 5W
  • Light Strips: 2 × 11 LEDs with red, green, blue, yellow, purple, cyan, and white plus chasing effects
  • Beam Modes: red, green, blue, and white
  • Strobe Effects: white light strobe and golden light strobe, speed adjustable

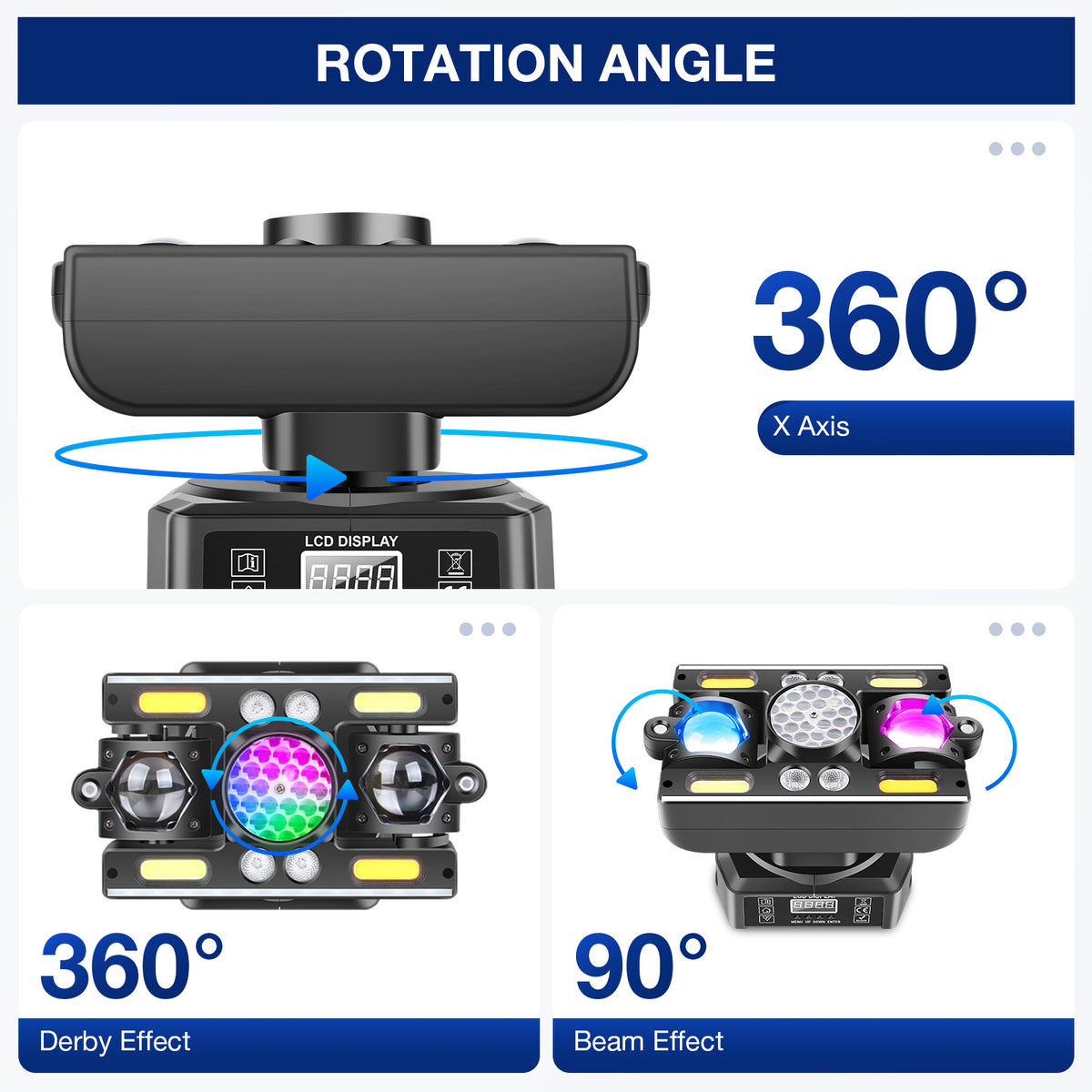

  • Movement: 360° pan on the main motor with adjustable position and speed, two beam heads with 0–90° rotation, and counterclockwise-rotating derby
Control & Connections
  • Operating Modes: DMX512, master-slave, auto, sound active, program
  • DMX Channel Mode: 22CH
  • 22CH Map: CH1 pan position, CH2 pan speed, CH3 beam motor 1 (0–90°), CH4 beam motor 2 (0–90°), CH5 derby rotation, CH6 master dimmer, CH7 master strobe, CH8–CH11 red / green / blue / white beam dimmers, CH12 derby dimmer, CH13–CH15 par red / green / blue dimmers, CH16 red starry dimmer, CH17 green starry dimmer, CH18 white strobe, CH19 golden strobe, CH20 light strip color and chase, CH21 light strip speed, CH22 auto / sound active / reset
  • Program Modes: red beam, green beam, blue beam, white beam, derby, par LED, red & green starry, strobe, plus 3 auto combination modes (A1–A3)
  • Program Speed: 9 levels, slow to fast
  • Sound Active: 2 modes (blackout or slow-down when no sound), sensitivity adjustable 0–100
  • Master-Slave: link up to 64 slave units to one master

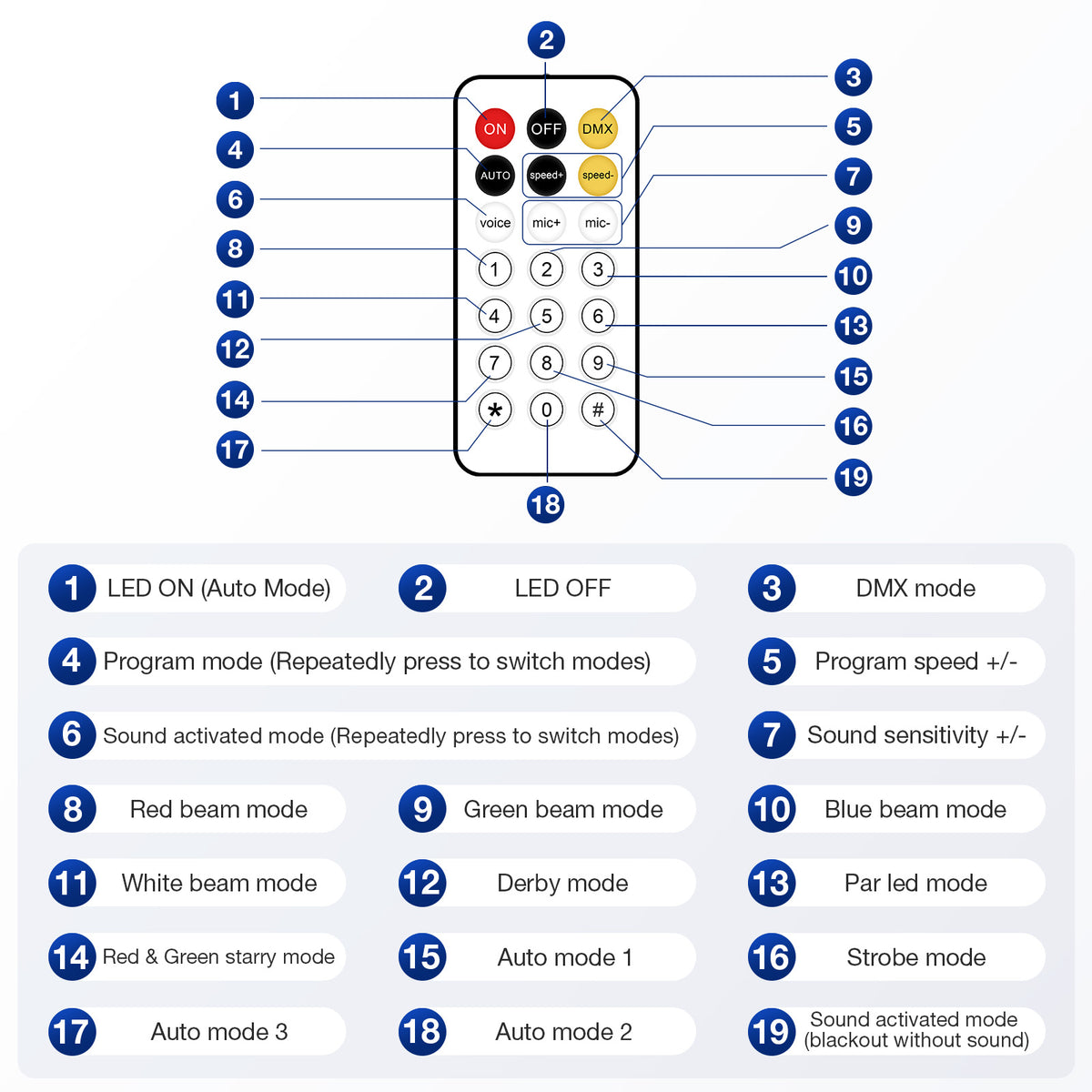

  • Remote Control: infrared remote for on/off, DMX, auto, program, sound active, speed, sensitivity, and effect selection; can be enabled or disabled in the menu
  • Control Panel: LED display with MENU / UP / DOWN / ENTER buttons, backlight auto-off after 40 seconds, display invert option
  • Connectors: 3-pin XLR DMX in/out, power in
Electrical & Physical
  • Voltage: AC 110–240 V, 50/60 Hz wide voltage
  • IP Rating: IP20, indoor and dry locations only
  • Maximum Ambient Operating Temperature: 104°F (40°C)
  • Housing: plastic
  • Mounting: bracket with M10 fixing point; mounts hanging upside down, sideways on trussing, or on a flat surface
  • Dimensions (L × W × H): 10.2 × 7.9 × 7.9 in (26 × 20 × 20 cm)
  • Weight: 3.5 lb (1.6 kg)
Installation, Cleaning & Maintenance
  • Installation

    Mount the fixture in any position — hanging upside down, sideways on trussing, or on a flat surface — using the included bracket with M10 fixing point (mounting clamp not included).
  • Keep the fixture at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from any object or surface.
  • Ensure adequate ventilation around the unit and have all electrical connections made by a qualified electrician.
  • Use indoors in dry locations only; never expose the fixture to rain or moisture.
  • Never plug the fixture into a dimmer pack.
  • Never point the laser beams toward people, vehicles, aircraft, or reflective surfaces.

    Cleaning
  • Disconnect power and allow about 15 minutes for the fixture to cool before handling.
  • Wipe the housing and lenses with a soft, dry cloth.
  • Never open the unit or use liquids or solvents on the housing.

    Maintenance

  • No user-serviceable parts inside — do not open the fixture or attempt repairs, as this voids the warranty.
  • Do not operate the fixture if the power cord is frayed, crimped, or damaged; replace it with one of the same rating.
  • Handle the power cord by the plug end only, and never force a connector into the fixture.
  • Give the fixture regular operational breaks and use the original packaging for transport or service.

For detailed instructions, check out the user guide.

Compliance & Certification

The 60W RGBW LED 6-in-1 Derby Moving Head DJ Light is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Bracket

  • Remote

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

What effects does this fixture produce?

Six effects in one moving head: single-color LED beams in red, green, blue, or white, a rotating derby, an RGB par wash, red and green starry lasers, white and golden strobe, and two color-chasing light strips. Each can run alone in program mode or combined in the auto modes.

What is a derby effect?

The derby is the center lens cluster that rotates and throws multiple sharp beams across the room, creating a sweeping, scanning pattern. In DMX mode, its rotation speed and brightness have their own channels (CH5 and CH12).

Can I run it without a DMX controller?

Yes. Auto mode (3 combination programs, 9 speeds), sound active mode (adjustable sensitivity 0–100), and program mode (8 individual effects) all run standalone from the control panel or remote.

How does the movement work?

The main motor pans the head through 360°, the two beam heads each tilt through 0–90°, and the derby rotates continuously. For the best-defined beams, use it with haze or fog.
