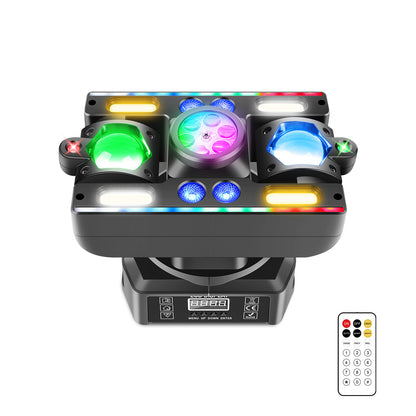

60W RGBW LED 6-in-1 Moving Head DJ Light

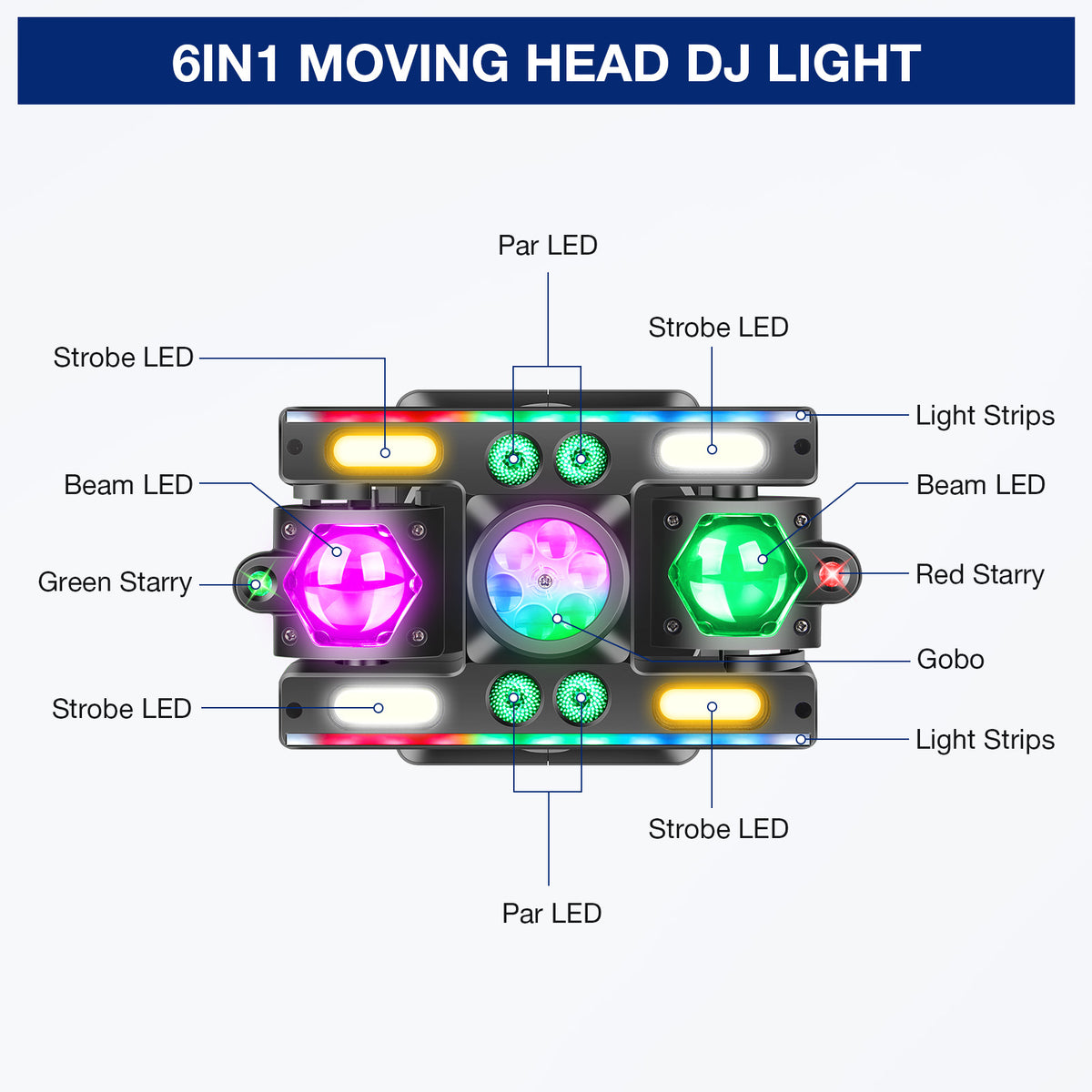

Light Source & Optical

• Power Draw: 60W
• Beam & Gobo LEDs: 11 × 3W single-color LEDs
• Par LEDs: 4 × 4W RGB LEDs
• Starry Laser: 1 × 100mW red + 1 × 50mW green
• Strobe LEDs: 4 × 5W
• Light Strips: 2 × 11 LEDs with red, green, blue, yellow, purple, cyan, and white plus chasing effects
• Beam Modes: red, green, blue, and white
• Strobe Effects: white light strobe and golden light strobe, speed adjustable
• Movement: main pan motor with adjustable position and speed, two beam heads with 0–90° rotation, and rotating gobo

Control & Connections

• Operating Modes: DMX512, master-slave, auto, sound active, program
• DMX Channel Mode: 22CH
• 22CH Map: CH1 pan position, CH2 pan speed, CH3 beam motor 1 (0–90°), CH4 beam motor 2 (0–90°), CH5 gobo rotation, CH6 master dimmer, CH7 master strobe, CH8–CH11 red / green / blue / white beam dimmers, CH12 gobo dimmer, CH13–CH15 par red / green / blue dimmers, CH16 red starry dimmer, CH17 green starry dimmer, CH18 white strobe, CH19 golden strobe, CH20 light strip color and chase, CH21 light strip speed, CH22 auto / sound active / reset
• Program Modes: red beam, green beam, blue beam, white beam, gobo, par LED, red & green starry, strobe, plus 3 auto combination modes (A1–A3)
• Program Speed: 9 levels, slow to fast
• Sound Active: 2 modes (blackout or slow-down when no sound), sensitivity adjustable 0–100
• Master-Slave: link up to 64 slave units to one master
• Remote Control: infrared remote for on/off, DMX, auto, program, sound active, speed, sensitivity, and effect selection; can be enabled or disabled in the menu

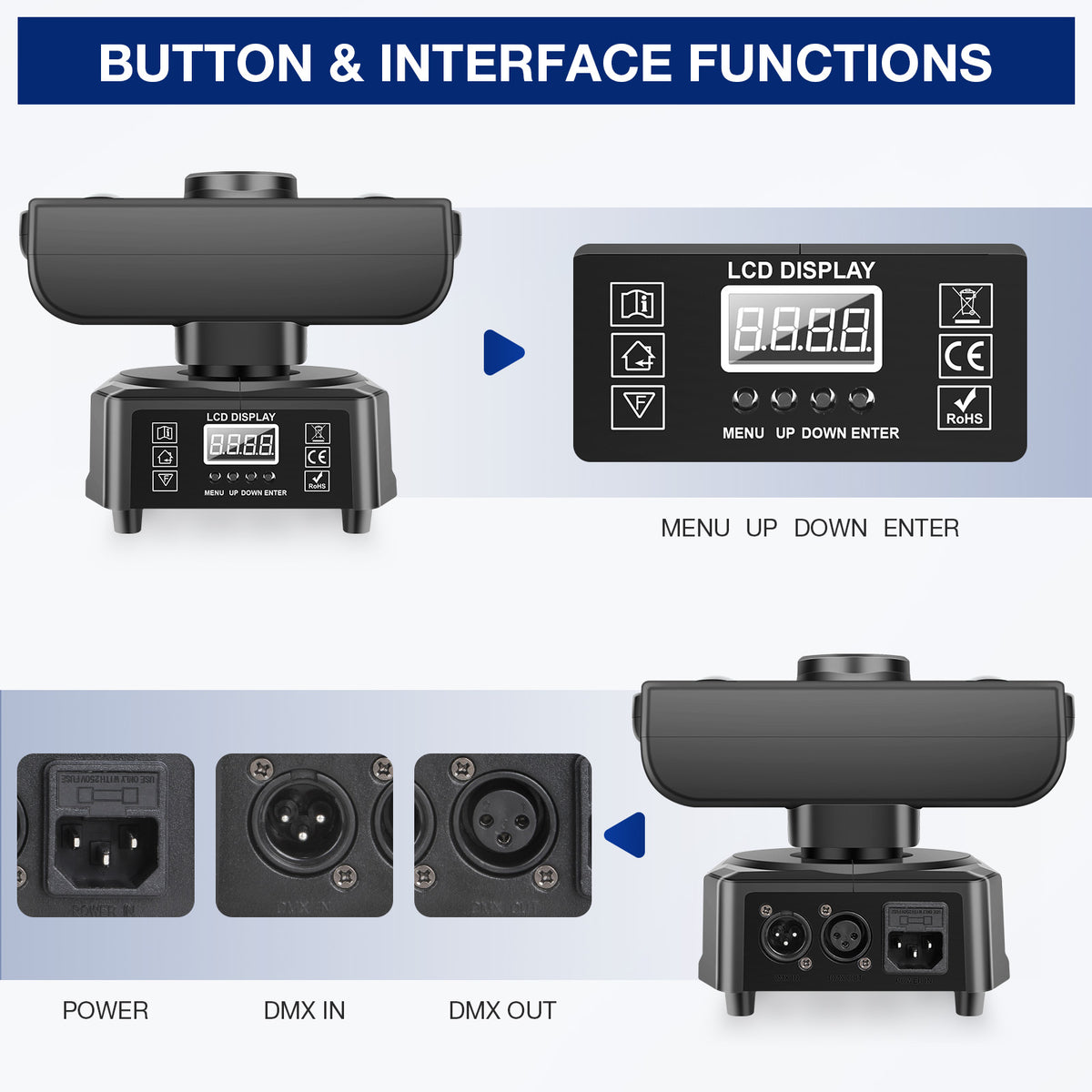

• Control Panel: LED display with MENU / UP / DOWN / ENTER buttons, backlight auto-off after 40 seconds, display invert option
• Connectors: 3-pin XLR DMX in/out, power in

Electrical & Physical

• Voltage: AC 110–240 V, 50/60 Hz wide voltage
• IP Rating: IP20, indoor and dry locations only
• Maximum Ambient Operating Temperature: 104°F (40°C)
• Housing: plastic
• Mounting: bracket with M10 fixing point; mounts hanging upside down, sideways on trussing, or on a flat surface
• Dimensions (L × W × H): 10.2 × 7.9 × 7.9 in (26 × 20 × 20 cm)
• Weight: 3.5 lb (1.6 kg)

Installation

• Mount the fixture in any position — hanging upside down, sideways on trussing, or on a flat surface — using the included bracket with M10 fixing point (mounting clamp not included).
• Keep the fixture at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from any object or surface.
• Ensure adequate ventilation around the unit and have all electrical connections made by a qualified electrician.
• Use indoors in dry locations only; never expose the fixture to rain or moisture.
• Never plug the fixture into a dimmer pack.
• Never point the laser beams toward people, vehicles, aircraft, or reflective surfaces.

Cleaning

• Disconnect power and allow about 15 minutes for the fixture to cool before handling.
• Wipe the housing and lenses with a soft, dry cloth.
• Never open the unit or use liquids or solvents on the housing.

Maintenance

• No user-serviceable parts inside — do not open the fixture or attempt repairs, as this voids the warranty.
• Do not operate the fixture if the power cord is frayed, crimped, or damaged; replace it with one of the same rating.
• Handle the power cord by the plug end only, and never force a connector into the fixture.
• Give the fixture regular operational breaks and use the original packaging for transport or service.

For detailed instructions, check out the user guide.
