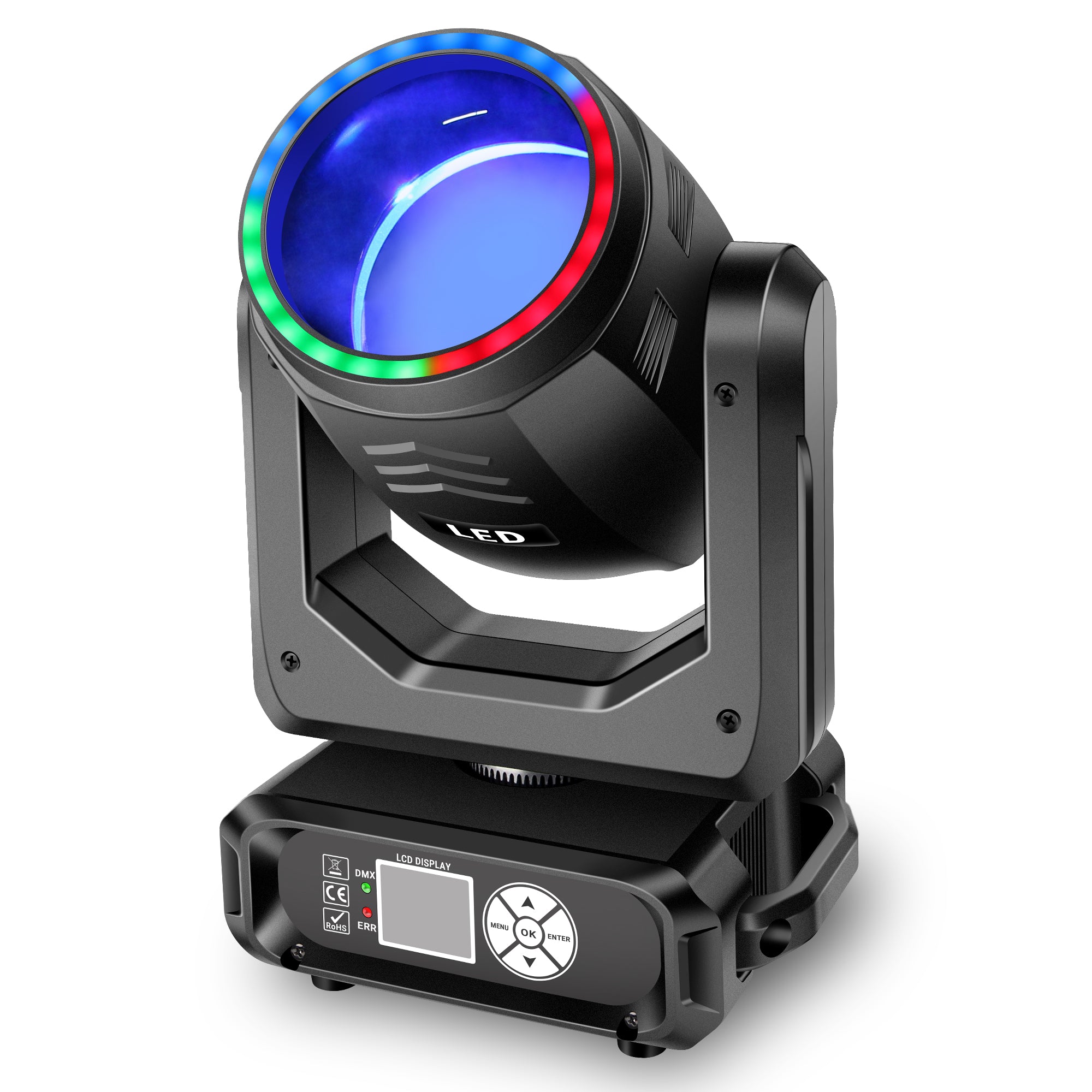

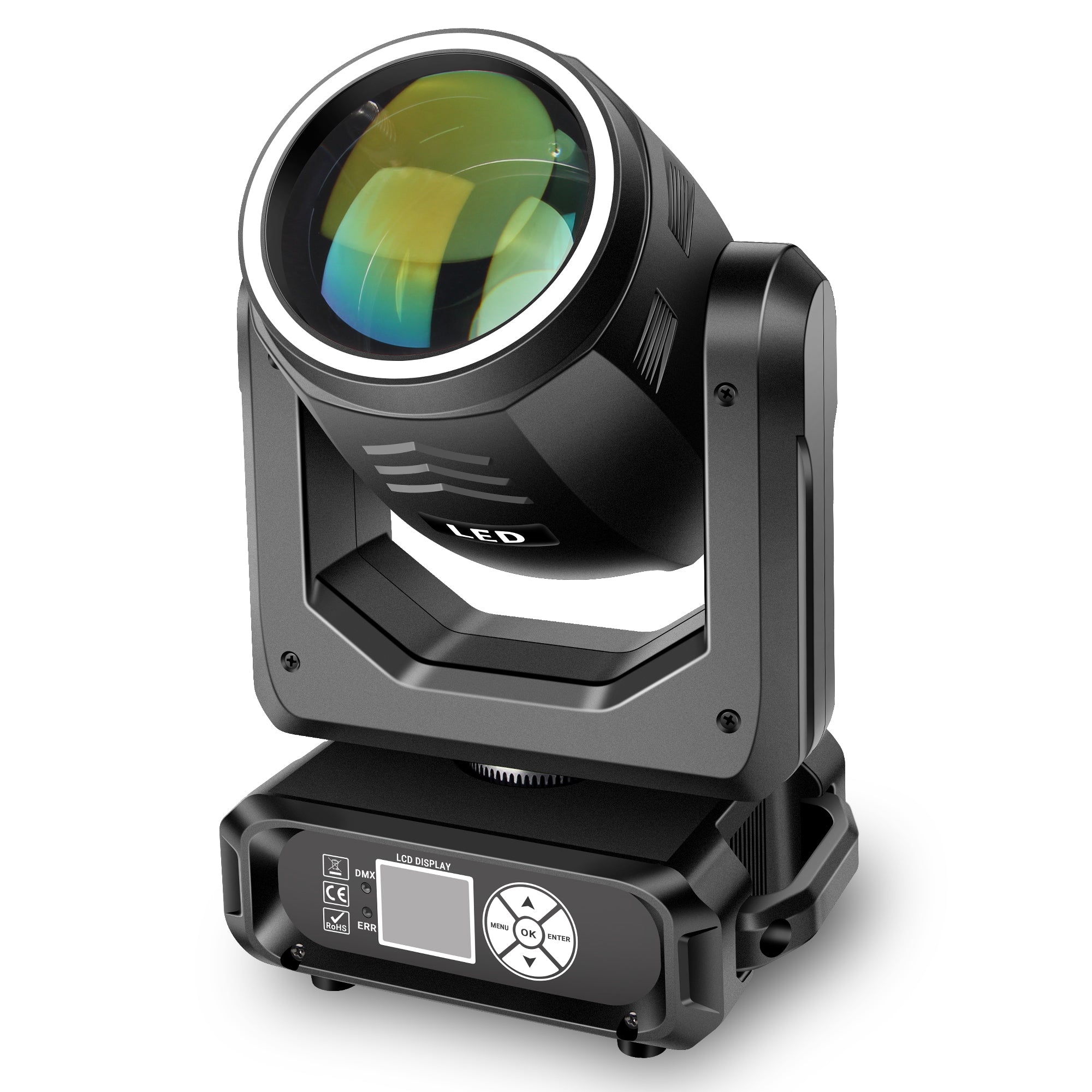

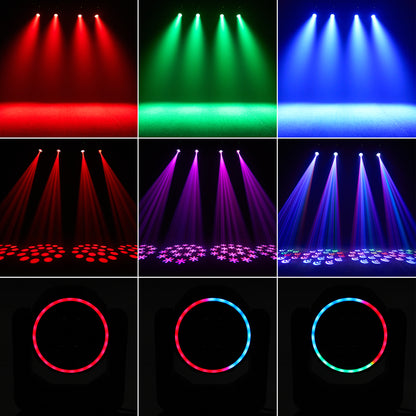

200W LED Moving Head Beam Light

Light Source & Optical

• Main Source: 1 × 150W CREE LED
• Effect Source: 24 × 5050 SMD RGB Pixels (Halo Ring)
• Total Power: 200W
• Beam Angle: 4°
• Color Wheel: 11 Dichroic Colors + White + 7-Color Rainbow Prism
• Gobo Wheel: 14 Rotating Gobos + White, with Pattern Flow & Shake Effects
• Prism: 18-Facet Rotating Prism
• Frost Filter: Built-In
• Focus: Motorized Auto Focus
• Dimming: 0–100% Linear Electronic Dimming

Control & Connections

• Control Modes: DMX512, Sound Active, Scene Select, Auto, Master-Slave
• DMX Channels: 16 Channels
• Pan / Tilt: 540° / 270° with Pan Fine & Tilt Fine (16-bit)
• Scene Memory: 10 Programmable Scenes (0.0–25.5s scene time)
• Display: LCD Display with Auto-Rotation (Gravity Sensor), English / Chinese

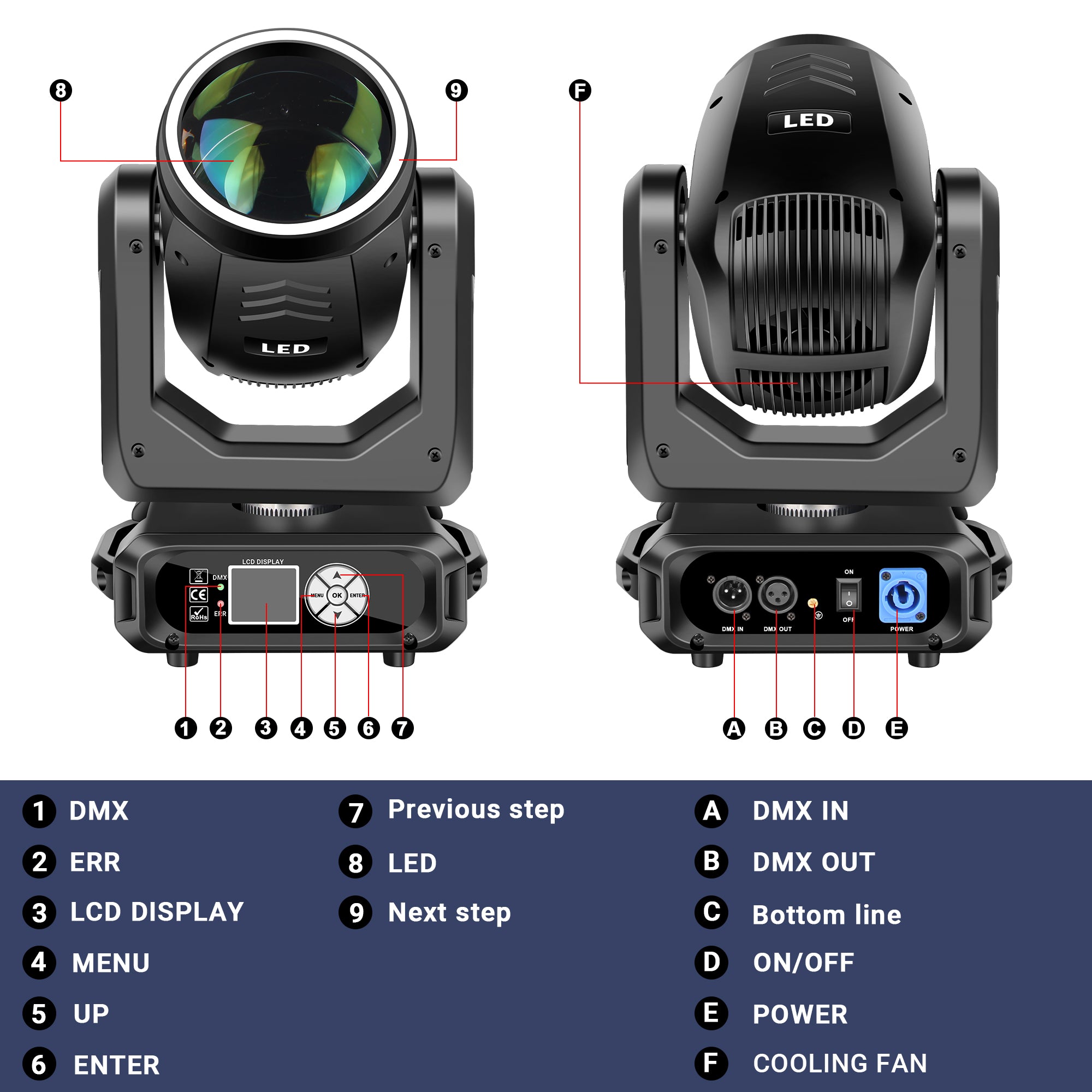

• Connectors: 3-Pin XLR DMX In/Out, Power In/Out

Electrical & Physical

• Power Consumption: 200W
• Input Voltage: AC90–240V, 50/60Hz (Auto-ranging)
• Protection Rating: IP20 (Indoor Use Only)
• Housing: High-Temperature-Resistant Metal Chassis

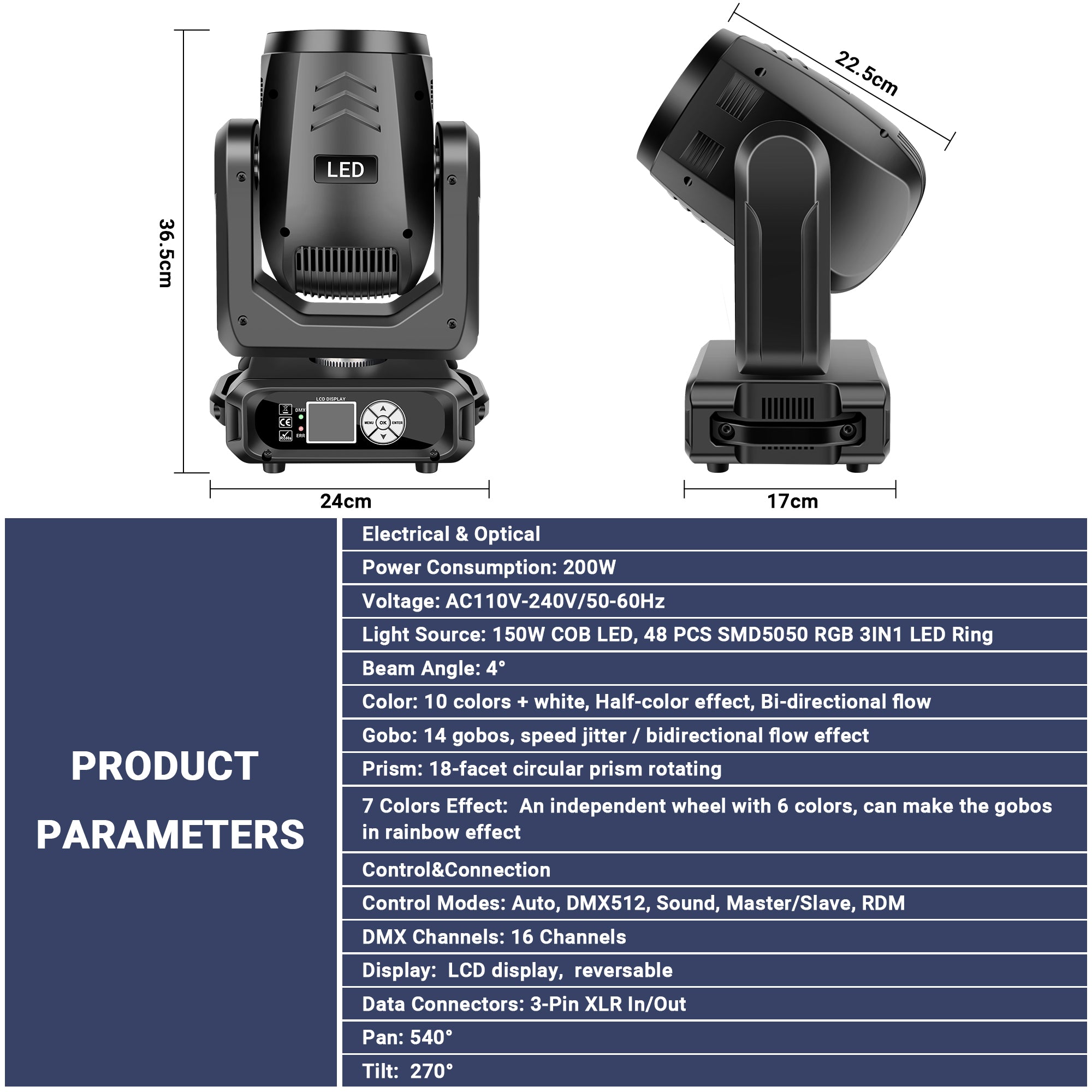

• Dimensions: 12.6 × 9.1 × 16.5 in (32 × 23 × 42 cm)
• Weight: 14.3 lb (6.5 kg)

Installation

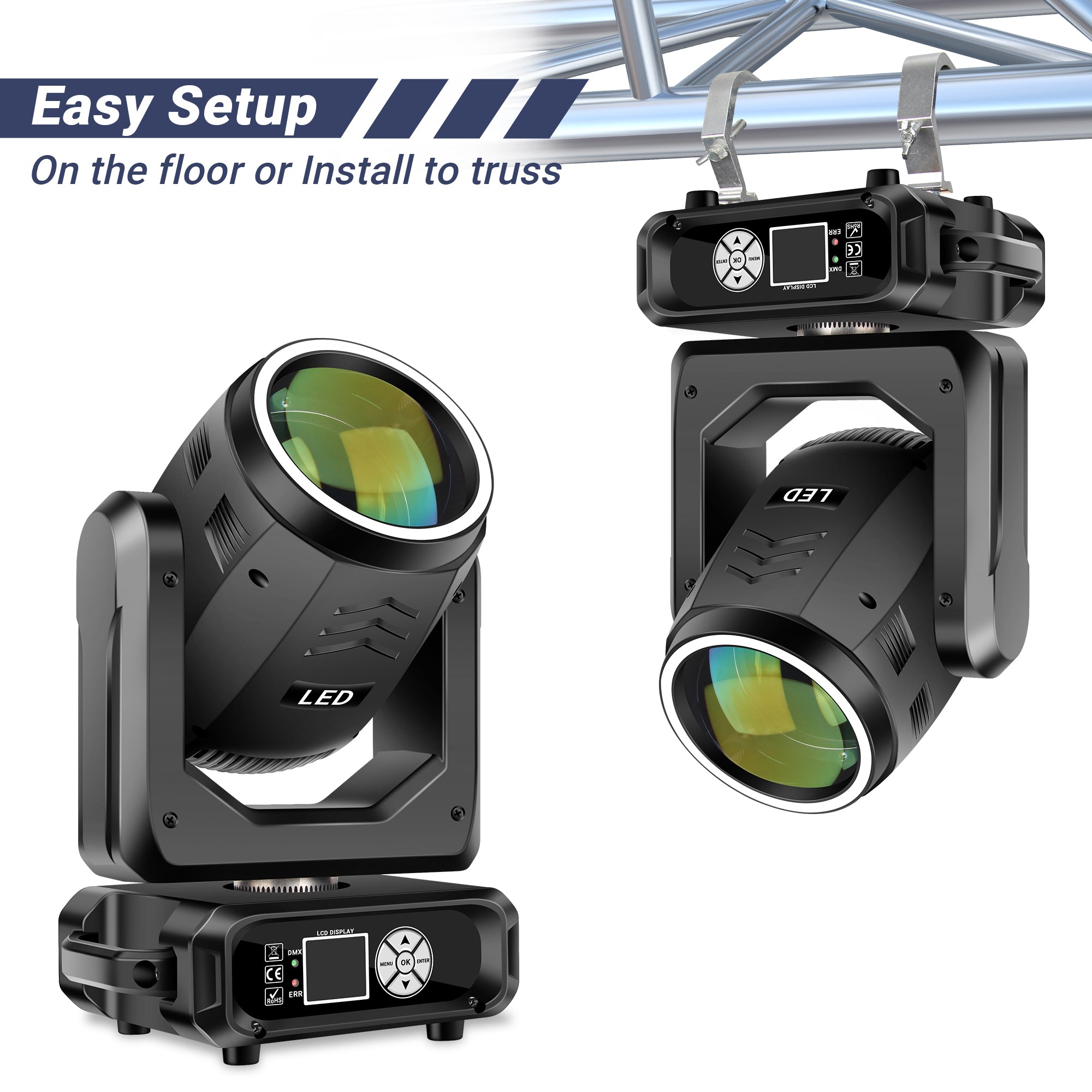

• Mounting: Install horizontally, at an angle, or fully inverted via the dual-yoke handle. Use a standard mounting clamp (sold separately) for truss rigging.
• Safety: Always pass a safety cable through both the truss/support structure and the fixture's mounting handle as secondary support. Keep walkways below the rig clear during installation.
• Grounding: Connect the green or green-yellow conductor to a properly grounded Class I outlet before powering on.
• Acclimation: If the unit has been exposed to extreme temperatures (e.g., during transport), let it return to room temperature before connecting power to avoid condensation damage.
• DMX Wiring: Use shielded twisted-pair DMX cable; terminate the last fixture in the chain with a 120Ω resistor across pins 2 and 3.

Cleaning

• Front Lens: Wipe the glass lens periodically with a soft microfiber cloth — dust on the condenser lens directly degrades beam tightness.
• Color & Gobo Wheels: Have a qualified technician clean the internal optics every 6 months in heavy-use environments. Do not open the housing yourself.
• Vents & Fans: Air-blow dust out of the intake vents and heat-sink fins every 200 hours of operation.

Maintenance

• Inspection: Regularly check that all mounting screws, hooks, and safety cables are tight and free of wear.
• Run-Hour Tracking: Use the on-board menu (Info → Use Hour / Light Hour) to track total run time for scheduled servicing.
• Service: Stop using the fixture if movement, focus, or wheel motors behave abnormally, and contact authorized service.

For detailed instructions, check out the user guide.
