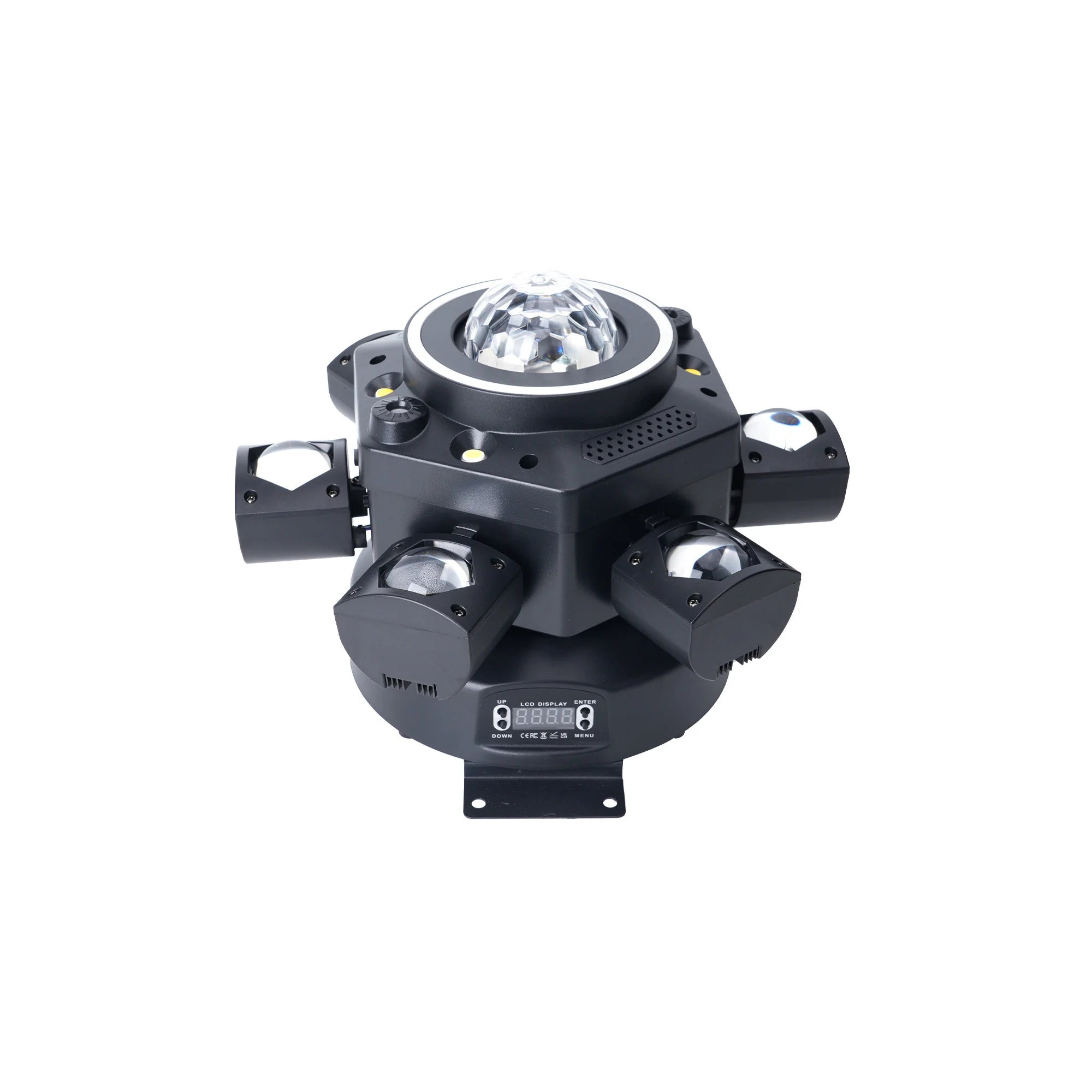

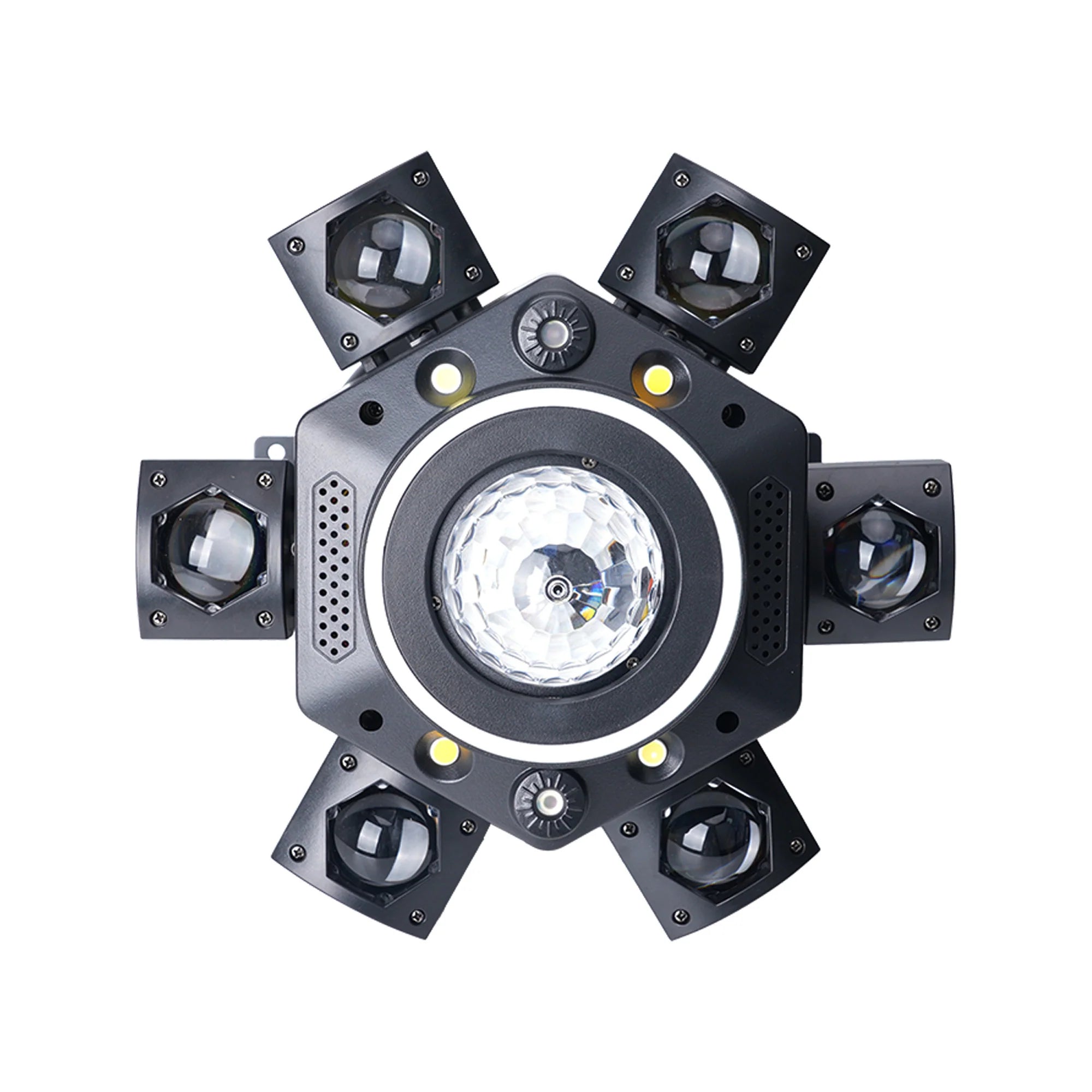

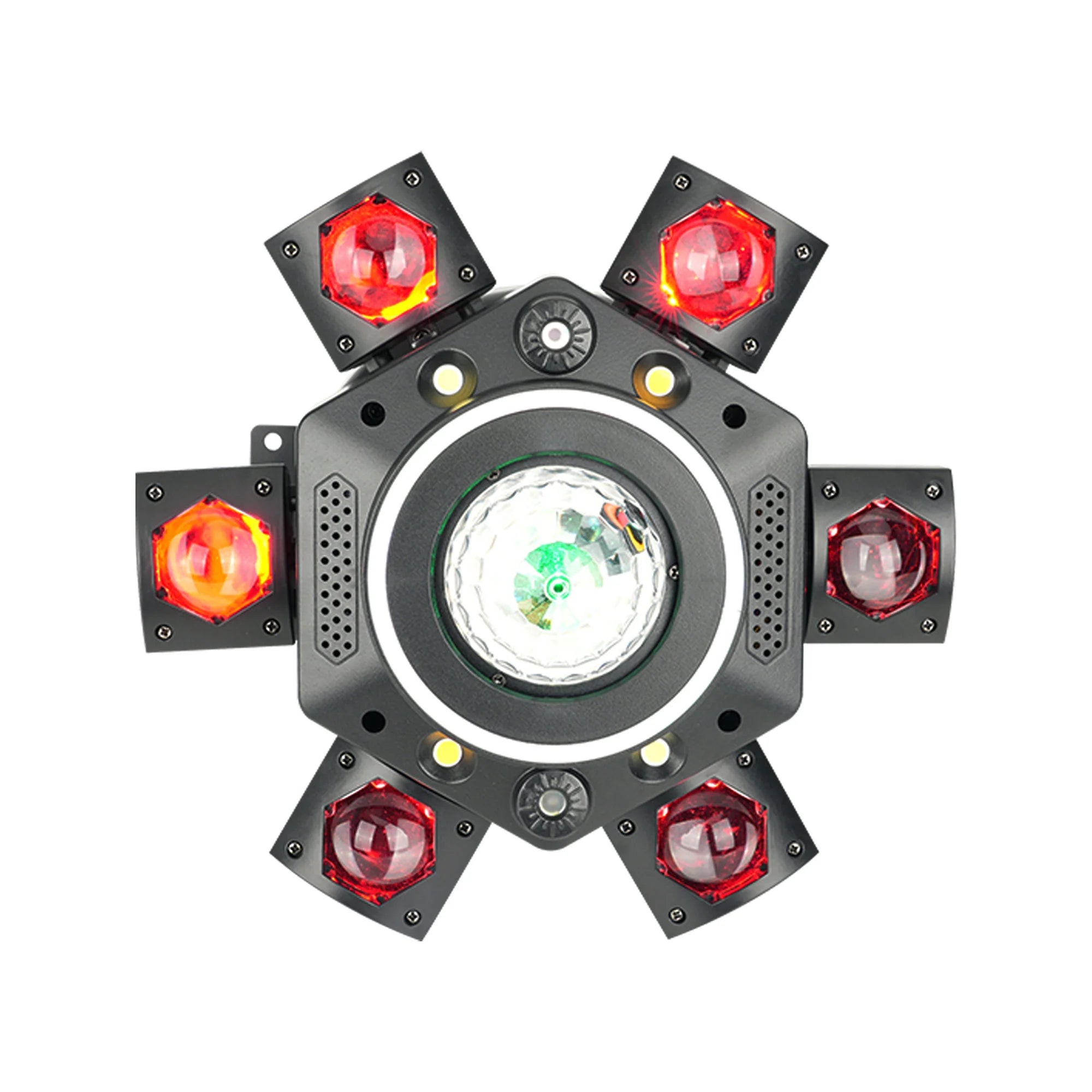

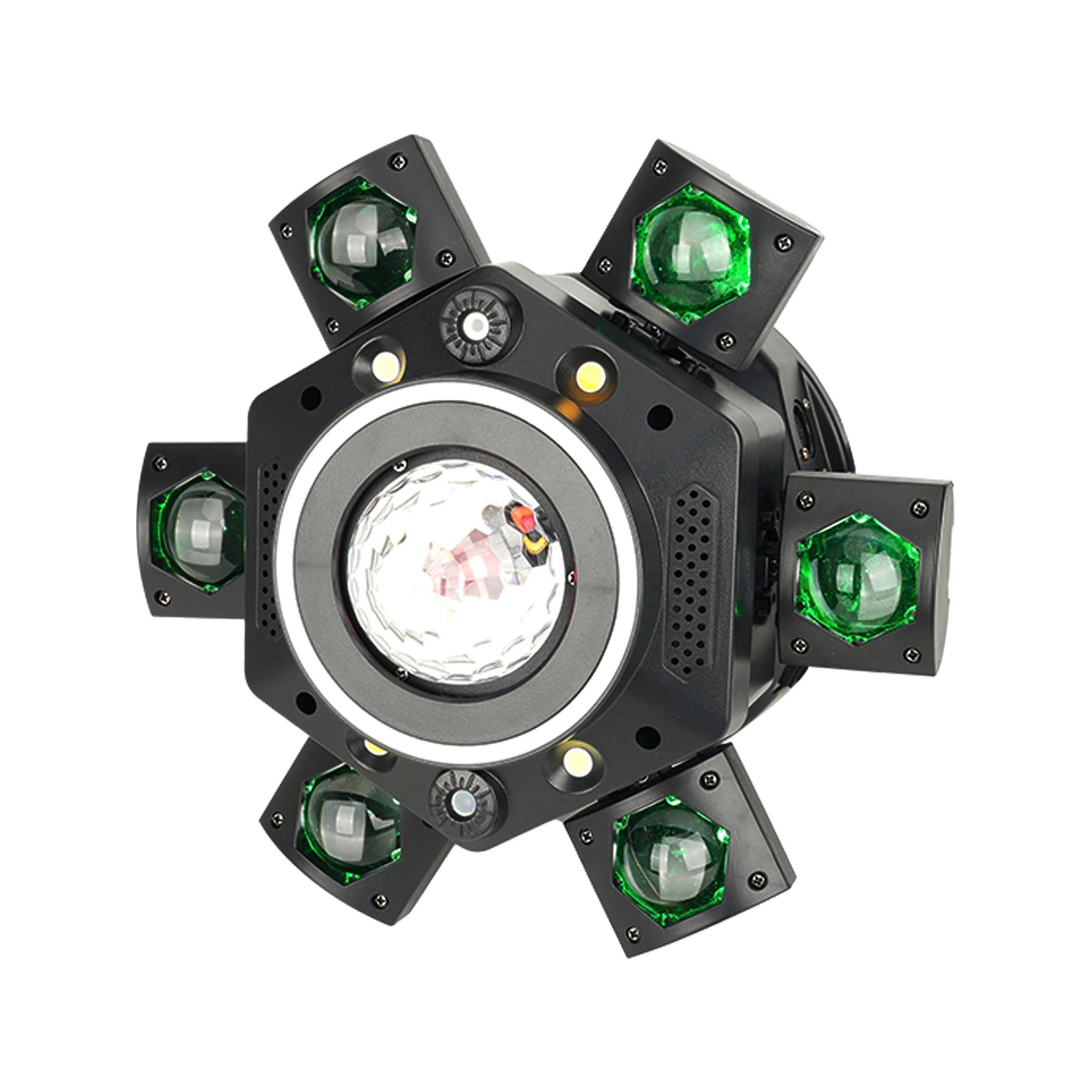

150W 6-Arm LED Moving Head Party Light

Light Source & Optical

• Total Power: 150W
• Arm Beams: 6 × 10W RGBW LED (4-in-1)
• Center Disco Ball: 1 × 15W RGBW LED
• Halo Ring: 23 × 0.2W 5050 RGB LEDs
• Strobes: 2 × 10W White + 2 × 10W Amber
• Lasers: 100mW Red + 50mW Green (starry pattern)
• Strobe Rate: Up to ~20Hz
• Dimming: 0–100% linear

Control & Connections

• Control Modes: DMX512, Sound Active, Auto, Infrared Remote, Master-Slave
• DMX Channels: 26
• Channel Map: CH1 Horizontal Rotation (0–540°), CH2 Rotation Speed, CH3 Disco Ball Rotation, CH4–CH9 Arm Tilt 1–6, CH10 Total Dimming, CH11 Strobe
• Microphone: Built-in for sound-active triggering
• Remote: Infrared remote control (included)
• Display: LCD with menu navigation (Menu / Up / Down / Enter)
• DMX Connector: 3-Pin XLR In/Out
• Daisy-Chain Address Spacing: +26 per unit (1, 27, 53, 79…)

Electrical & Physical

• Input Voltage: AC 95–245V, 50/60Hz (auto-ranging)
• Housing: Metal chassis with heat dissipation venting
• Indoor Use Only
• Maximum Ambient Operating Temperature: 104°F (40°C)

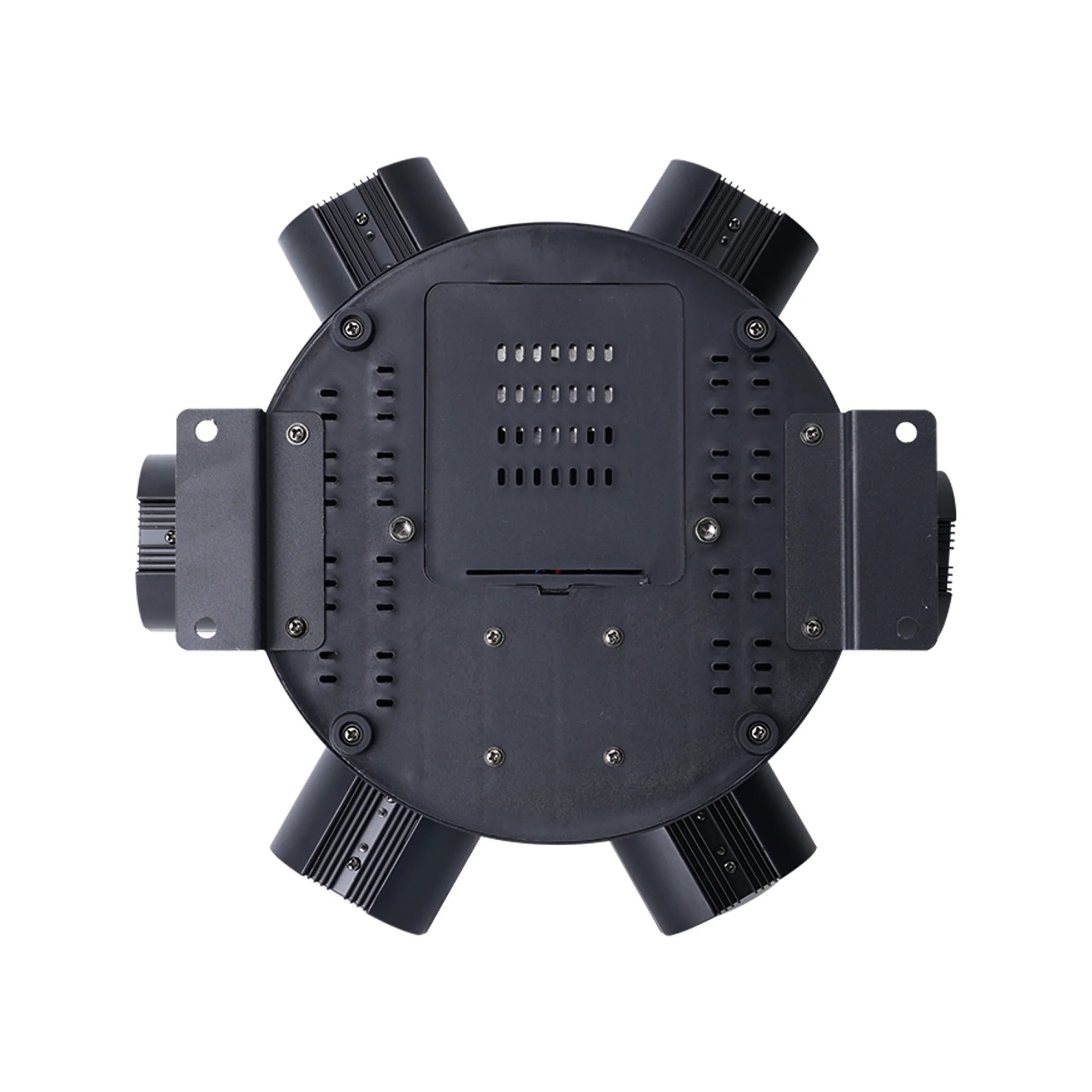

• Mounting: Built-in mounting bracket for floor, truss, or hanging install
• Dimensions: 12.59 × 12.59 × 9.44 in (32 × 32 × 24 cm)
• Weight: 7.17 lb (3.25 kg)

Installation

• Mounting: Use the included steel bracket to place the fixture upright on a flat surface, clamp it to truss, or hang it from a stable structure rated for the combined weight of the fixture, clamp, and cabling.
• Safety Cable: When the fixture is suspended or rigged overhead, always attach an appropriately rated safety cable as a secondary attachment in addition to the clamp.
• Clearance: Keep the fixture at least 8.5 in (20 cm) away from any flammable material. Keep at least 1.6 ft (0.5 m) between the fixture and any nearby object or surface.
• Laser Safety: Never aim the lasers directly at the audience. Project laser effects at least 9.8 ft (3 m) above audience heads, and survey the room for reflective surfaces that could bounce stray beams.
• Electrical: Use a properly grounded outlet. AC 95–245V input is auto-sensed — no voltage switch needed.

Cleaning

• Housing & Lenses: Power off and unplug, then wipe the housing and lens surfaces with a soft, lint-free cloth. Use only mild glass cleaner on the lenses if needed — never solvents.
• Heat Vents: Vacuum or blow dust out of the heat dissipation slots periodically to maintain cooling performance.

Maintenance

• Cool Down: Allow approximately 15 minutes of cool-down time after operation before servicing or repacking.
• Storage: Store in a dry environment under 104°F (40°C). Power the fixture down completely when not in use to extend LED and motor life.
• Inspection: Before each event, verify all 6 arms tilt freely, the disco ball rotates, the lasers fire safely above the audience zone, and the DMX/remote responds.

For detailed instructions, check out the user guide.
