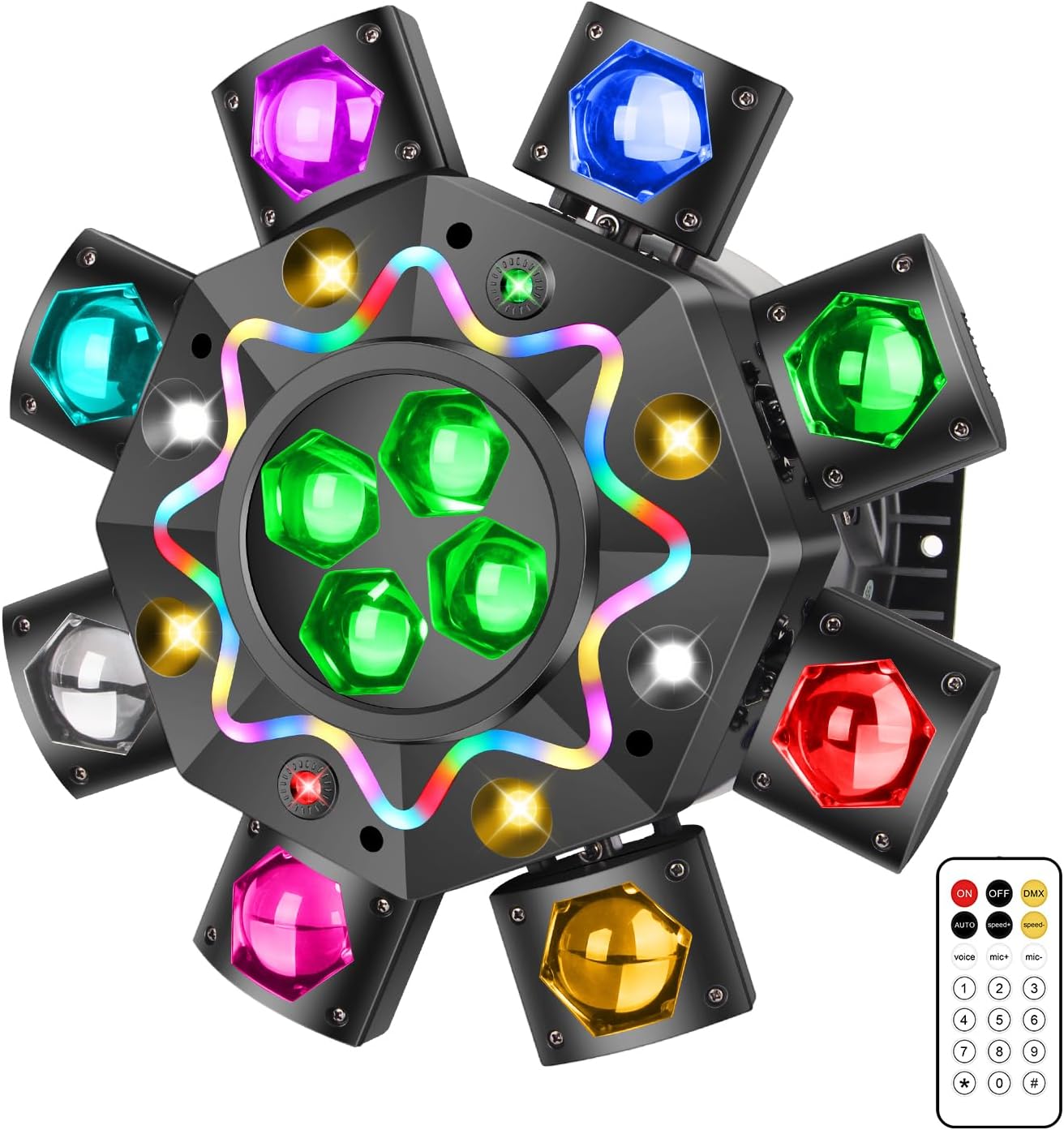

200W 8-Arm Bee Eye LED Moving Head Party Light

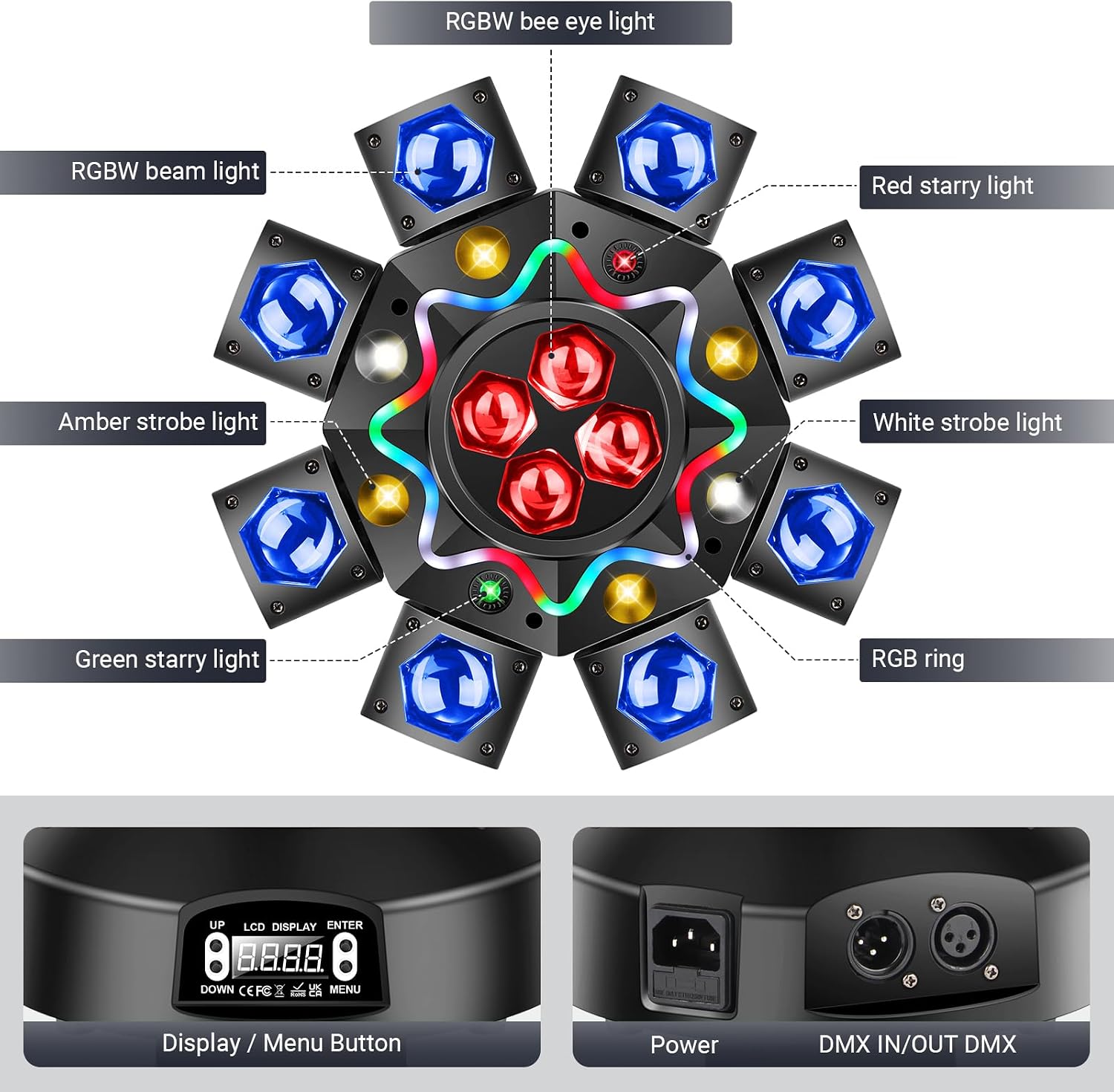

Light Source & Optical

• Total Power: 200W
• Arm Beams: 8 × 10W RGBW LED
• Bee Eye: 4 × 10W RGBW LED
• Ring: 34 × 0.2W 5050 RGB LEDs
• Strobes: 2 × 10W White + 4 × 10W Amber
• Lasers: 100mW Red + 50mW Green (starry pattern)
• Dimming: 0–100% linear

Control & Connections

• Control Modes: DMX512, Sound Active, Auto, Infrared Remote, Master-Slave
• DMX Channels: 28
• Channel Map: CH1 Horizontal Rotation (0–540°), CH2 Rotation Speed, CH3 Bee Eye Rotation, CH4–CH11 Arm Rotation 1–8, CH12 Total Dimming, CH13 Strobe Mode, CH14–CH17 Bee Eye RGBW, CH18–CH21 Arm Beam RGBW, CH22 Red Starry Laser, CH23 Green Starry Laser, CH24 White Strobe, CH25 Amber Strobe, CH26 Ring Color, CH27 Ring Speed, CH28 Built-in Programs

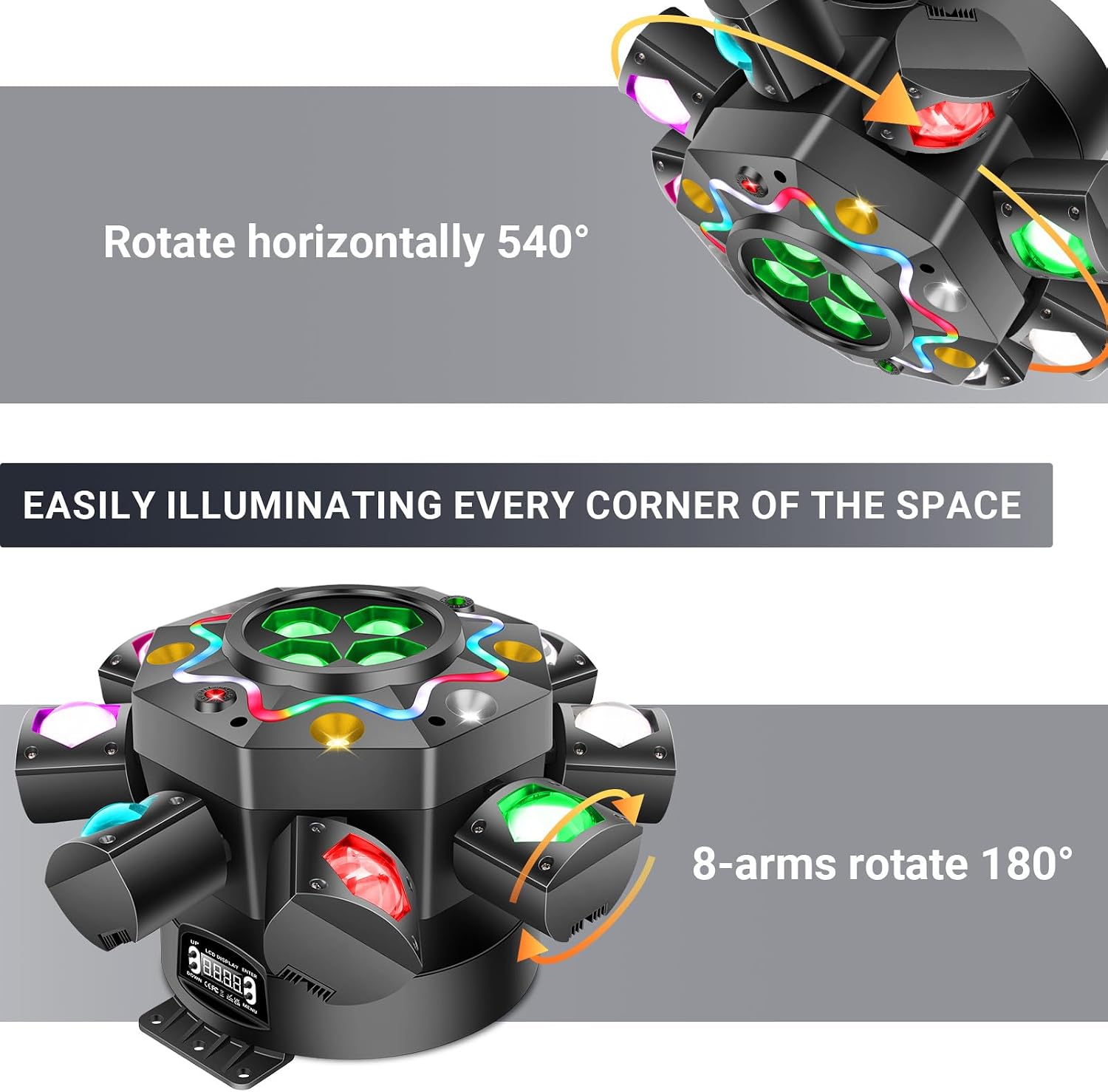

• Head Rotation: 540° horizontal
• Arm Rotation: 180° per arm (8 arms, independent)
• Sound Modes: 2 (S1, S2) with 0–100 sensitivity
• Auto Programs: 3 (A1, A2, A3)
• Microphone: Built-in for sound-active triggering
• Remote: 21-button infrared remote control (included)
• Display: LCD with menu navigation (Menu / Up / Down / Enter)
• DMX Connector: 3-Pin XLR In/Out
• Daisy-Chain Address Spacing: +28 per unit (1, 29, 57, 85...)

Electrical & Physical

• Input Voltage: AC 95–245V, 50Hz (auto-ranging)
• Housing: ABS plastic with full-body heat dissipation venting
• Cooling: Built-in fan (~40 dB)
• Indoor Use Only (IP20)
• Maximum Ambient Operating Temperature: 104°F (40°C)
• Mounting: Steel bracket with M8 clamp point for floor, truss, or hanging install

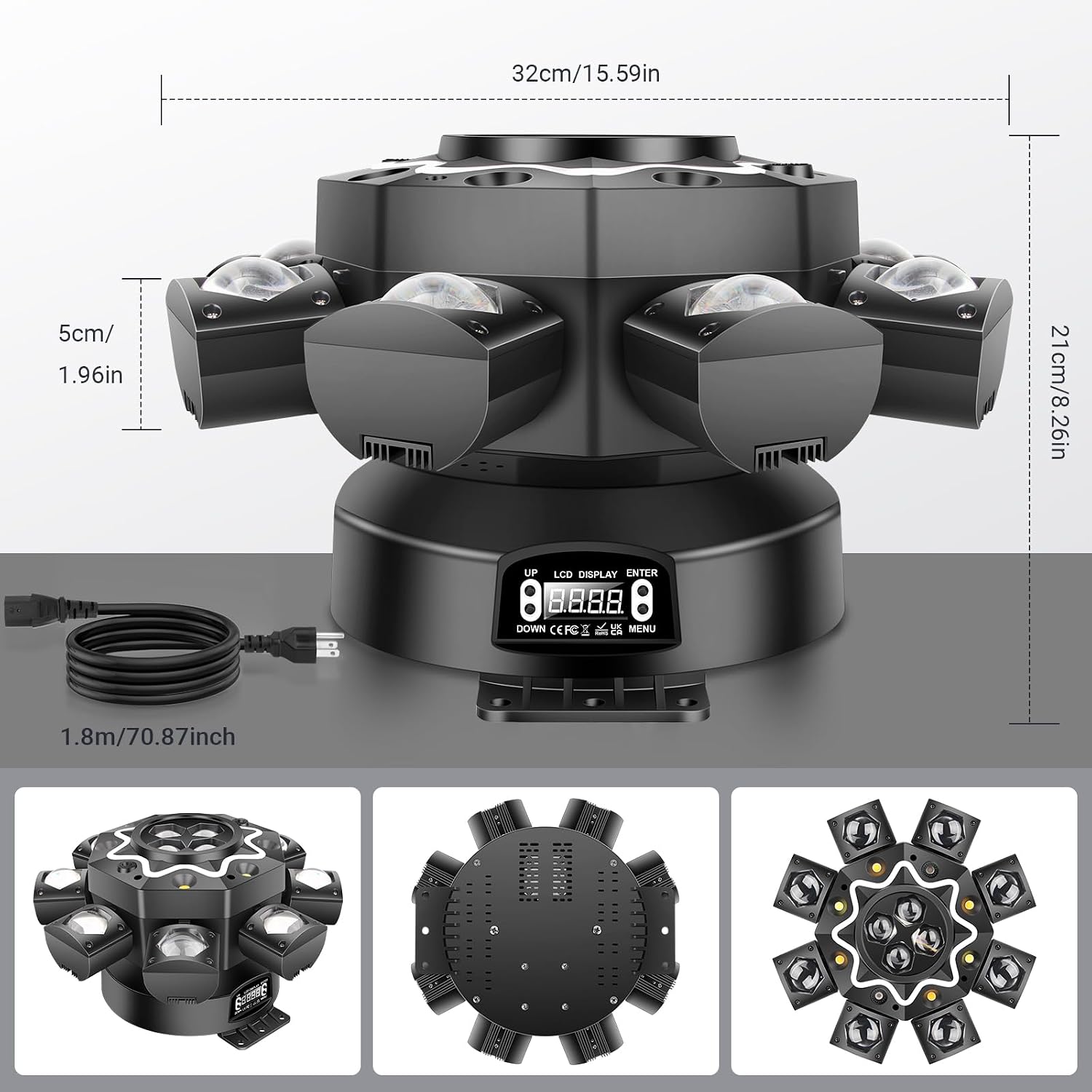

• Dimensions: 12.59 × 12.59 × 8.26 in (32 × 32 × 21 cm)
• Weight: 7.72 lb (3.5 kg)

Installation

• Mounting: The fixture includes a steel mounting bracket with an M8 clamp point on the handle. Attach an appropriately rated clamp (not included) for truss rigging, or set the bracket flat on a stage or DJ platform.
• Safety: Always attach a rated safety cable when suspending overhead. Do not stand directly below the fixture during rigging or service.
• Grounding: This is a Protection Class 1 fixture — the yellow/green conductor must be properly grounded to earth to prevent electric shock.
• Ventilation: Ensure airflow around the housing and vents. Do not operate where ambient temperature exceeds 104°F (40°C). Keep at least 1.6 ft (0.5 m) from any object and 8 in (20 cm) from flammable materials.
• Power: Do not plug into a dimmer pack. Connect only to a properly wired AC 95-245V, 50Hz outlet.

Cleaning

• Housing and lenses: Wipe with a dry lint-free cloth. Do not use solvents or spray cleaners directly on the fixture.
• Ventilation: Clear dust from intake vents and fan grilles periodically to maintain cooling performance.

Maintenance

• Cool-down: Allow approximately 15 minutes for the fixture to cool before servicing or packing for transport.
• Storage: Power the fixture down completely when not in use to extend LED and laser diode lifespan.
• Service: No user-serviceable parts inside — do not open the housing. Contact YeeSite support for any repair needs.

For detailed instructions, check out the user guide.
