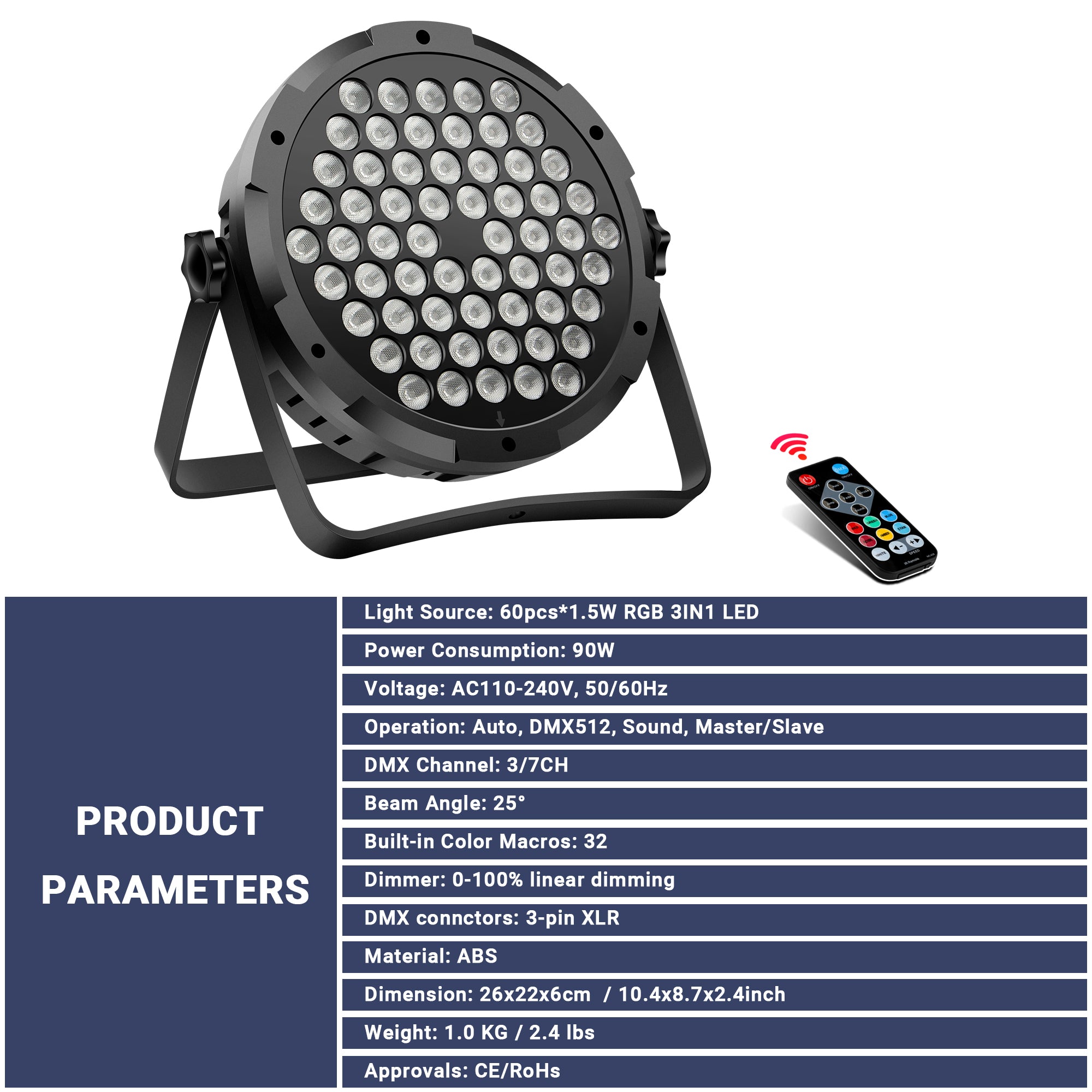

90W RGB LED PAR Lights

Light Source & Optical

• LED Configuration: 60x 1.5W RGB 3-in-1 LEDs

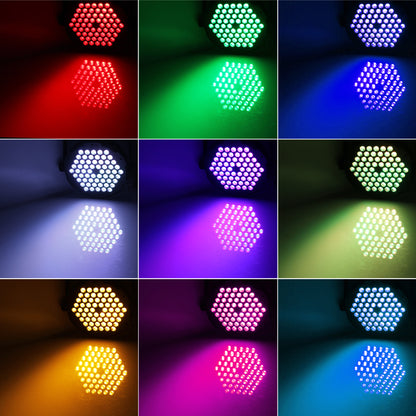

• Colors: RGB (Red, Green, Blue) Color Mixing
• Beam Angle: 25 Degrees
• Dimming: 0-100% Linear Dimming

Control & Connections

• Control Modes: DMX-512, IR Remote, Auto Run, Sound Active (Jump, Pulse, Strobe), Static Color
• DMX Channels: 3 Channel or 7 Channel Modes

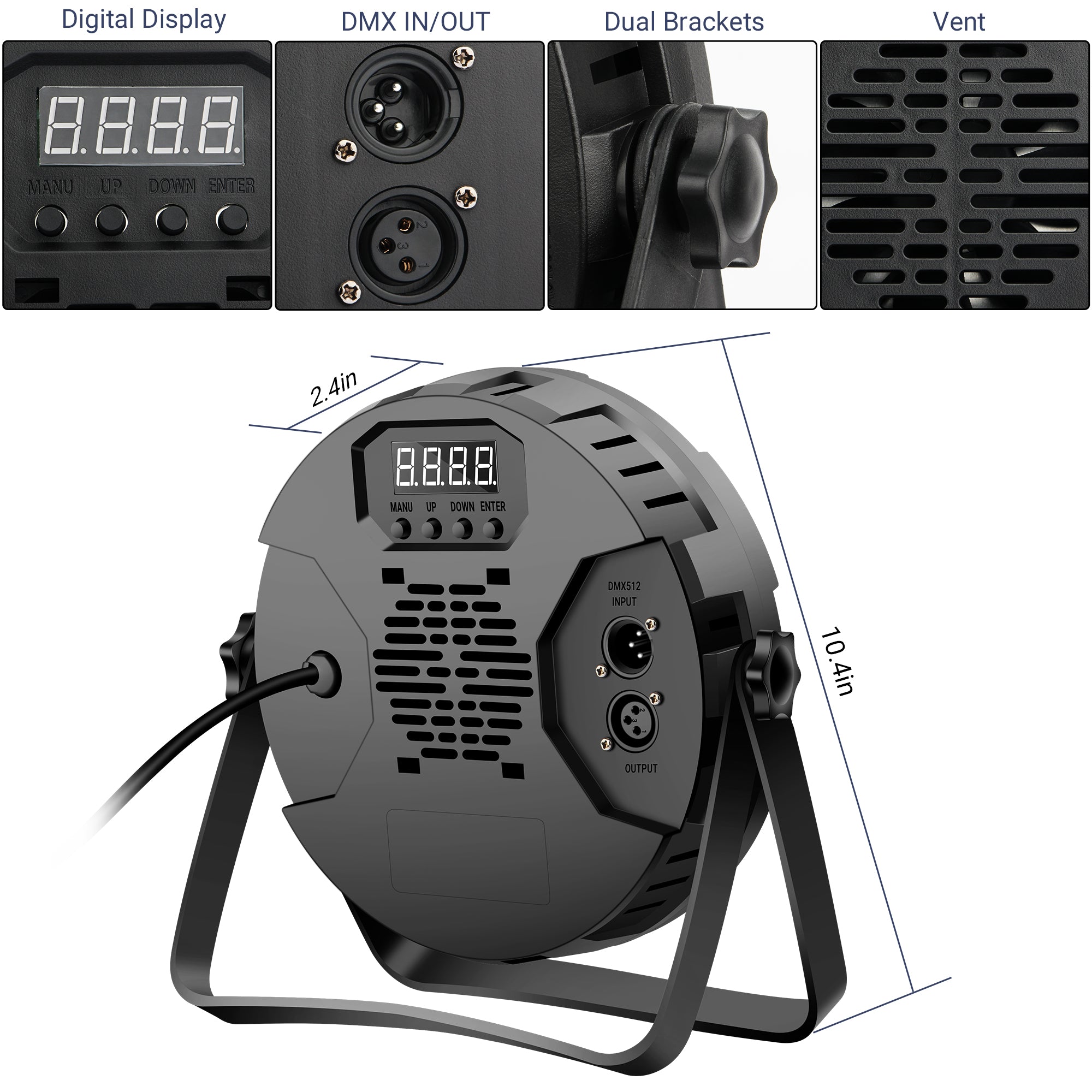

• Data Connectors: 3-Pin XLR In/Out
• Display: Digital LED Menu with 4-button control

Electrical & Physical

• Input Voltage: 110 to 240 VAC, 50/60 Hz (Auto-Ranging)
• Power Consumption: 90W
• Product Dimensions: 9.8 x 5.5 x 10.4 in (25 x 14 x 26.5 cm)
• Weight: 5.07 lbs (2.3 kg)
• Max Ambient Temp: 104°F / 40°C

Installation

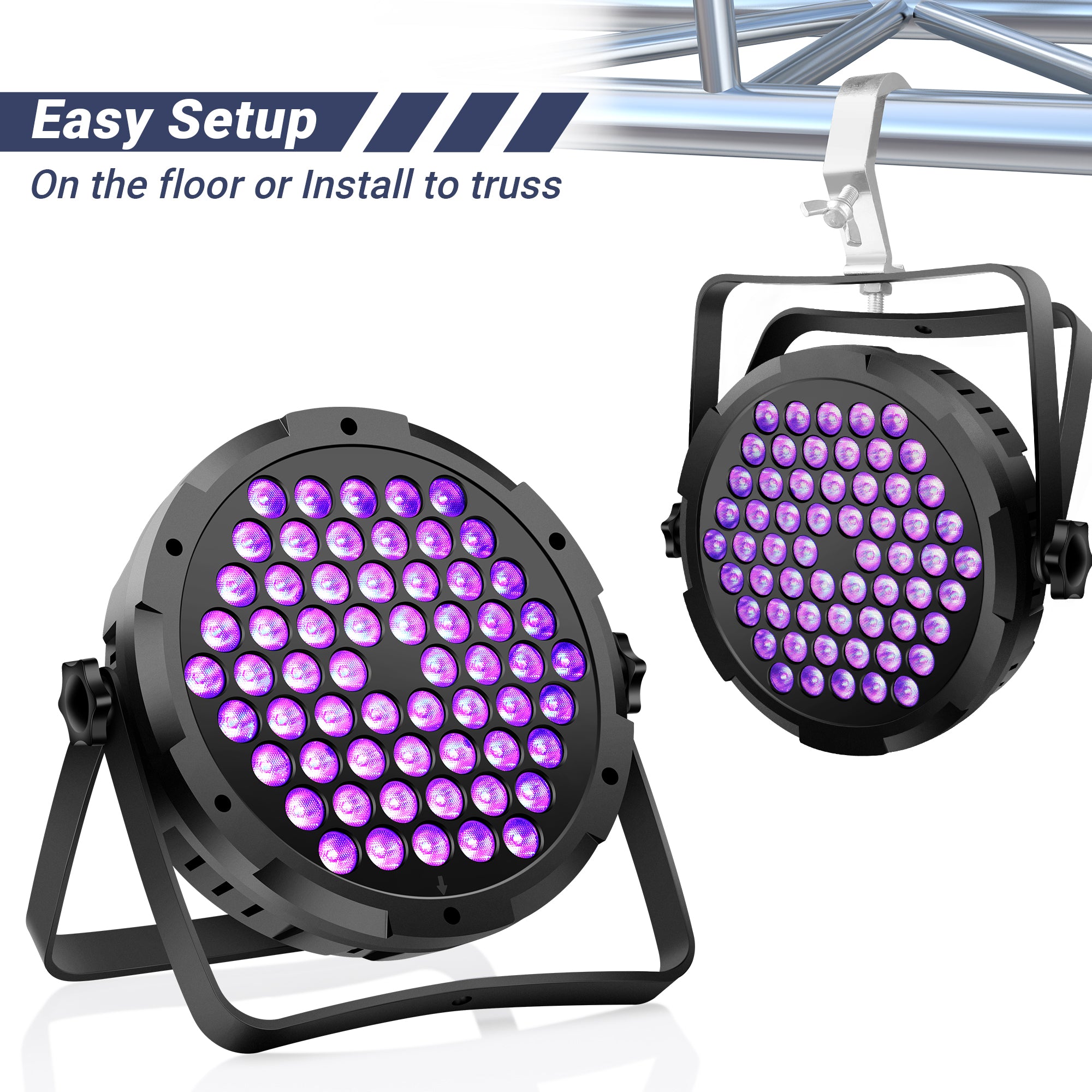

• Mounting: The fixture allows for mounting in any position using the included dual brackets.
• Overhead Rigging: Always use a safety chain when fixing this fixture overhead to prevent it from falling.
• Ventilation: Ensure adequate ventilation is provided around the product and do not block the housing slots.
• Grounding: It is important to connect the yellow/green conductor to earth to avoid electric shock.

Cleaning

• Safety First: Disconnect main power before servicing and maintenance.
• Housing: The housing must be replaced if it is visibly damaged.

Maintenance

• Service: There are no user-serviceable parts inside the fixture. Do not open the housing or attempt any repairs yourself.
• Repairs: Repairs carried out by unskilled people can lead to damage or malfunction; always contact an authorized technical assistance center.

For detailed instructions, check out the user guide.
