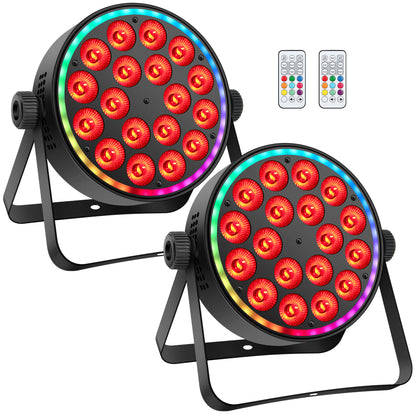

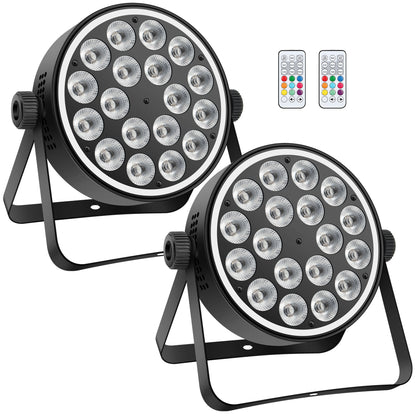

180W RGBW LED PAR Lights

Electrical & Optical

• Power Consumption: 180W
• Voltage: 100V~240V / 50~60 Hz

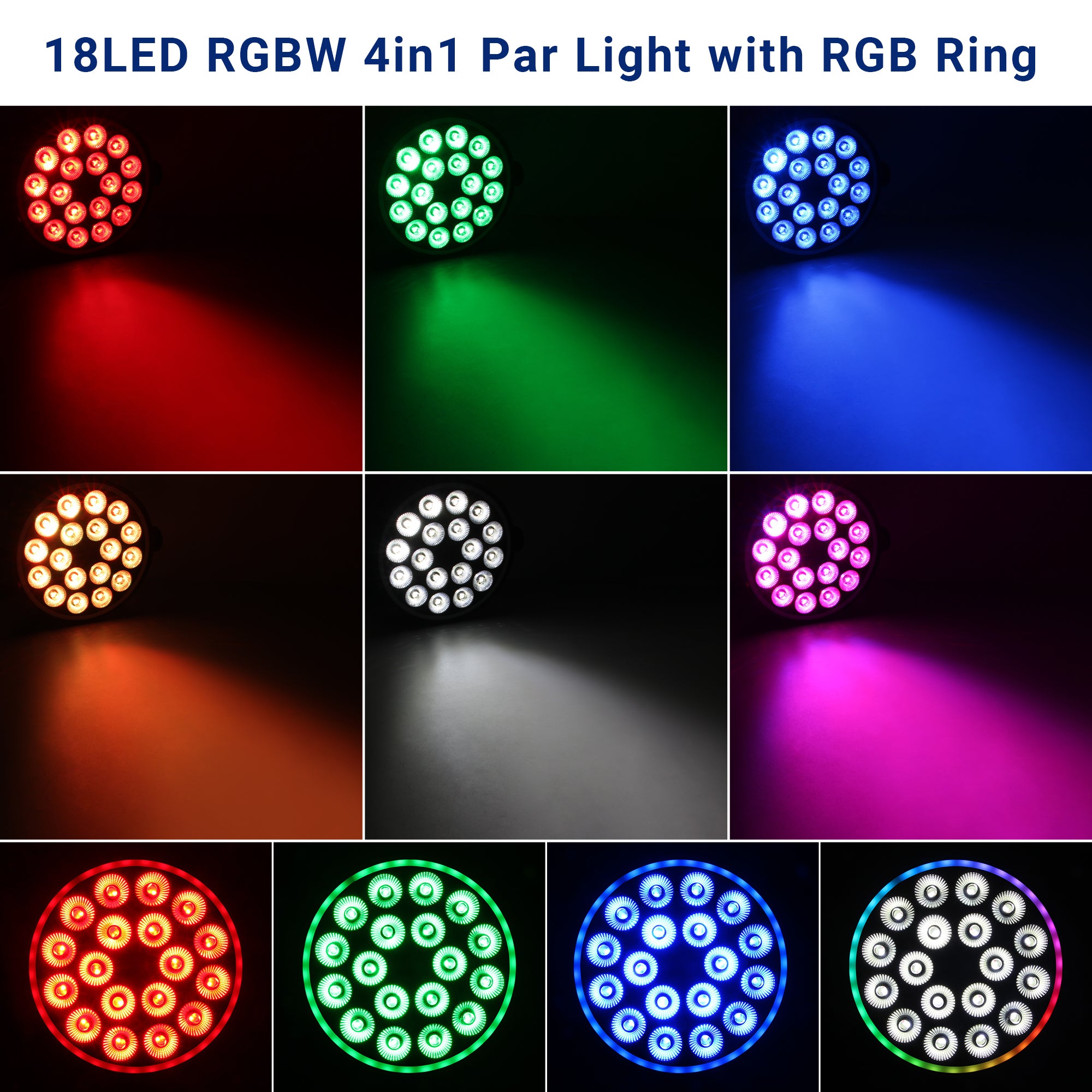

• Light Source: 18 x 8W RGBW LEDs & 35 x 0.3W SMD5050 LEDs

Control

• Control Modes: Static, Auto, Sound, Strobe, Jump, Pulse, Fade, DMX512
• DMX Channels: 6 / 10 Channels

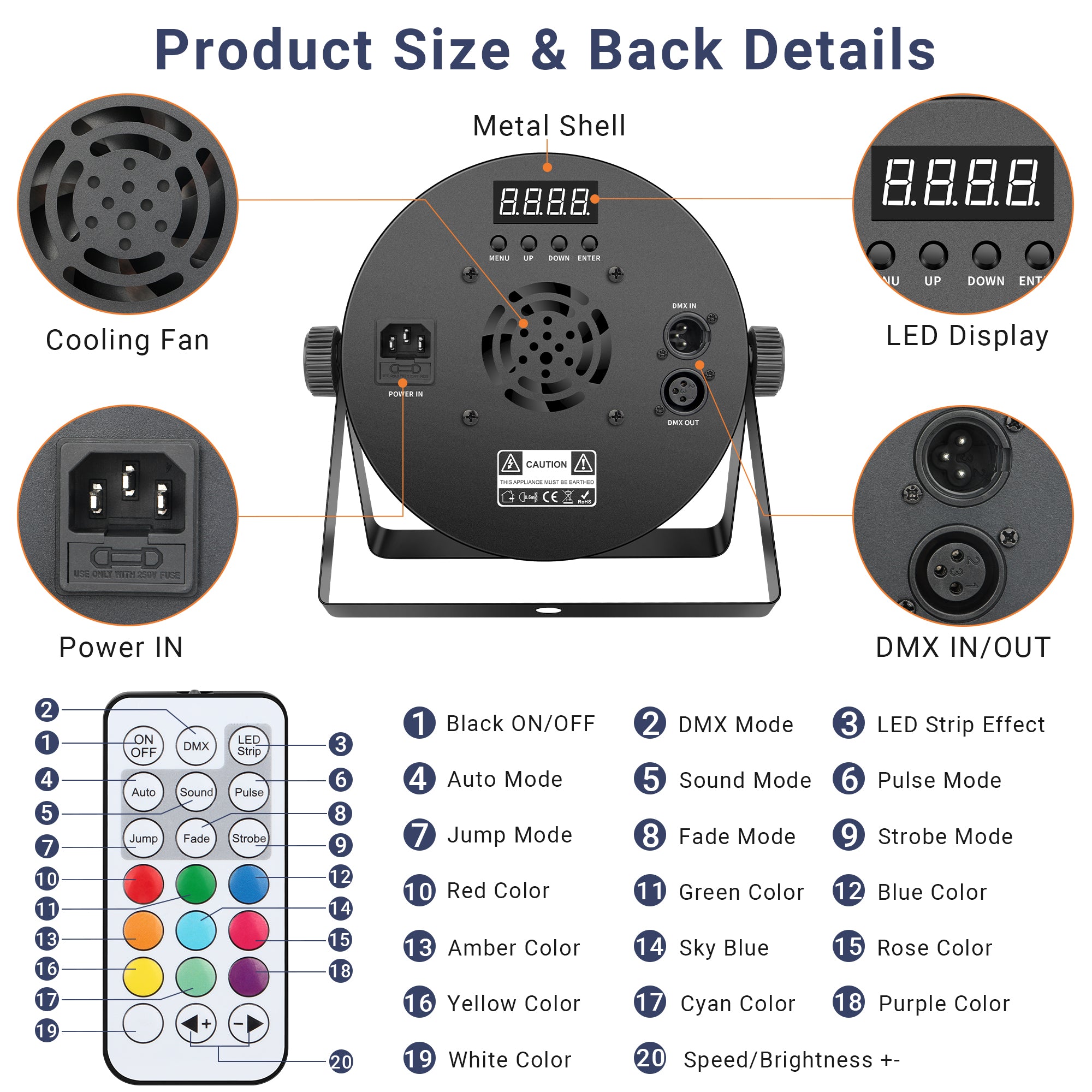

• Operation: 4 Push Buttons with LED Display, IR Remote

Physical

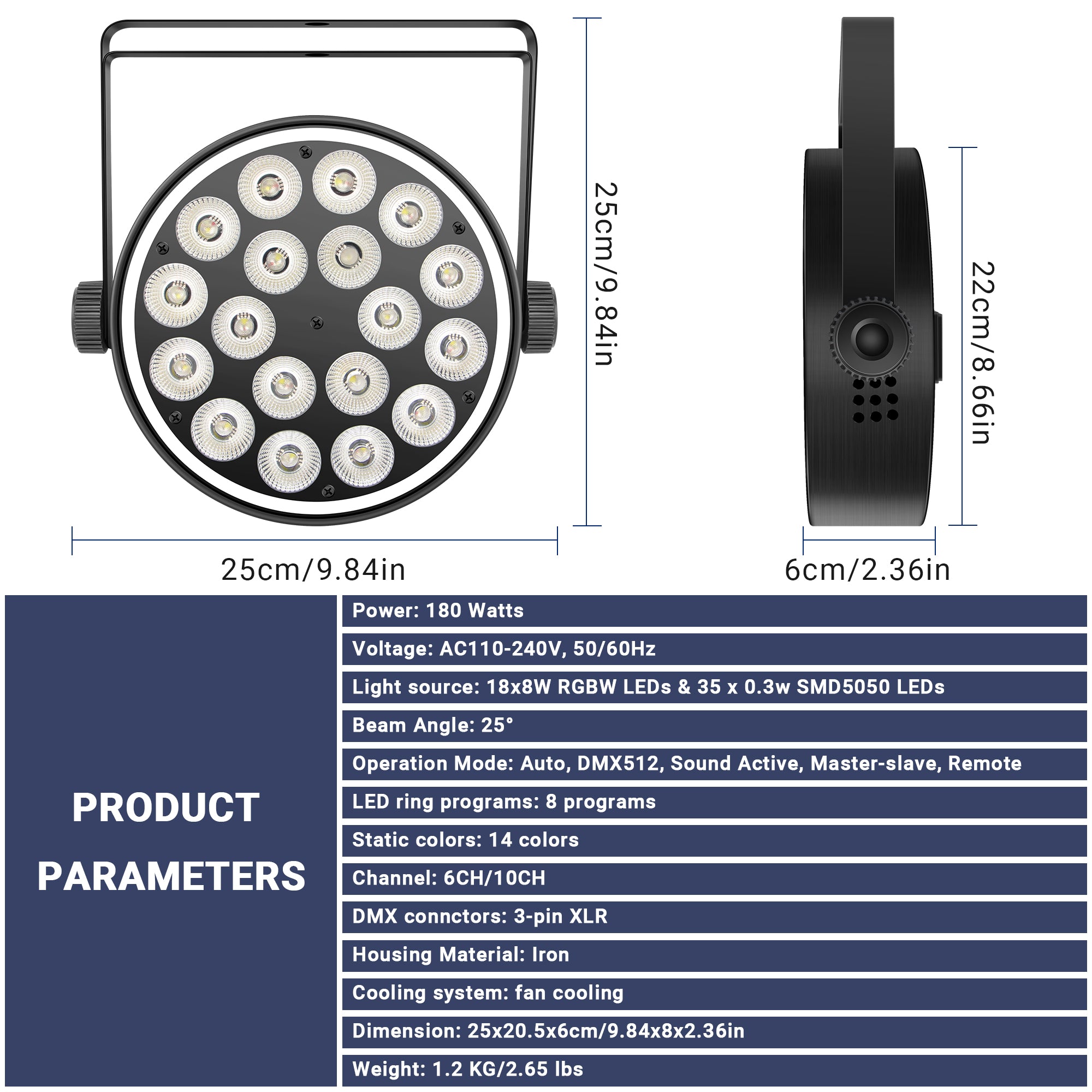

• Dimensions: 8.9 × 6.9 × 9.1 in (22.5 × 17.5 × 23 cm)
• Weight: 2.87 lbs / 1.3 kg (per unit)
• Cooling: Built-in fan

Installation

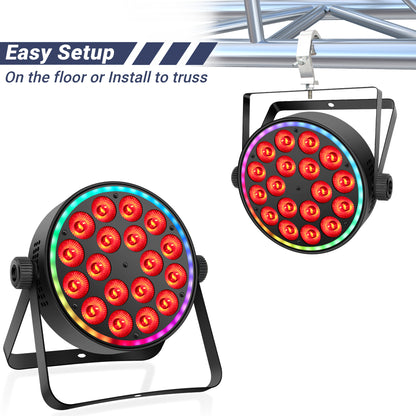

• Mounting: Use the double-bracketed yoke to sit the unit flat on the floor as an uplight, or attach a mounting clamp (not provided) to hang it securely from a truss.
• Ventilation: Always be sure to mount this unit in an area that will allow proper ventilation to ensure the built-in fan can expel heat effectively.

Cleaning

• Lens & Housing: Clean the front lenses and outer casing only as recommended, using a soft, dry or slightly damp cloth. Never use harsh solvents.
• Safety: Always disconnect from main power before cleaning.

Maintenance

• Cables: Ensure power supply cords are routed so that they are not likely to be walked on or pinched.
• Inspection: Periodically check all connections, brackets, and knobs for tightness and wear.
• Storage: During long periods of non-use, disconnect the unit from main power completely.
• Service: Do not attempt repairs yourself — there are no user-serviceable parts inside. Contact customer support if service is needed.

For detailed instructions, check out the user guide.
