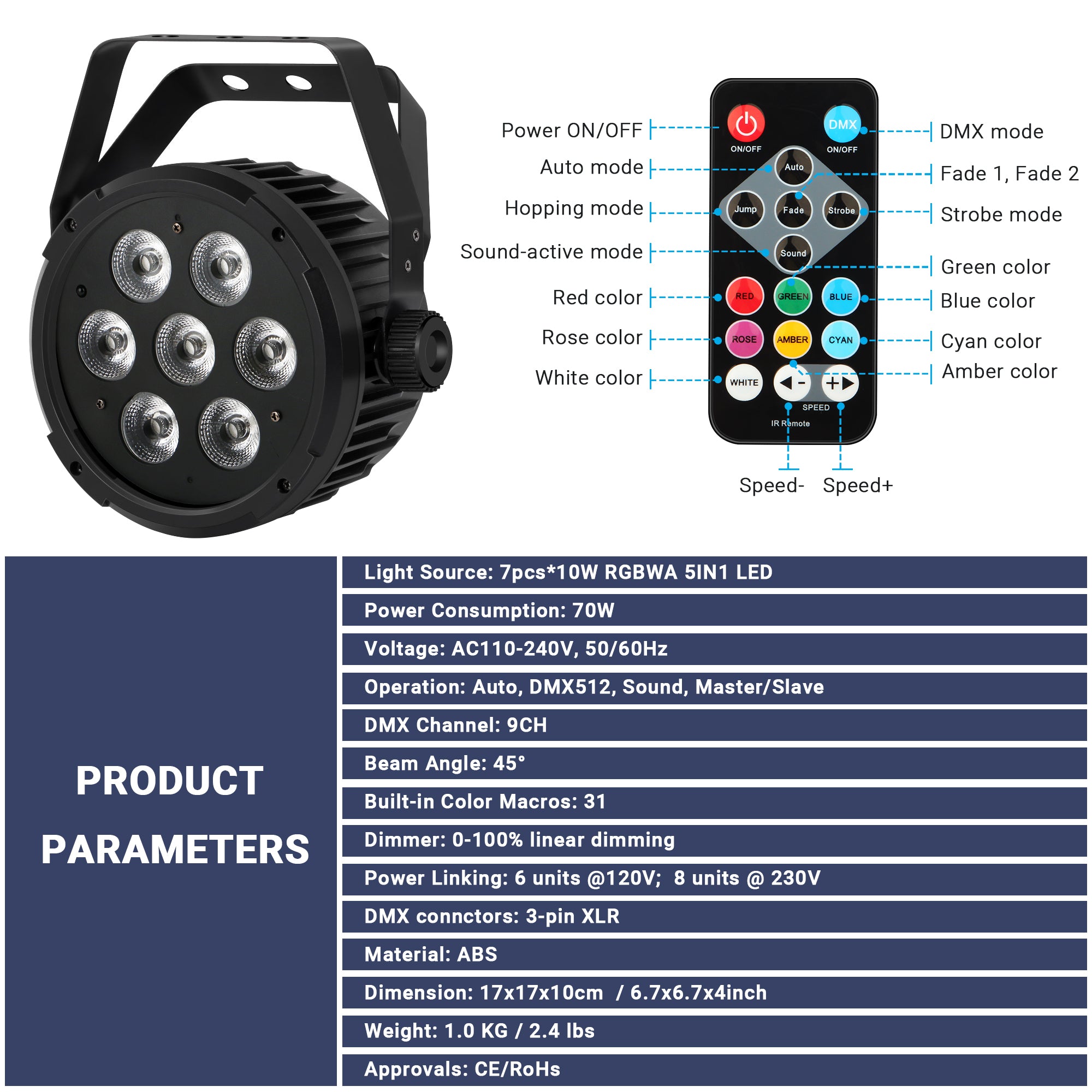

Tech Specs
Light Source & Optical
  • LED Configuration: 7x 10W RGBWA LEDs
  • Beam Angle: 35 Degrees

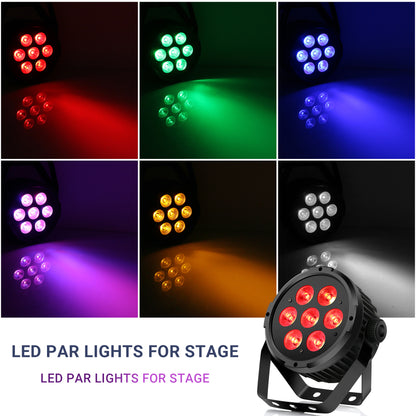

  • Colors: Red, Green, Blue, White, Amber
Control & Connections
  • Control Protocols: DMX-512, IR Remote, Master/Slave, Auto, Sound Active
  • DMX Channels: 9 Channels
  • Data Connectors: 3-Pin XLR In/Out
  • Display: Digital LED Menu
Electrical & Physical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
  • Power Consumption: 70W
  • Dimensions: 6.7 x 6.7 x 4.1 in (17 x 17 x 10.5 cm)
  • Weight: 2.43 lb / 1.1 kg
  • IP Rating: IP20 (Indoor Use Only)
  • Max Ambient Temp: 104°F / 40°C
Installation, Cleaning & Maintenance
Installation

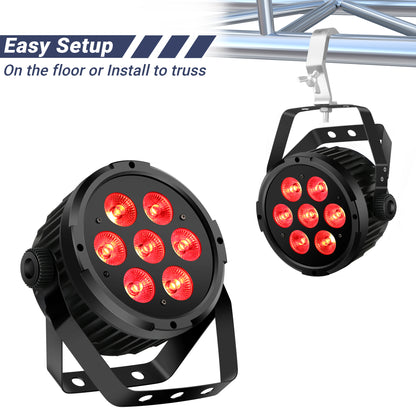

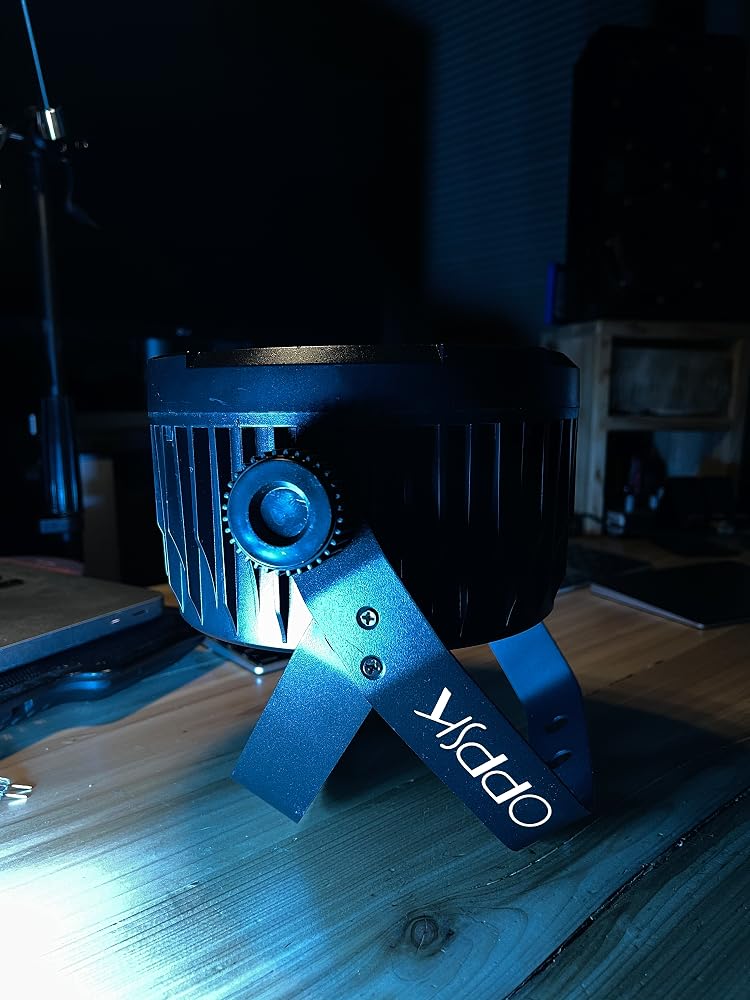

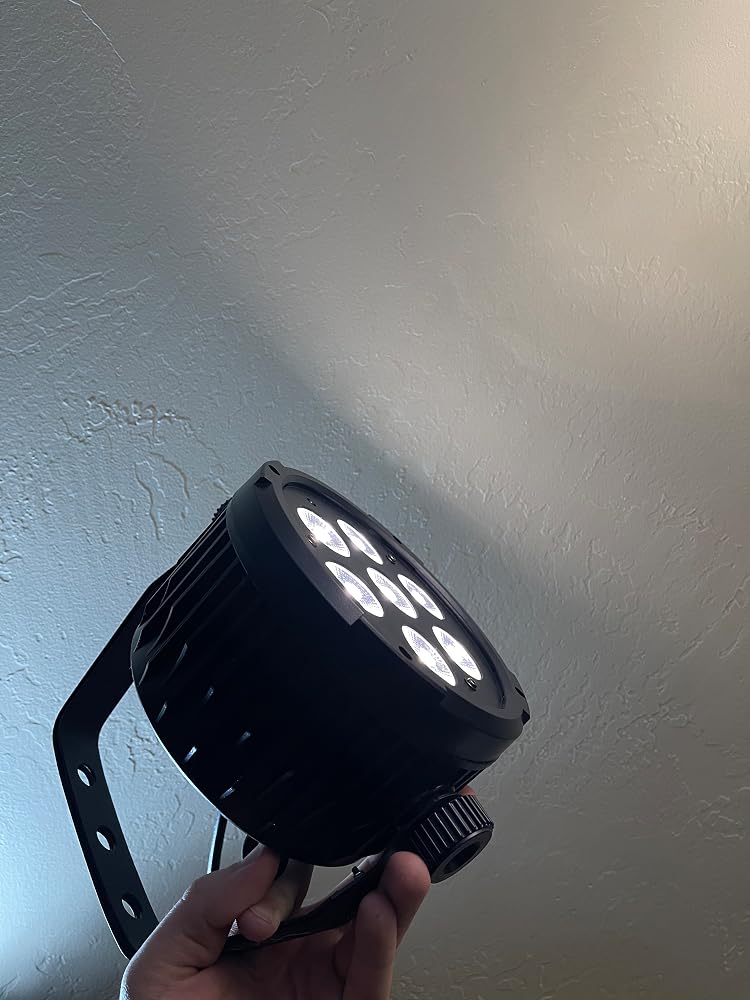

  • Mounting: The fixture includes a bracket and adjustment knobs and can be mounted in any position.
  • Overhead Rigging: If mounting the product overhead, always secure it to a fastening device using a safety cable.
  • Ventilation: Always install the product in a location with adequate ventilation, leaving at least 20in (50cm) of clearance from adjacent surfaces. Ensure no ventilation slots are blocked.
Cleaning
  • Safety First: Always disconnect the product from the power source before cleaning.
  • Housing: Do not touch the product's housing during operation as it may be very hot.
Maintenance
  • Storage: To eliminate unnecessary wear and improve lifespan, completely disconnect the product from power via breaker or by unplugging it during periods of non-use.
  • Repairs: Never try to repair the product yourself; repairs carried out by unskilled people can lead to damage or malfunction.

For detailed instructions, check out the user guide.

Compliance & Certification

The 70W RGBWA LED PAR Light is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Installation Kit

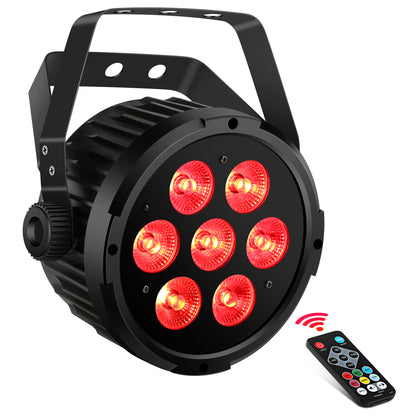

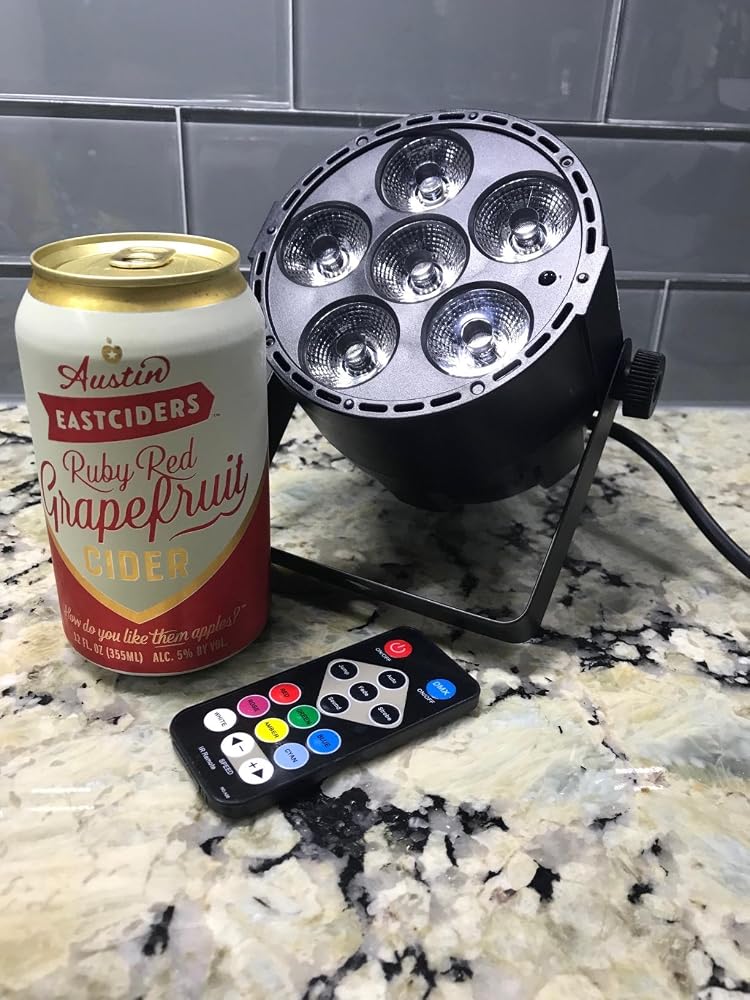

  • Remote Control

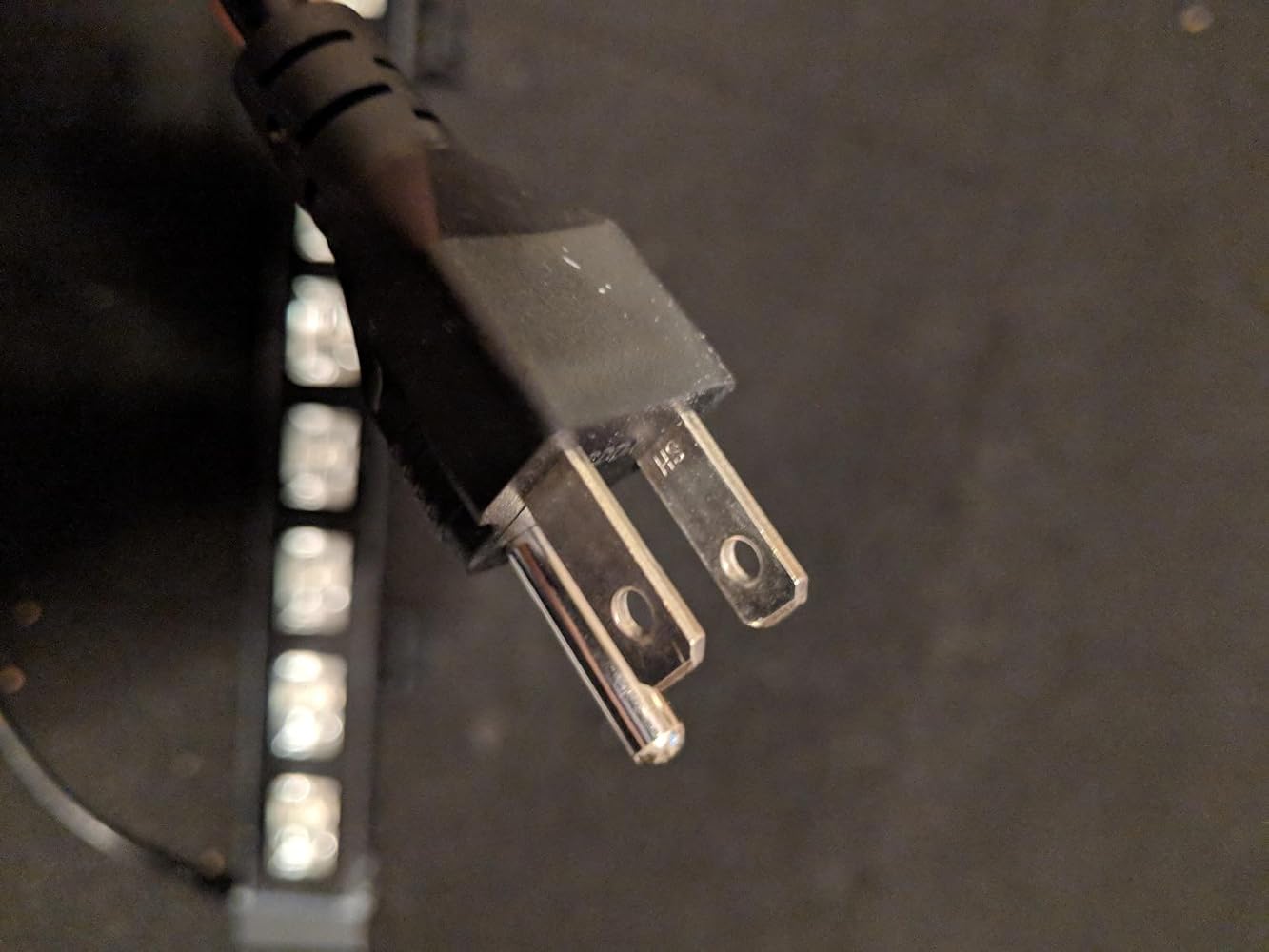

  • Power Cable

  • DMX Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

What does "RGBWA" stand for and why is it better than RGB?

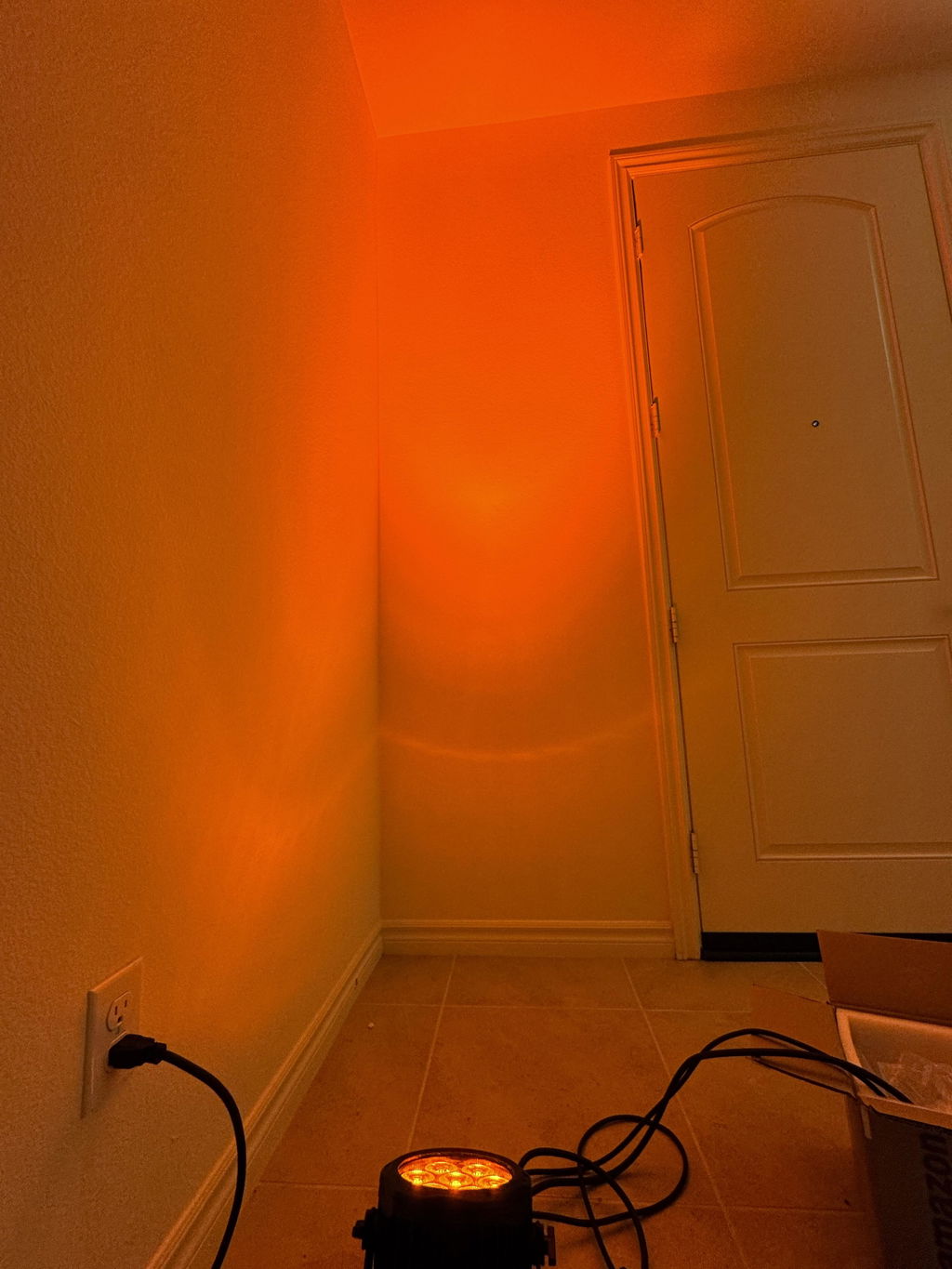

RGBWA stands for Red, Green, Blue, White, and Amber. The addition of the Amber LED allows you to mix rich gold, yellow, and warm white tones that standard RGB lights cannot achieve.

Is this fixture suitable for outdoor use?

No, this product is rated IP20, which means it is for indoor use only. It should not be exposed to rain or moisture.

Can I link multiple units together?

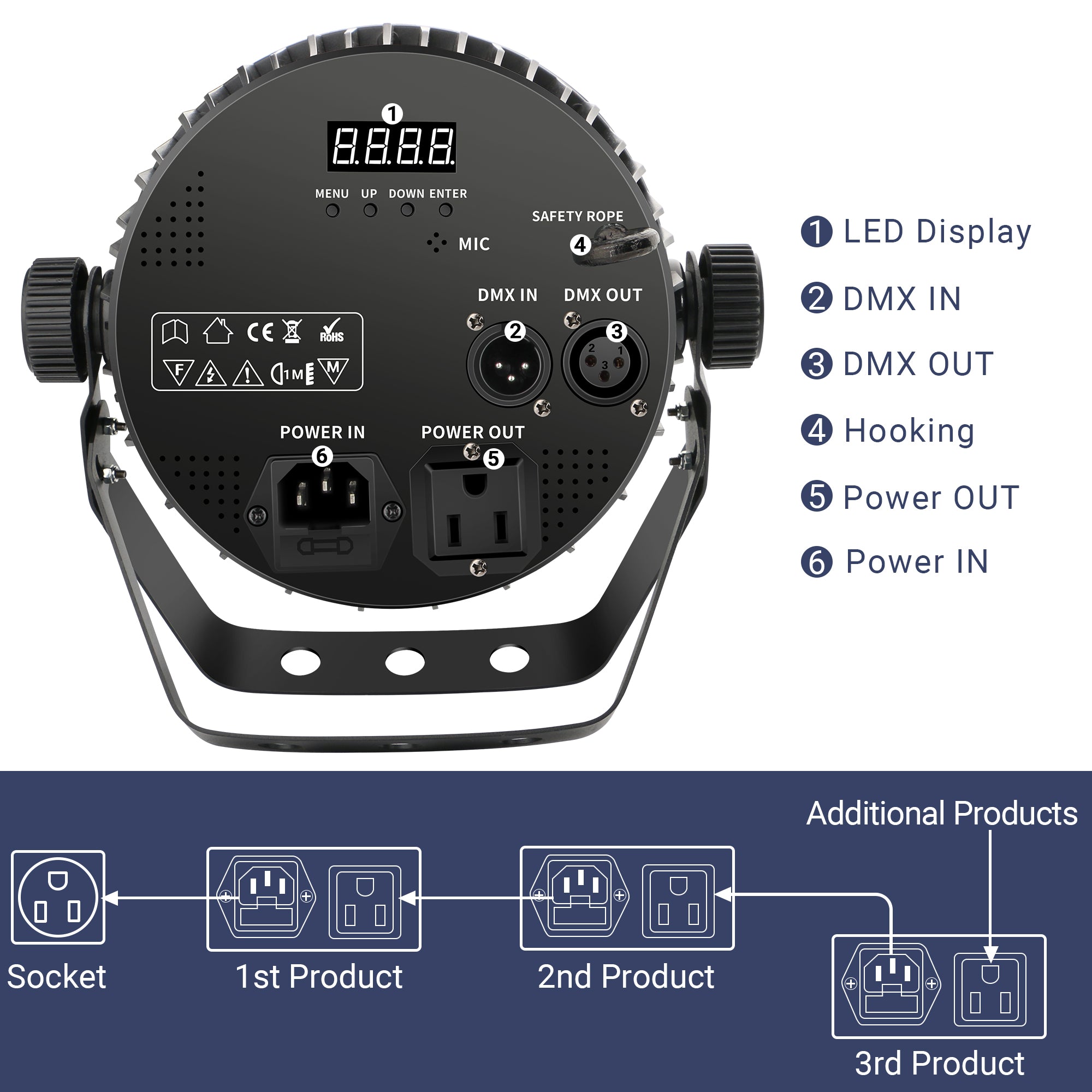

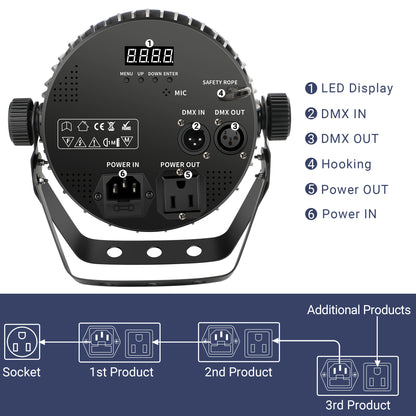

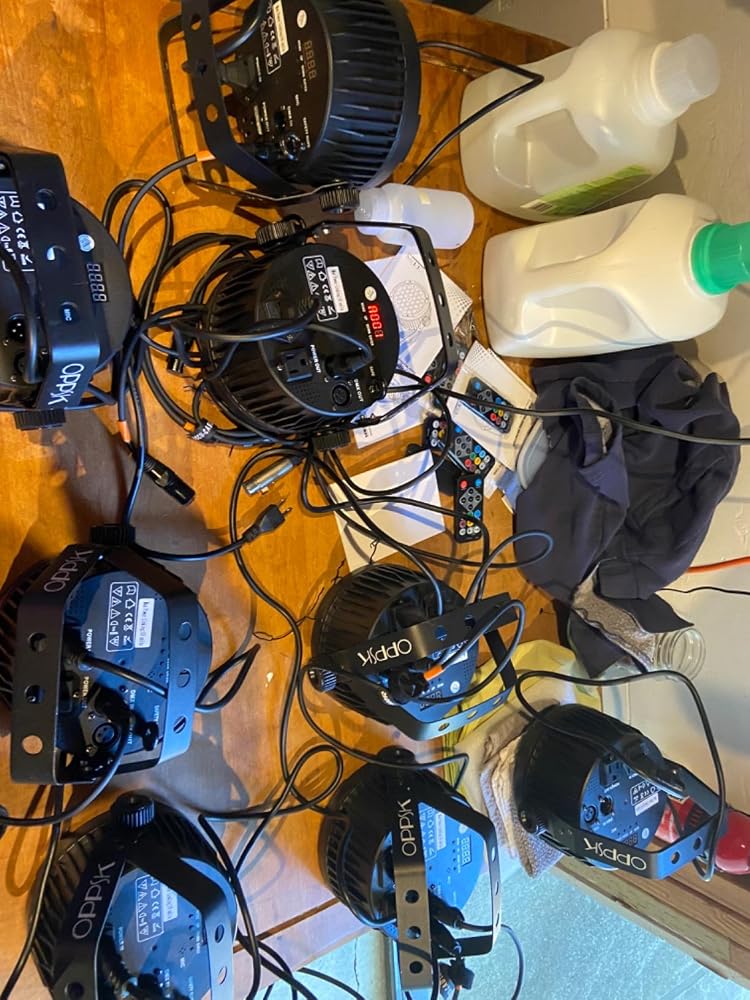

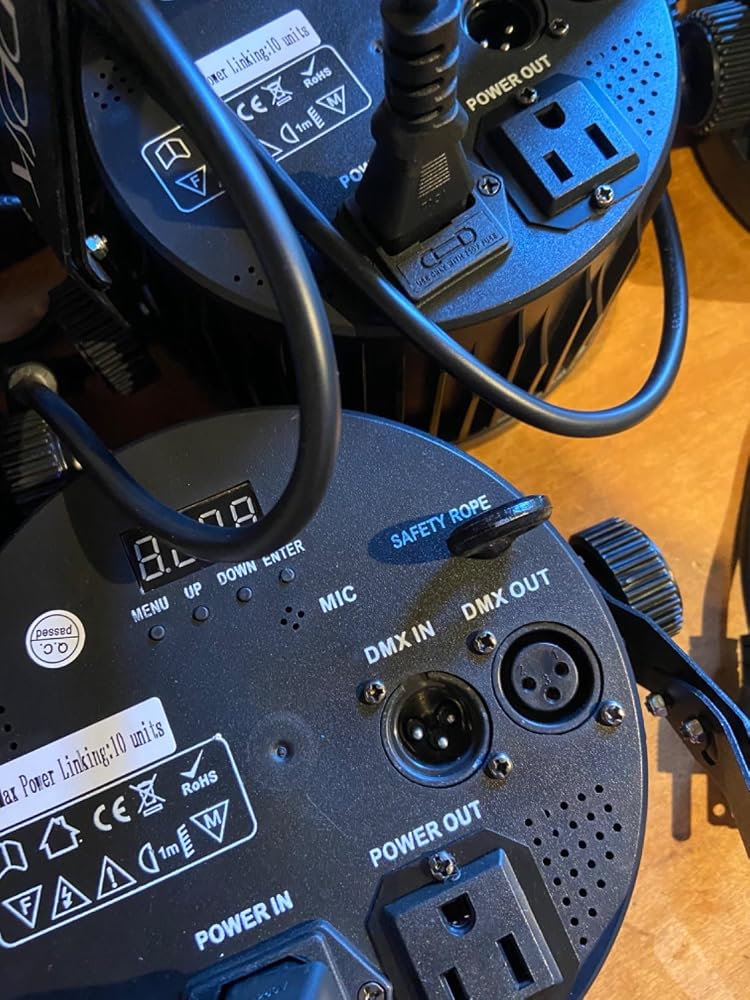

Yes. You can use Master/Slave mode to link units via DMX cables so they all perform the same actions without a controller. It also features Power Out for daisy-chaining power.

Does it have a "Sound Active" mode?

Yes. In Sound Active mode, the light reacts to the beat of the music. You can even adjust the microphone sensitivity from level 1 (weak) to 9 (strong) via the menu.
