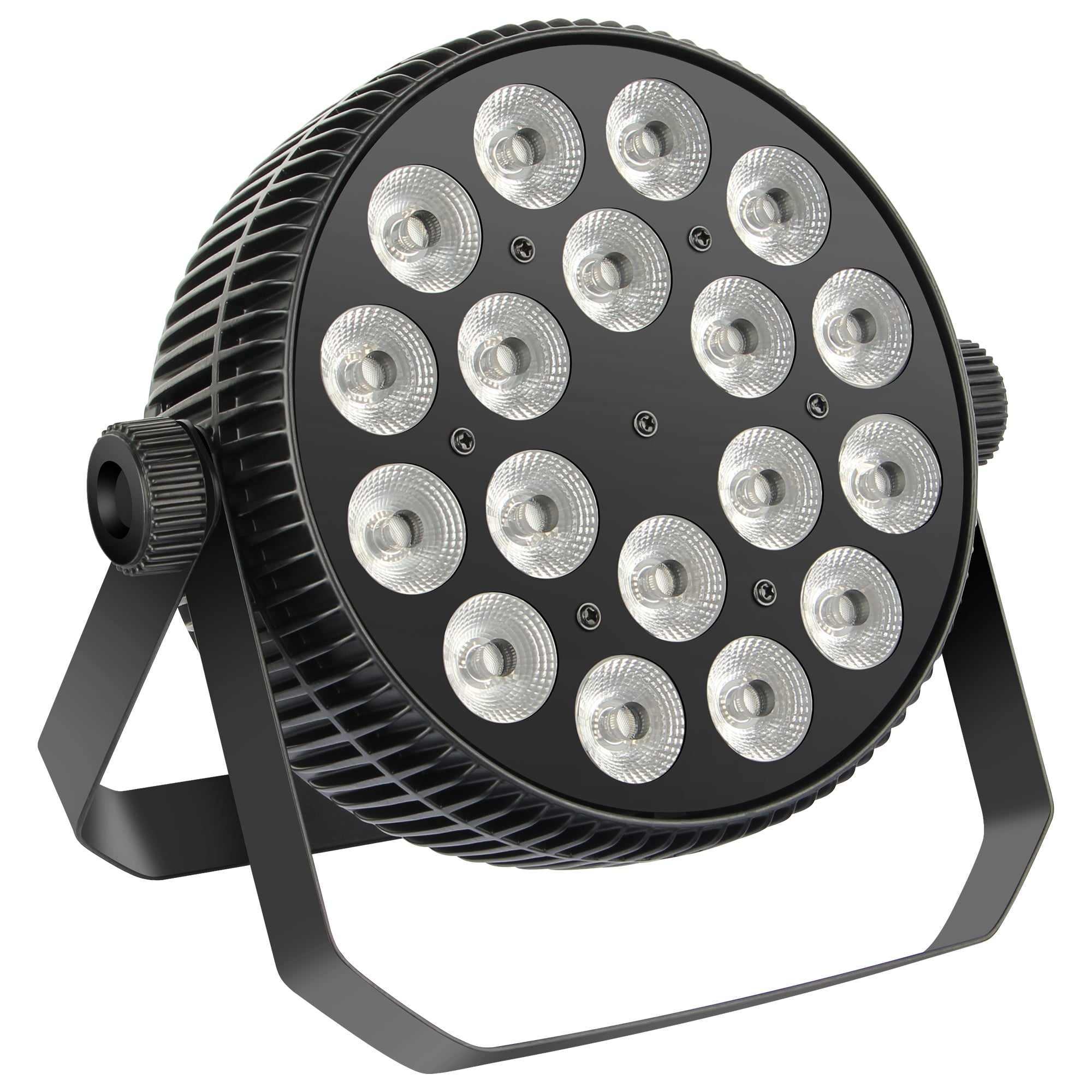

180W RGBWA+UV LED Par Light

Light Source & Optical

• LED Configuration: 18 Pcs x 10W RGBWA+UV (6-in-1)
• Beam Angle: 45°

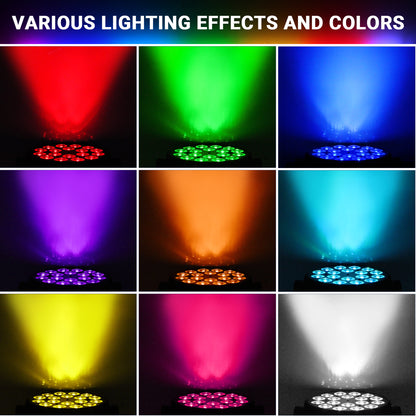

• Color Mixing: Red, Green, Blue, White, Amber, UV

Control & Connections

• Control Modes: DMX512, Sound Active, Master-Slave, Auto (Jump, Fade), Strobe
• DMX Channels: 10 Channels
• Dimming: 0-100% Linear Dimming

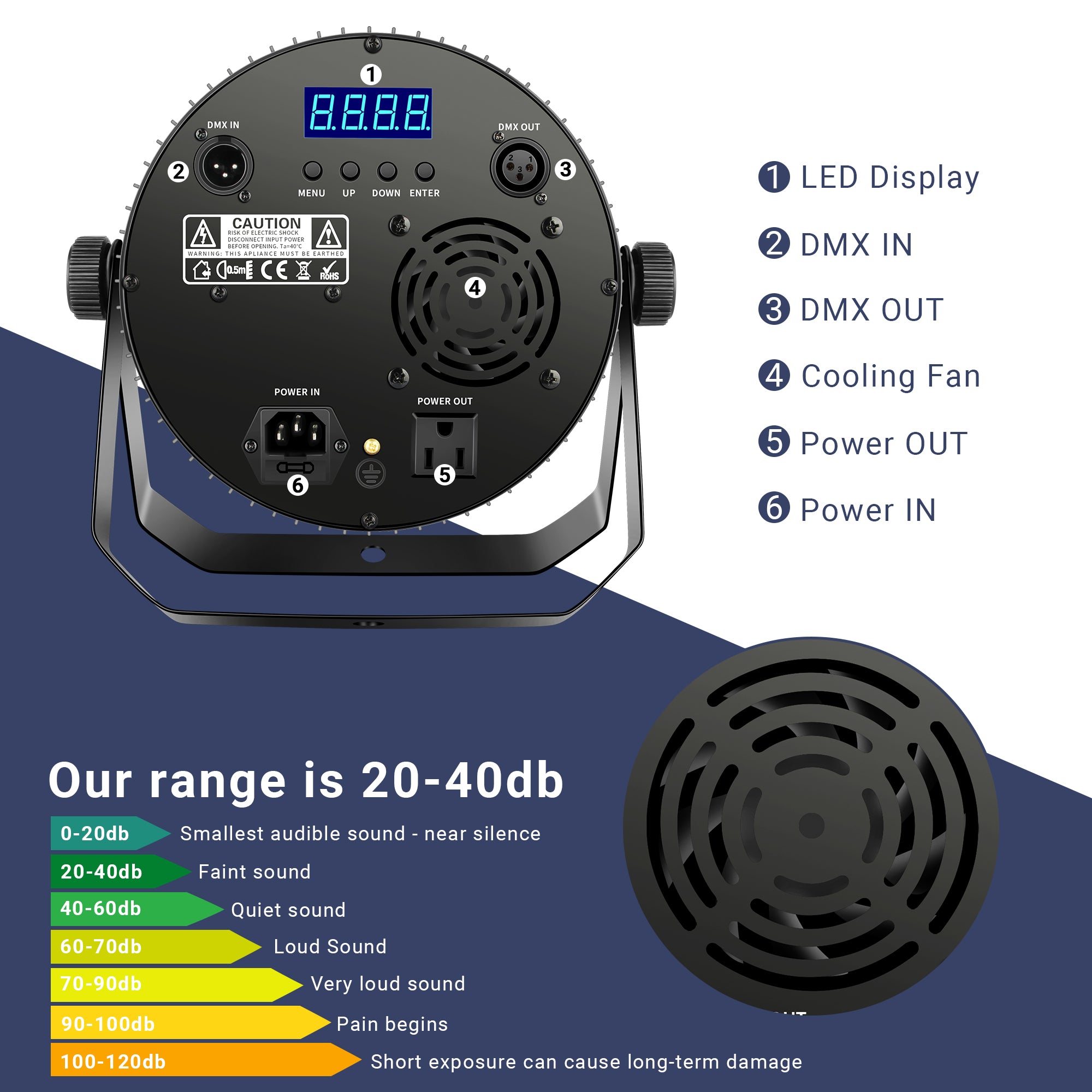

• Connectors: 3-Pin XLR DMX In/Out, Power In/Out

Electrical & Physical

• Power Consumption: 180W
• Input Voltage: AC110-240V, 50/60Hz (Auto-ranging)
• Dimensions: 8.2 x 8.2 x 3.3 in (208.2 x 208.2 x 83.8 mm)
• Weight: 5.7 lb / 2.6 kg
• Ambient Temp: Max 104°F / 40°C

Installation

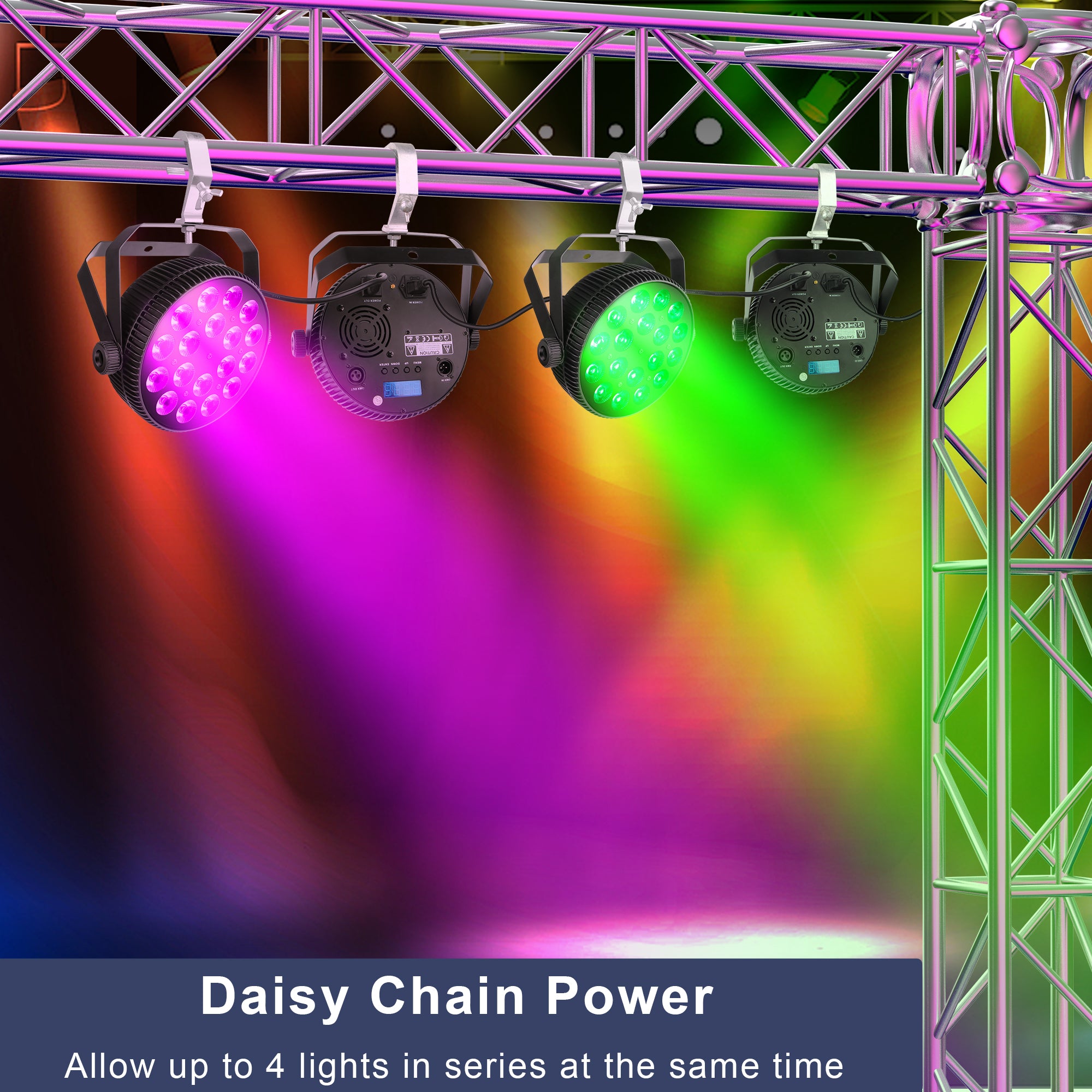

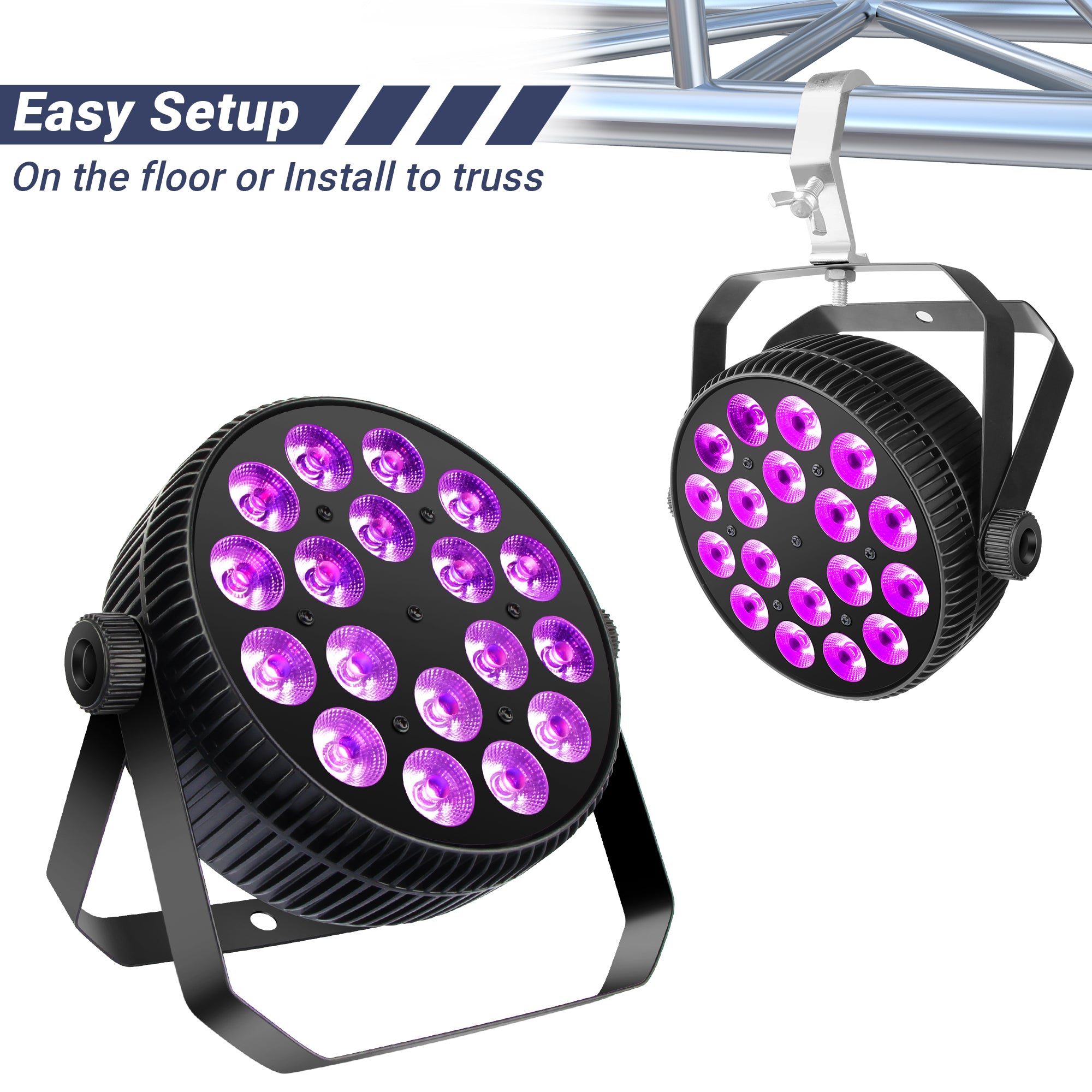

• Mounting: The fixture includes a double-bracketed yoke. You can use a mounting clamp (not included) to hang it from a truss or use the yoke as a floor stand.
• Safety: Always use a safety chain when fixing this fixture overhead. Do not handle the fixture by the head only; always take it by the base.
• Grounding: It is important to ground the yellow/green conductor to earth to avoid electric shock.
• Ventilation: Ensure adequate ventilation is provided around the product. Do not operate where the temperature exceeds 104°F (40°C).

Cleaning & Maintenance

• No User Serviceable Parts: There are no user-serviceable parts inside. Do not open the housing or attempt repairs yourself.
• Housing: The housing must be replaced if it is visibly damaged.
• Service: In the event of a serious operating problem, stop using the fixture immediately and contact an authorized technical assistance center.

For detailed instructions, check out the user guide.
