Dive Deeper

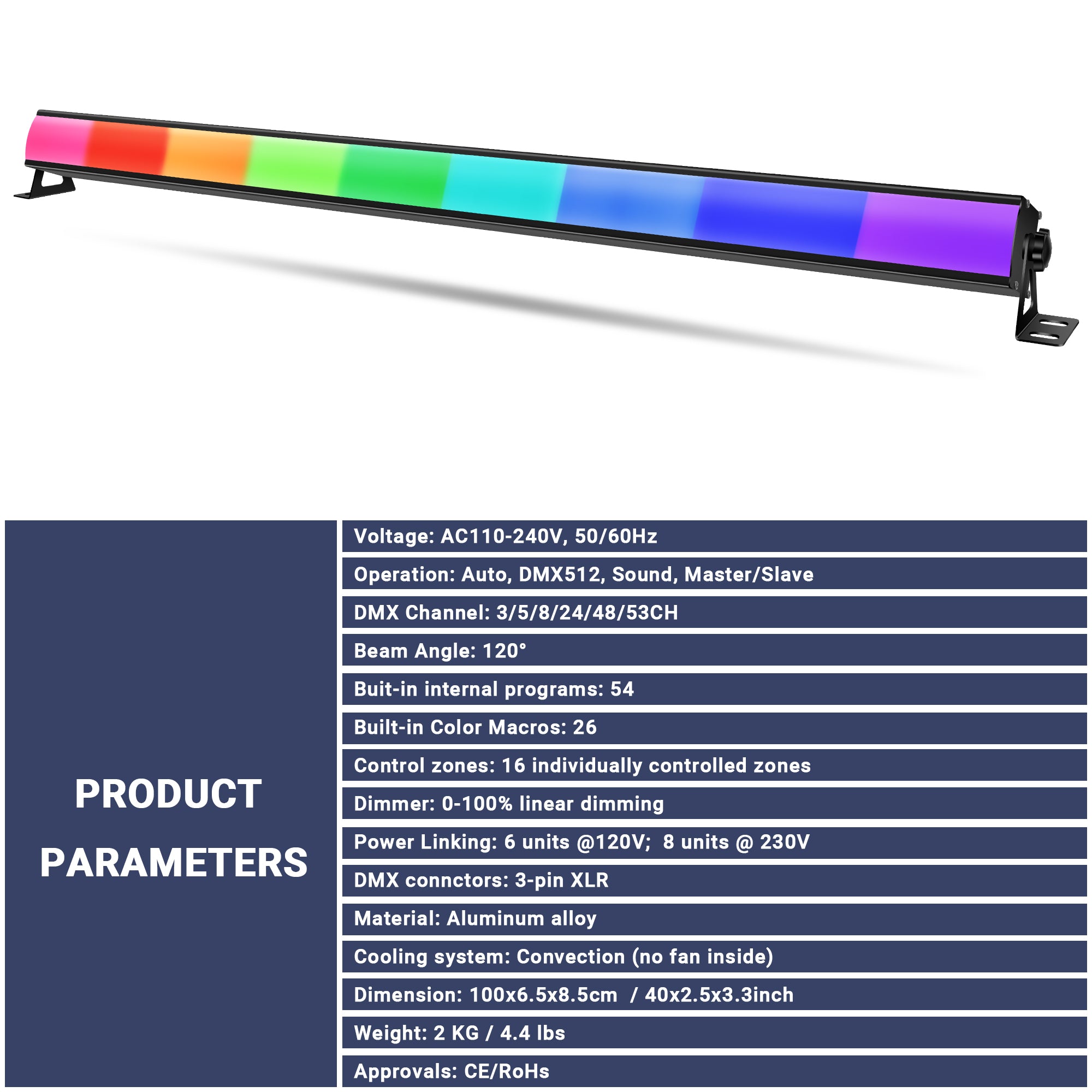

Tech Specs
Light Source & Optical
  • LED Configuration: 224x SMD 5050 3-in-1 RGB LEDs
  • Colors: RGB (Red, Green, Blue) Color Mixing
  • Pixel Zones: 16 Controllable Sections
  • Dimming: 0-100% Linear Dimming
Control & Connections
  • Control Modes: DMX-512, Auto Run, Sound Active, Master/Slave, Static Color
  • DMX Channels: 3, 5, 8, 24, 48, or 53 Channels
  • Built-in Programs: 54 Internal Effects, 27 Static Colors
  • Display: Digital LED Menu with 4-button control
Electrical & Physical
  • Input Voltage: AC 110-240V, 50/60Hz
  • Power Consumption: 60W

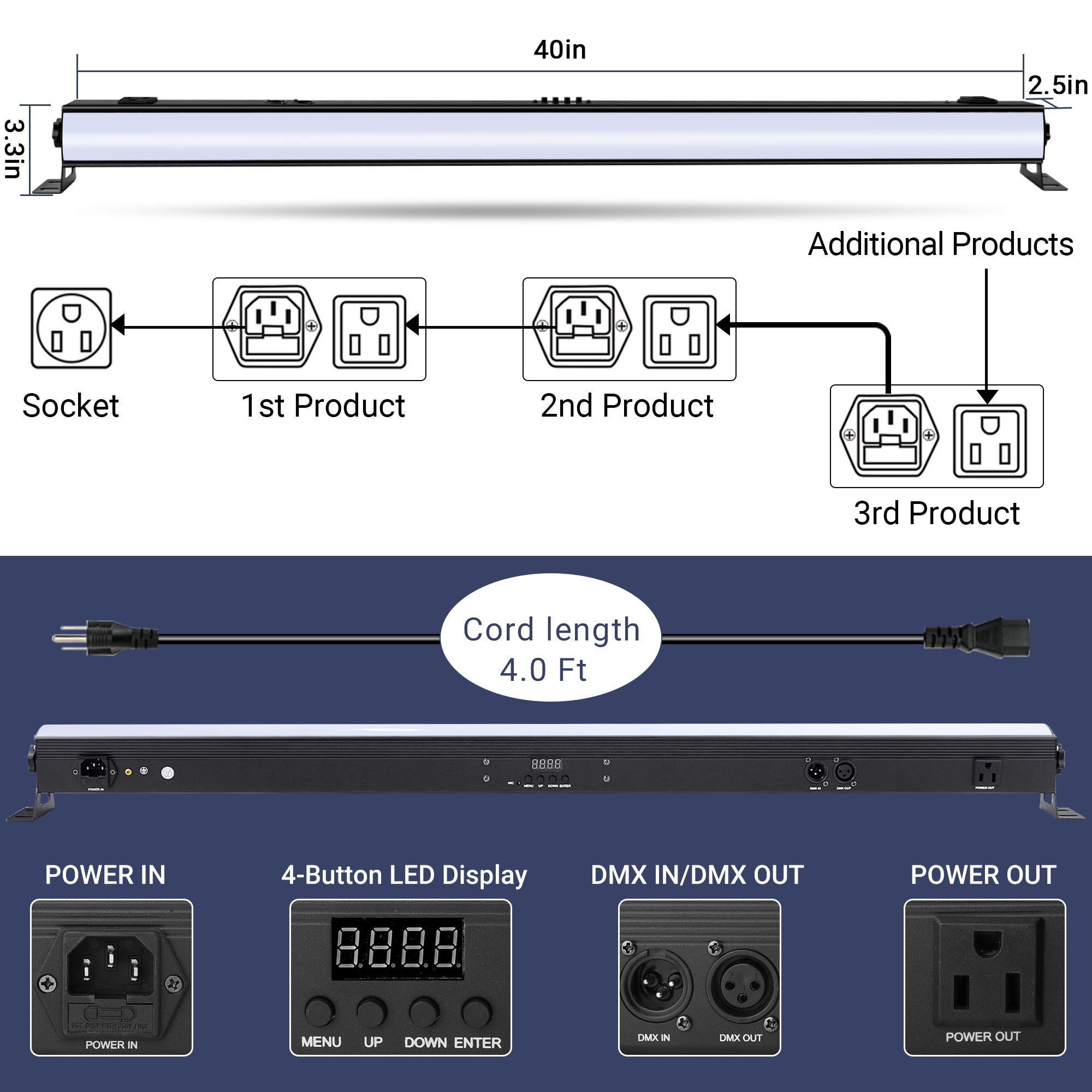

  • Power Linking: Max 1500W Total Output
  • Protection: Temperature protection (reduces power if over 50-65°C)
  • Dimensions: 40 x 2.5 x 3.3 in (100 x 6.5 x 8.5 cm)
  • Weight: 4.4 lbs / 2kg
Installation, Cleaning & Maintenance
Installation
  • Environment: Keep this equipment away from rain, moisture, and liquids.
  • Safety: Before taking the light apart, please always cut the power source.
Cleaning
  • Lens: Clean the lens once every week to maintain brightness; use a vacuum or air compressor for dust.
  • Fans: Clean the fans once every month to ensure proper cooling.
  • Caution: Do not use liquid to clean the PCB to avoid short circuits.
Maintenance
  • Routine: Check screws and spare parts periodically to ensure they are tight and in good condition.

For detailed instructions, check out the user guide.

Compliance & Certification

The 60W RGB LED Frosted Pixel Bar is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Installation Kit

  • Bracket

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Can I control individual sections of this bar?

Yes. In 48-Channel or 53-Channel modes, you can control 16 separate segments (RGB groups) individually for pixel effects.

How many units can I link together?

The fixture supports power linking with a total maximum power output of 1500W. You must ensure the total power draw of linked units does not exceed this limit.

Does it have built-in effects?

Yes. It features 54 built-in internal effects (programs) and 27 static colors (CL00-CL26) that can be accessed via the menu or DMX.

Is this unit waterproof?

No. The manual states to keep the equipment away from rain, moisture, and liquids, so it is designed for indoor use only.
