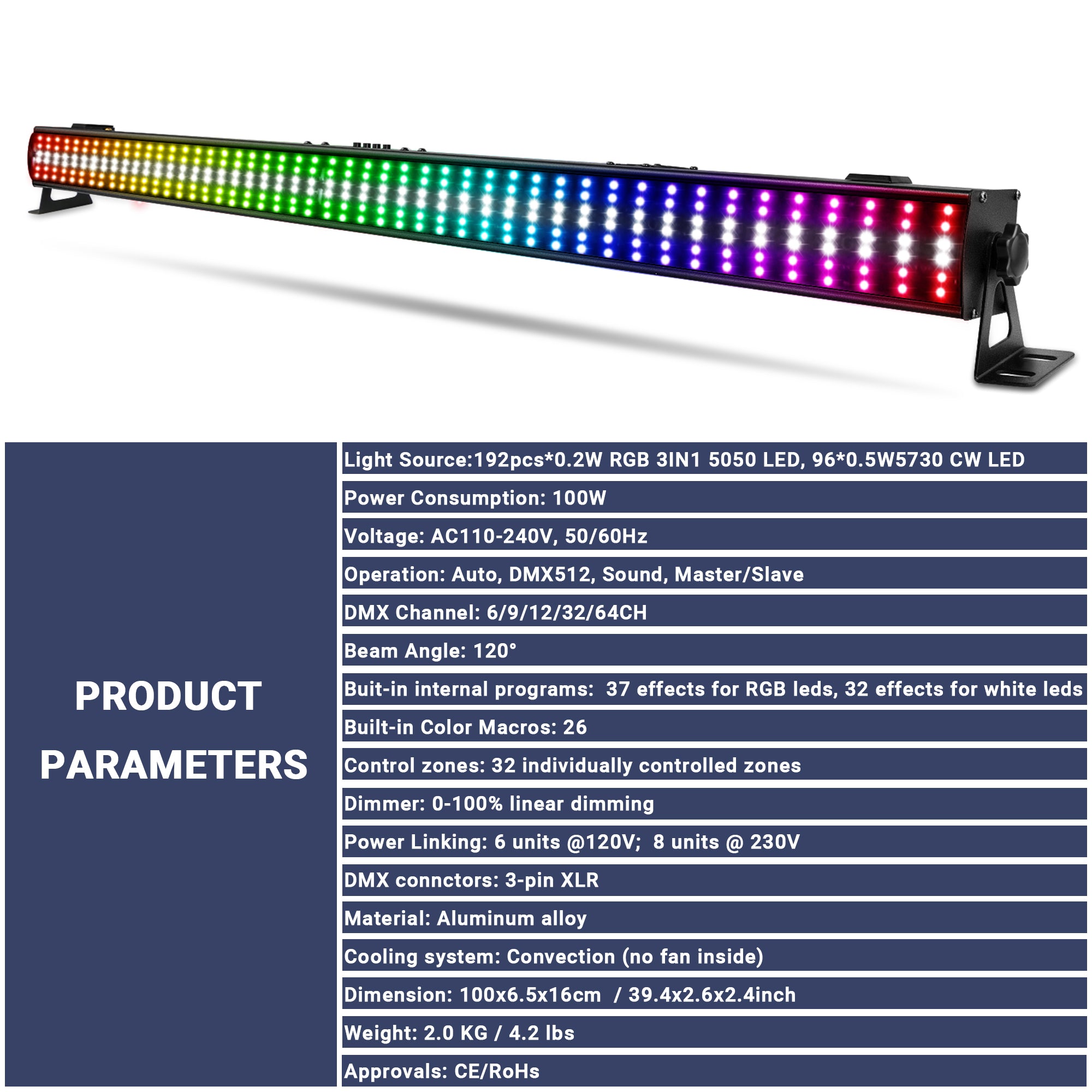

Tech Specs
Light Source & Optical

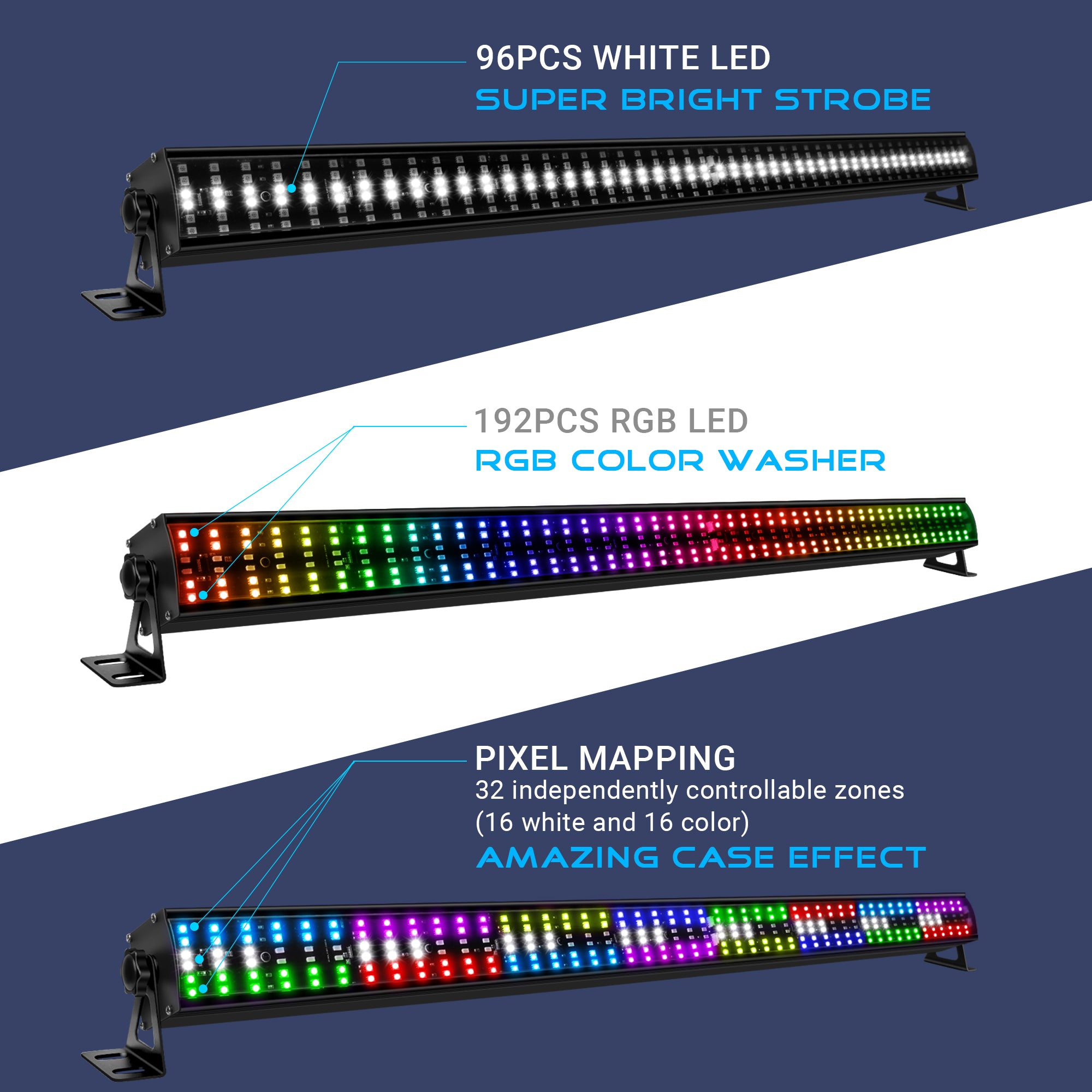

  • LED Configuration: 192x 0.2W 5050 RGB LEDs + 96x 0.5W 5730 White LEDs
  • Total Power: 100W
  • Colors: RGB Color Mixing + dedicated White
  • Control Zones: Up to 16 Zones (RGB & White) in 64CH mode
Control & Connections
  • Control Modes: DMX-512, Auto Run, Sound Active, Master/Slave, Static Color
  • DMX Channels: 6, 9, 12, 32, or 64 Channels

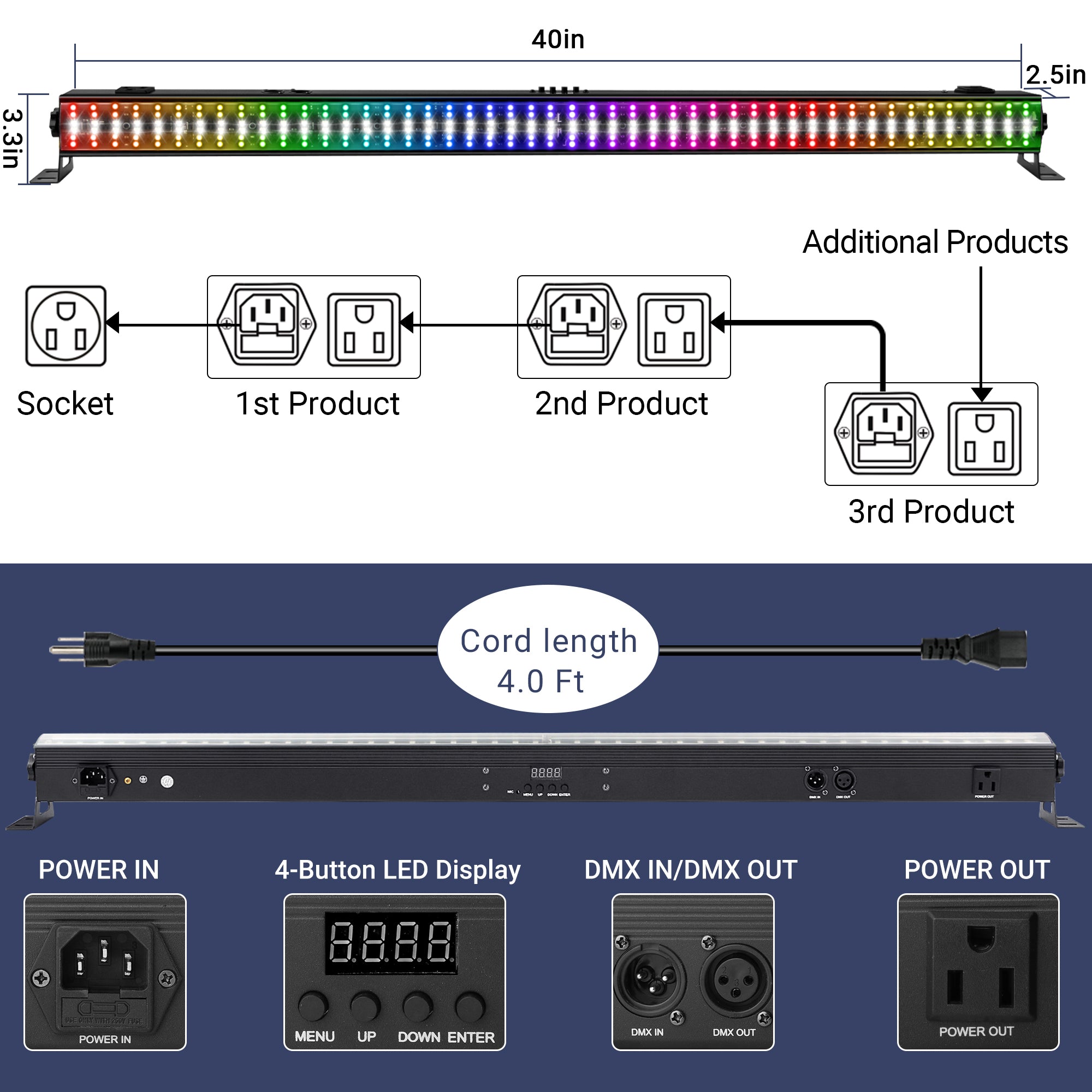

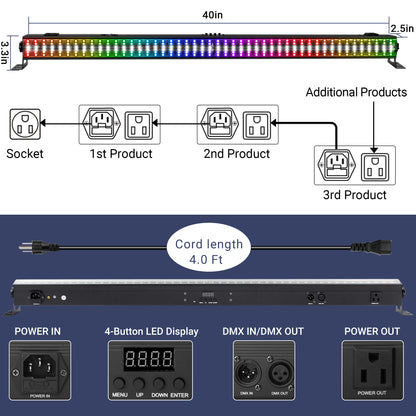

  • Data Connectors: 3-Pin XLR In/Out
  • Display: LED Digital Display with 4-button menu
Electrical & Physical
  • Input Voltage: AC110-240V, 50/60Hz
  • Protection: Temperature protection limits output between 50-65°C
  • IP Rating: Indoor Use Only (Keep away from rain/moisture)
  • Dimensions: 39.4 x 2.6 x 2.4 in (100 x 6.5 x 16 cm)
  • Weight: 4.4 lbs / 2.0 kg
Installation, Cleaning & Maintenance
Installation
  • Environment: Keep the equipment away from rain, moisture, and liquids.
  • Inspection: Before initial start-up, ensure there is no damage caused during transportation.
Cleaning
  • Frequency: Clean the product at least twice a month to minimize wear and maintain output.
  • Method: Use a vacuum or compressed air to remove dust from vents, and a mild soap solution or glass cleaner for the transparent lens.
  • Drying: Always dry transparent surfaces carefully after cleaning.
Maintenance
  • Safety: Unplug the product from power and wait for it to reach room temperature before cleaning.
  • Warning: User modifications to the equipment void the warranty.

For detailed instructions, check out the user guide.

Compliance & Certification

The 100W RGBW LED Wall Washer is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Installation Kit

  • Bracket

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Can I control individual sections of this bar?

Yes. In 64-Channel mode, you can control 16 separate zones (RGB and White) individually for detailed pixel mapping.

Does this light have a pure White beam?

Yes. It includes 96 dedicated White LEDs (separate from the RGB LEDs) to provide a clean, bright white output or strobe effect.

Is this unit waterproof?

No. The manual states to keep the equipment away from rain, moisture, and liquids, so it is designed for indoor use only.

What happens if the unit gets too hot?

It features built-in temperature protection. If the internal temperature reaches 50-65°C, the fixture will automatically reduce output power to cool down.
