Highlights

Ideal for DJ, wedding, club use

Event Ready

37 static colors and 95 effects

Built-In Shows

4-button display for fast setup

Easy Controls

40 dual-row LEDs create vivid chases

Pixel Effects

41.3 × 5.5 × 6.3 in (105 × 14 × 16 cm)

Dimensions

20.4 lb (9.5 kg)

Weight

100W RGB LED Pixel Bar

$179.99

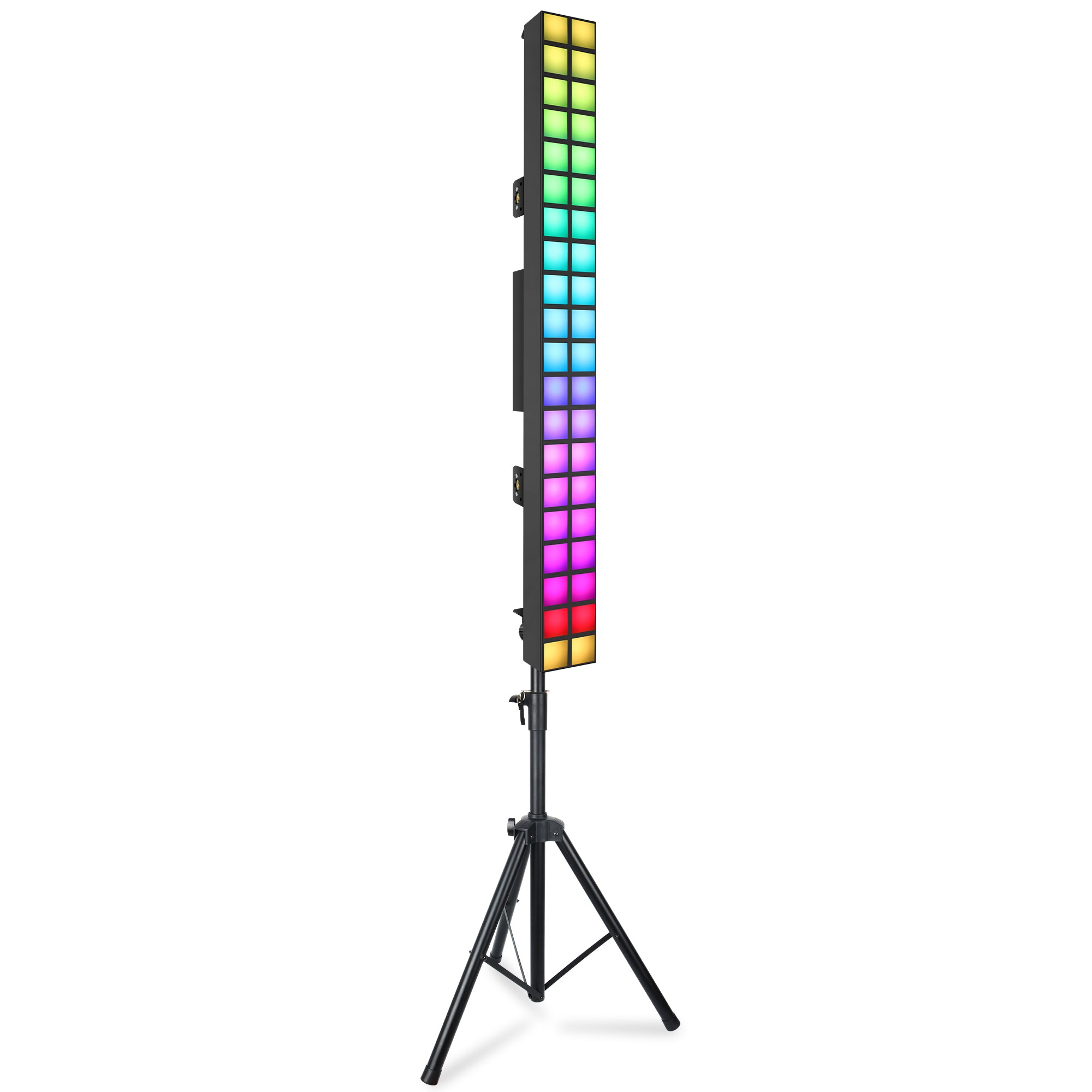

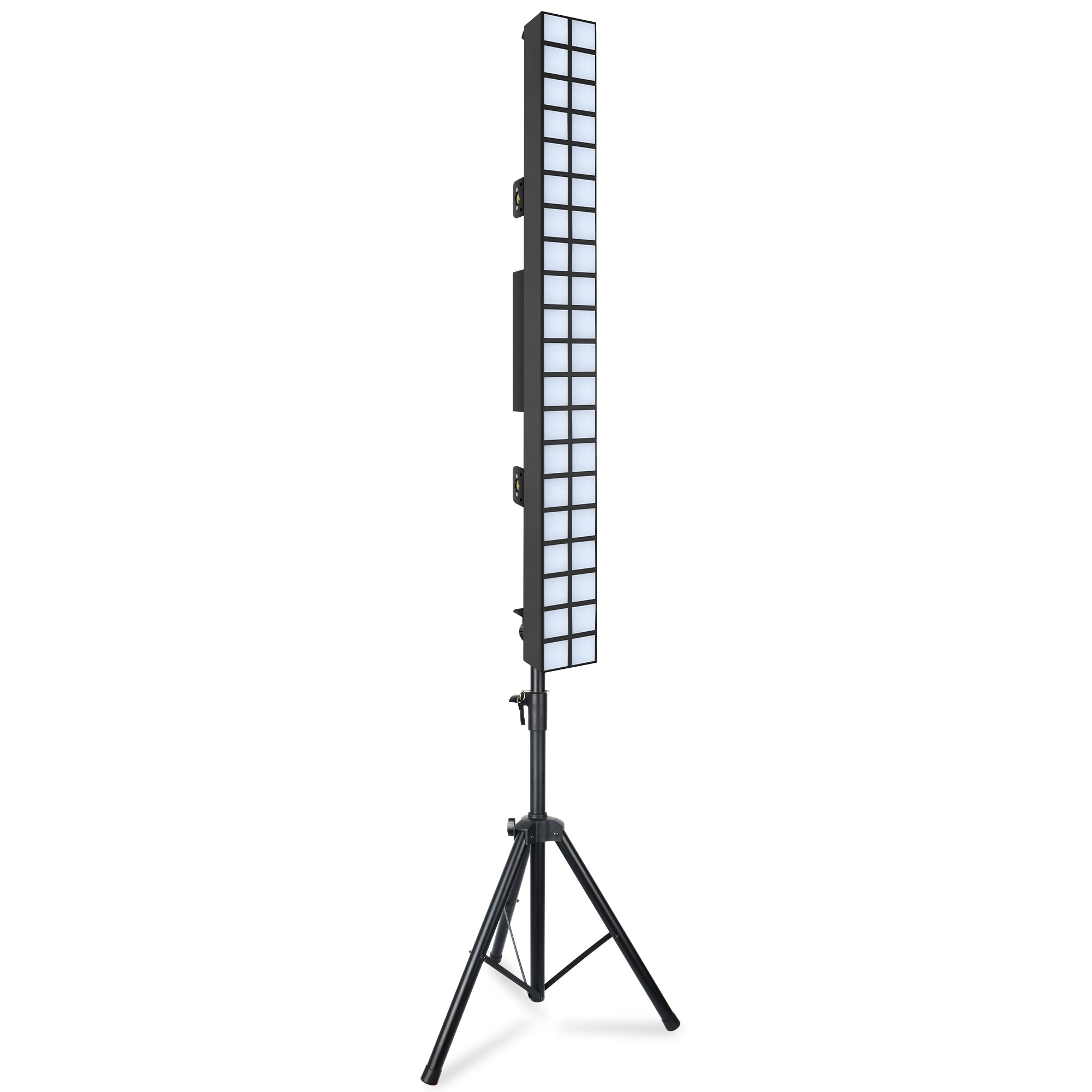

Bring energy and motion to your lighting with this 100W RGB LED pixel bar. Dual-row LEDs create eye-catching chases and color flows, while built-in programs, DMX control, and an adjustable tripod stand make it easy to elevate parties, performances, and event spaces.

Highlights

Ideal for DJ, wedding, club use

Event Ready

37 static colors and 95 effects

Built-In Shows

4-button display for fast setup

Easy Controls

40 dual-row LEDs create vivid chases

Pixel Effects

41.3 × 5.5 × 6.3 in (105 × 14 × 16 cm)

Dimensions

20.4 lb (9.5 kg)

Weight
In stock, ready to ship
Download User Guide

Download User Guide

Pairs well with

Free Shipping from U.S. Stock

30-Day Money Back Guarantee

CE & RoHS Compliant

24-Month Warranty

Dive Deeper

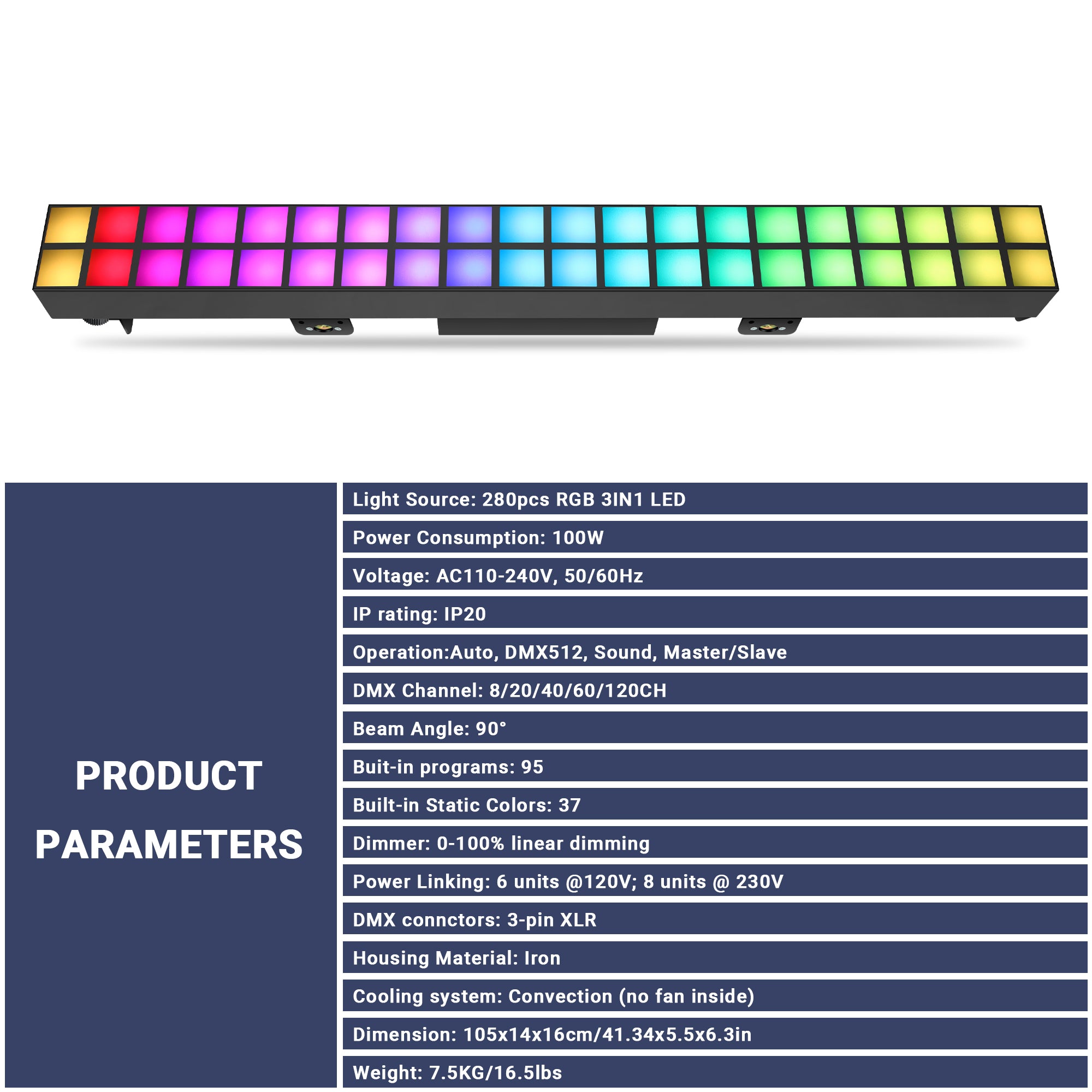

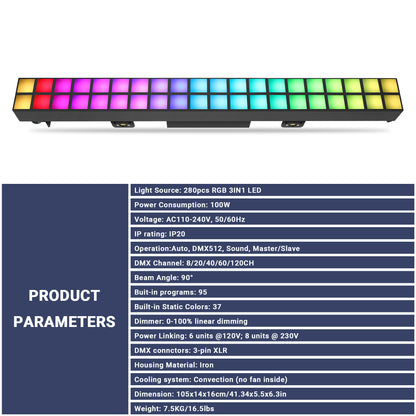

Tech Specs
Light Source & Optical
  • LEDs: 40 × SMD 5050 LEDs (RGB 3-in-1) – dual-row pixel array
  • LED Lifetime: Rated 50,000 hours (long-lasting LEDs)

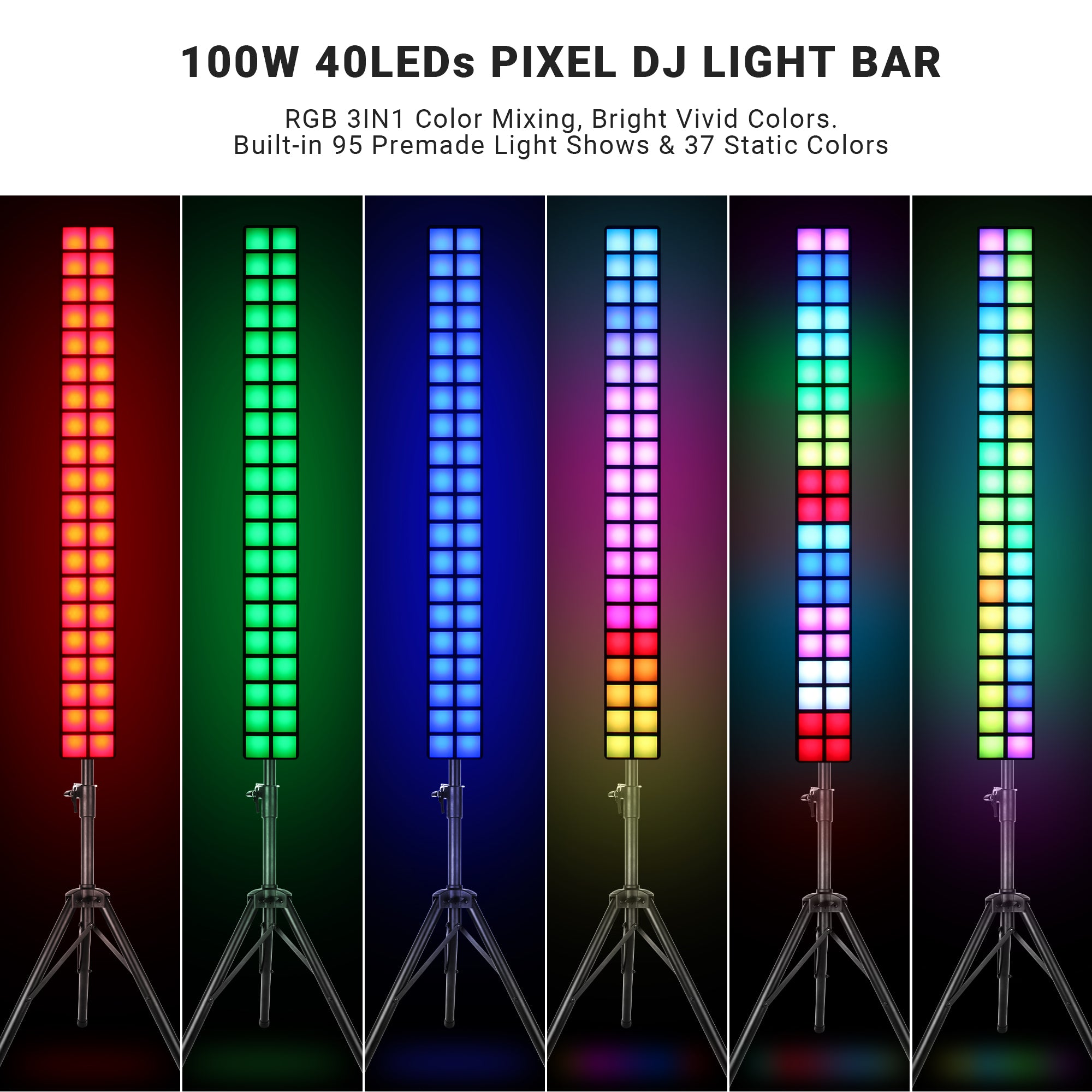

  • Color Presets: 37 built-in static colors
  • Effect Programs: 95 dynamic pre-programmed shows
Control & Connections
  • Control Protocols: DMX512 (5 selectable channel modes: 8/20/40/60/120) and RDM

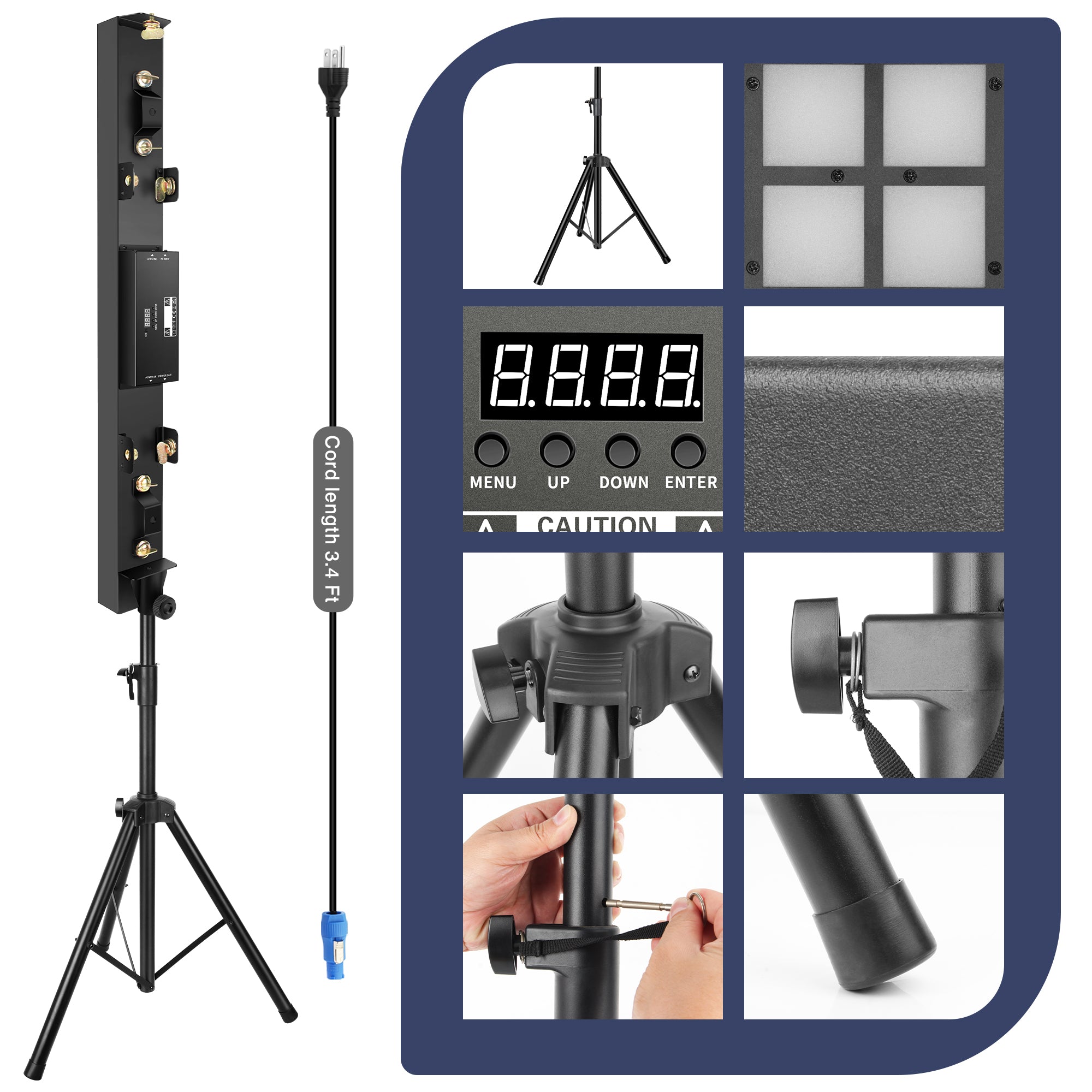

  • Control Interface: Onboard 4-button LED display for mode selection & addressing
  • Data Connections: 3-pin XLR DMX Input and Output
  • Power Connections: Locking power input and output (daisy-chain power linking)
  • Standalone Modes: Built-in auto programs with speed adjust (0–100% rate)
Electrical & Physical
  • AC Input: 110–240 V AC, 50/60 Hz (auto-sensing dual voltage)
  • Power Consumption: 100 W (maximum)
  • Housing: Lightweight aluminum casing with endcap linking system

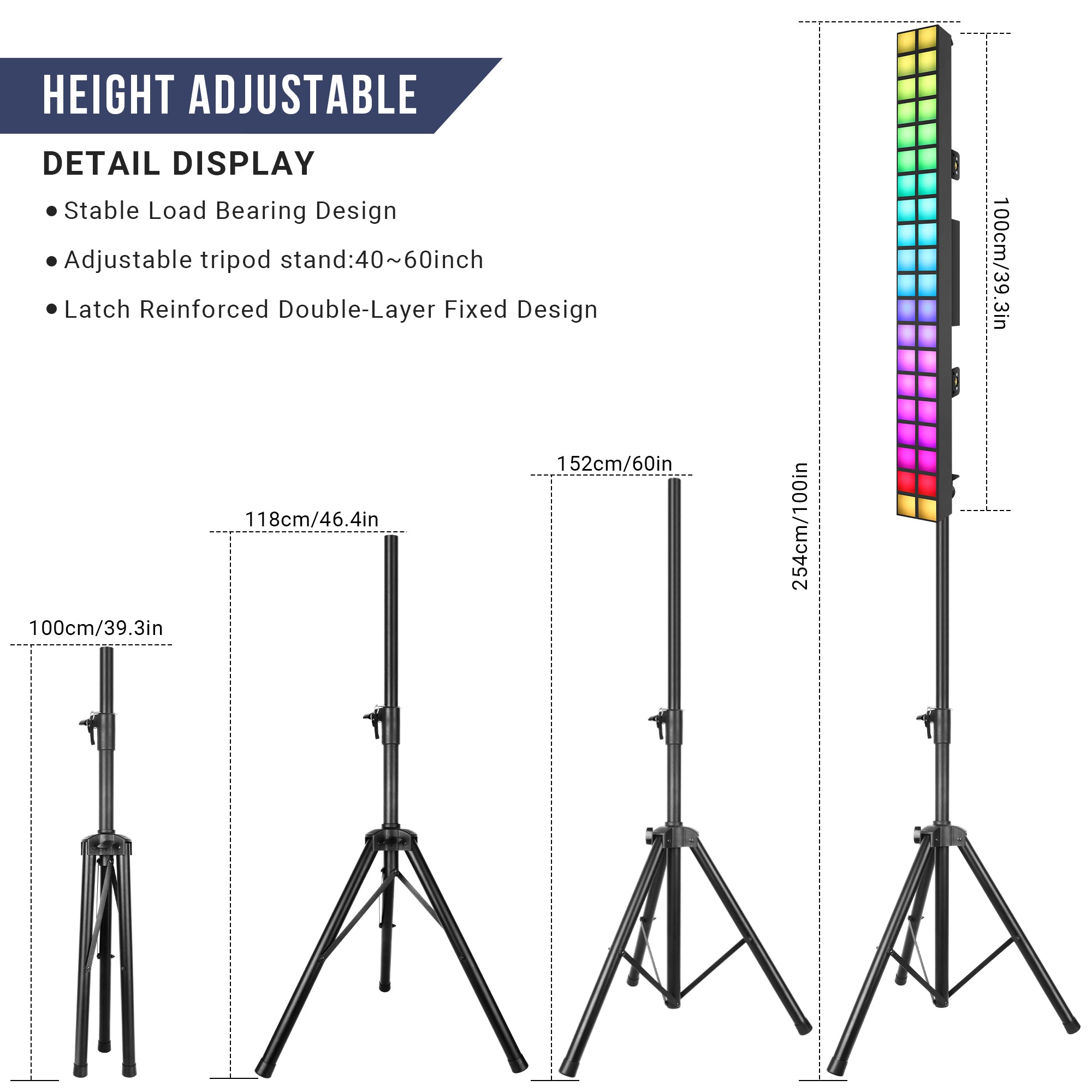

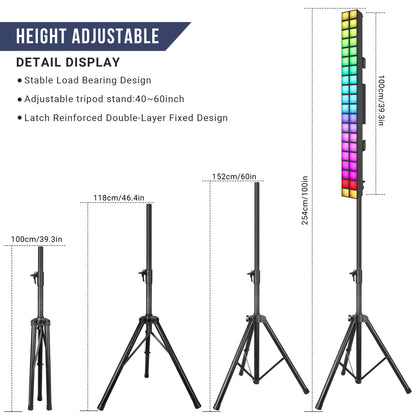

  • Tripod Stand: Included adjustable stand made of sturdy steel
  • Dimensions: 41.3 × 5.5 × 6.3 in (105 × 14 × 16 cm)
  • Weight: 20.4 lb (9.5 kg)
Installation, Cleaning & Maintenance
Installation
  • Ensure the tripod stand’s legs are fully extended and tighten all knobs for a stable base before mounting the light bar.
  • Mount the light bar onto the tripod’s fixture mount and secure it using the locking knobs. (Alternatively, attach the provided hanging brackets to mount the bar on a truss or ceiling if needed.)
  • For multiple units, utilize the locking endcaps to physically link light bars end-to-end, and connect via DMX cables for synchronized control.
Cleaning
  • Always turn off and unplug the light bar before cleaning.
  • Use a soft, dry cloth to gently wipe the LED lenses and aluminum housing to remove dust or debris.
  • Avoid using water, sprays, or harsh chemicals on the unit to prevent damage to electronic components.
Maintenance
  • Periodically inspect the power cord, DMX cables, and connectors for any signs of wear or damage; replace as needed for safety.
  • Keep ventilation openings (if any) and LED lenses clear of dust buildup to ensure proper cooling and optimal brightness.
  • Check and tighten any adjustable knobs, brackets, or screws before use to maintain stability, especially after transport or extended use.

For detailed instructions, check out the user guide.

Compliance & Certification

The 100W RGB LED Pixel Bar is designed to comply with applicable CE and RoHS requirements.

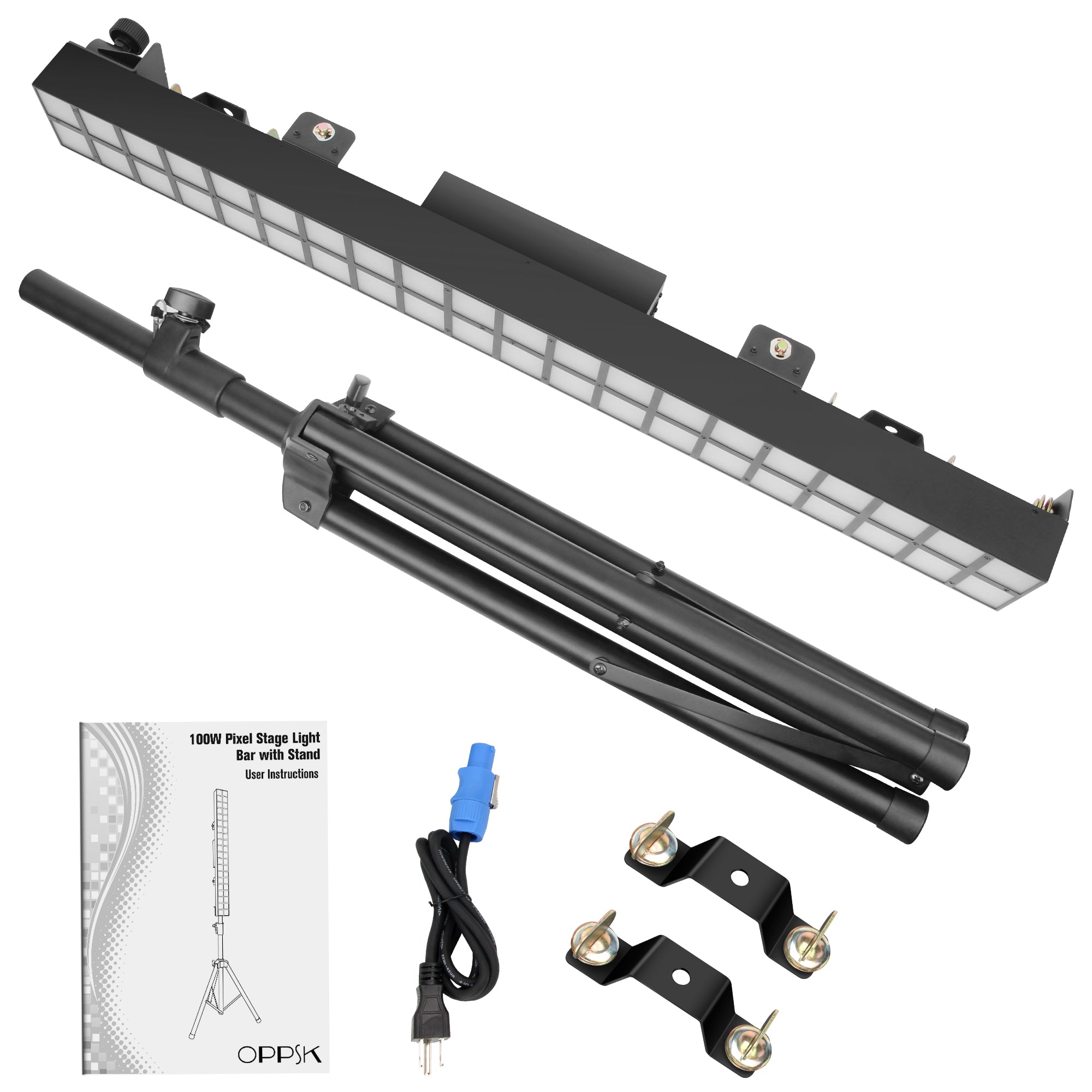

In The Box

  • The Light

  • Tripod Stand

  • Brackets × 2

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Is the included tripod stand stable enough?

Yes. The tripod stand is constructed from sturdy steel and features non-slip feet, making it very stable for holding the light bar. It sets up securely, and you can trust it to support the fixture during use (it even has a hook where you can hang an additional light or weight for added stability if needed).

How many LEDs does it have, and what effects can it do?

The unit contains a total of 40 LEDs in a dual-row configuration. It offers 37 preset static colors and 95 dynamic lighting effect programs built-in, giving you a wide variety of color mixes and chasing patterns to enhance your show.

What DMX options does it support?

This light supports standard DMX-512 control. It has five selectable DMX channel modes (8, 20, 40, 60, or 120 channels) so you can choose how detailed you want your control to be. It also supports RDM (Remote Device Management), which means you can remotely configure and monitor the fixture’s settings from an RDM-compatible DMX controller.

Can I use this light without a DMX controller?

Yes, you can. The 100W pixel light bar includes numerous built-in programs and preset colors that can run automatically without an external controller. You can select static colors or auto show modes and adjust the chase speed (0–100%) using the fixture’s onboard menu, so it works great even as a standalone unit.
