Dive Deeper

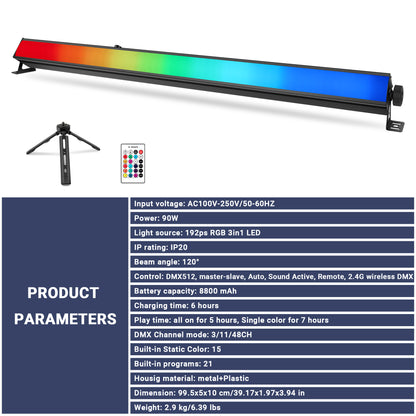

Tech Specs
Performance
  • Power Consumption: 90W
  • Light Source: RGB 3-in-1 LEDs
  • Beam Angle: 120°
  • Battery Capacity: 8800 mAh
  • Charge Time: Approx. 6 hours
  • Run Time: ~7 hours (Single Color), ~5 hours (Full On)
Control
  • Control Modes: DMX512, Auto, Sound, Master/Slave, Remote Control
  • DMX Channels: 3 / 11 / 48 Channels

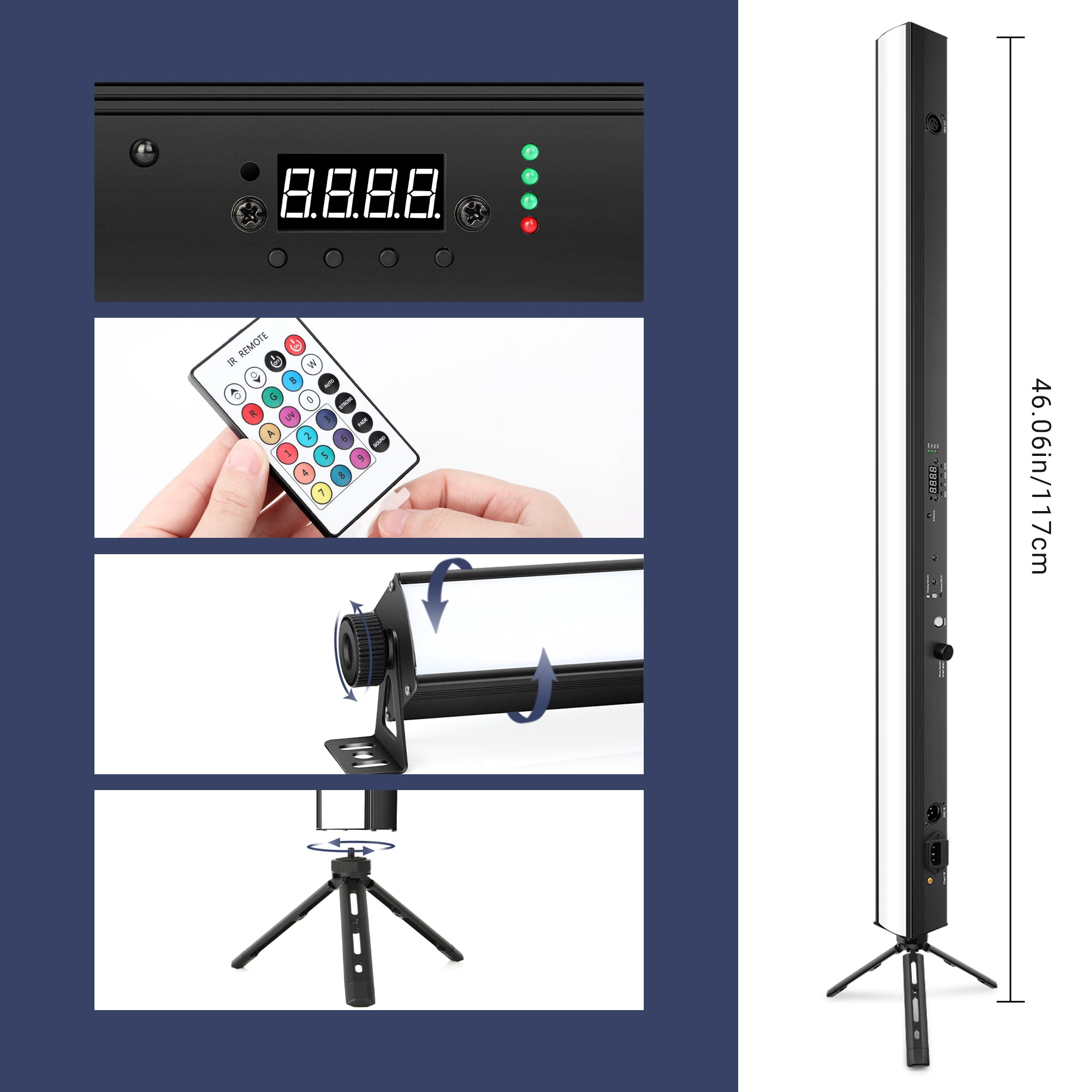

  • Display: Digital LED Display
Physical

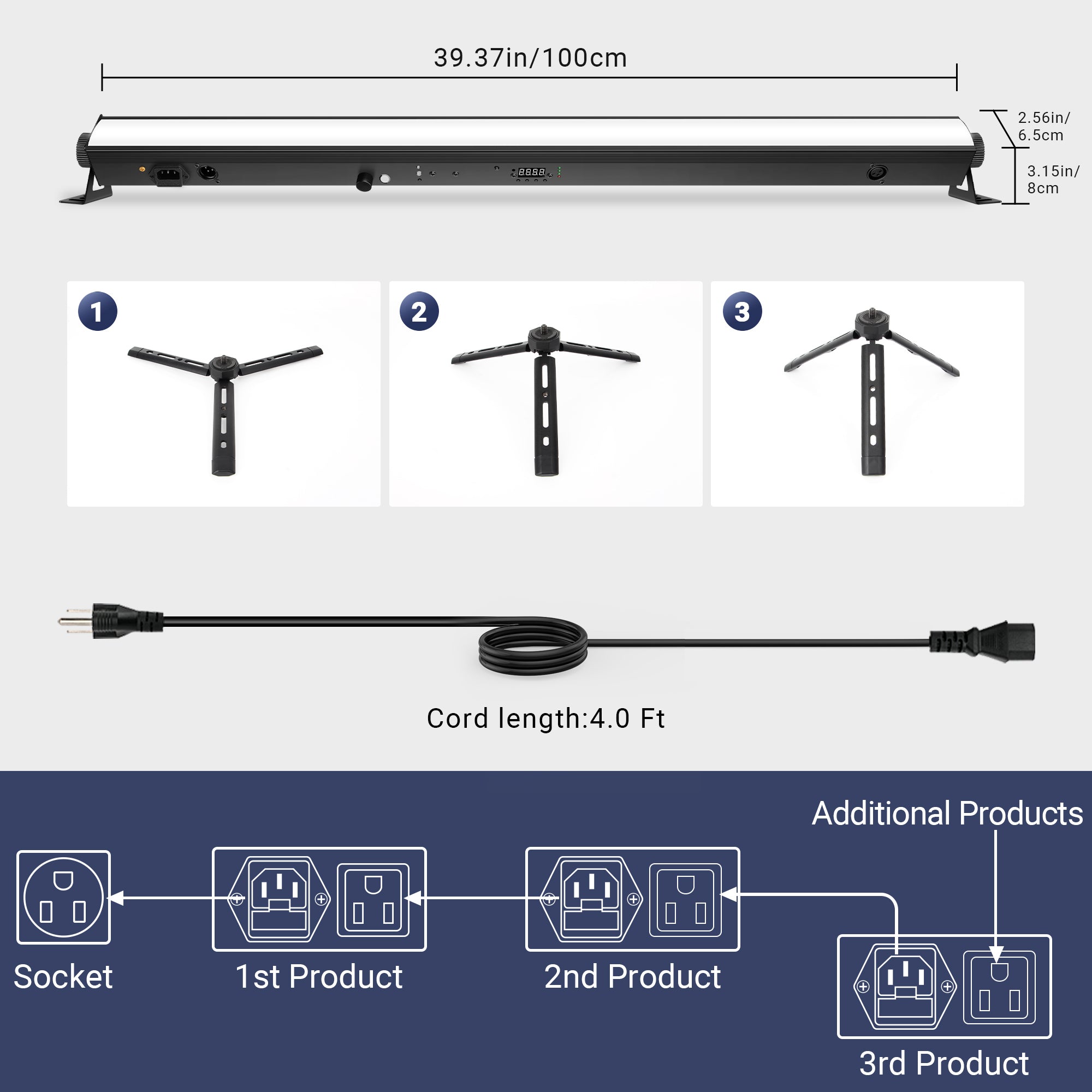

  • Dimensions: 39.37 × 3.54 × 2.40 in (100 × 9 × 6.1 cm)
  • Weight: 5.07 lb (2.3 kg)
  • IP Rating: IP20
Installation, Cleaning & Maintenance
Installation
  • Mounting: The unit features a folding floor stand for ground placement. Ensure the fixture is installed on a stable surface.
  • Safety: When rigging overhead, always use a secondary safety attachment. Ensure the structure can support the weight of the fixture.
Cleaning
  • Surface: Clean the external surface and vents with a soft brush and vacuum/compressed air to remove dust build-up.
  • Lens: Clean the transparent surfaces with a mild soap solution or ammonia-free glass cleaner and a soft, lint-free cloth. Do not use solvents.
Maintenance
  • Battery: To maximize battery lifespan, charge the battery fully before first use and whenever the battery runs low.
  • Inspection: Periodically check that all screws are tightened and that cables show no signs of damage or fatigue.

For detailed instructions, check out the user guide.

Compliance & Certification

The 90W Battery Powered RGB LED Pixel Bar is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Tripod Stand

  • Charger

  • Remote Control

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

How long does the battery last?

It lasts approximately 7 hours on a single color and about 5 hours with all lights fully on.

Can I control individual pixels?

Yes, in 48-channel DMX mode, you can control 16 individual RGB pixel zones.

Can I use it while charging?

Yes, the unit can be operated while connected to power.

How do I set the DMX address?

Use the digital display menu to navigate to the "Axxx" setting and use Up/Down buttons to select your address.
