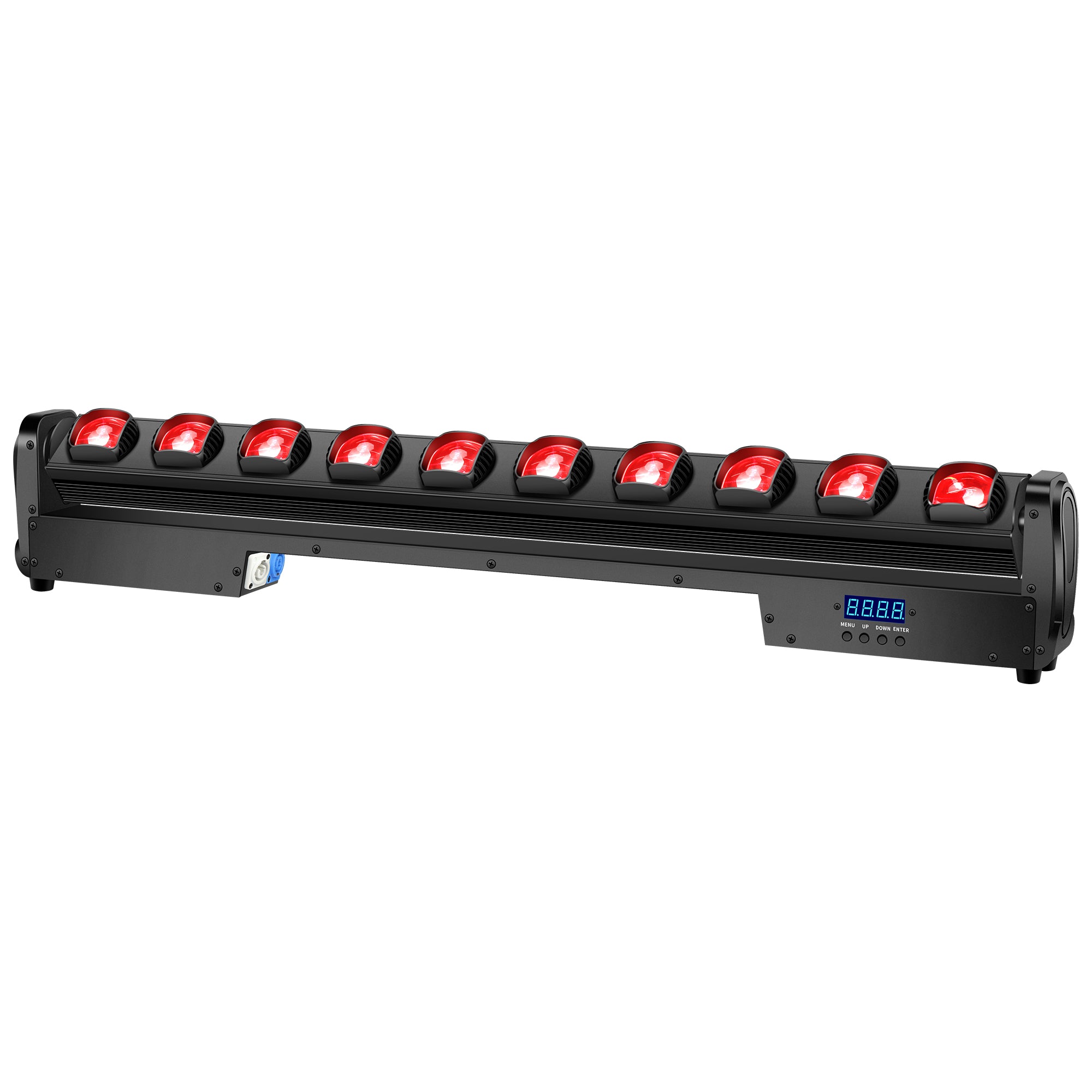

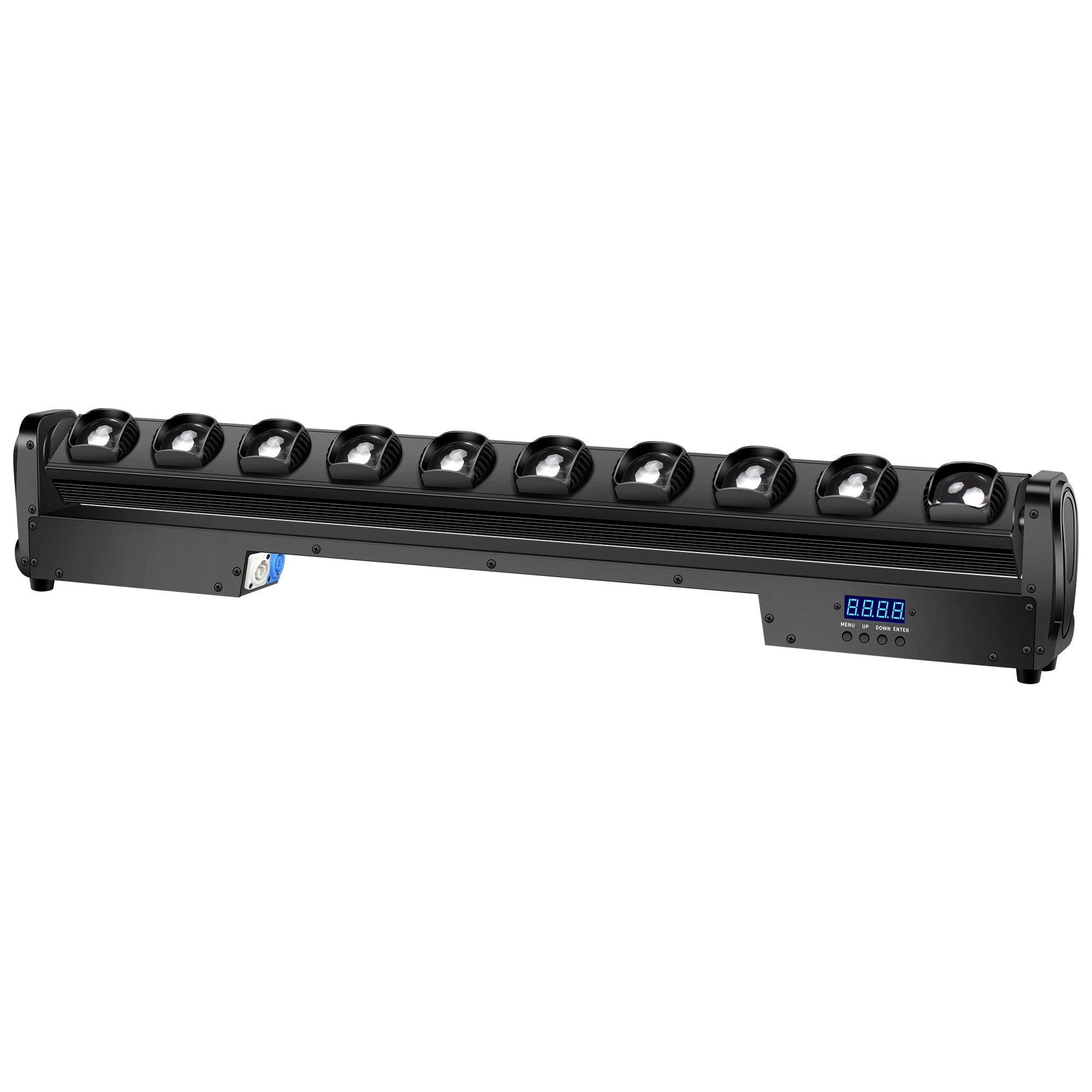

300W 10×30W RGBW LED Pixel Beam Bar with Tilt

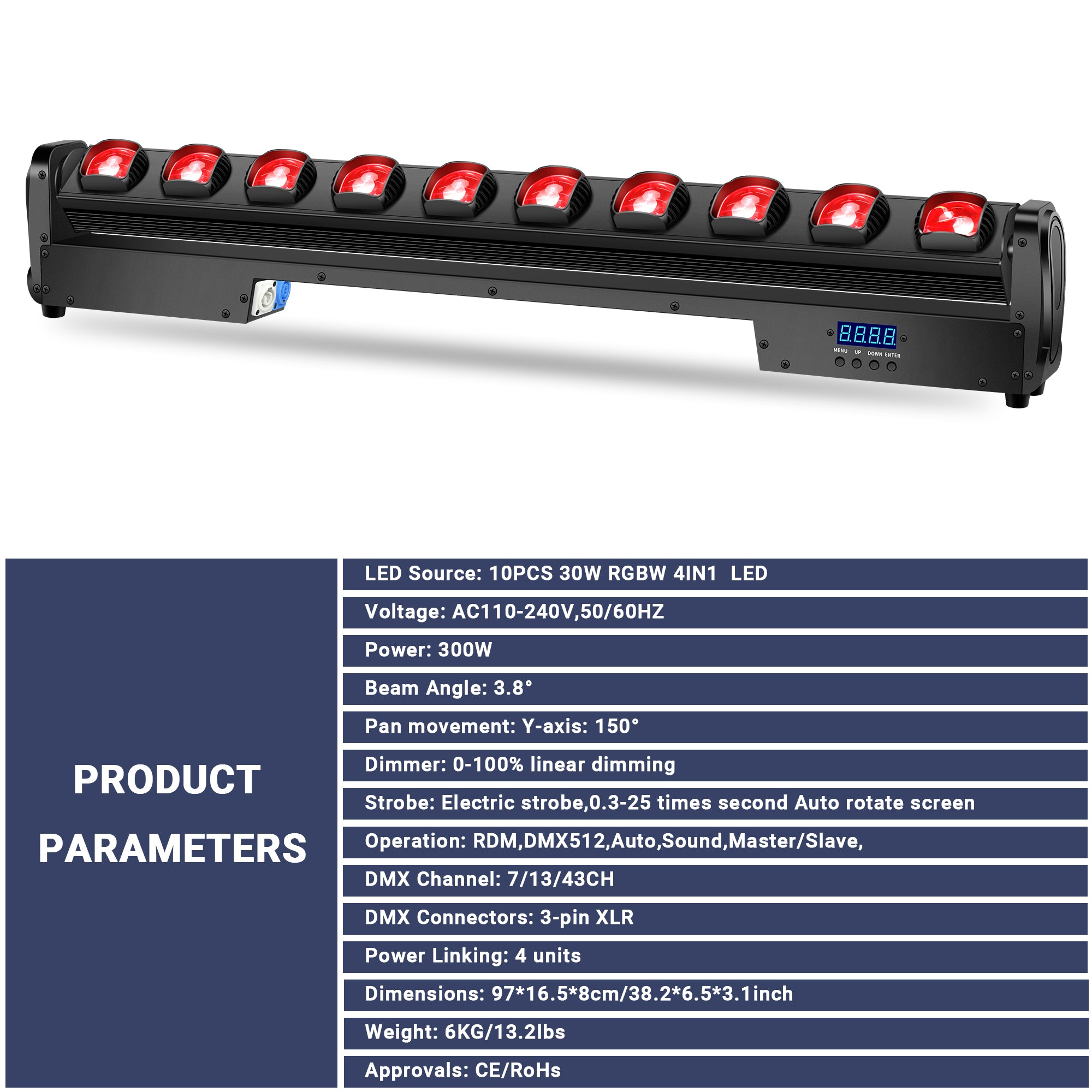

Light Source & Optical

• LED Configuration: 10 × 30W RGBW 4-in-1 LEDs
• Total Power: 300W
• Color Mixing: Red, Green, Blue, White
• Dimming: 32-Bit Linear, 0–100%
• Strobe: 1–30 Hz Variable
• Built-In Effects: 127 Pattern Effects (Mode 1–127)

Control & Connections

• Control Modes: DMX512, RDM, Self-Walking, Master-Slave, Sound Active, Voice Control
• DMX Channels: 3 Modes — 7 / 13 / 43 Channels
• Movement: Motorized Y-Axis Tilt with Adjustable Motor Speed

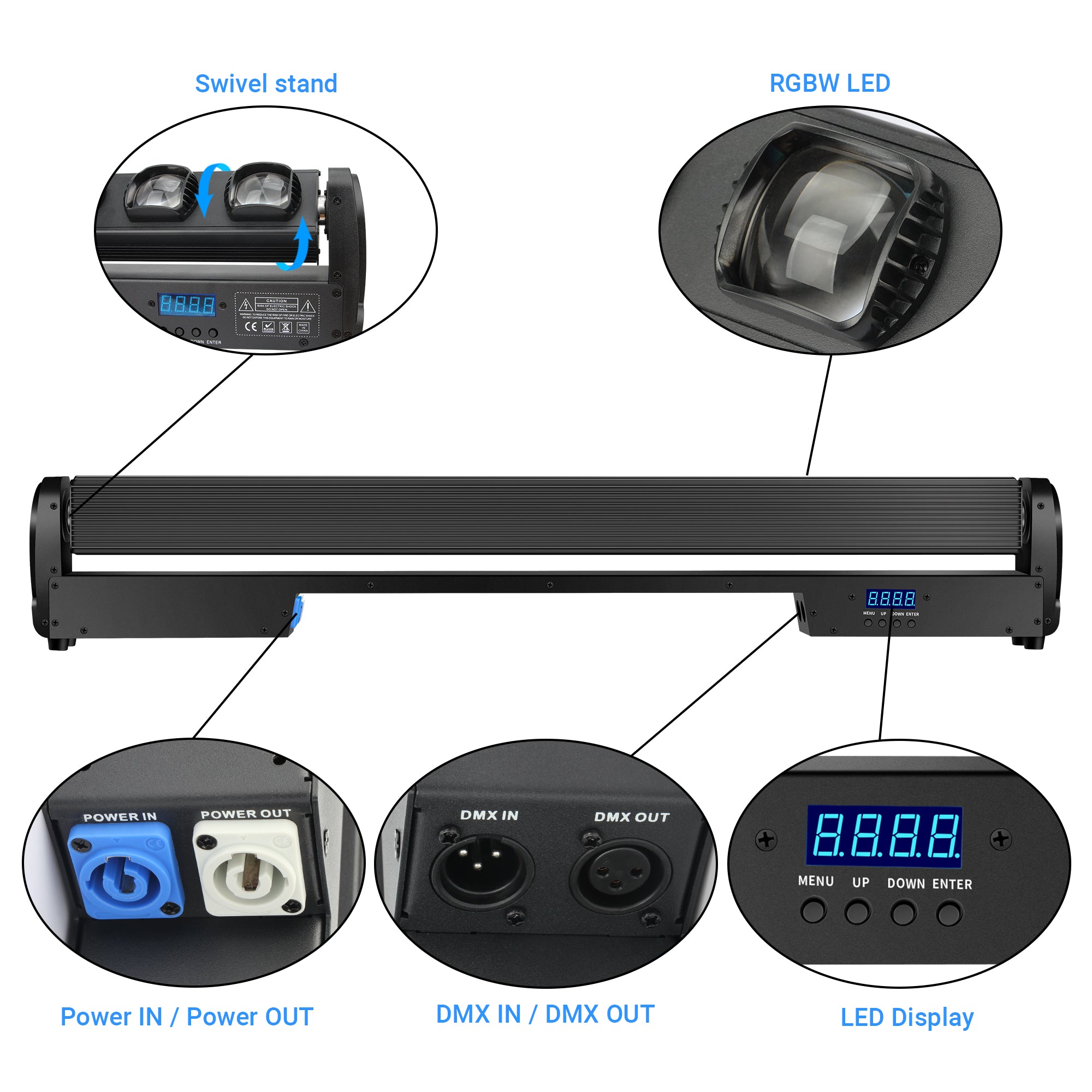

• Display: LED Display with Menu / Up / Down / Enter
• Data Connectors: 3-Pin XLR DMX In/Out

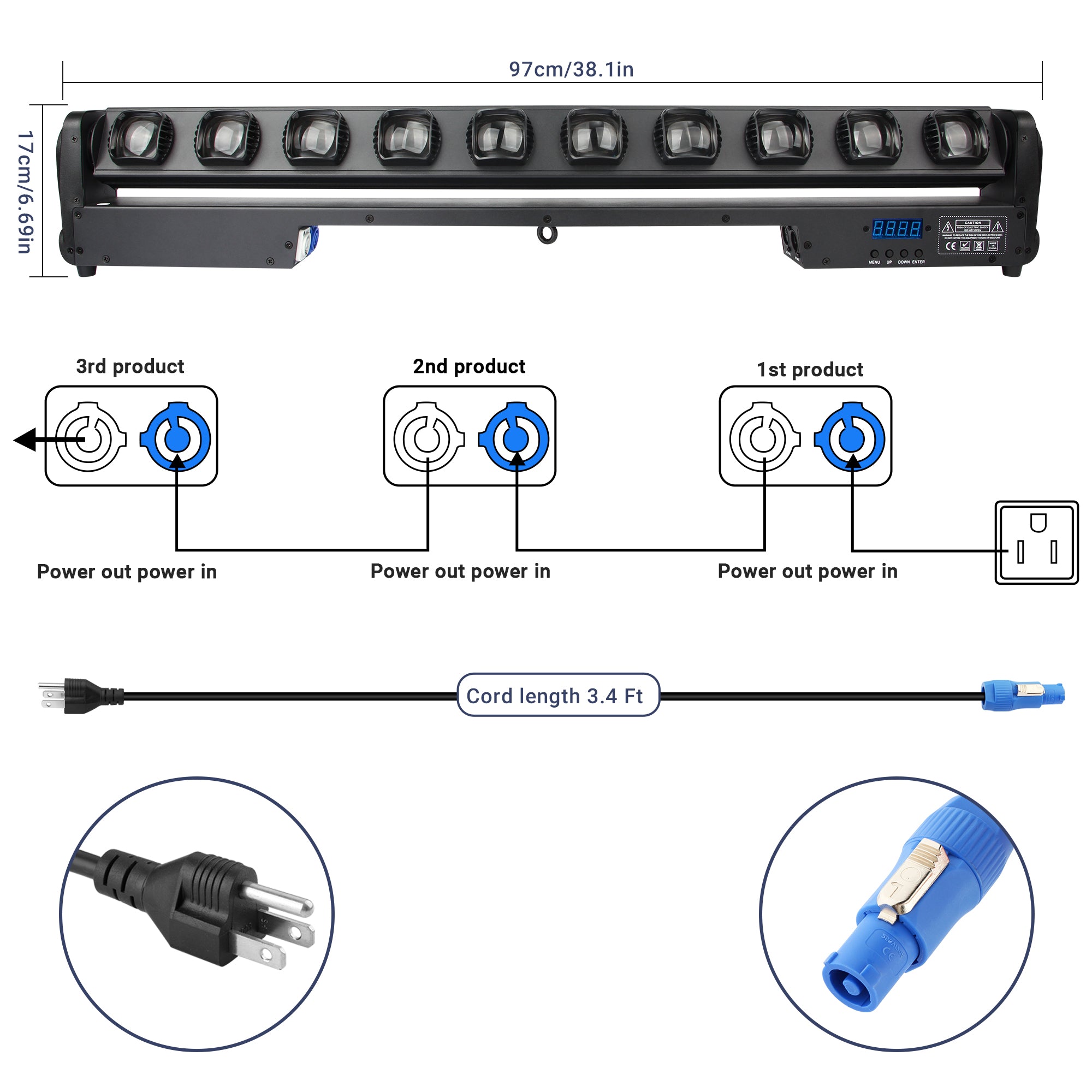

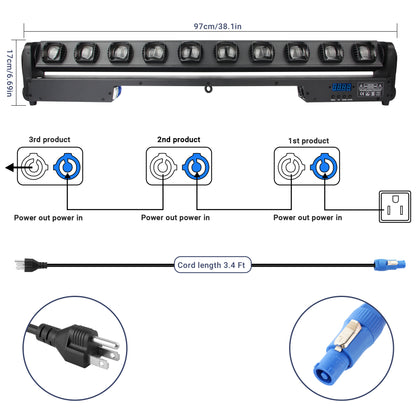

• Power Connectors: PowerCon In/Out (Daisy-Chain Capable)

Electrical & Physical

• Power Consumption: 300W
• Input Voltage: AC100–240V, 50/60Hz (Auto-ranging)
• Power Cord: NEMA 5-15 (US) to PowerCon, 3.4 ft (1 m)
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Protection Rating: IP20 (Indoor Use Only)
• Housing: Metal, Black Finish
• Dimensions: 38.1 × 6.7 × 6.5 in (97 × 17 × 16.5 cm)
• Weight: 13.2 lb (6.0 kg)

Installation

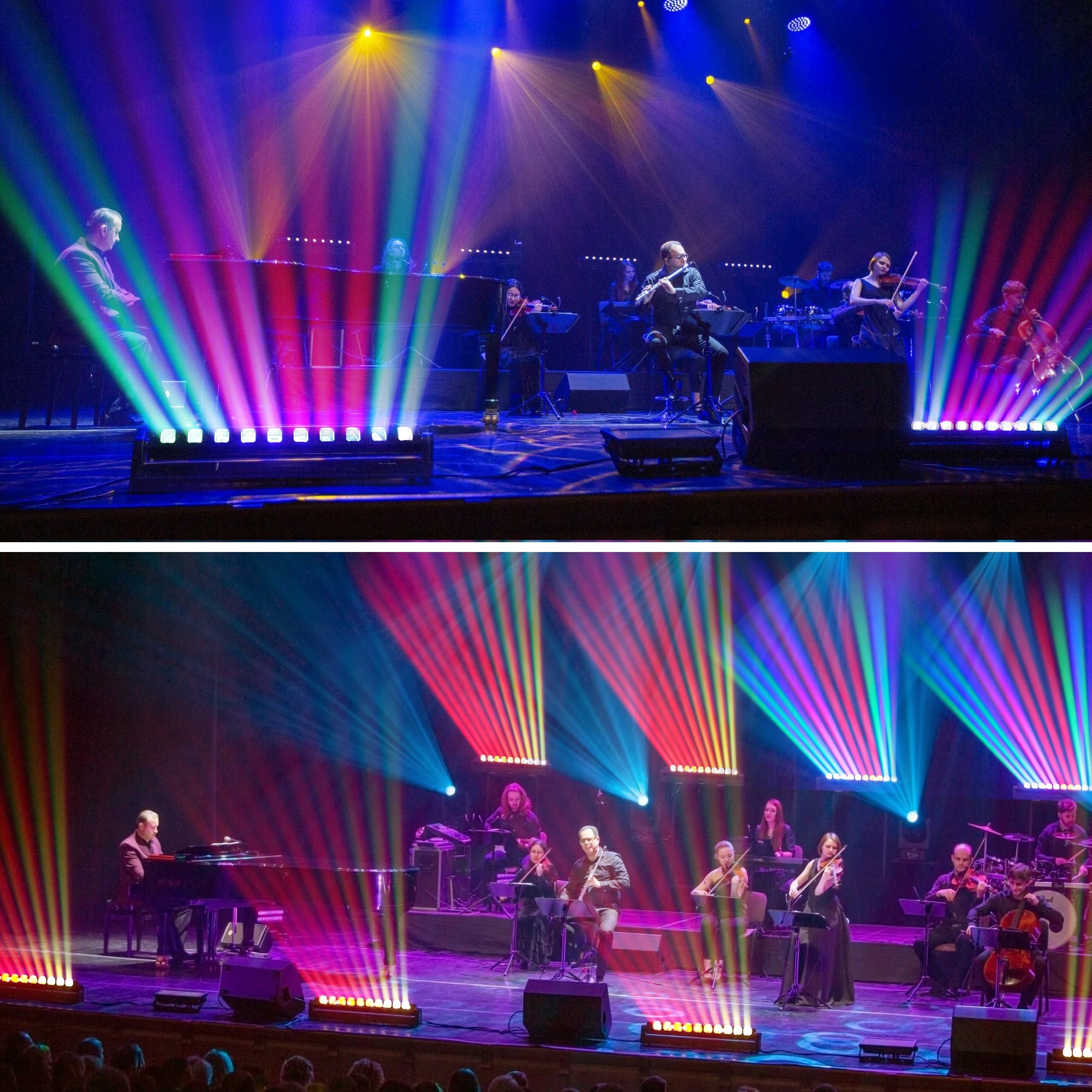

• Mounting: Mount horizontally on a stage floor, vertically as side-pillar effects, or hang overhead via the integrated bottom brackets and standard truss clamps (sold separately).
• Tilt Range: Verify the Y-axis tilt has clearance to move freely in your rig — do not install where the bar would strike surrounding fixtures, walls, or rigging during sweeps.
• Safety: When rigging overhead, always pass a safety cable through both the truss and the fixture's mounting bracket — never rely on the clamp alone.
• Grounding: Connect the PowerCon power cable to a properly grounded NEMA 5-15 outlet before powering on.
• DMX Wiring: Use shielded twisted-pair 3-pin DMX cable. Terminate the final fixture in the chain with a 120Ω resistor across pins 2 and 3.

Cleaning

• Front Lenses: Wipe the 10 lenses periodically with a soft microfiber cloth — dust visibly reduces beam tightness and color saturation.
• Tilt Motor Housings: Air-blow dust away from the side motor enclosures every 200 hours of operation to keep the fans clear.
• Housing: Wipe the metal chassis with a dry or lightly damp cloth. Do not use alcohol or solvents.

Maintenance

• Inspection: Periodically check that the mounting brackets, hanging hardware, and safety cable are tight and free of wear.
• Tilt Motor Check: If the bar tilts unevenly, struggles to reach end positions, or stalls mid-sweep, stop using the fixture and contact authorized service.
• Storage: Store within -22°F to 122°F (-30°C to 50°C). Lock the tilt position centered before transport.

For detailed instructions, check out the user guide.
