30W RGB LED Stage Pixel Light Bar

Light Source & Optical

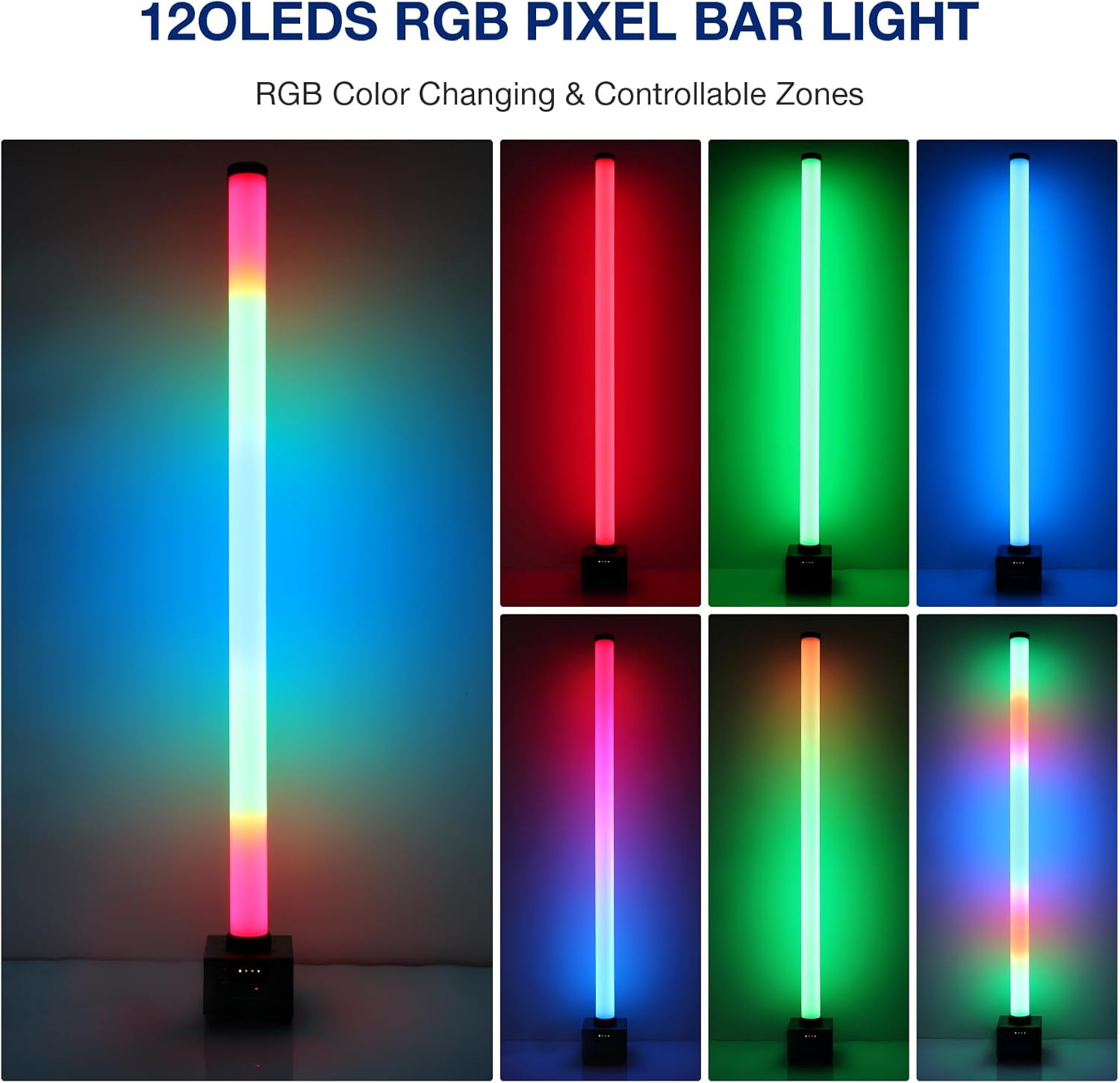

• LEDs: 120 × 5050 RGB 3-in-1
• Pixel Segments: 20 (individually addressable via 60CH mode)
• Beam Angle: 360° (vertical wash / pixel column)
• Effects: Chase, pixel-map, color fade, strobe, static color, sound-active
• Cooling: Convection / fanless (silent)

Control & Connections

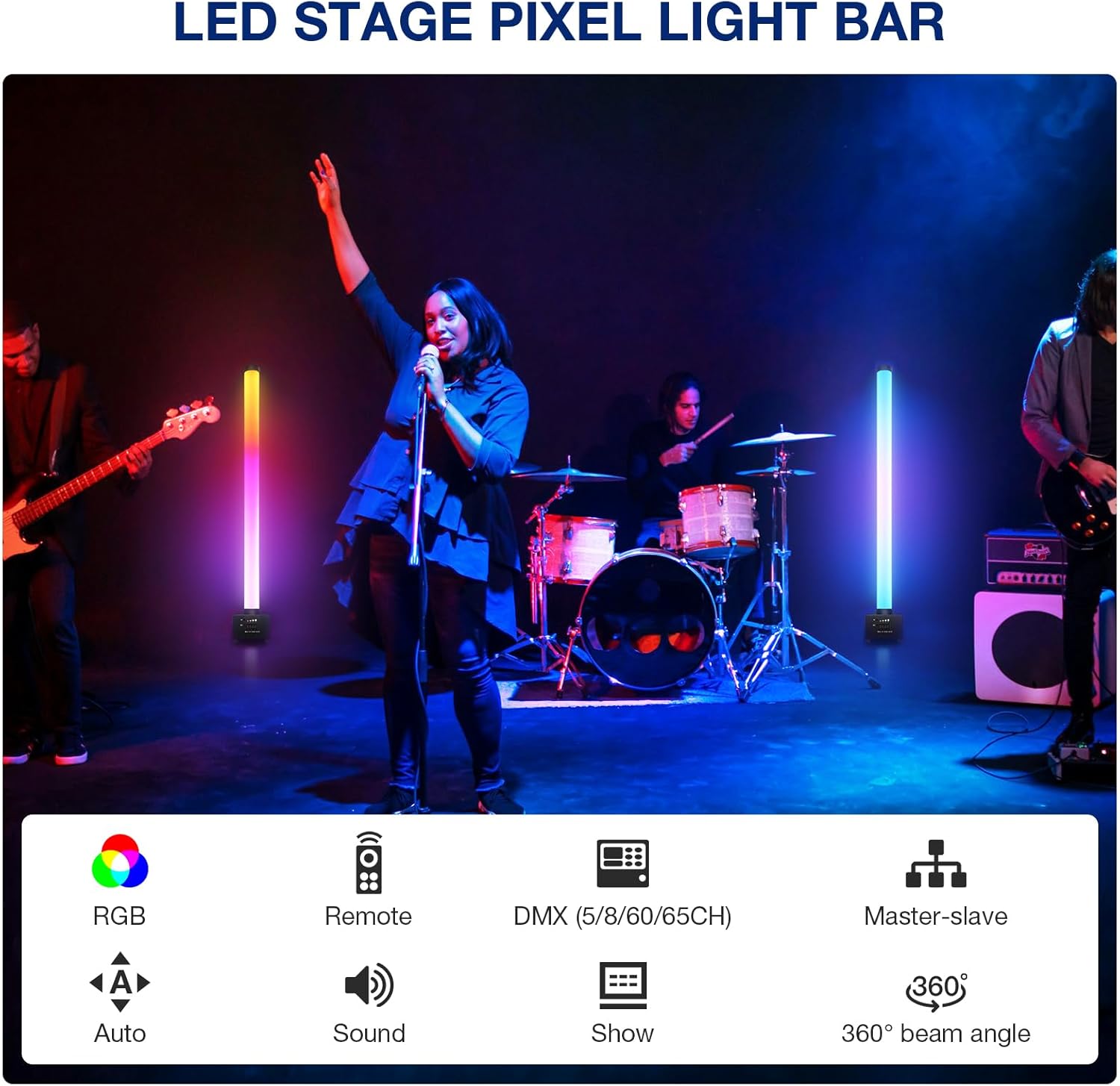

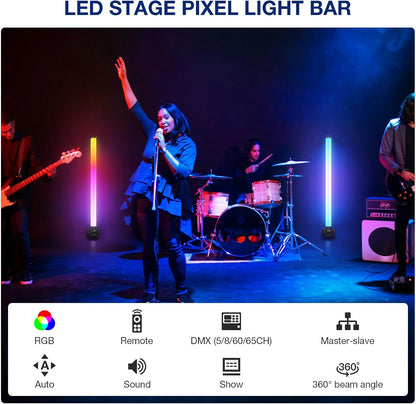

• Control Modes: 2.4G Wireless DMX, Wired DMX512, Master-Slave, Sound-Active, Auto, Static Color, Show, RGB Custom Mix
• DMX Channels: 5 / 8 / 60 / 65 CH

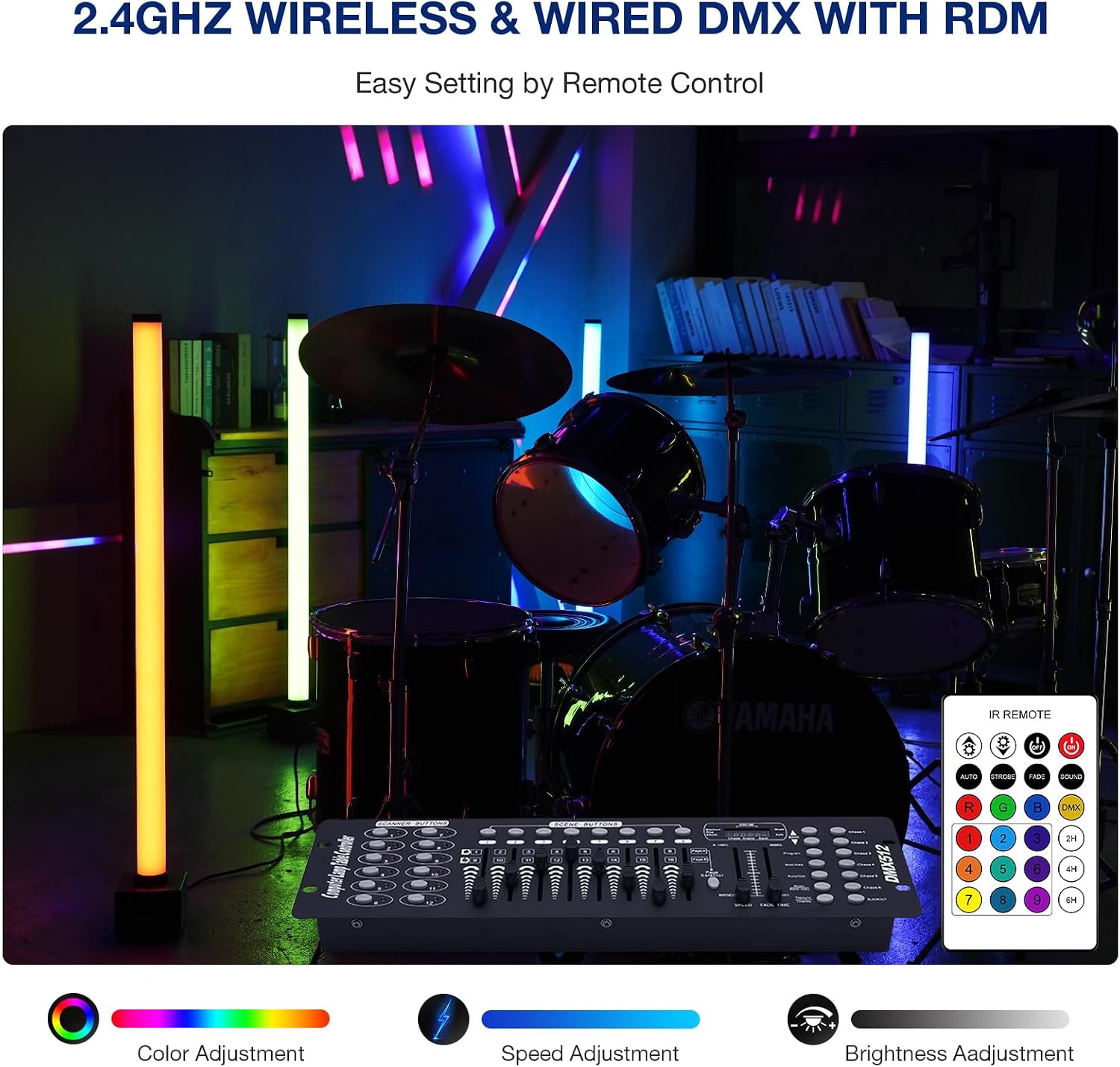

• Wireless DMX: 2.4 GHz with ID pairing (green/red status indicator)
• RDM: Supported (bi-directional DMX512)
• DMX Channel Map — 5CH: Master Dim / Strobe / Program / Static Color / Background
• DMX Channel Map — 8CH: Master Dim / Strobe / R / G / B / Program / Program Speed / Background
• DMX Channel Map — 60CH: R1–G1–B1 through R20–G20–B20 (full pixel control)
• DMX Channel Map — 65CH: Master Dim + R1–B20 pixel + Strobe + Program + Program Speed + Background
• Preset Programs: 60 built-in shows + 37 static colors
• Sound Modes: 2 (adjustable sensitivity 1–9)

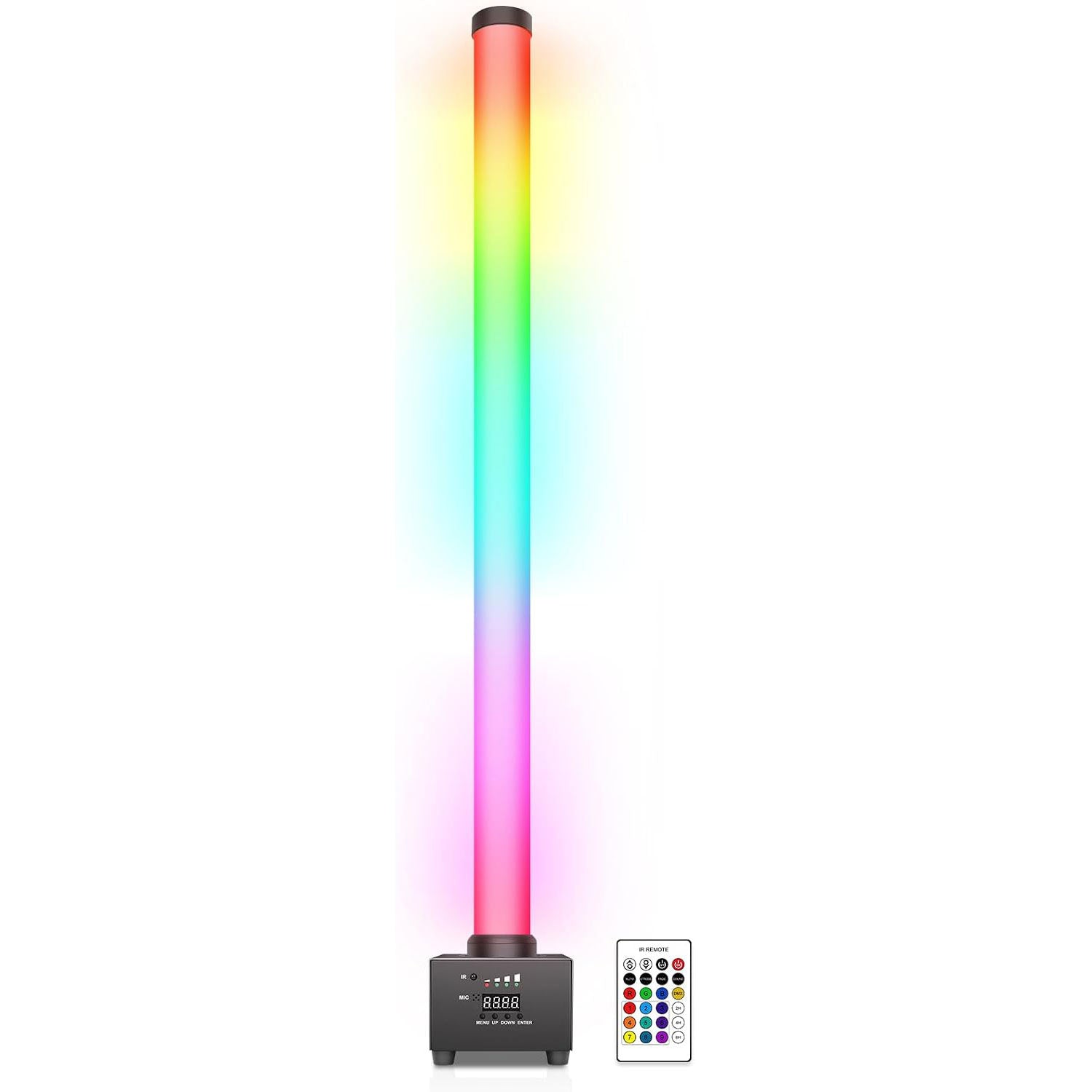

• Remote: IR remote with 2H / 4H / 6H timer buttons (120° receive angle)
• DMX Ports: 3-pin XLR IN / OUT
• Display: 4-digit LED with MENU / UP / DOWN / ENTER buttons + battery indicator

Electrical & Physical

• Power Consumption: 30W (running from wall) / battery-powered in operation

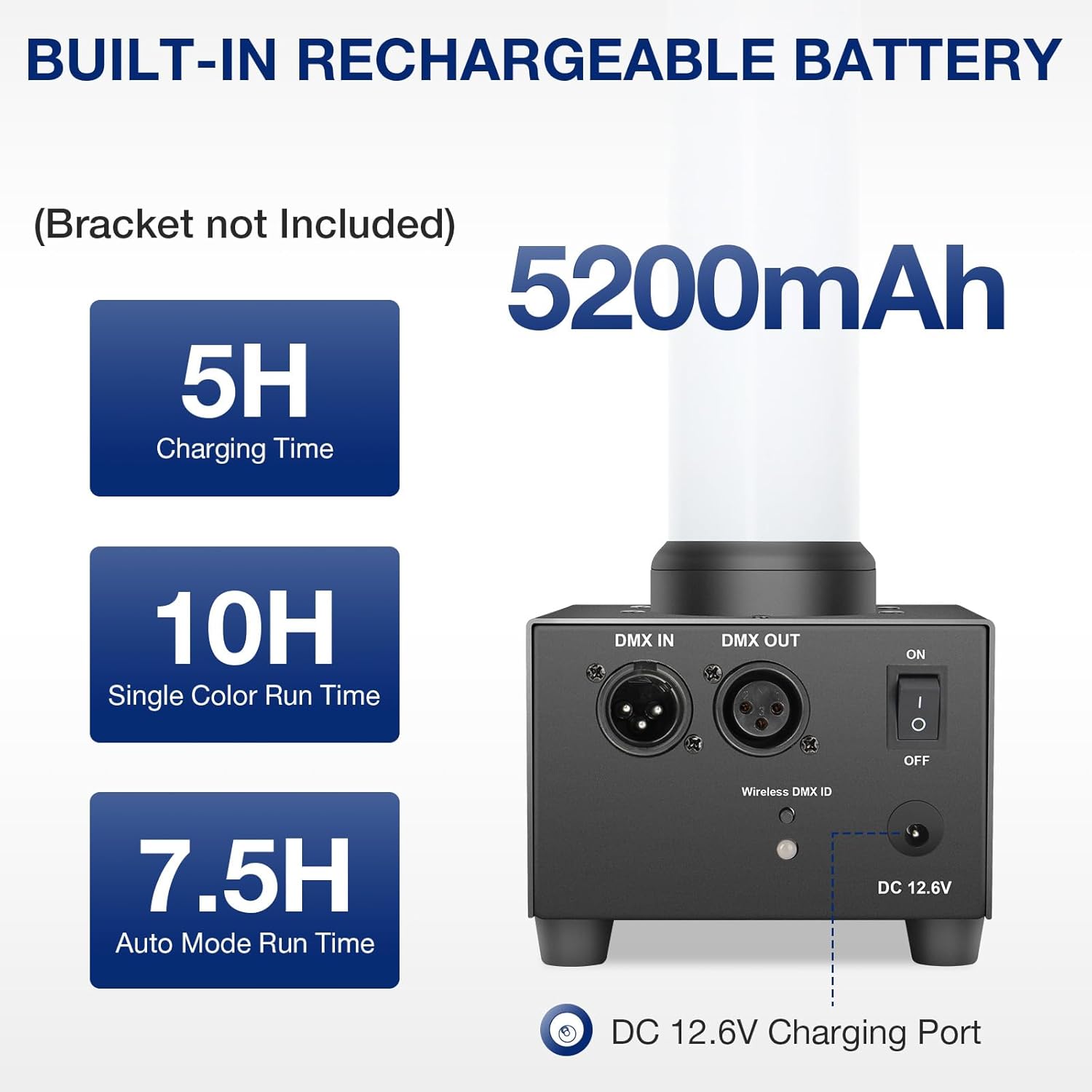

• Battery: 5,200 mAh rechargeable lithium
• Charging Time: ~5 hours
• Runtime: 10 hours (single color) / 7.5 hours (auto mode)
• Charger Input: AC 110–240V, 50/60Hz → DC 12.6V output
• Charger Cord Length: 1.25 m (49.2 in)
• Housing: Metal base + polycarbonate diffusion tube
• IP Rating: IP20 (indoor use only)
• Max Ambient Temp: 104°F (40°C)
• ON/OFF switch on rear panel

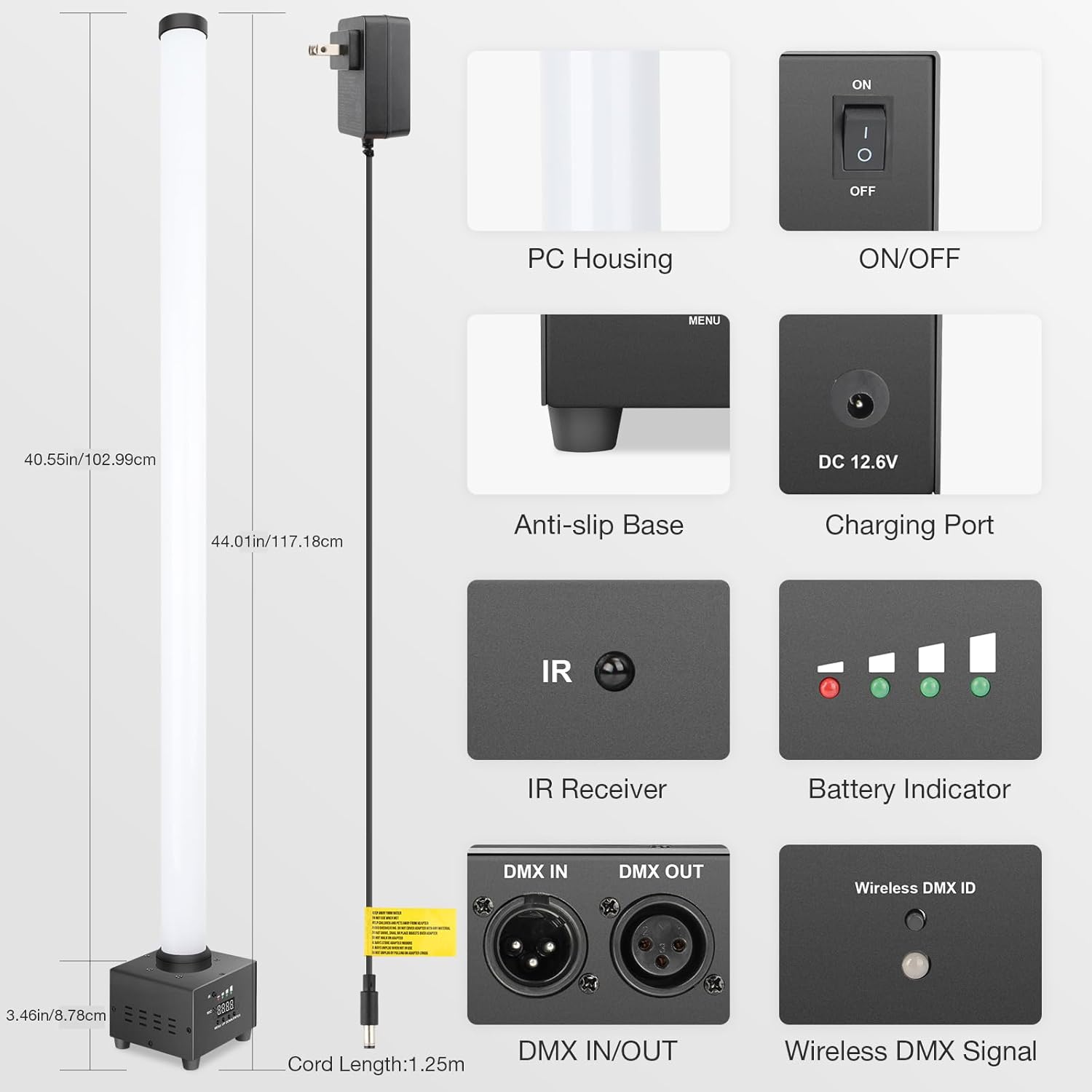

• Dimensions: 40.55 × 4.52 × 2.95 in (103 × 11.5 × 7.5 cm)
• Overall Height with Top: 44.01 in (117.18 cm)
• Weight: 3.9 lb (1.8 kg)

Installation

• Freestanding: Place upright on the anti-slip base for uplight, backdrop, or DJ-booth column setups — no cables required.

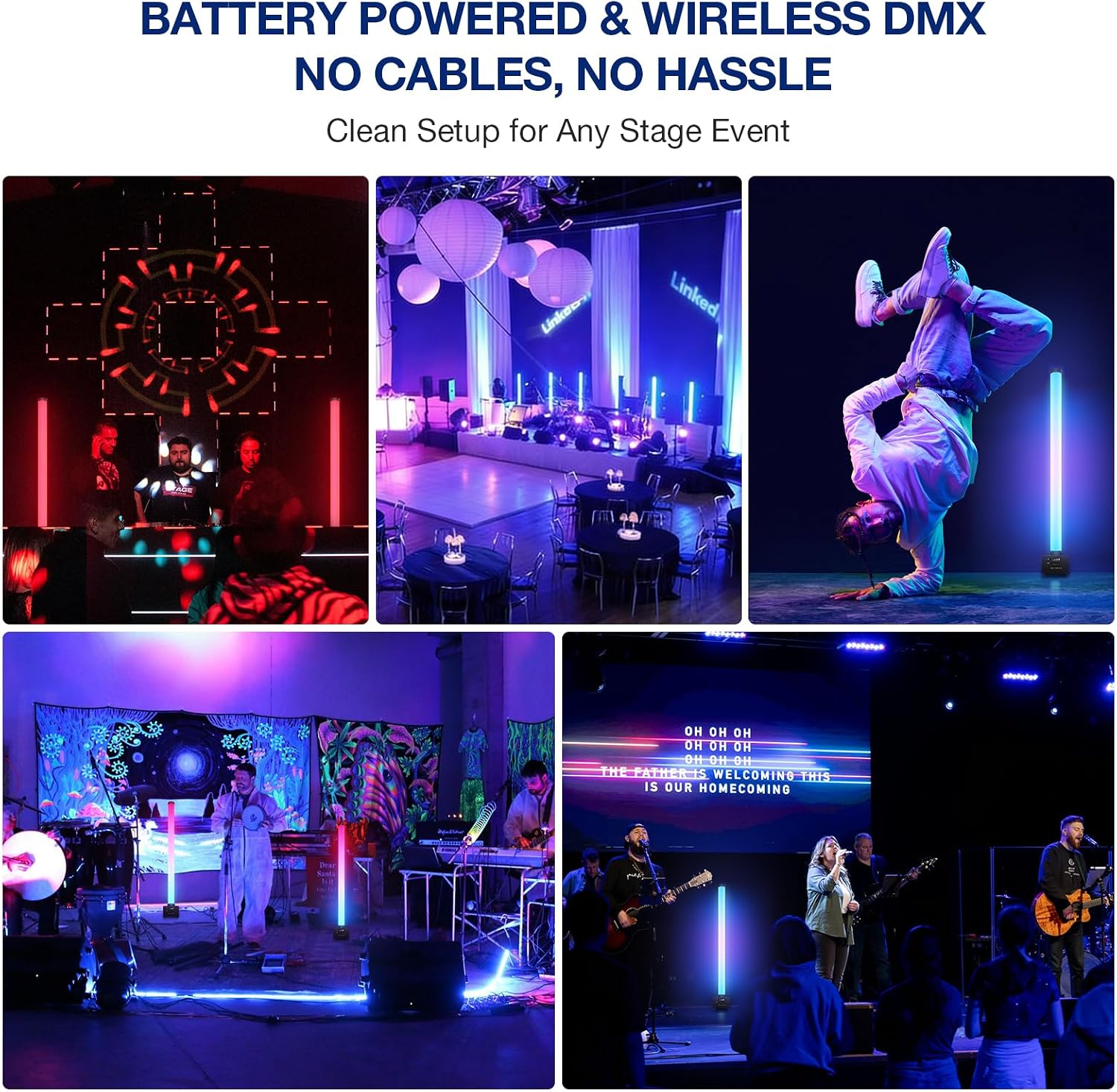

• Mobile: Ideal for wedding aisles, event stages, and pop-up sets where power drops are inconvenient.
• Overhead: Mounting bracket sold separately; use with a truss clamp and safety cable rated for the fixture weight.
• Distance: Keep at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from objects or surfaces in the beam path.
• Ventilation: Allow airflow around the bar; do not use above 104°F (40°C) ambient.

Cleaning

• Housing: Wipe with a dry or lightly damp lint-free cloth; never spray liquid directly onto the fixture.
• Diffusion Tube: Clean gently with a microfiber cloth to keep pixel output crisp.
• Charging Port: Keep the DC 12.6V port clean and dry — cover when not charging.

Maintenance

• Battery Care: Recharge every 6 months during long-term storage; keep charge above 30%.
• Cool-Down: Allow 15 minutes before servicing after extended use.
• Storage: Store indoors at room temperature; do not expose to heat, fire, or moisture.
• Inspection: Check IR receiver window, DMX ports, and charging port before each event.

For detailed instructions, check out the user guide.
