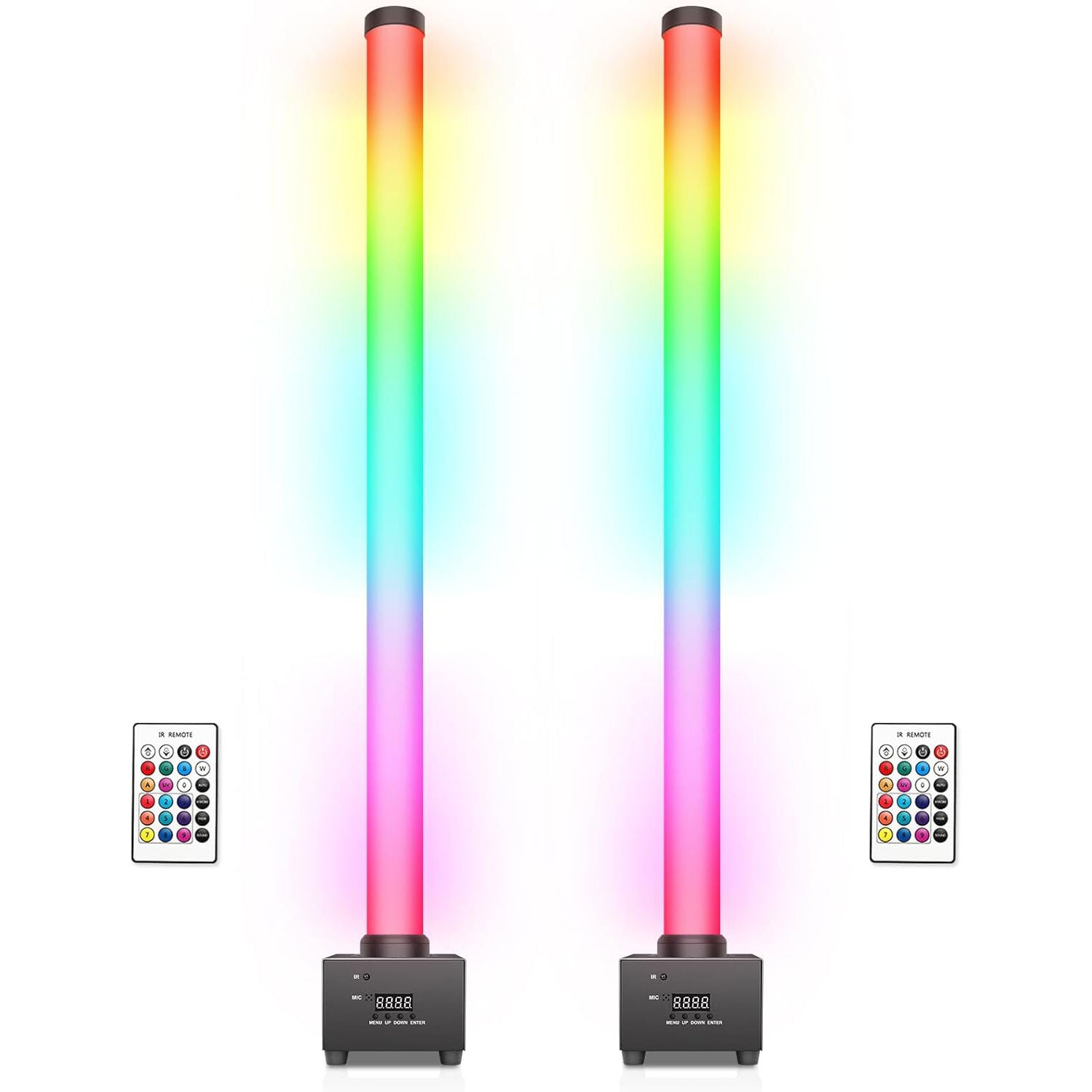

60W RGB LED Stage Pixel Light Bars

Light Source & Optical

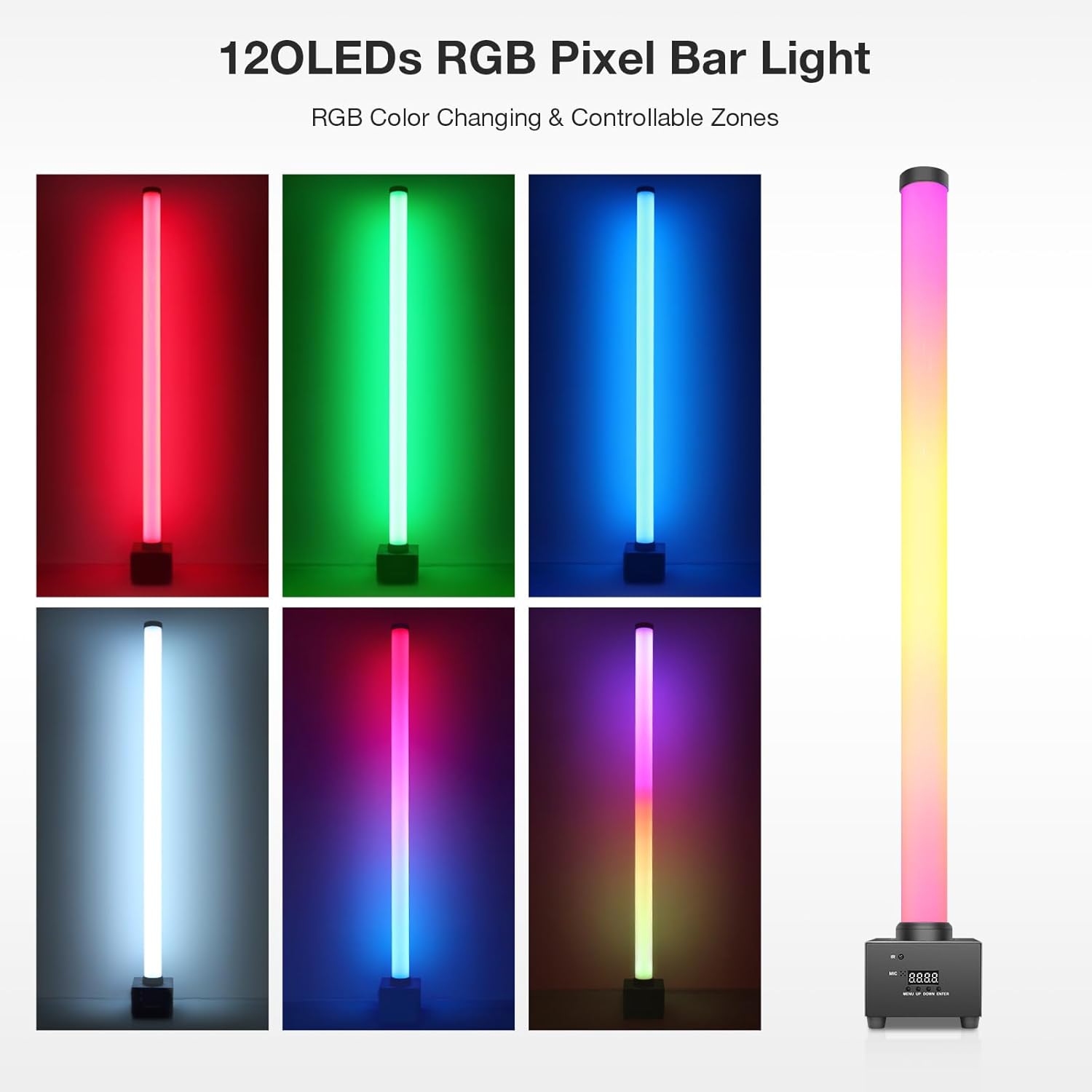

• LEDs: 120 × 5050 RGB 3-in-1 (per bar); 240 total across 2-pack
• Pixel Segments: 20 per bar (individually addressable via 60CH mode)

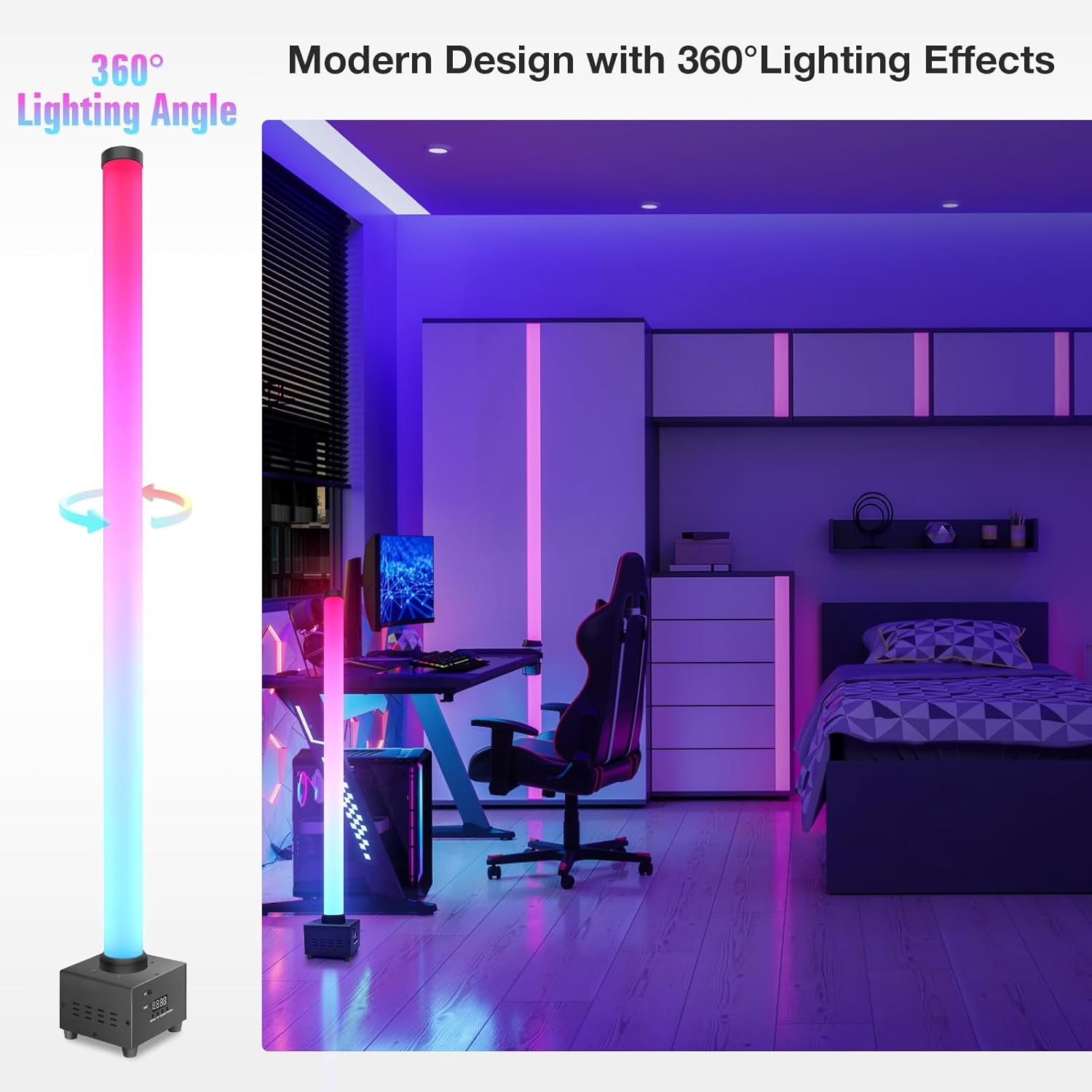

• Beam Angle: 360° (vertical wash / pixel column)
• Effects: Chase, pixel-map, color fade, strobe, static color, sound-active

Control & Connections

• Control Modes: DMX512, Master-Slave, Sound-Active, Auto, Static Color, Show
• DMX Channels: 5 / 8 / 60 / 65 CH
• RDM: Supported (bi-directional DMX512)
• DMX Channel Map — 5CH: Master Dim / Strobe / Program / Static Color / Background
• DMX Channel Map — 8CH: Master Dim / Strobe / R / G / B / Program / Program Speed / Background
• DMX Channel Map — 60CH: R1–G1–B1 through R20–G20–B20 (full pixel control)
• DMX Channel Map — 65CH: Master Dim + R1–B20 pixel + Strobe + Program + Program Speed + Background
• Preset Programs: 60 built-in shows + 61 static colors
• Sound Modes: 2 (adjustable sensitivity 1–9)

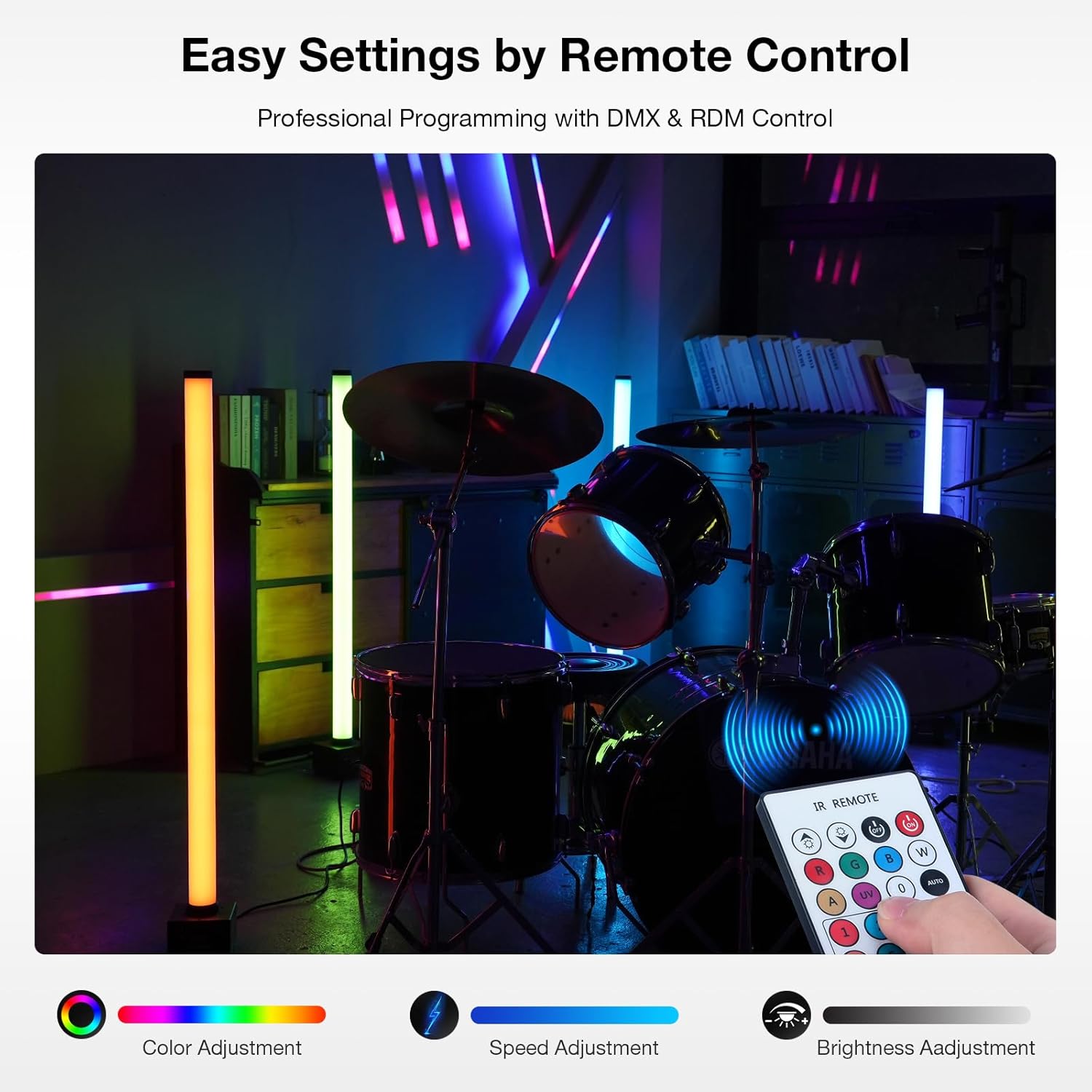

• Remote: IR remote included (120° receive angle)

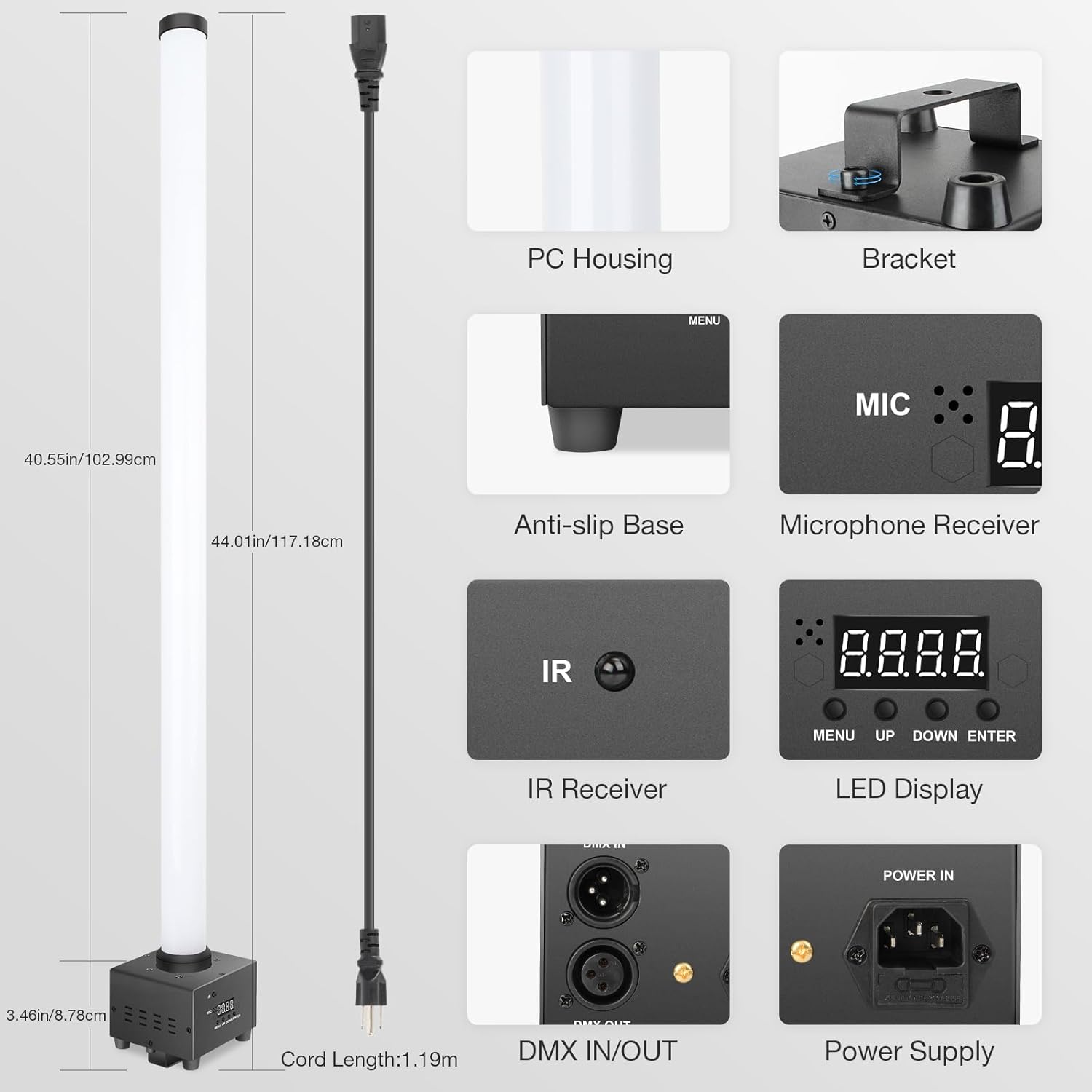

• DMX Ports: 3-pin XLR IN / OUT
• Display: 4-digit LED with MENU / UP / DOWN / ENTER buttons

Electrical & Physical

• Power Consumption: 60W per bar (120W total for 2-pack)
• Voltage: AC 110–240V, 50/60Hz (universal)
• Housing: Metal base + polycarbonate diffusion tube
• Mounting: M10 threaded hole + anti-slip base (clamp and safety cable not included)
• IP Rating: IP20 (indoor use only)
• Max Ambient Temp: 104°F (40°C)
• Dimensions Per Bar: 40.55 × 4.52 × 2.95 in (103 × 11.5 × 7.5 cm)
• Shipping Dimensions (2-pack): 46 × 11 × 7.48 in (117 × 28 × 19 cm)
• Weight Per Bar: 7.5 lb (3.4 kg); 2-pack ≈ 15 lb (6.8 kg)
• Protection Class: Class I (grounded)

Installation

• Vertical: Stand upright on the anti-slip base for uplight, backdrop, or DJ-booth column setups.
• Overhead: Use the M10 threaded mounting hole with a clamp (not included); always add a safety cable rated for the fixture weight.
• Distance: Keep at least 8 in (20 cm) from flammable materials and 1.6 ft (0.5 m) from objects or surfaces in the beam path.
• Ventilation: Allow airflow around the bar; do not use above 104°F (40°C) ambient.
• Electrical: Have a qualified electrician handle overhead power connections; unit is Class I and must be earthed.

Cleaning

• Housing: Wipe with a dry or lightly damp lint-free cloth; never spray liquid directly onto the fixture.
• Diffusion Tube: Clean gently with a microfiber cloth to keep pixel output crisp; avoid abrasive cleaners.

Maintenance

• Cool-Down: Allow 15 minutes before servicing after extended use.
• Storage: Return both bars to original packaging when transporting; store indoors away from moisture.
• Inspection: Check DMX ports, IR receiver window, and mounting hardware before each show.

For detailed instructions, check out the user guide.
