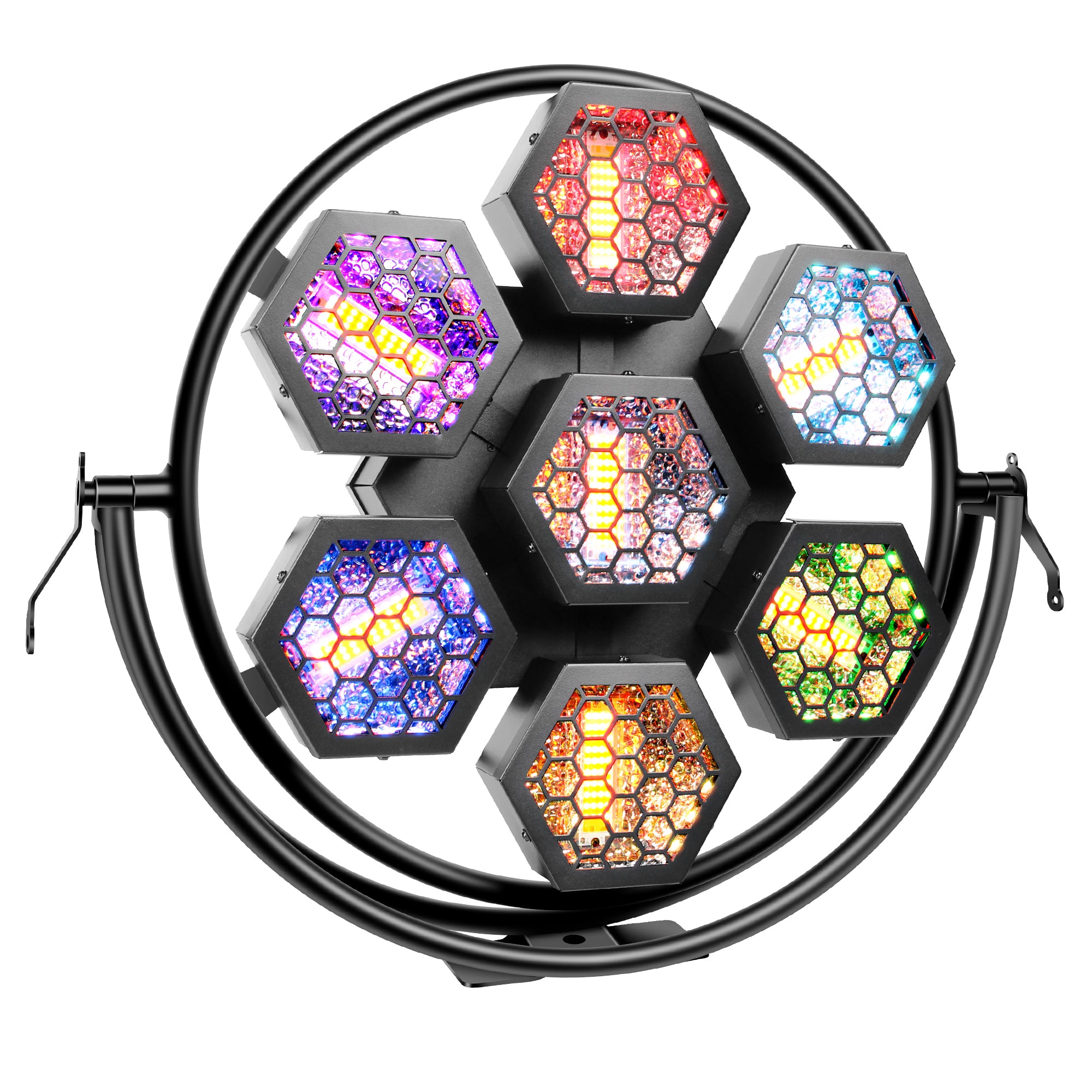

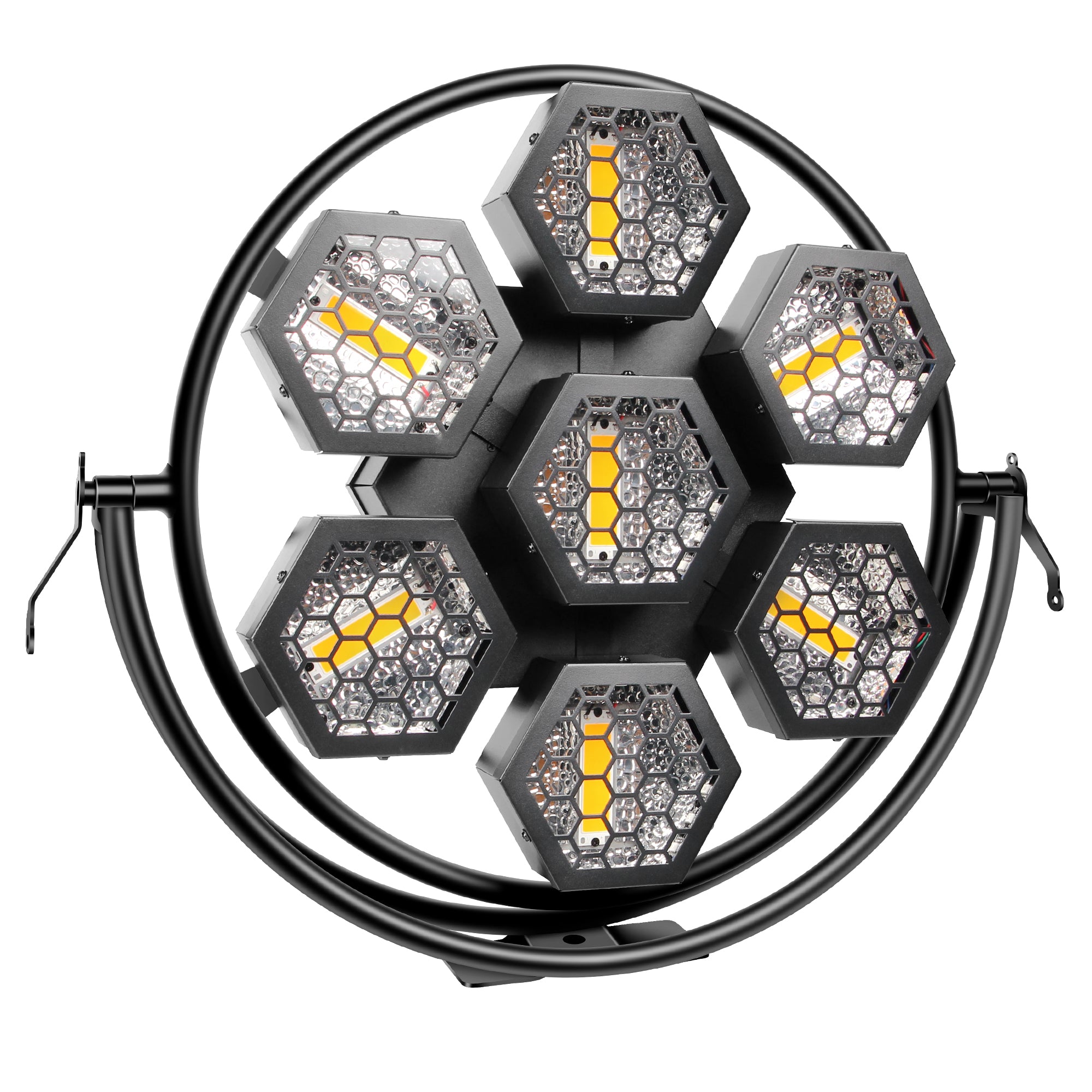

260W 7-Head Hexagonal Retro Stage Light

Light Source & Optical

• Main Source: 7 × 50W Warm White COB LEDs (Vintage Blinder Look)
• Auxiliary Source: 63 × 0.3W 5050 RGB 3-in-1 SMD Pixels
• Total Power: 260W

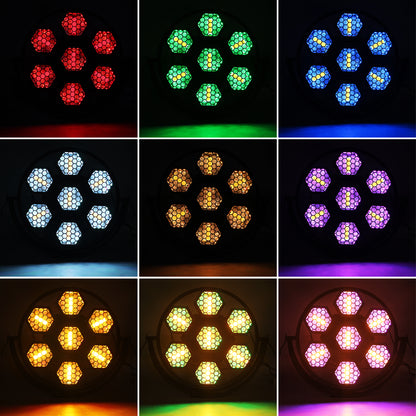

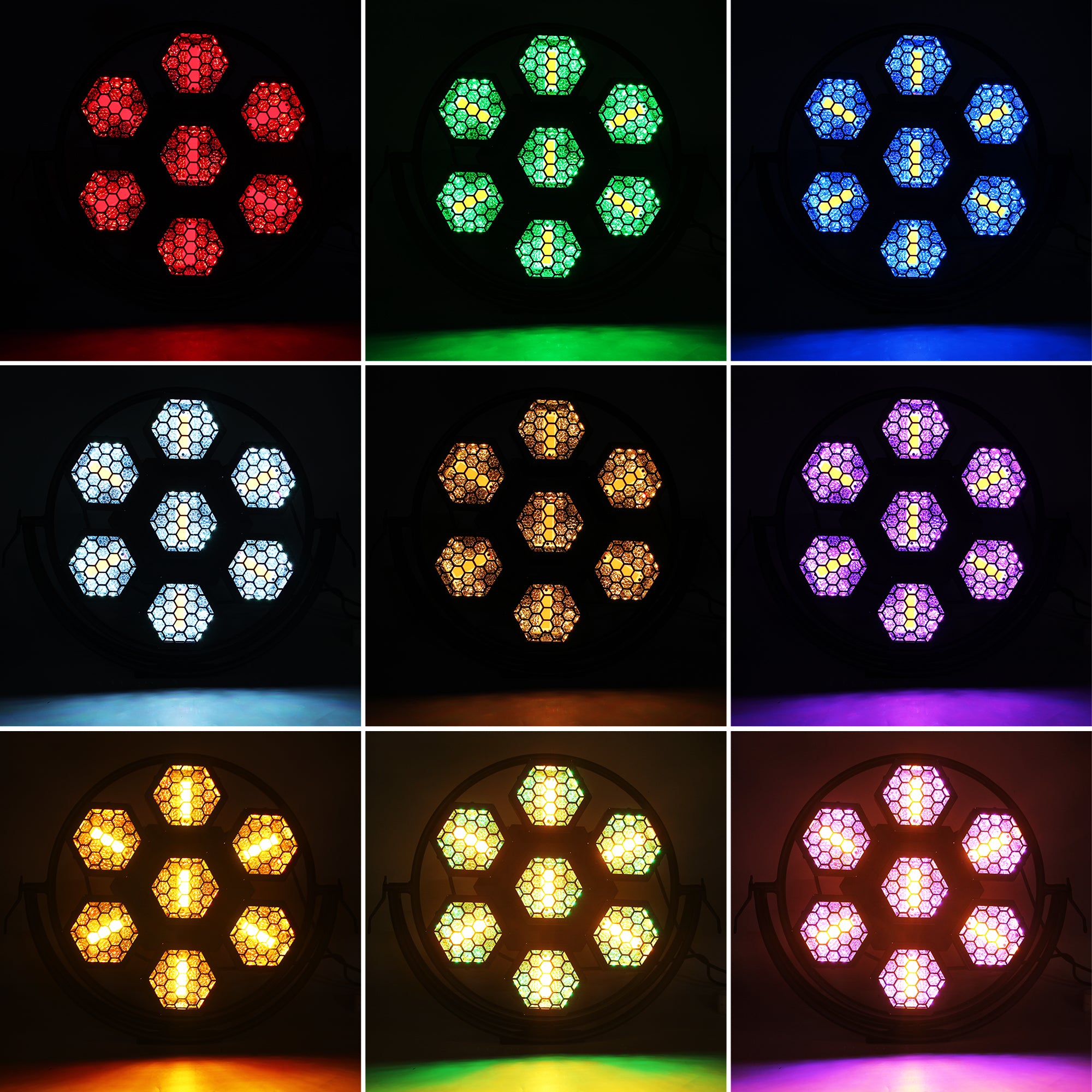

• Color: Warm White COB + Full-Color RGB Backlight
• Dimming: 32-Bit Linear, 0–100%
• Strobe: 1–25 Hz Variable

Control & Connections

• Control Modes: DMX512, RDM, Auto, Sound Active, Master-Slave
• DMX Channels: 5 Modes — 4 / 16 / 22 / 28 / 40 Channels
• Built-In Programs: 64 RGB Programs + 22 Amber Programs

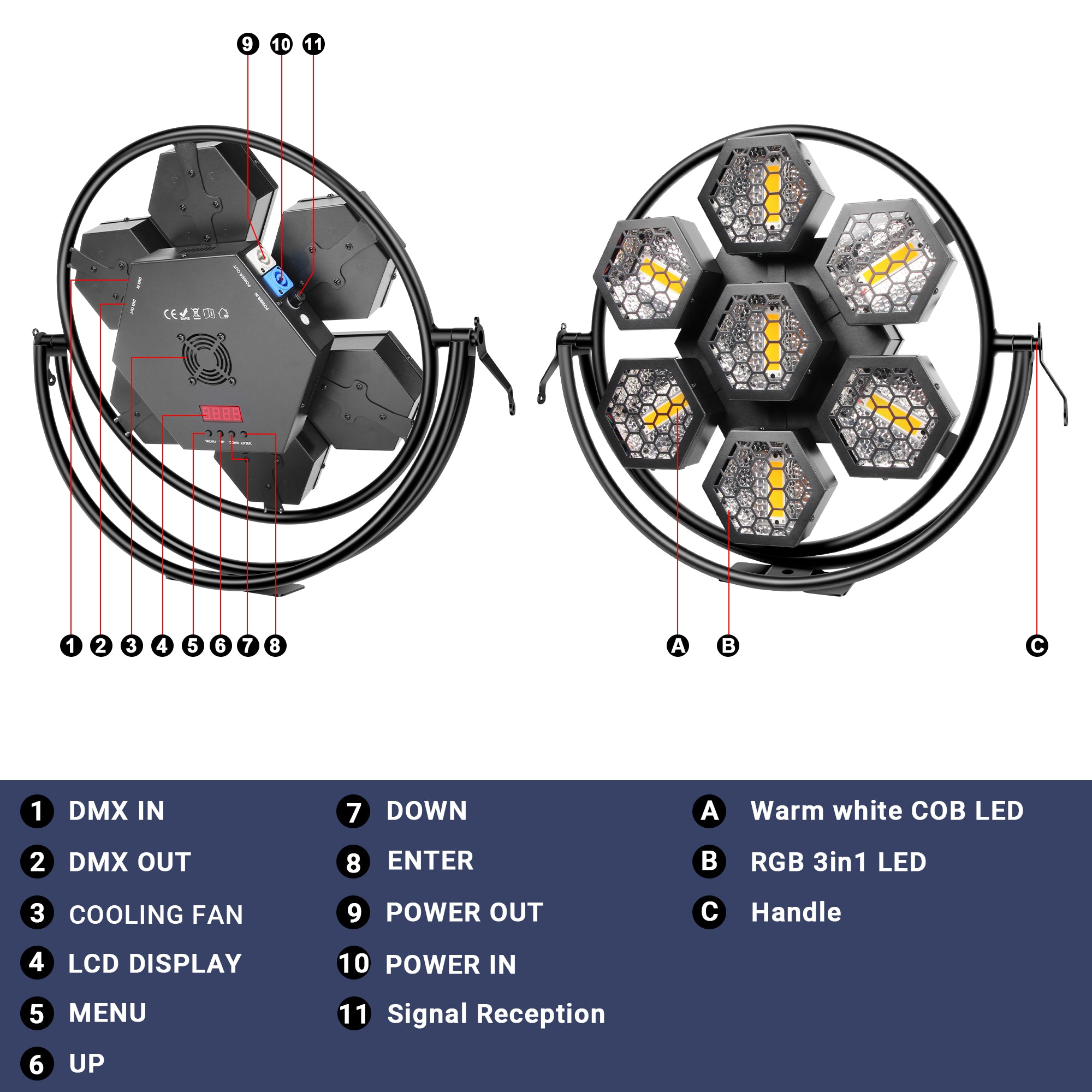

• Display: LCD Display with Menu / Up / Down / Enter
• Data Connectors: 3-Pin XLR DMX In/Out
• Power Connectors: PowerCon In/Out (Daisy-Chain Capable)

Electrical & Physical

• Power Consumption: 260W
• Input Voltage: AC110–240V, 50/60Hz (Auto-ranging)
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Protection Rating: IP20 (Indoor Use Only)
• Housing: Metallic Black Finish

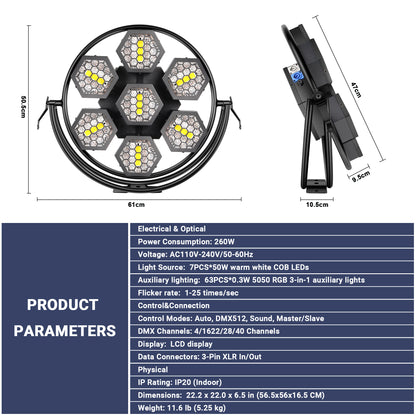

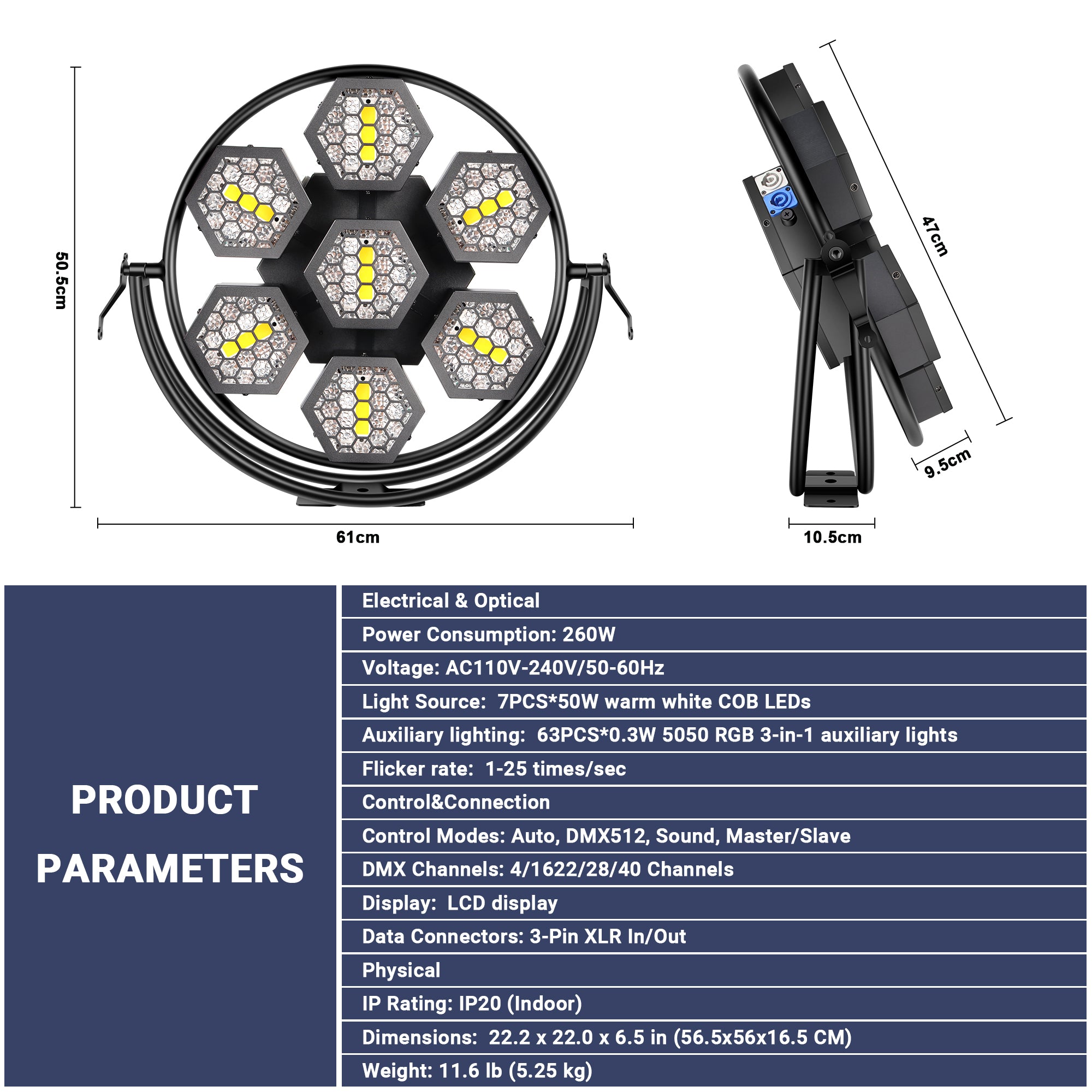

• Dimensions: 22.2 × 22.0 × 6.5 in (56.5 × 56 × 16.5 cm)
• Weight: 11.6 lb (5.25 kg)

Installation

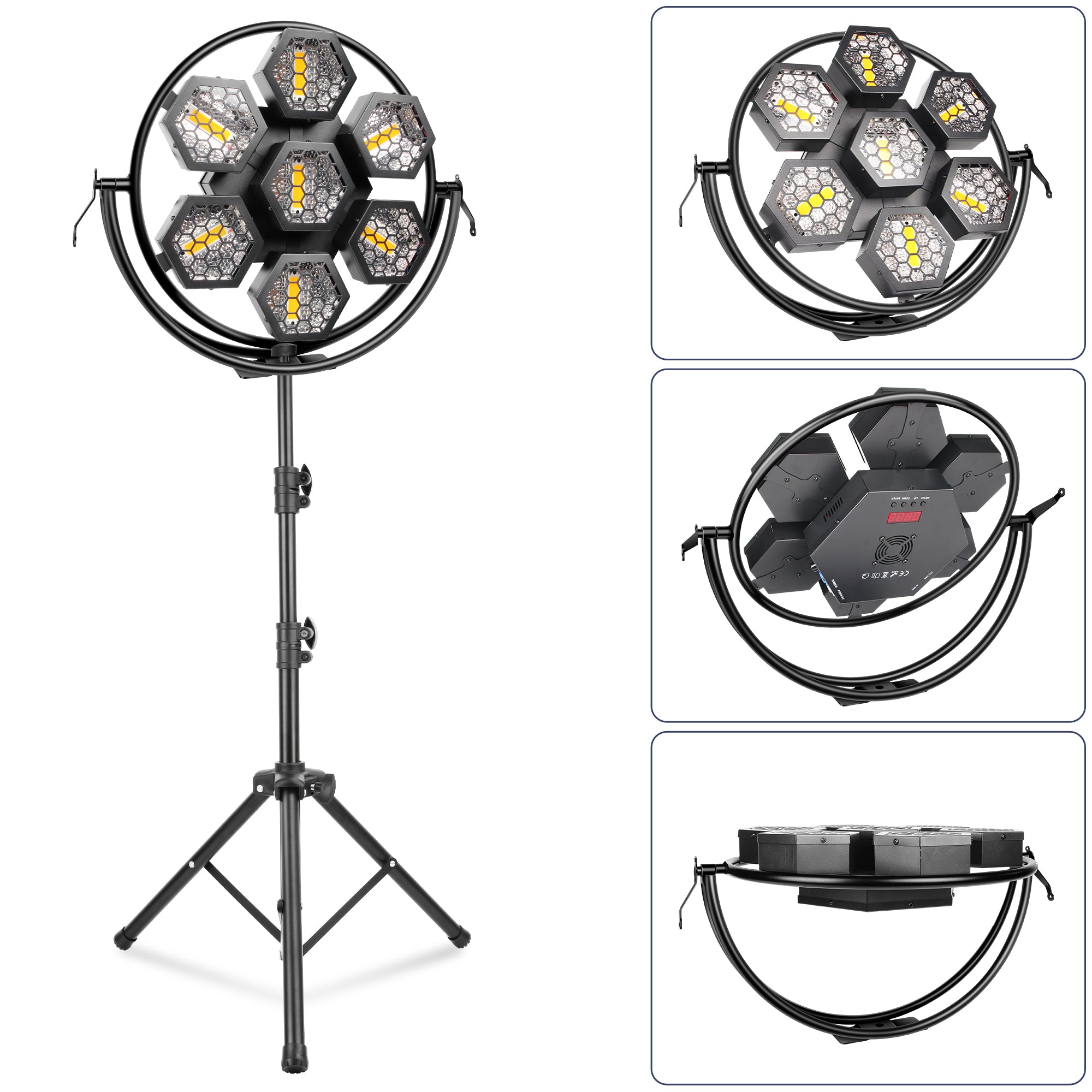

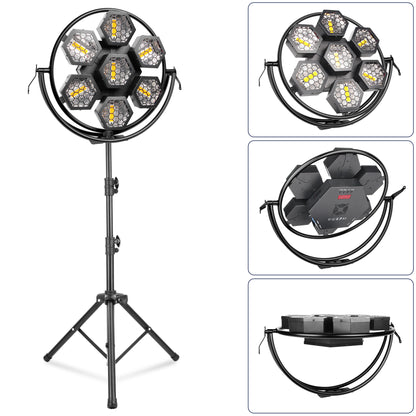

• Mounting: The integrated hoop frame doubles as a floor yoke, tripod adapter (lighting stand sold separately, threaded mount on bottom), or truss hanging point with a standard clamp.

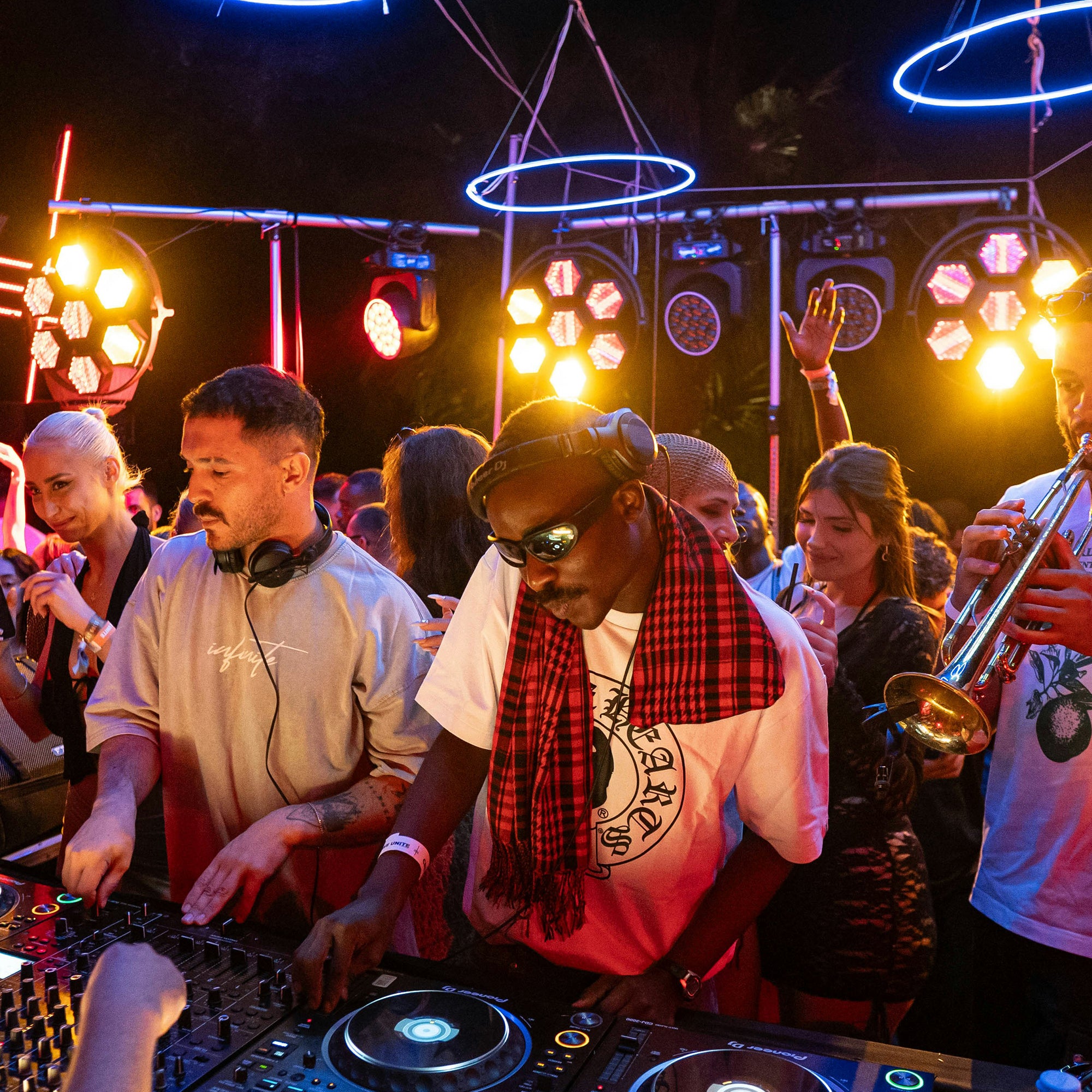

• Orientation: Can be installed front-facing toward the audience as a stage blinder, side-facing as a wash, or hung overhead via clamp.
• Safety: Always pass a safety cable through both the truss/support structure and the hoop frame when rigging overhead — never rely on the clamp alone.
• Grounding: Connect the PowerCon cable to a properly grounded outlet before powering on. Verify the green/yellow conductor is securely earthed.
• DMX Wiring: Use shielded twisted-pair 3-pin DMX cable. For DMX runs longer than 4 fixtures, terminate the final unit with a 120Ω resistor.

Cleaning

• Front Grilles: Wipe the hexagonal grilles with a dry microfiber cloth — dust on the honeycomb screen visibly dulls the COB output.
• Cooling Fan: Air-blow dust out of the rear cooling fan and intake vents every 200 hours of use.
• Housing: Wipe the metal hoop frame with a dry or lightly damp cloth. Do not use solvents.

Maintenance

• Inspection: Periodically check that the hoop frame mounting bolts, handle screws, and safety cable are tight and free of wear.
• Storage: Store the fixture in a dry environment within -22°F to 122°F (-30°C to 50°C). Avoid stacking heavy objects on the hoop frame.
• Service: There are no user-serviceable parts inside. Stop using the fixture if LEDs flicker erratically or the fan fails to spin, and contact authorized service.

For detailed instructions, check out the user guide.
