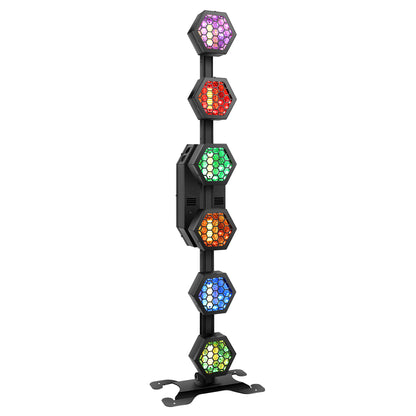

300W 6×50W COB Vertical Retro Stage Light

Light Source & Optical

• Main Source: 6 × 50W Warm White COB LEDs (Vintage Blinder Look)
• Auxiliary Source: 54 × 0.3W 5050 RGB 3-in-1 SMD Pixels
• Total Power: 300W (LED rated capacity; actual draw limited via dimming)

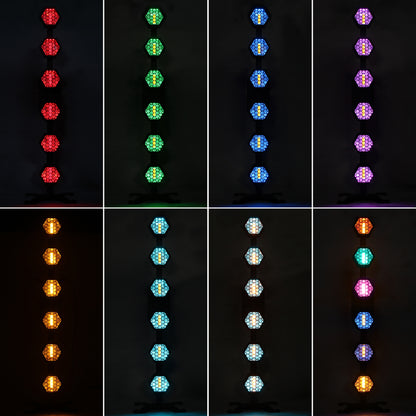

• Color: Warm White COB + Full-Color RGB Backlight
• Dimming: 32-Bit Linear, 0–100%
• Strobe: 1–30 Hz Variable

Control & Connections

• Control Modes: DMX512, RDM, Auto, Sound Active, Master-Slave
• DMX Channels: 5 Modes — 4 / 16 / 21 / 24 / 36 Channels
• Built-In Programs: 38 RGB Programs + 20 Amber Programs

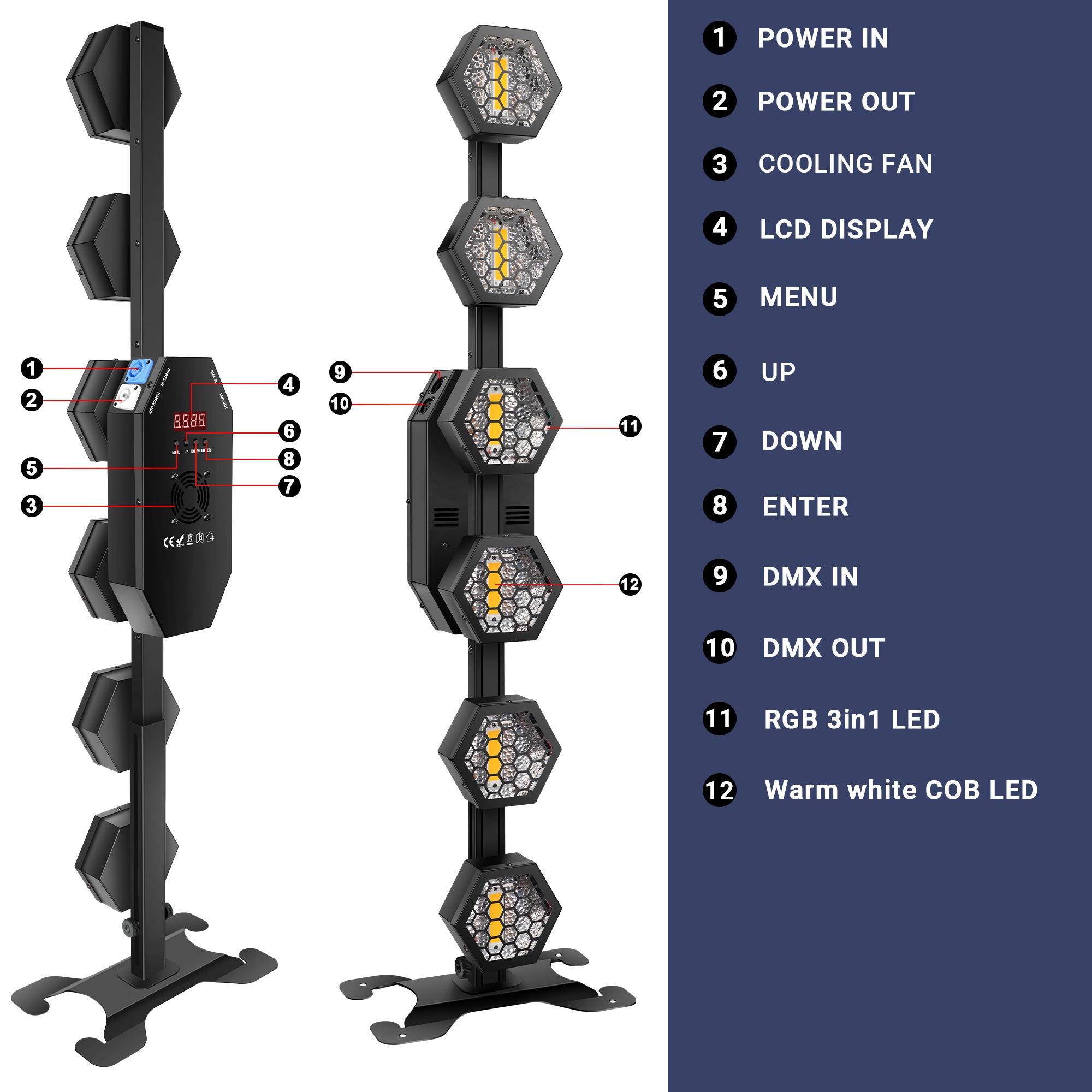

• Display: LED Display with Menu / Up / Down / Enter

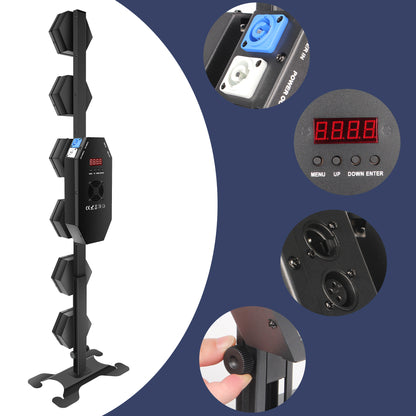

• Data Connectors: 3-Pin XLR DMX In/Out
• Power Connectors: PowerCon In/Out (Daisy-Chain Capable)

Electrical & Physical

• Input Voltage: AC100–220V, 50/60Hz (Auto-ranging)
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Protection Rating: IP20 (Indoor Use Only)
• Housing: Metallic Black Finish
• Base: Wide Tripod-Style Floor Plate
• Dimensions: 11.0 × 11.0 × 47.2 in (28 × 28 × 120 cm)
• Weight: 17.6 lb (8.0 kg)

Installation

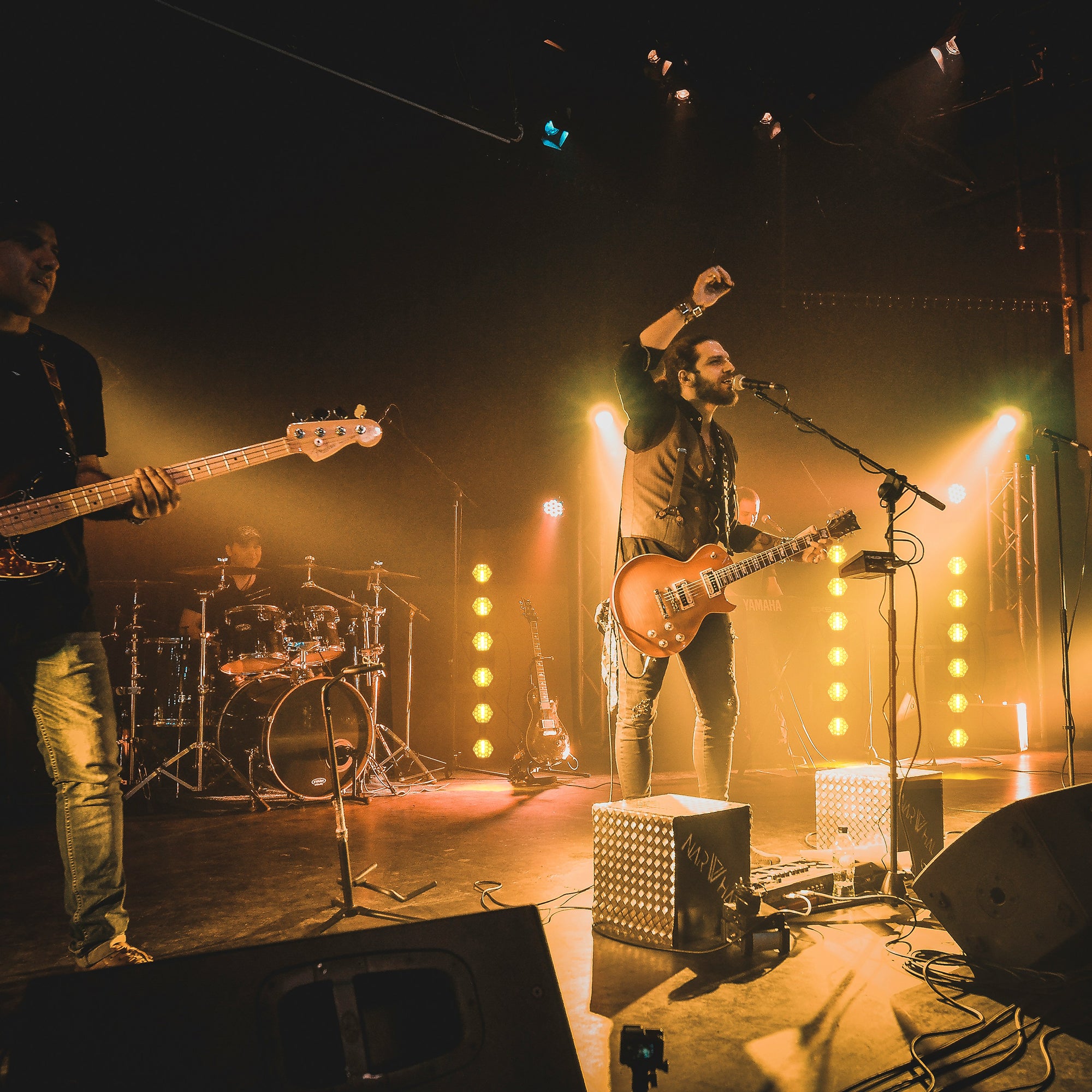

• Setup: Place the fixture on a flat, stable floor surface — the wide base plate supports the vertical column without additional bracing. Position in a stage corner, beside a DJ booth, or flanking a band setup.
• Orientation: Designed for floor-standing vertical use. Do not lay horizontally during operation, as the heat-dissipation pattern is optimized for upright airflow.
• Stability: Keep cables routed away from foot traffic and verify the base plate sits flush on the floor — uneven surfaces can cause the column to lean over time.
• Grounding: Connect the PowerCon cable to a properly grounded outlet before powering on.
• DMX Wiring: Use shielded twisted-pair 3-pin DMX cable. Terminate the final fixture in the chain with a 120Ω resistor across pins 2 and 3.

Cleaning

• Front Grilles: Wipe the hexagonal grilles with a dry microfiber cloth — dust on the honeycomb screen visibly dulls the COB output.
• Cooling Fan: Air-blow dust out of the rear cooling fan and intake vents every 200 hours of use.
• Housing: Wipe the metal spine and base plate with a dry or lightly damp cloth. Do not use alcohol or solvents.

Maintenance

• Inspection: Periodically check that all spine connectors and base-plate bolts are tight; verify the LED heads are seated firmly without play.
• Storage: Store within -22°F to 122°F (-30°C to 50°C). Keep the column upright or in original packaging to avoid spine flex during long-term storage.
• Service: There are no user-serviceable parts inside. Stop using the fixture if LEDs flicker erratically or the fan fails to spin, and contact authorized service.

For detailed instructions, check out the user guide.
