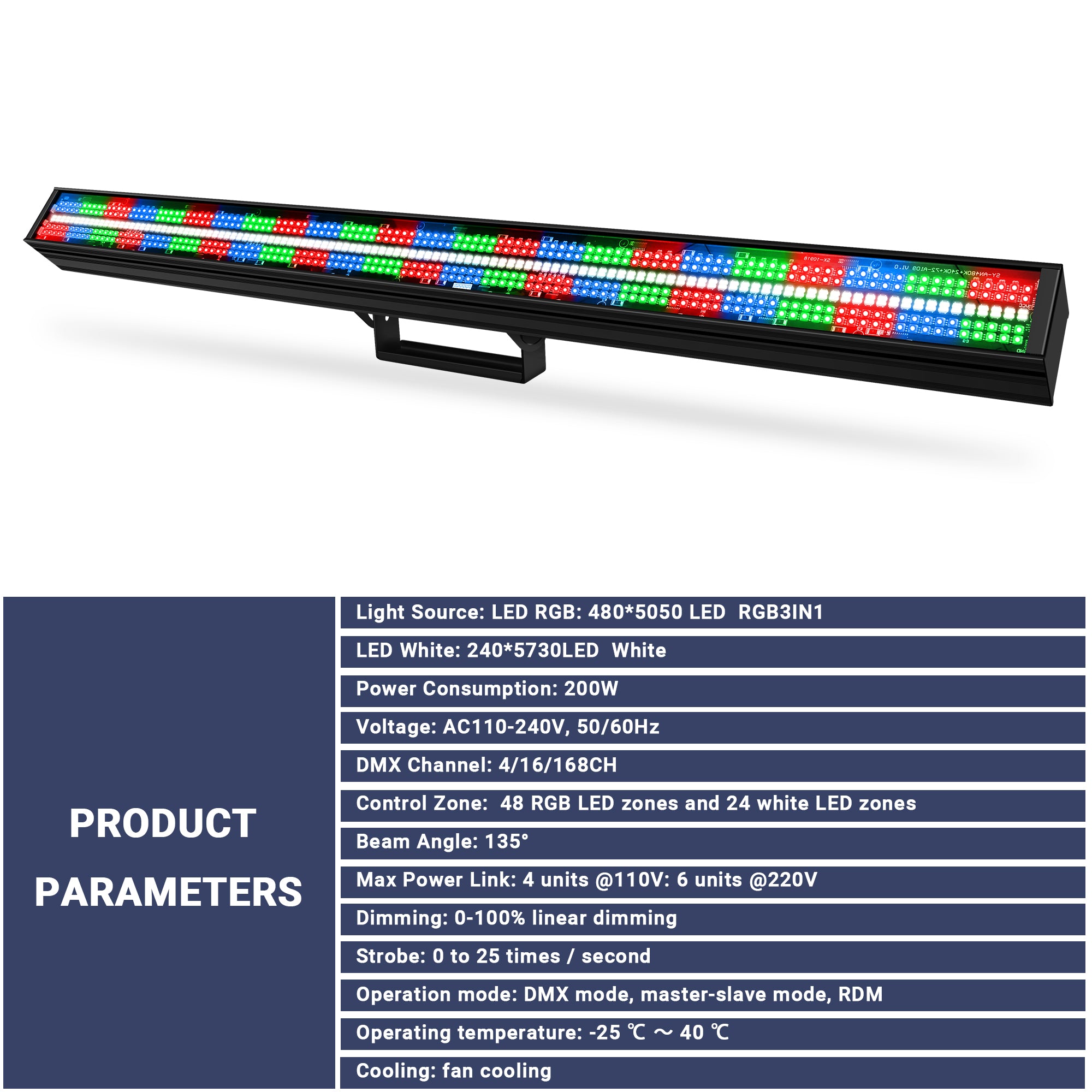

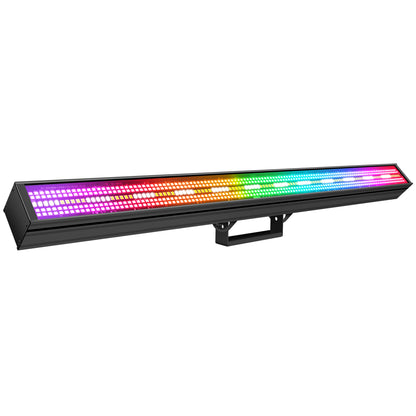

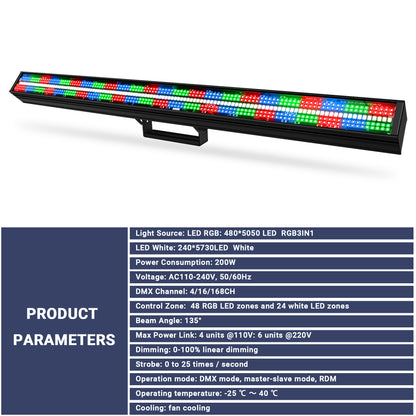

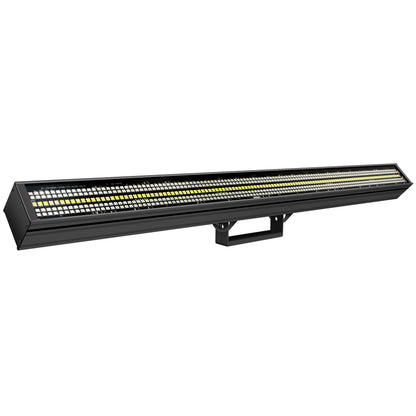

200W RGBW LED Strobe Bar

Light Sources

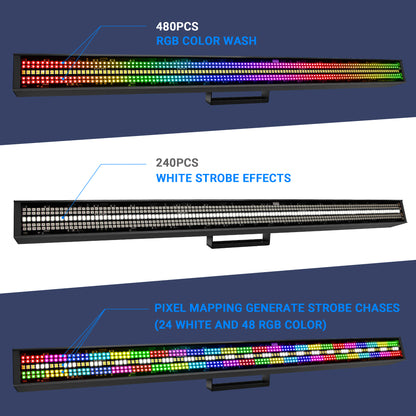

• 480 × 0.2W RGB 5050 SMD LEDs + 240 × 0.5W White 5730 SMD LEDs
• 135° Wide Beam Angle
• Color Temperature: Cool White (5000–6500K)

Features

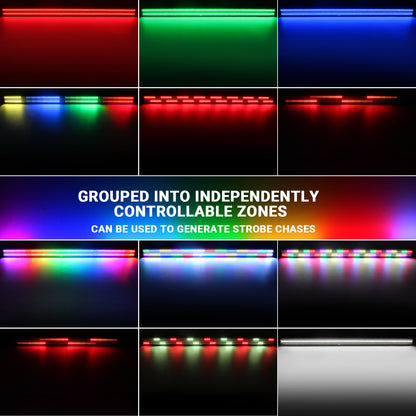

• 48 RGB LED Zones
• 24 Cool White LED Zones
• 128 Built-In RGB LED Program Macros
• 64 Built-In Cool White LED Program Macros

Control

• Control Protocol: DMX
• DMX Modes: 4, 16, and 168 channels
• Dimming: 0–100% smooth dimming
• Strobe: Variable
• Strobe Rate: 1–30 Hz
• Display: 4-button menu

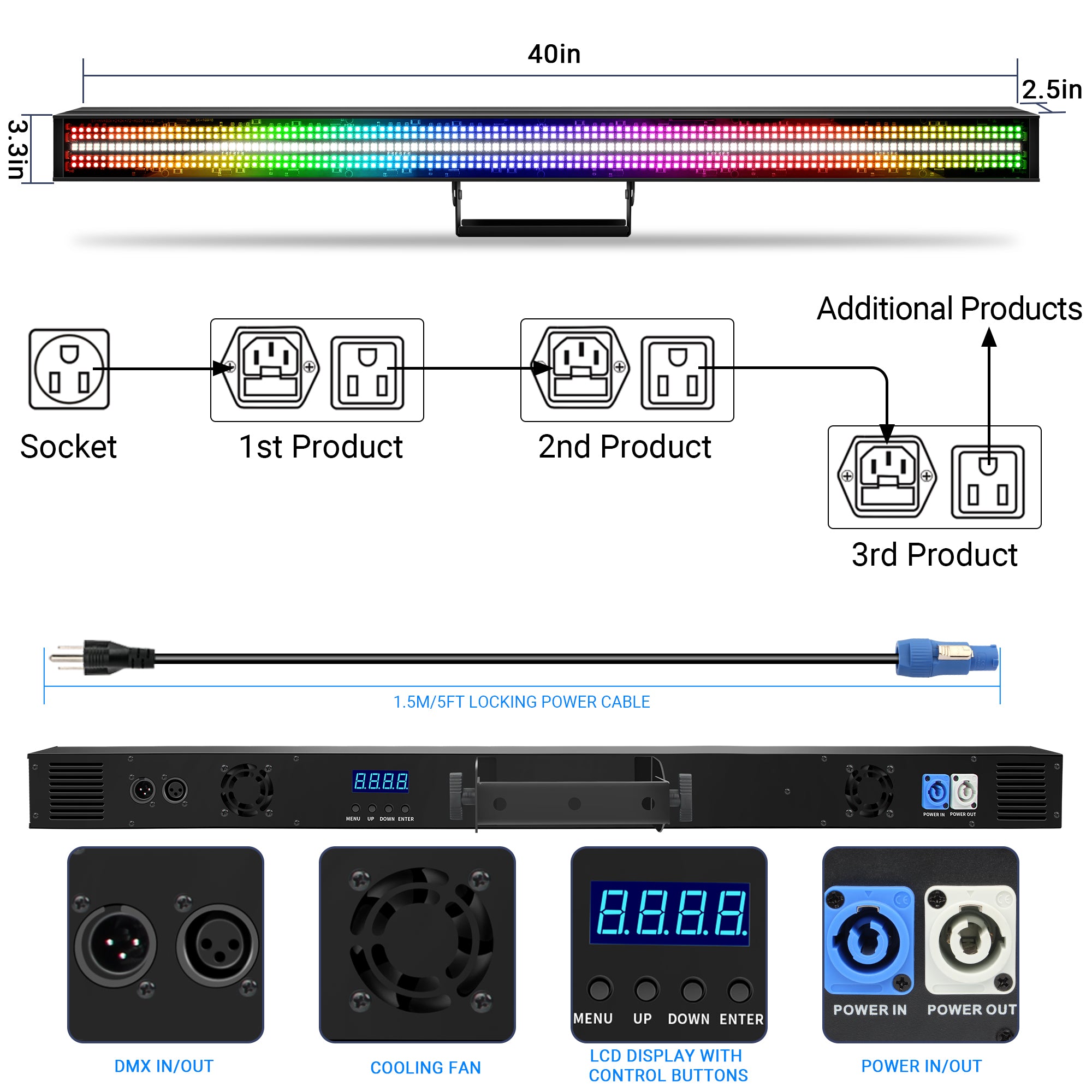

Connections

• Data: 3-pin DMX In/Out
• Mounting: 180° adjustable mounting bracket
• Power: Locking power In/Out

Electrical & Physical

• Input Voltage: 110–240V, 50/60 Hz (Auto-Sensing)
• Max Power Consumption: 200 W
• Dimensions: 39.4 × 2.7 × 2.4 in (100 × 7 × 6 cm)
• Weight: 6.6 lb (3 kg)

Installation

This fixture features a yoke-mounted attachment point for truss or overhead installation.

1. Attach a properly rated mounting clamp (not included) to the yoke using an M10 × 25 mm bolt.
2. Tighten all hardware securely before lifting or mounting the fixture.
3. Mount the fixture to a truss or approved overhead structure using hardware rated for the fixture’s weight.
4. Always use a secondary safety cable (not included) for any suspended or overhead installation.

Important: Only use clamps and mounting hardware rated for overhead use. Improper installation may result in injury or damage.

Cleaning

Disconnect power before cleaning.

Regular cleaning ensures optimal light output, reliable performance, and extended product life. Cleaning frequency depends on the operating environment, with damp, smoky, or dusty conditions requiring more frequent maintenance.

• Clean the external lens surface periodically using a soft, dry cloth.
• Prevent dirt and debris buildup on the optics and housing.

Never use alcohol, solvents, or ammonia-based cleaners.

Maintenance

• This fixture contains no user-serviceable parts.
• All service must be performed by an authorized service technician.
• Use only genuine replacement parts from an authorized dealer.

For detailed instructions, check out the user guide.
