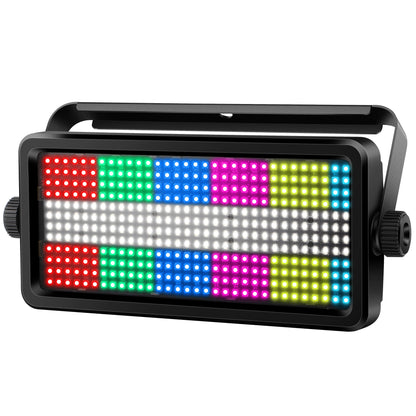

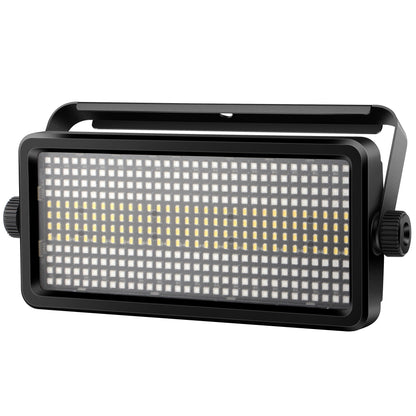

120W RGBW Strobe Bar

Light Source & Optical

• LEDs: 256 × RGB LEDs and 128 × Cold White SMD LEDs
• Total Light Sources: 384 LEDs
• Strobe Effects: Bright high-intensity white strobe flashes

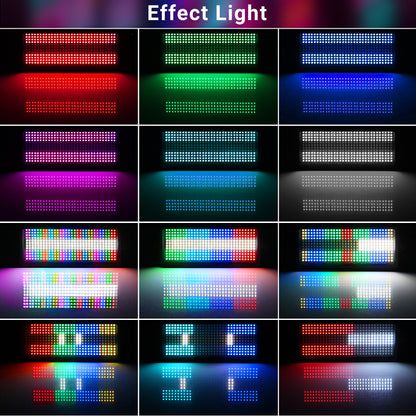

• Color Effects: RGB color washes and chasing effects
• Controllable Zones: 32 RGB segments and 16 white segments (individual pixel control)
• Beam Angle: 135 degrees

Control & Operation

• Operation Modes: Auto Play, Show, Sound Activated, Master-Slave, Static Color, DMX
• DMX Channels: 6, 9, 64, and 112 channels

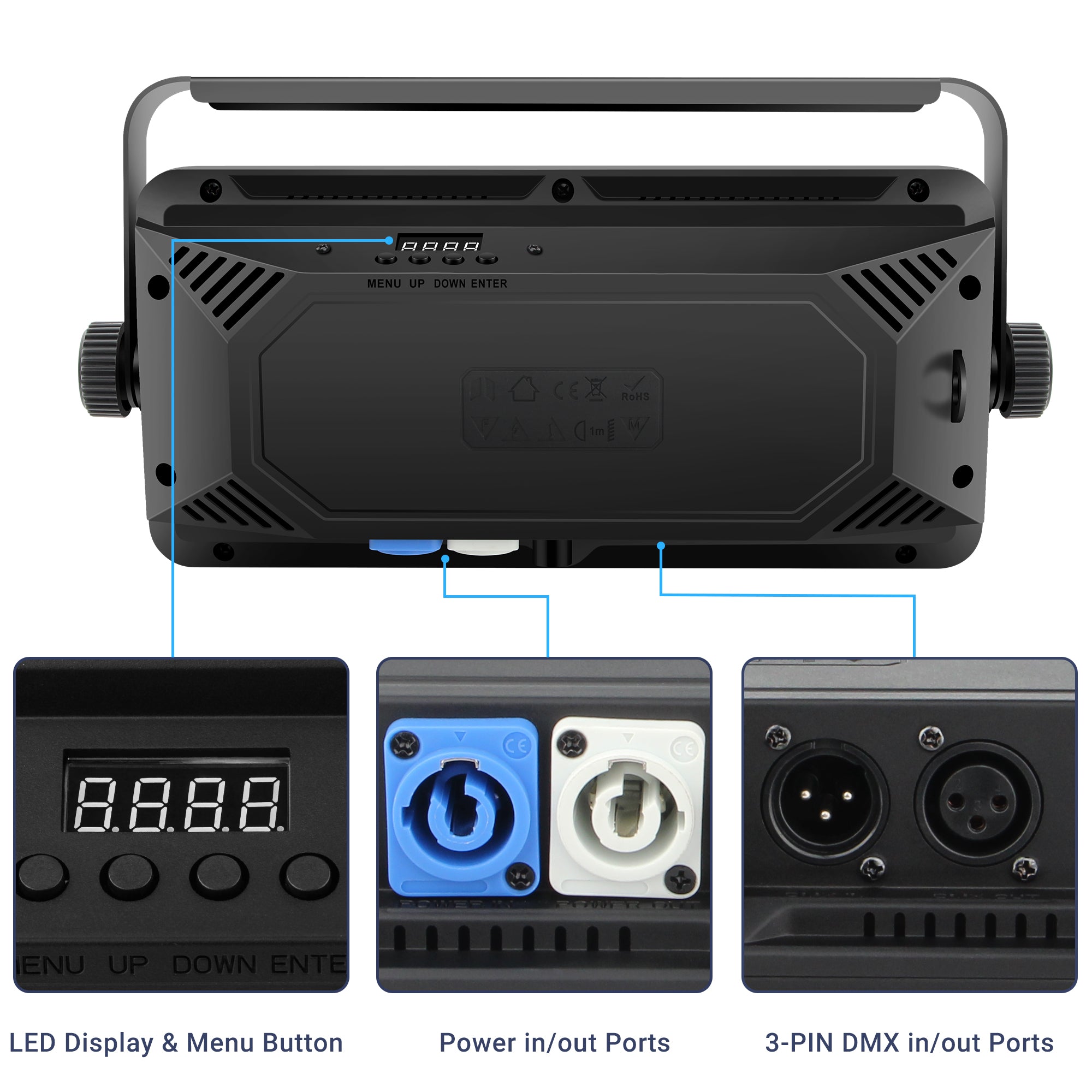

• Display Interface: Touch button LED menu for mode, effects, speed, brightness, and channel selection
• Sound Activation: Built-in microphone for music-driven effects
• Daisy Chain: Power out port allows up to 8 units to be linked in series

Electrical & Physical

• Power Consumption: 120 W
• Input Voltage: AC 110–240 V, 50/60 Hz
• Housing: Plastic body with compact rectangular design
• Dimensions: 12.6 × 5.9 × 3.1 in (32 × 15 × 8 cm)
• Weight: 4.2 lb (1.9 kg)

Cleaning

• Always turn off and unplug the strobe light before cleaning or handling.
• Wipe the housing, lenses, and brackets with a soft, dry cloth to remove dust and fingerprints.
• Avoid using moist cloths, sprays, or harsh chemicals, as moisture and solvents can damage LEDs and internal components.
• Check that the LED lenses are clean and free from blockages before each use to ensure optimal light output.

Maintenance

• Inspect the power cable and connector regularly for signs of wear, fraying, or damage; replace if necessary.
• Ensure that air vents and openings remain free of dust buildup to prevent heat retention.
• Periodically check all mounting hardware and tighten any loose bolts or screws.
• Store the unit in a dry, cool place when not in use to prolong component life and prevent corrosion.

For detailed instructions, check out the user guide.
