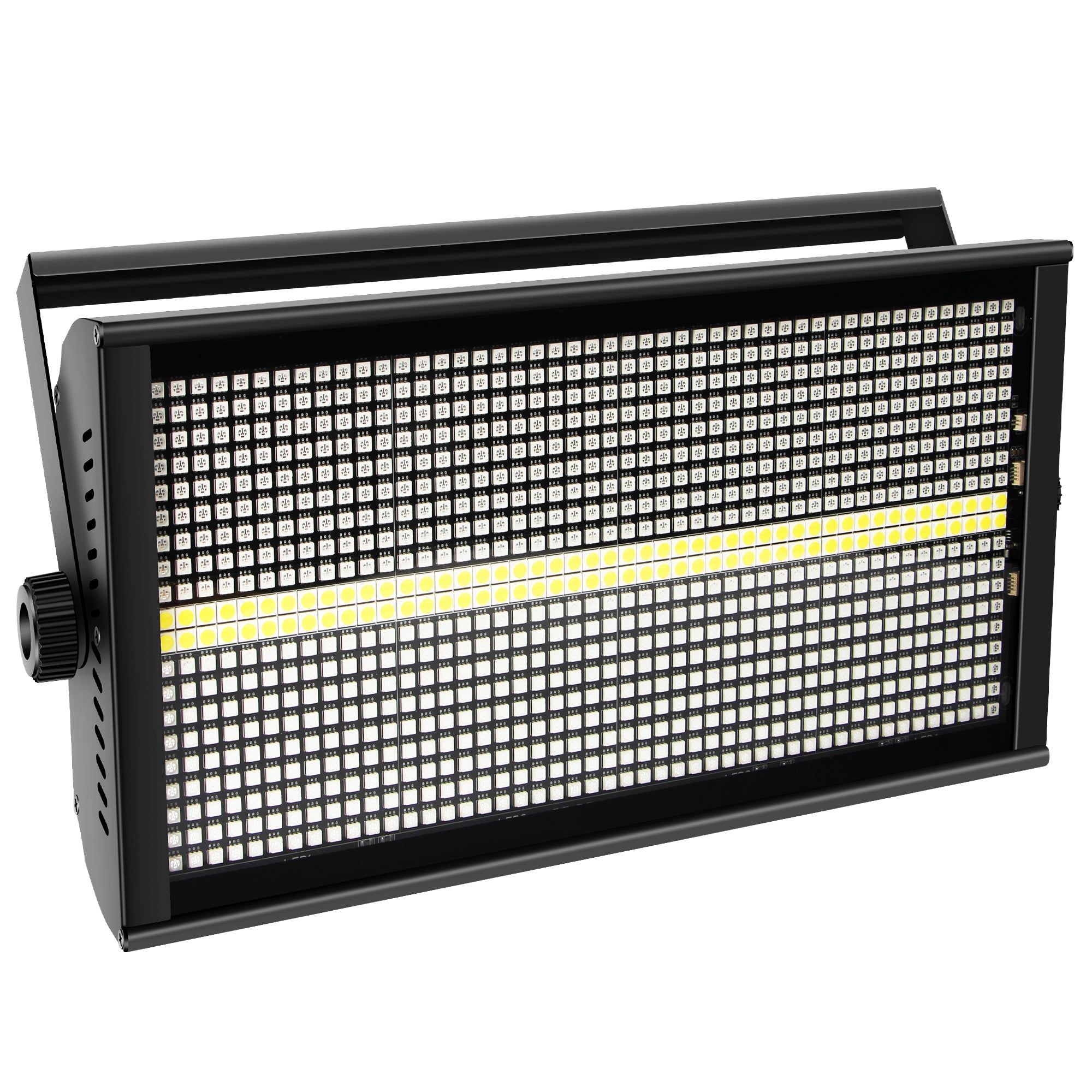

500W RGBW LED Strobe Panel

Light Source & Optical

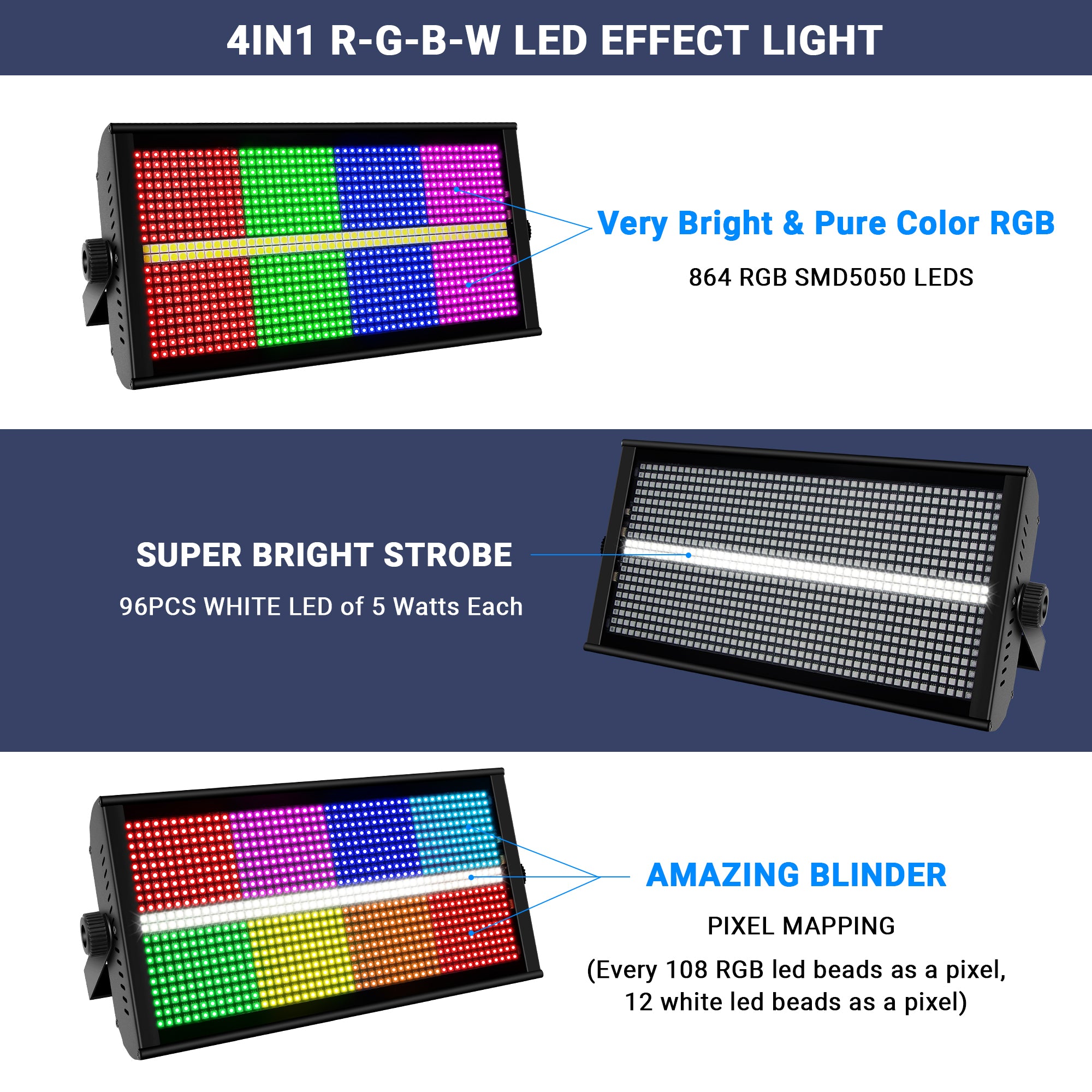

• LED Configuration: 864x 5050 RGB LEDs + 96x 5730 White LEDs

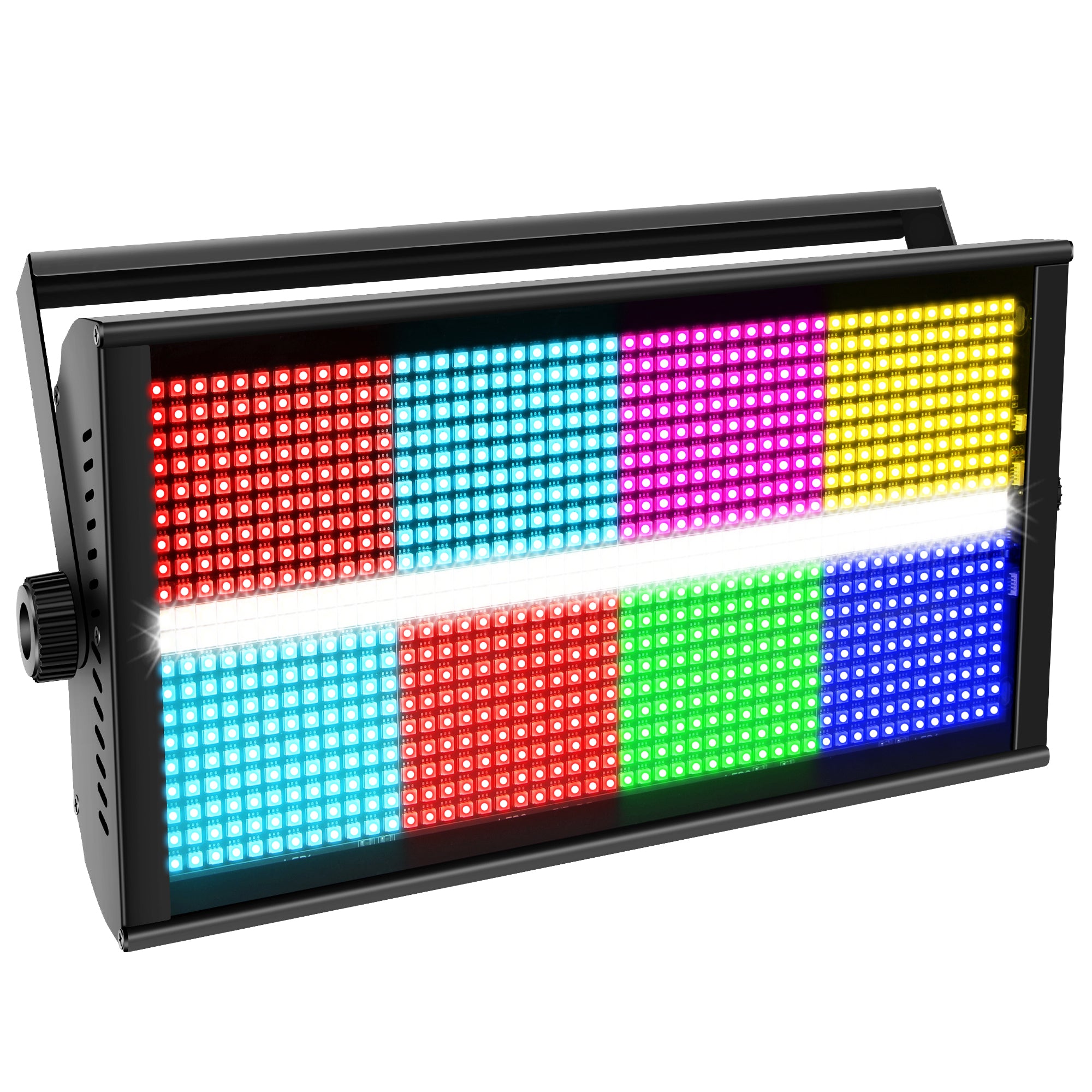

• Zones: 8 RGB Zones + 8 White Strobe Zones
• Strobe Rate: 0 to 25 times / second
• Dimming: 0~100% linear dimming

Control & Connections

• Control Modes: DMX512, RDM, Auto, Master-Slave, Sound Activated
• DMX Channels: 4, 11, 32, or 39 Channel Modes

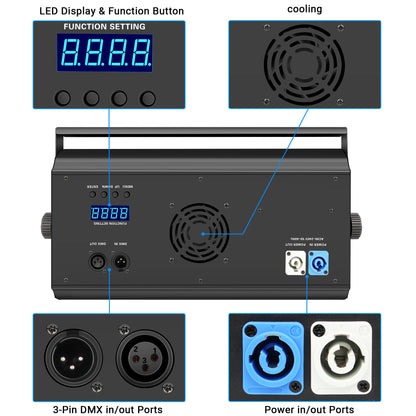

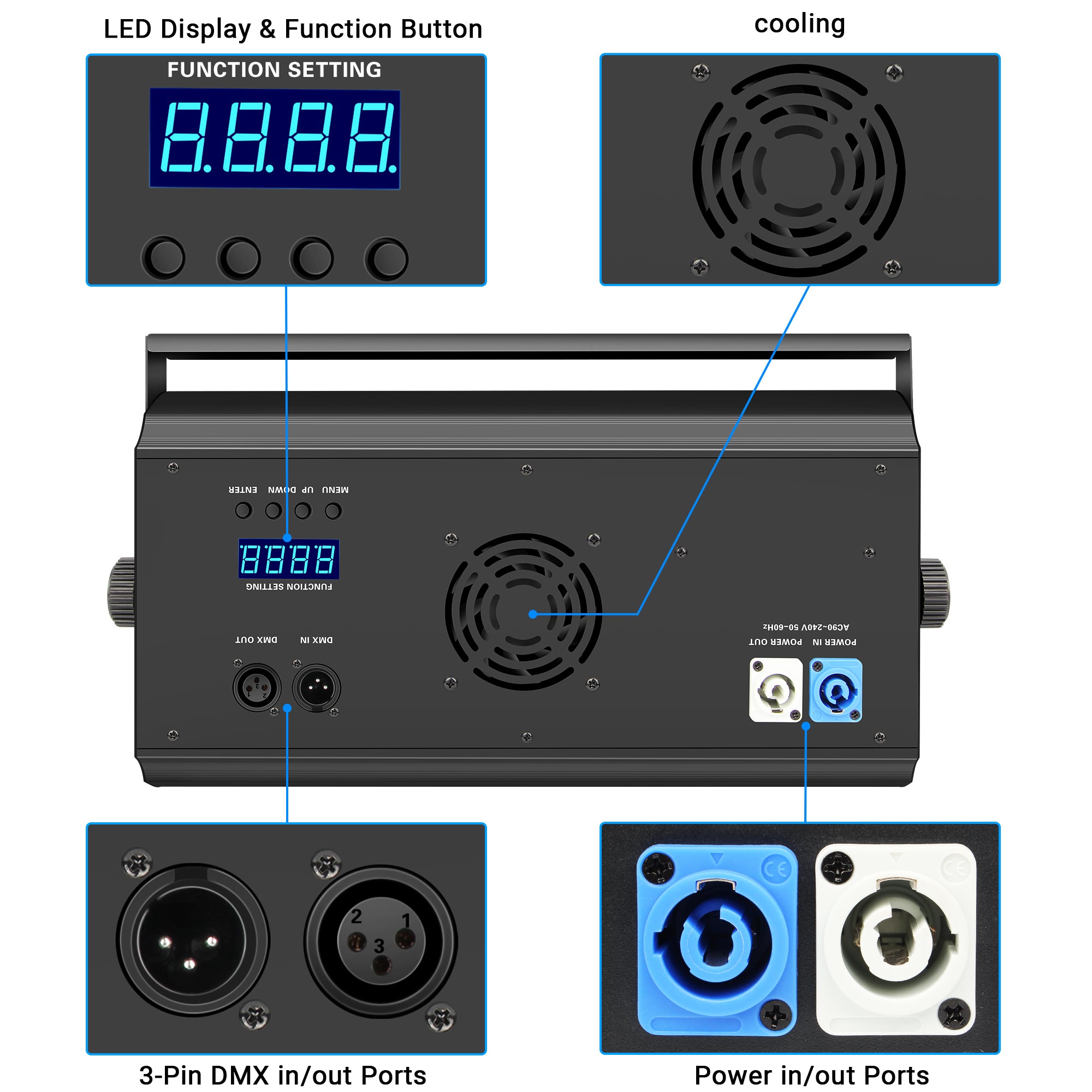

• Data Connectors: 3-Pin XLR Input and Output
• Display: LCD Display with 4-button menu

Electrical & Physical

• Input Voltage: AC110-240V, 50/60Hz
• Power Consumption: 500W

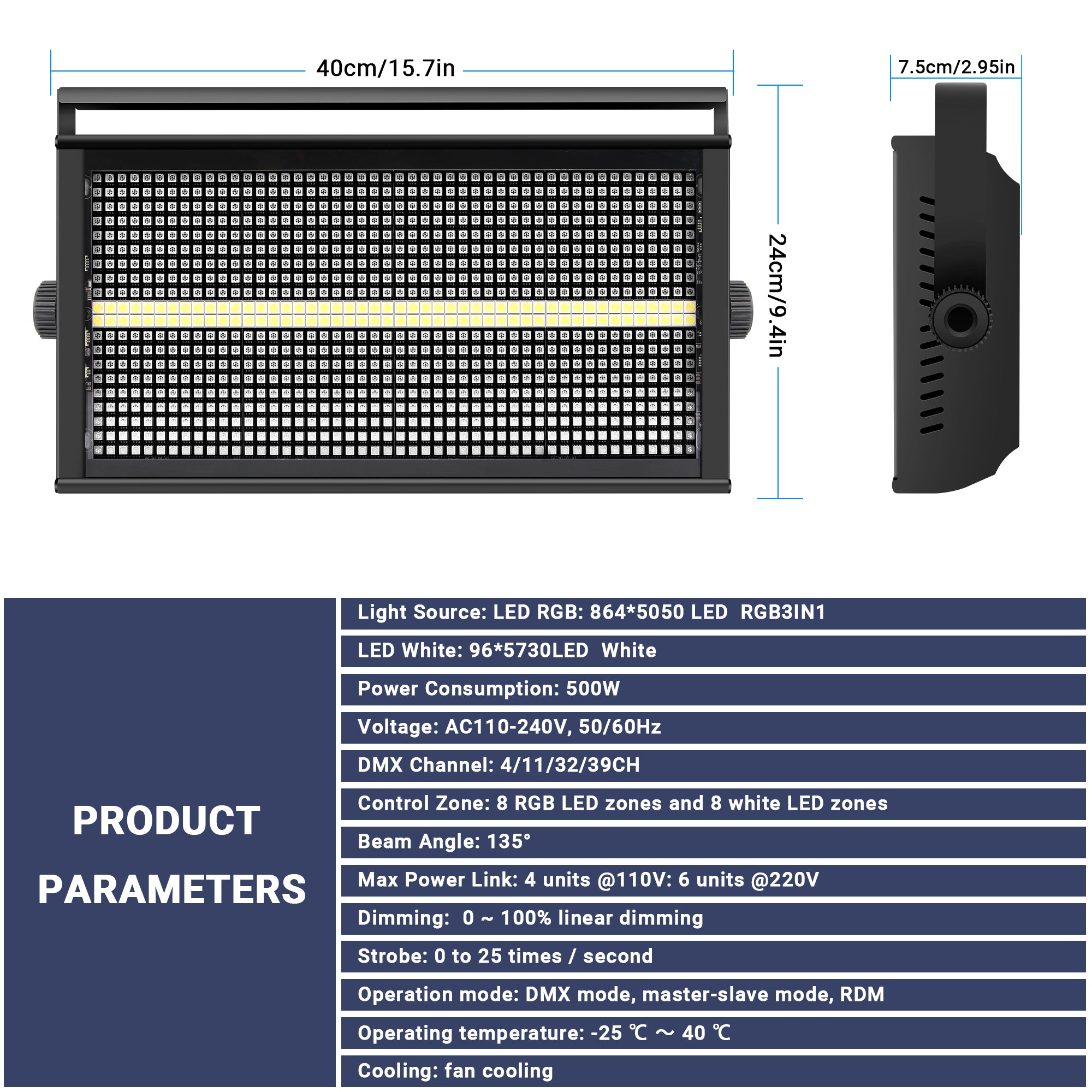

• Dimensions: 19.9" (L) x 6" (W) x 12" (H) (50.5 x 15.4 x 30.5 cm)
• Weight: 9.3 lbs / 4.2 kg
• Material: Metal Case + Glass Panel

Installation

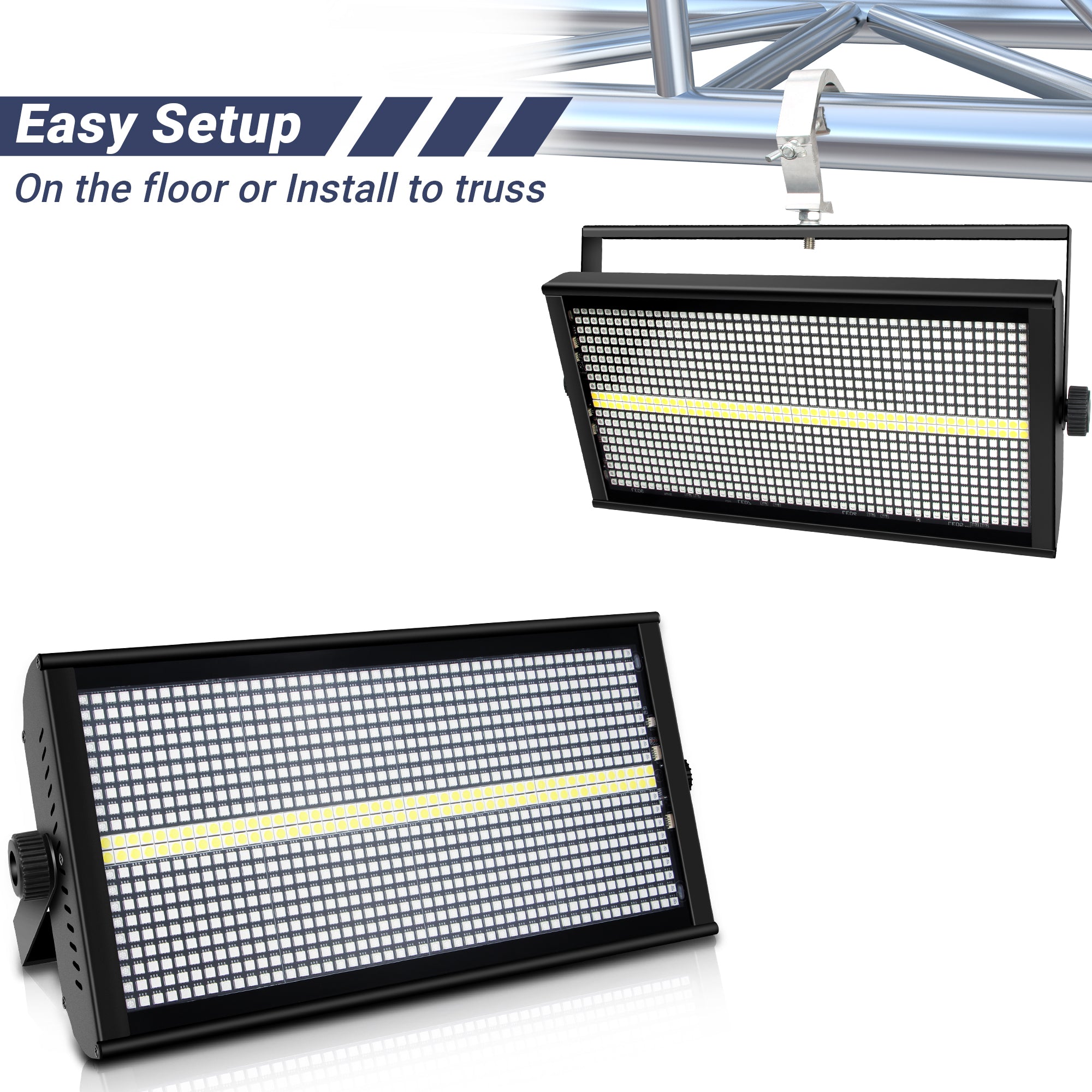

• Mounting: The fixture can be mounted in any position using the included bracket. Ensure the structure can support 10 times the unit's weight.
• Safety Cable: Always attach a safety cable that can hold 12 times the weight of the unit when installing in a suspended environment.
• Cooling: Allow approximately 20 inches (50cm) between the fixture and other devices or walls for proper cooling.

Cleaning

• Lens: Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.
• Prohibited Cleaners: NEVER use alcohol, solvents, or ammonia-based cleaners.

Maintenance

• Inspections: Every three months, check for deformations in the housing, loose screws, or damaged rigging points.
• Service: There are no user-serviceable parts inside. Refer service to an authorized technician.

For detailed instructions, check out the user guide.
