60W RGB LED Wall Washer

Light Source & Optical

• LED Configuration: 144x SMD 5050 3-in-1 RGB LEDs

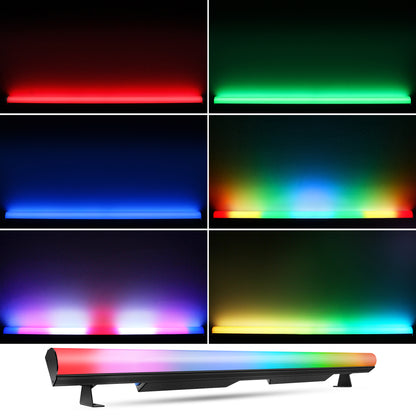

• Colors: RGB Color Mixing (16.7 million colors)
• Beam Angle: 90°
• Pixel Zones: 12 Controllable Sections
• Dimming: 0-100% Linear Dimming

Control & Connections

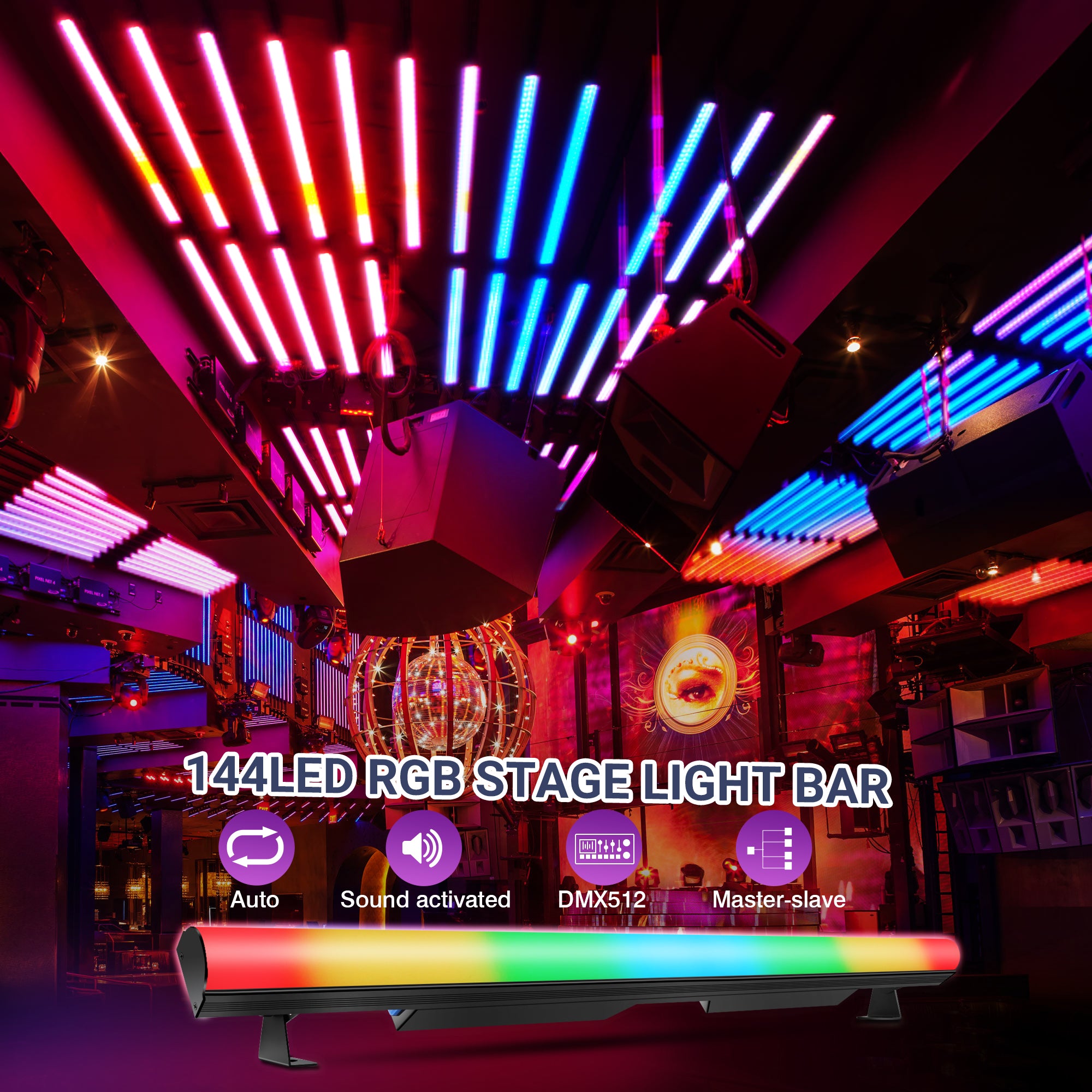

• Control Modes: DMX-512, Auto Run, Sound Active, Master/Slave
• DMX Channels: 3, 5, 8, 36, or 40 Channels
• Built-in Programs: 56 Auto Patterns, 37 Static Colors
• Display: Digital LED Menu with 4-button control

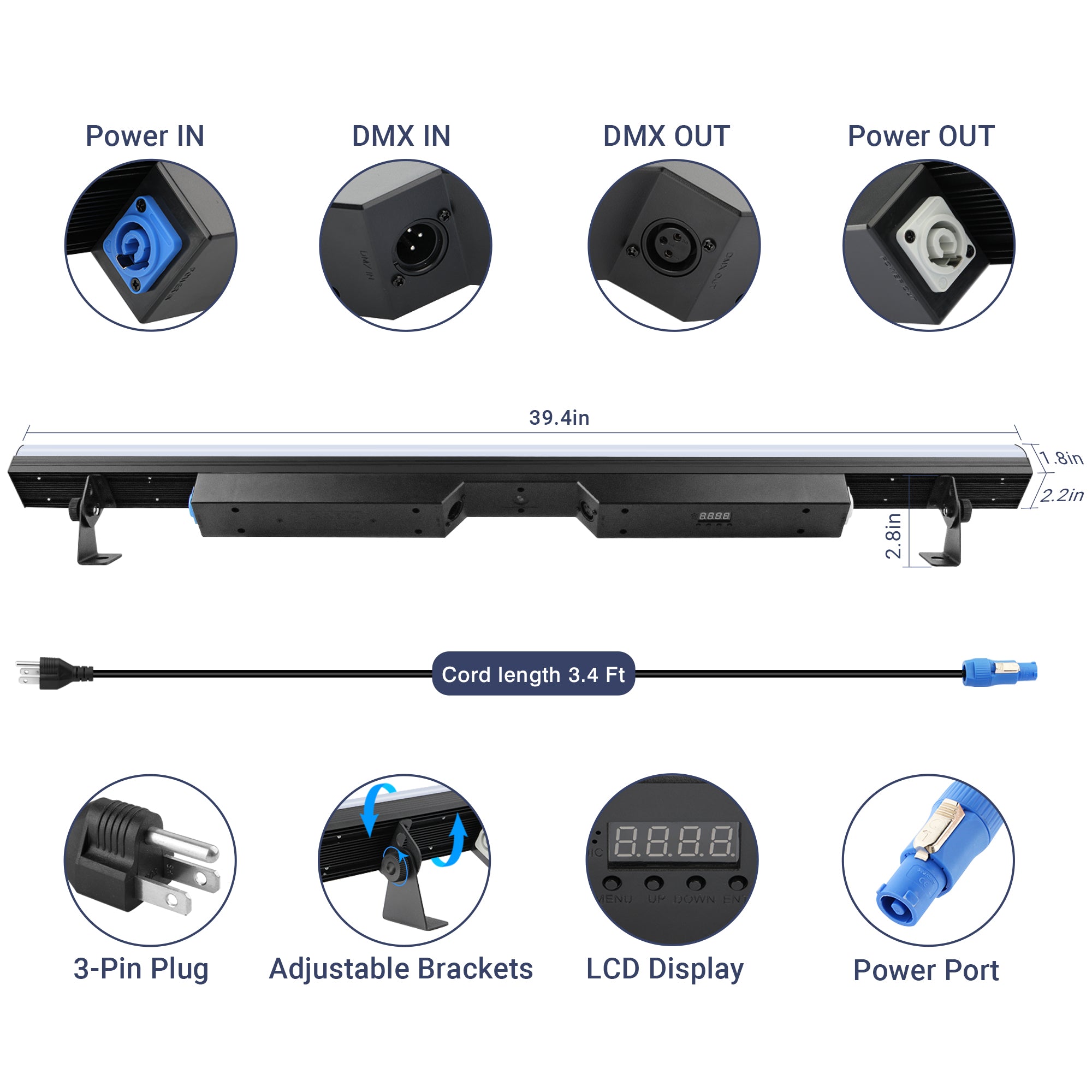

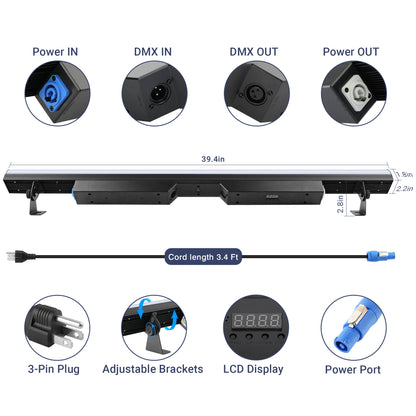

• Data Connectors: 3-Pin XLR In/Out

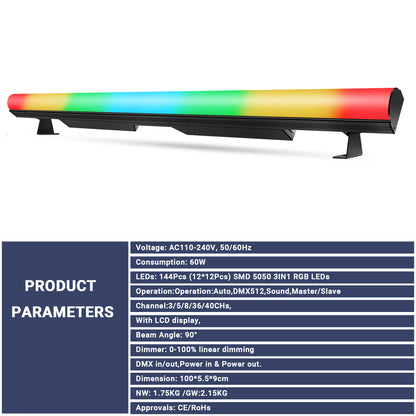

Electrical & Physical

• Input Voltage: AC 110-240V, 50/60Hz
• Power Consumption: 60W
• Protection: Temperature protection (50~65°C)
• Dimensions: 39.4 x 2.2 x 3.5 in (100 x 5.5 x 9 cm)
• Weight: 4.7 lbs (2.15 kg)

Installation

• Mounting: Includes adjustable brackets for floor standing or truss mounting.
• Environment: Keep the equipment away from rain, moisture, and liquids.
• Heat Dissipation: Ensure adequate ventilation prevents overheating.

Cleaning

• Frequency: Clean the product at least twice a month to maintain light output.
• Method: Use a vacuum or soft brush for vents, and a mild soap solution for the lens.
• Caution: Never use alcohol, solvents, or ammonia-based cleaners.

Maintenance

• Routine: Periodically check screws and electrical connections.
• Safety: Always unplug the product and allow it to cool before cleaning or servicing.

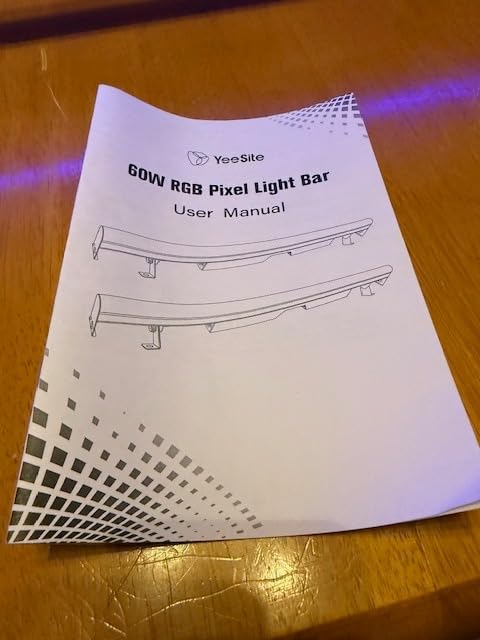

For detailed instructions, check out the user guide.
