Dive Deeper

Tech Specs
Electrical & Optical
  • Power Consumption: 150W
  • Voltage: AC 110-240V, 50/60Hz

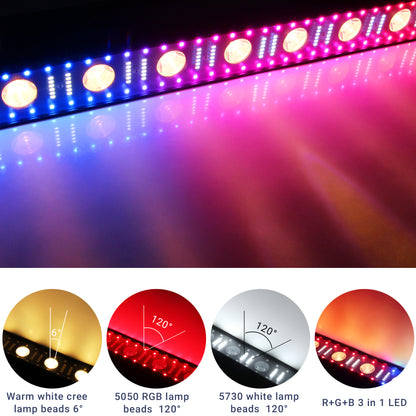

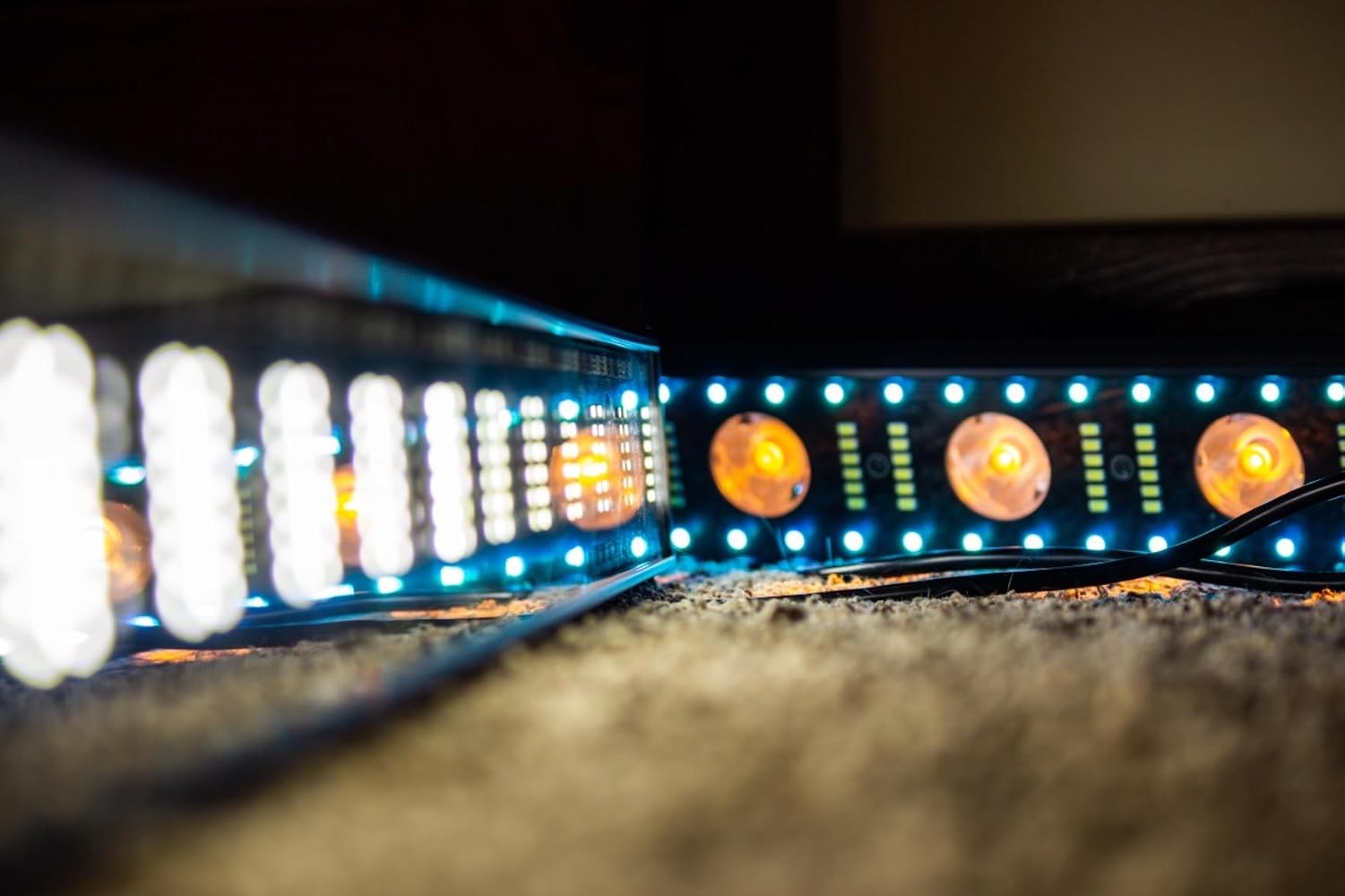

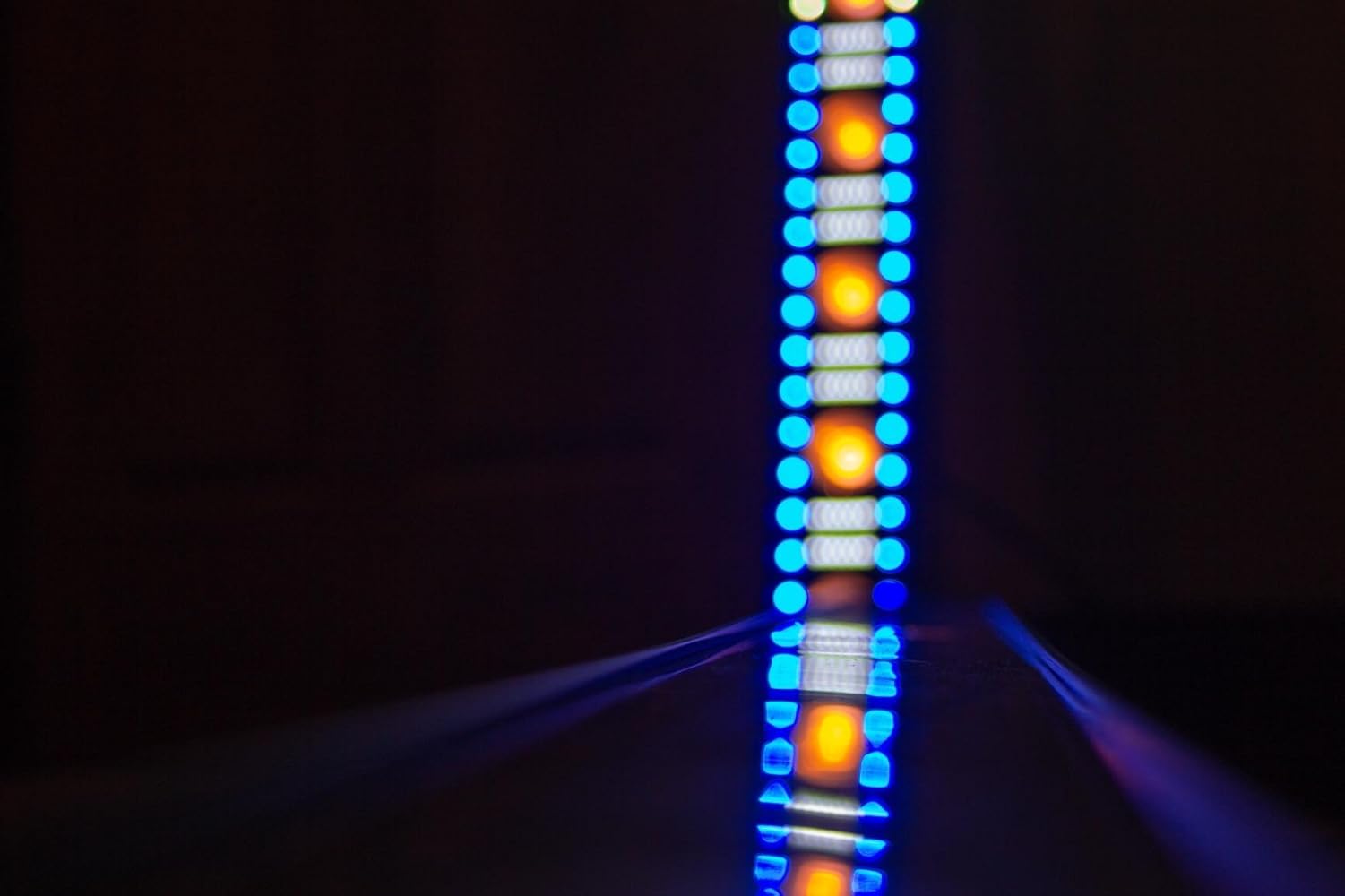

  • Light Source: 12x 5W Warm White LEDs + 156x 0.5W White LEDs + 72x 0.2W 5050 RGB LEDs
Battery
  • Capacity: 8800 mAh (Rechargeable Lithium)
  • Runtime: Approx. 5 hours (Auto mode)
  • Charge Time: Approx. 6 hours
Control
  • Control Modes: DMX512, Wireless DMX, Auto, Sound, Master/Slave, Remote
  • DMX Channels: 5 / 12 / 14 / 63 Channels

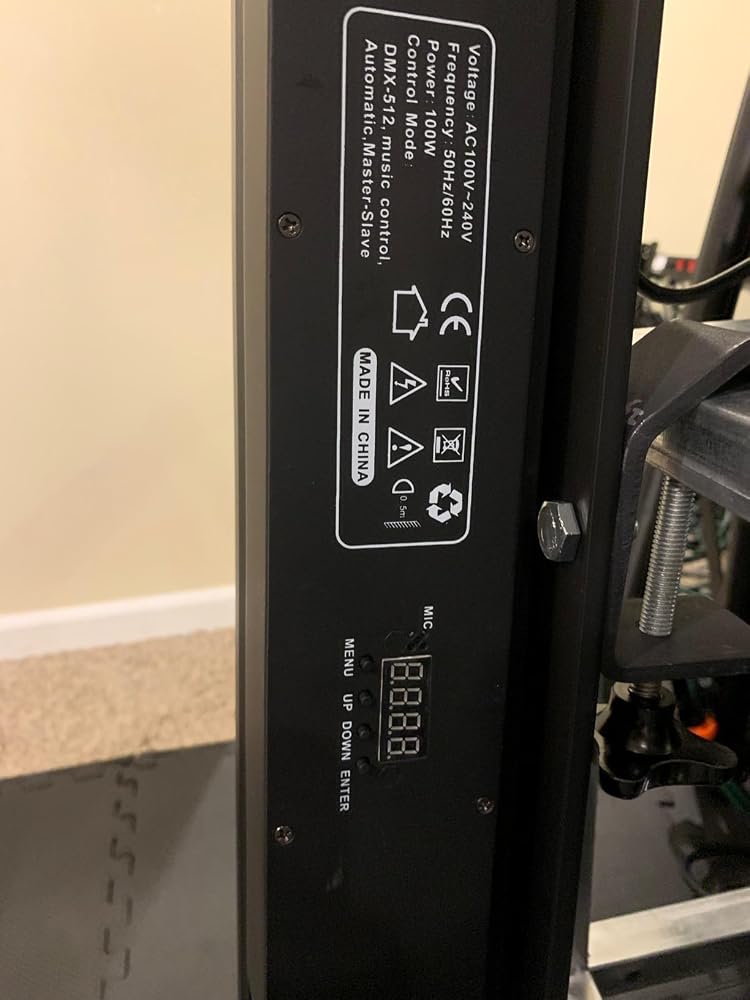

  • Display: LCD Display
Physical
  • Dimensions: 39.37 × 2.8 × 1.3 in (100 × 7.1 × 3.3 cm)
  • Weight: 8.8 lb (4 kg)
Installation, Cleaning & Maintenance
Installation
  • Placement: The unit can be placed on a flat surface or mounted using appropriate clamps (not included) via the brackets.
  • Wireless: Ensure antennas are extended and within range for Wireless DMX operation.
Cleaning
  • Surface: Use a soft cloth to clean the housing.
  • Lens: Clean the transparent cover with a mild soap solution or glass cleaner to maintain light output. Do not use harsh solvents.
Maintenance
  • Battery: Charge the battery fully before first use and whenever stored for long periods to maximize lifespan.
  • Inspection: Periodically check the power cable and wireless antennas for damage.
Compliance & Certification

The 150W Battery Powered Wireless DMX LED Wall Washer Light Bar is designed to comply with applicable CE and RoHS requirements.

In The Box

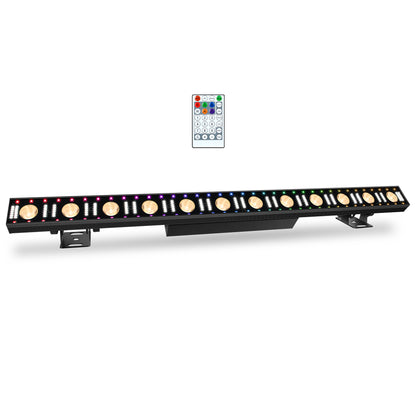

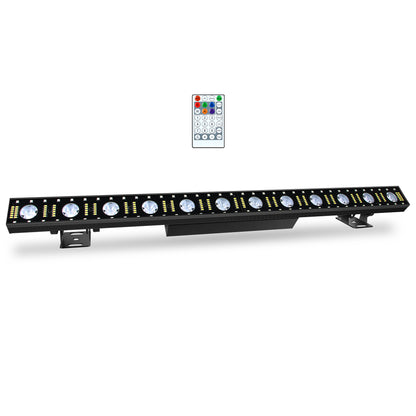

  • The Light

  • Remote Control

  • Charger

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

Can I control it with a remote?

Yes, an IR remote control is included.

How many DMX channels does it use?

It supports 5, 12, 14, and 63 channel modes.

How long does it take to charge?

It takes about 6 hours to fully charge the battery.

Can I link multiple units?

Yes, you can link them via DMX cables or Wireless DMX for Master/Slave operation.

Didn’t find your answer?

Don't hestitate to contact us
