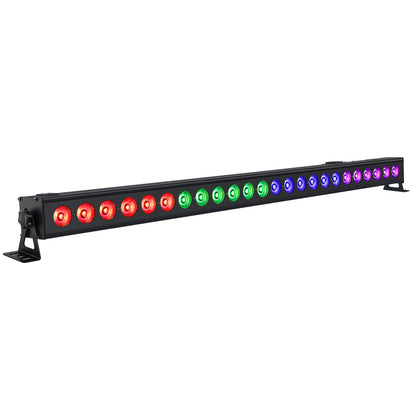

72W RGB LED Wash Light Bar

Light Source & Optical

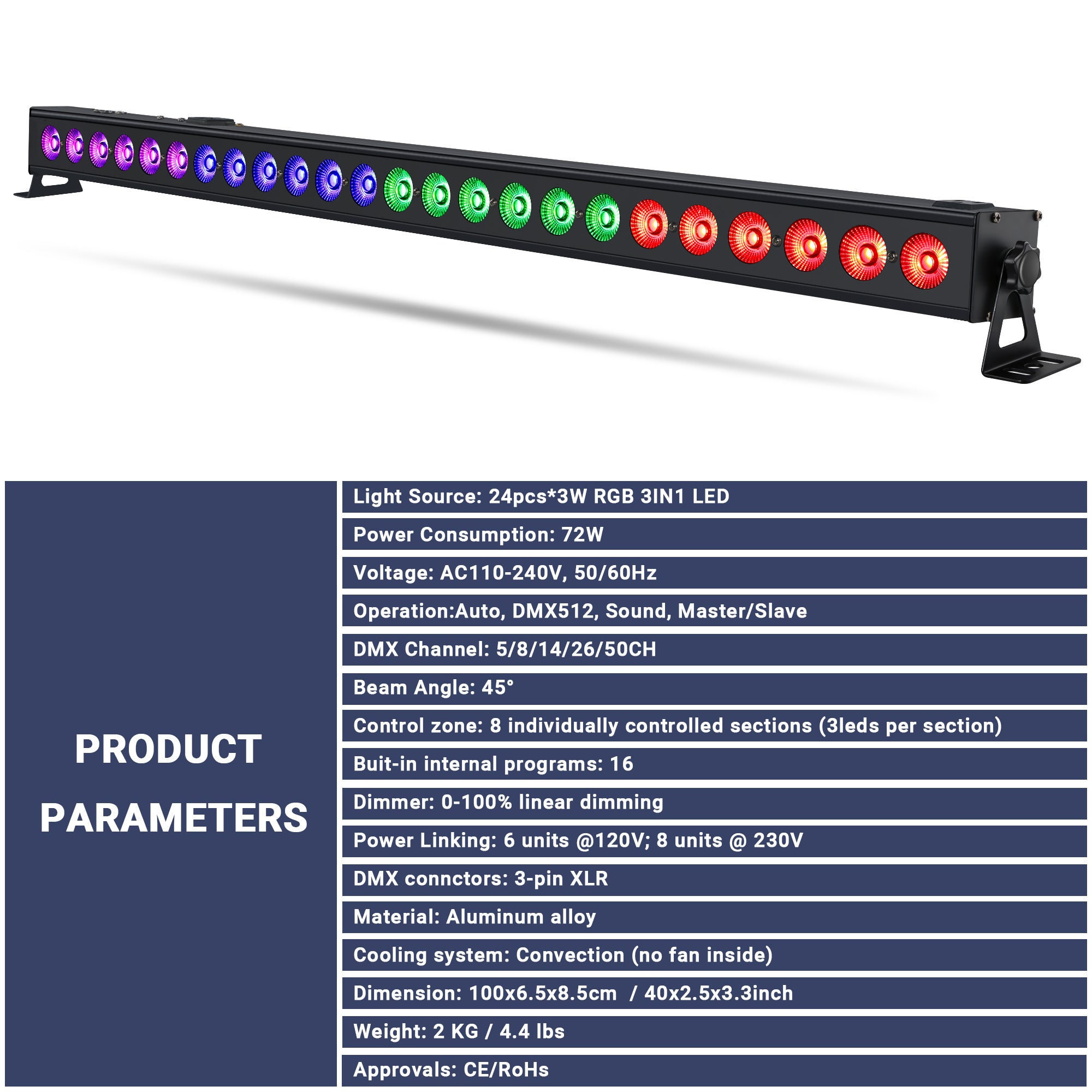

• LED Configuration: 24x Ultra bright RGBA LEDs.
• Colors: Red, Green, Blue, Amber.

Control & Connections

• Control Protocols: DMX-512, Remote, Master/Slave, Auto Run, Sound Active, Static Color, Color Fade.
• DMX Channels: 6, 9, 16, 30, or 58 Channels.

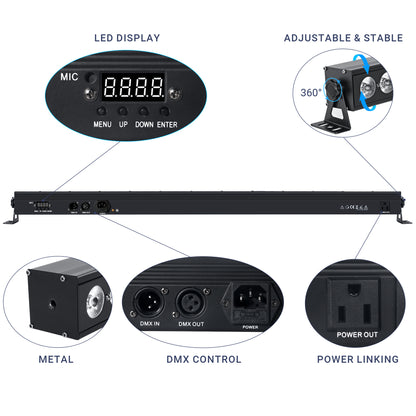

• Data Connectors: 3-Pin XLR In/Out.
• Display: Digital LED Display with 4-button menu (Menu, Up, Down, Enter).

Electrical & Physical

• Input Voltage: AC 110-240V, 50/60Hz.

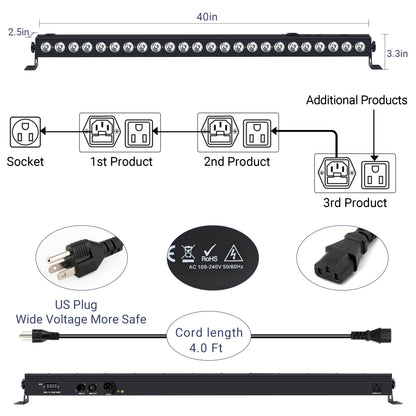

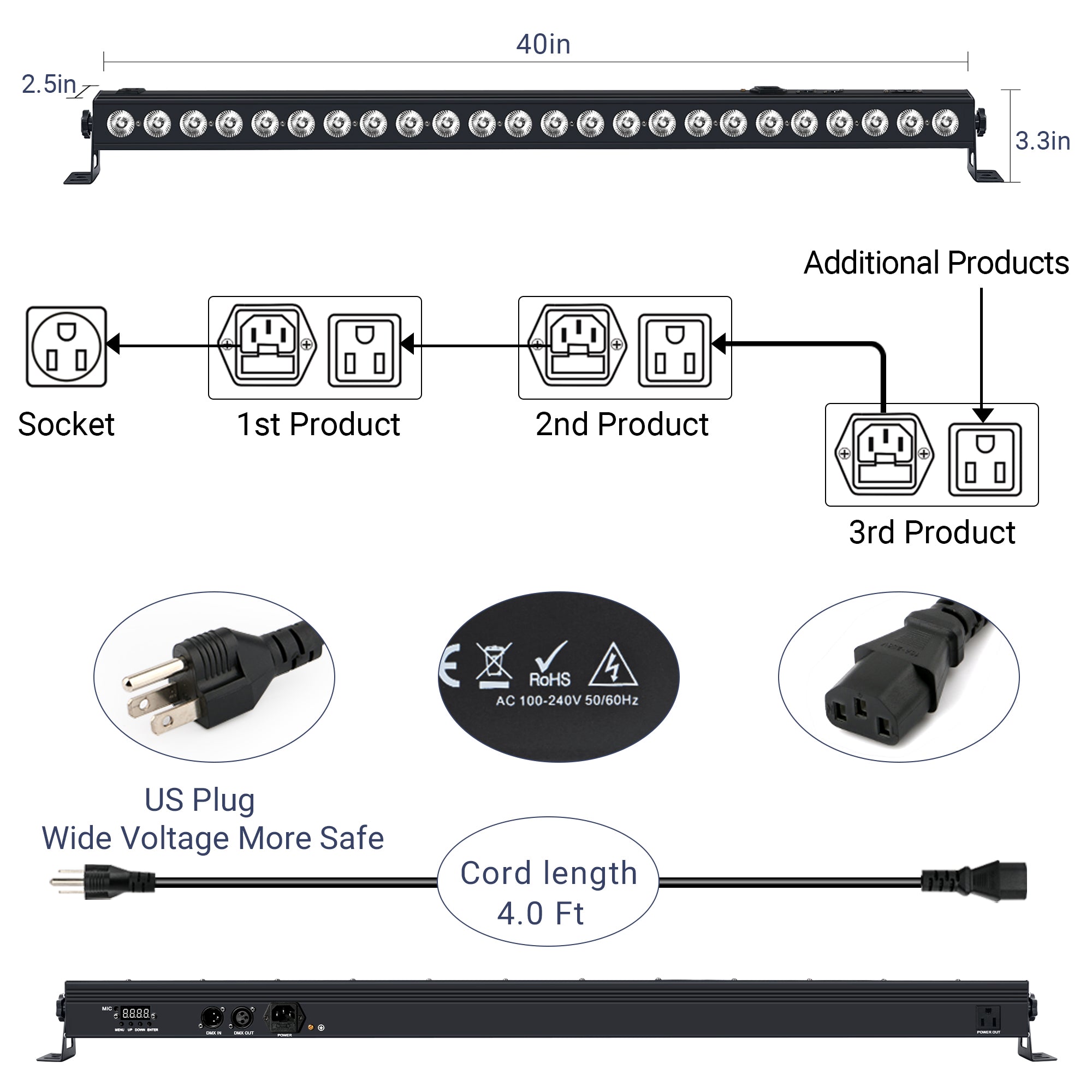

• Dimensions: 40 × 2.5 × 3.3 in (100 × 6.5 × 8.5 cm)
• Weight: 4.4 lb (2 kg)
• IP Rating: Indoor Use Only (Keep away from rain, moisture, and liquids)

Installation

• Mounting: The package includes a bracket and installation kit.
• Safety: Check the screw of the spare parts to ensure they are used well.

Cleaning

• Safety First: Cut the power source when the light is cool before moving the cover or cleaning.
• Lens: The lens needs clearing once every week, otherwise brightness may be reduced. Use care as the lens surface is easy to damage; do not use liquid to clean.
• Housing: Use a vacuum cleaner or air compressor gas to remove dust from the appearance of the light.
• Fans: The fans need clearing once every month to ensure the cooling effect.

Maintenance

• PCB: Do not use liquid to clean the PCB; it must be kept dry to avoid short circuits.
• Dust Accumulation: Excessive dust, smoke, and granules can cause corrosion or overheating, damaging the equipment.
• Periodical Maintenance: Periodical maintenance is required for the light.

For detailed instructions, check out the user guide.
