Dive Deeper

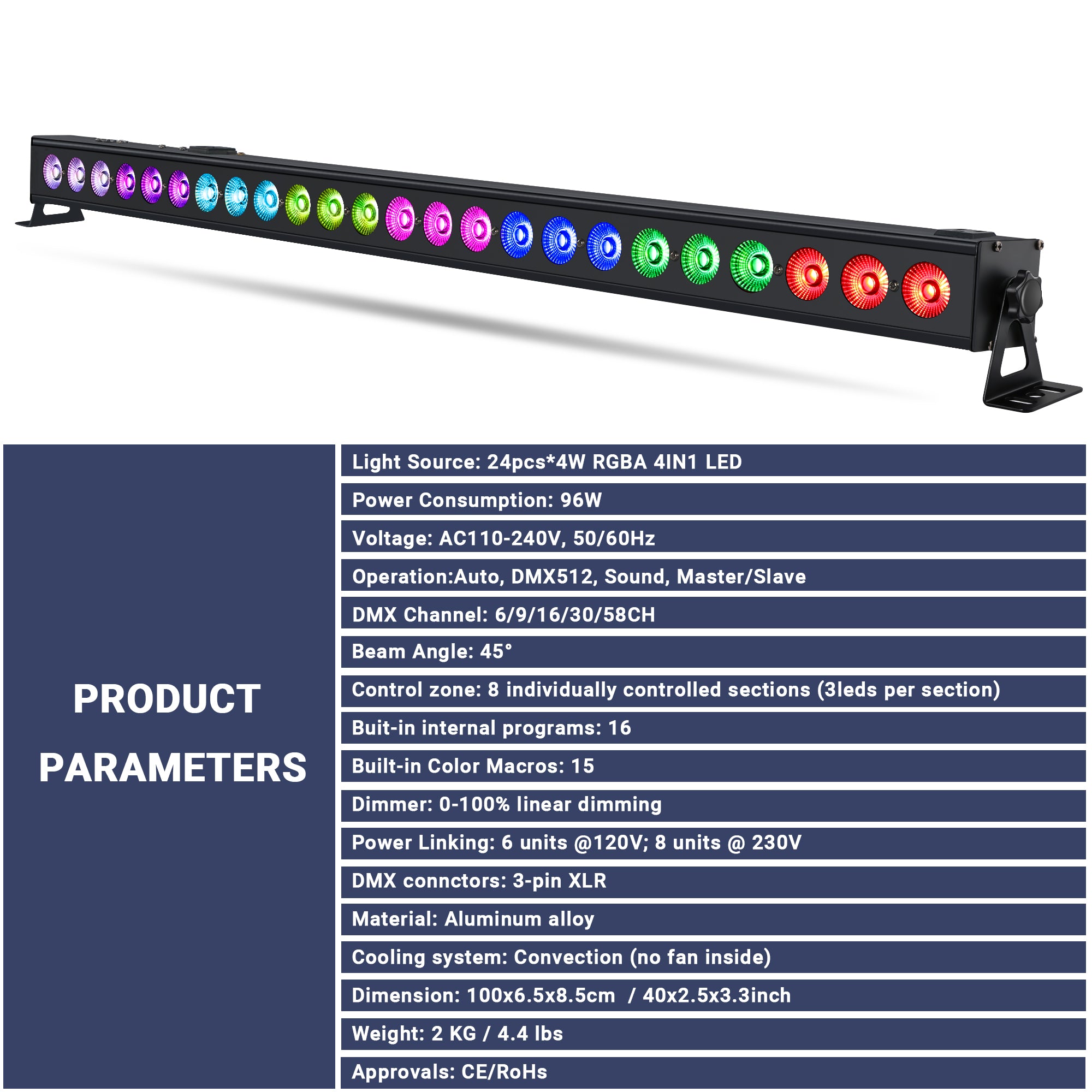

Tech Specs
Light Source & Optical

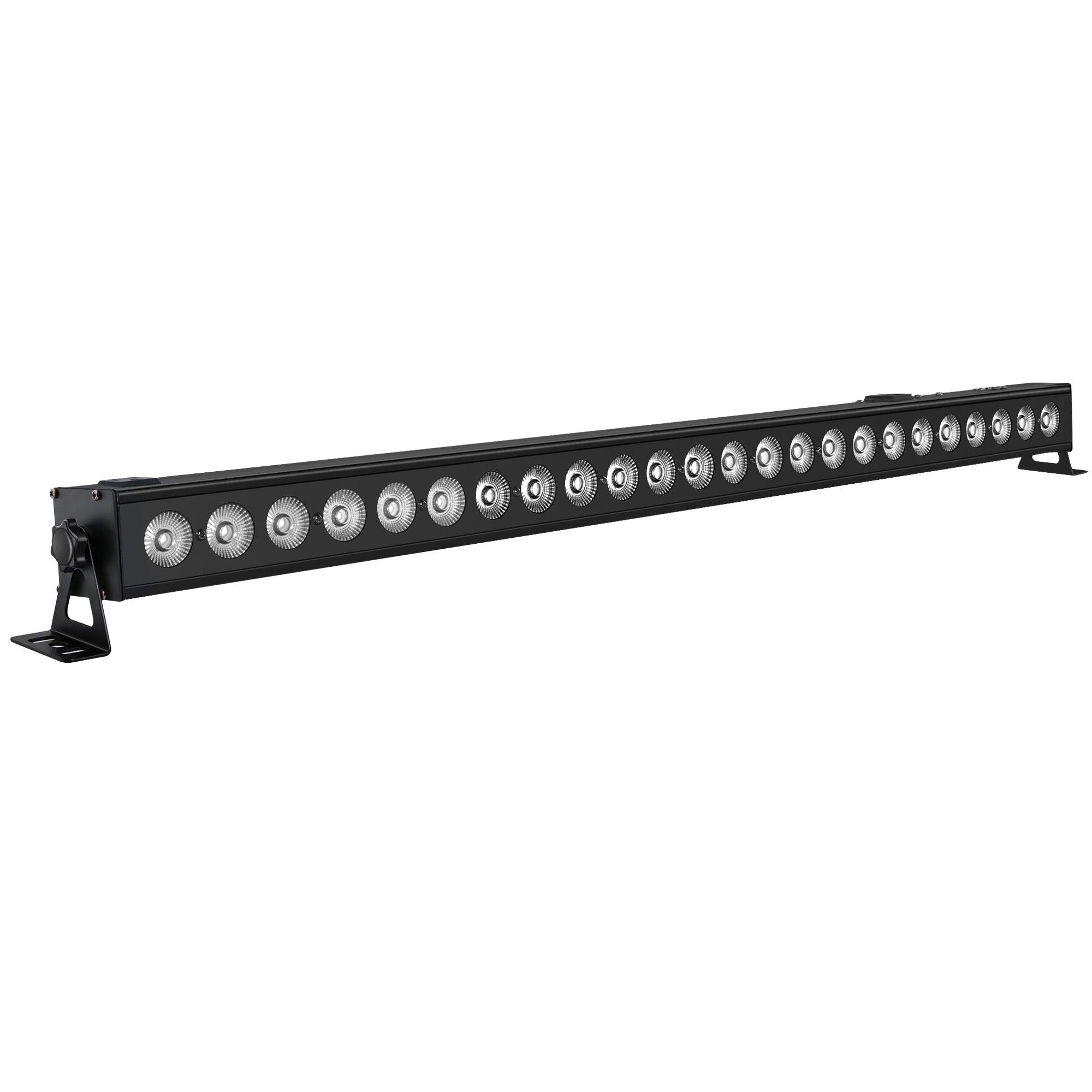

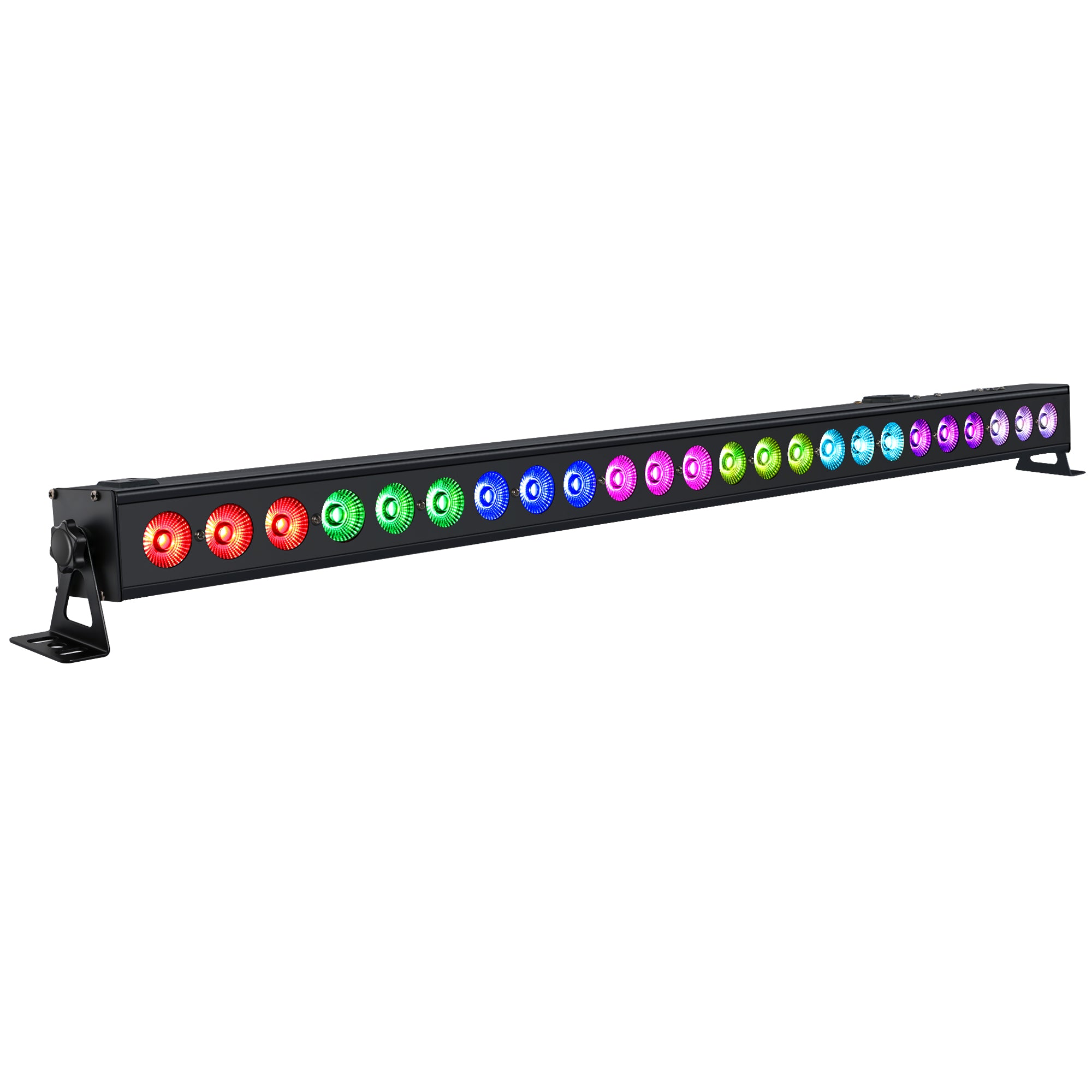

  • LED Configuration: 24x Ultra Bright LEDs (RGBA)

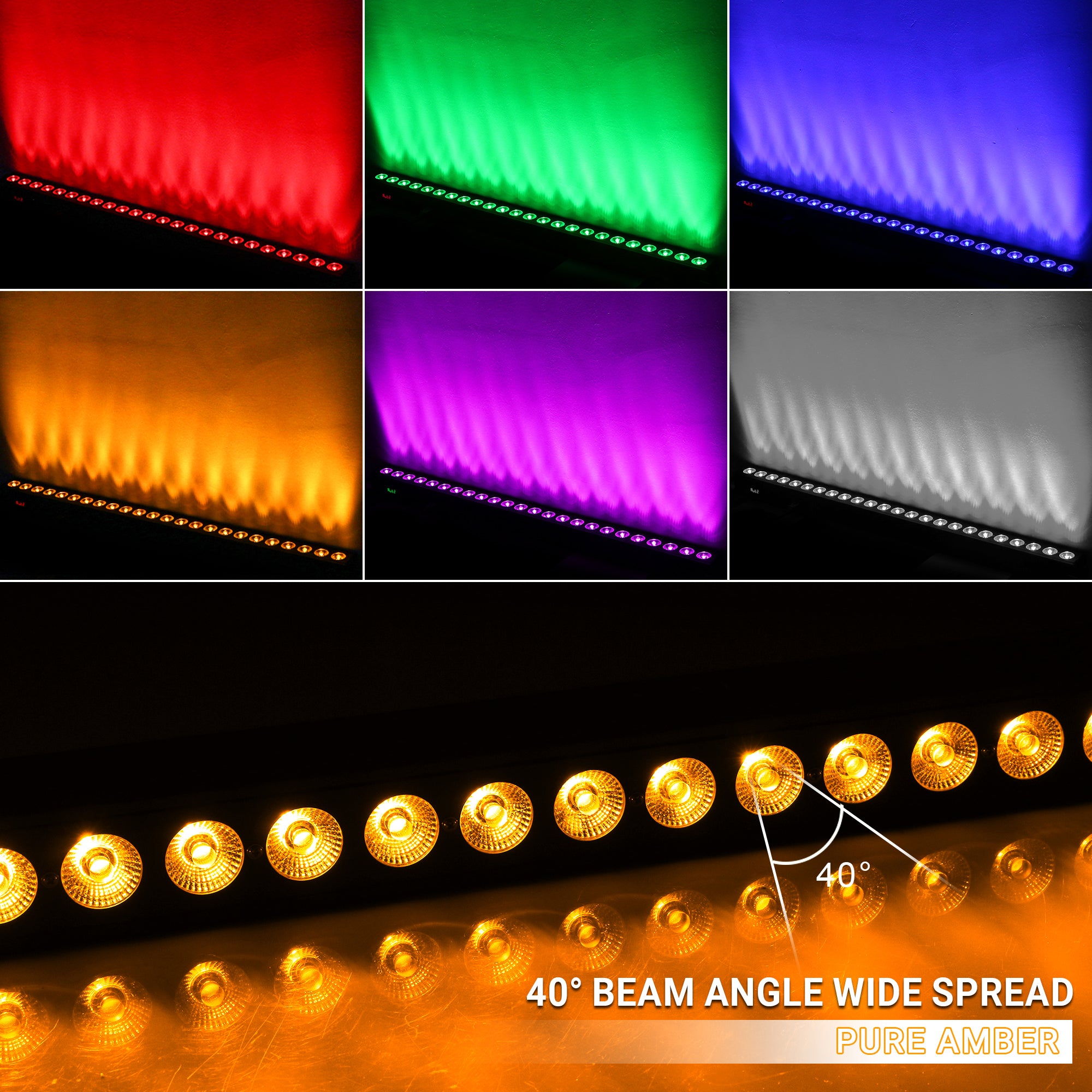

  • Colors: RGBA (Red, Green, Blue, Amber) Color Mixing
  • Beam Effect: Wall Washer / Linear Bar
Control & Connections
  • Control Modes: DMX-512, Auto Run, Sound Active, Static Color, Color Fade, Master/Slave
  • DMX Channels: 6, 9, 16, 30, or 58 Channel Modes

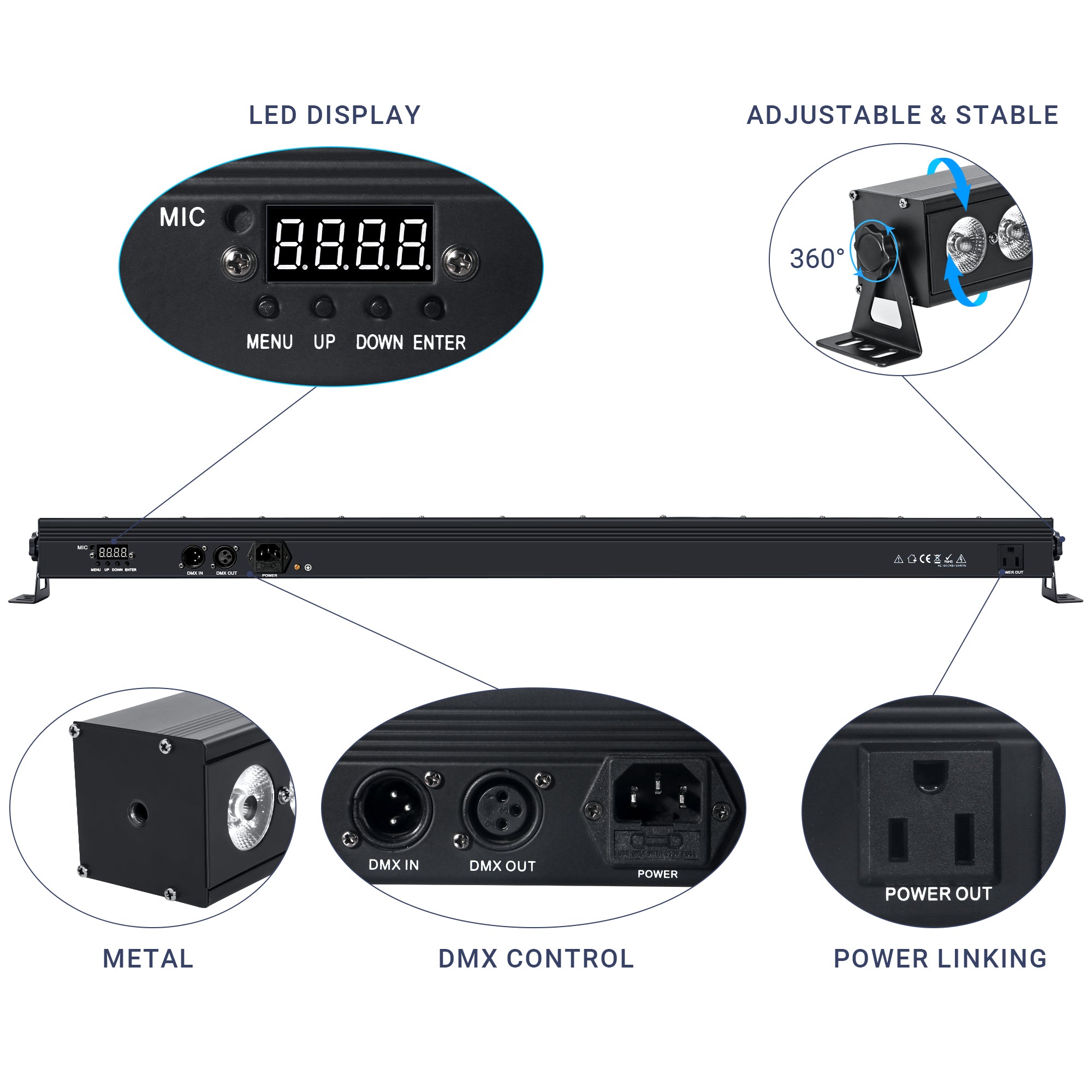

  • Data Connectors: 3-Pin XLR In/Out

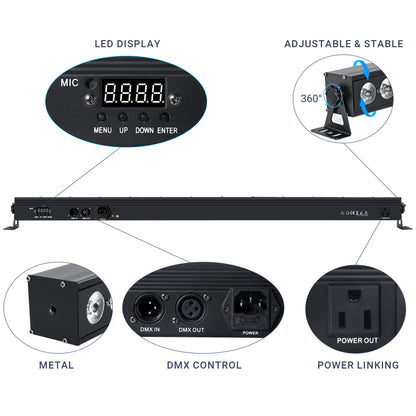

  • Display: Digital LED Display with 4-button menu (Menu, Up, Down, Enter)
Electrical & Physical
  • Input Voltage: AC 110-240V, 50/60Hz
  • Power Connection: IEC Power Input
  • Cable: Includes Power Cable

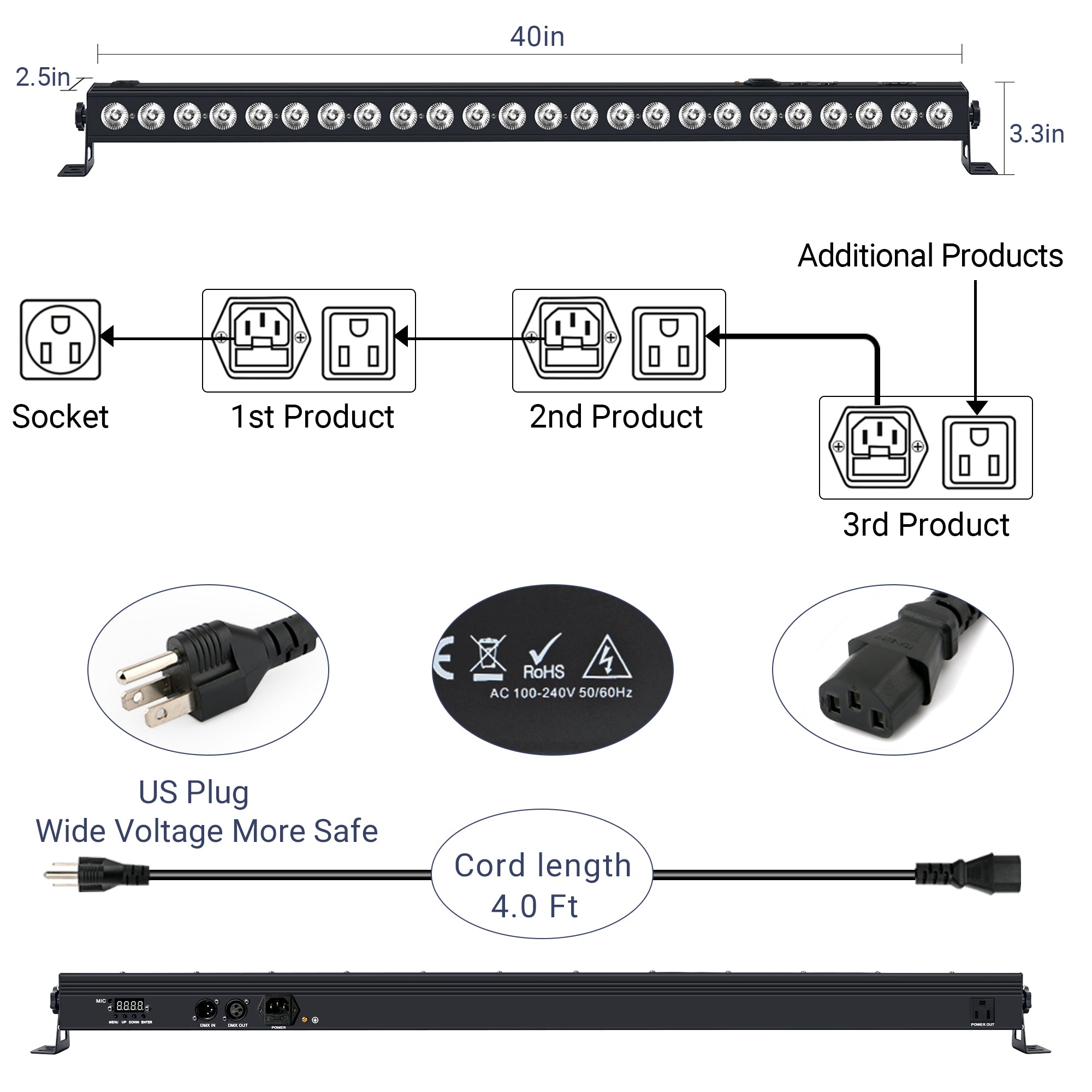

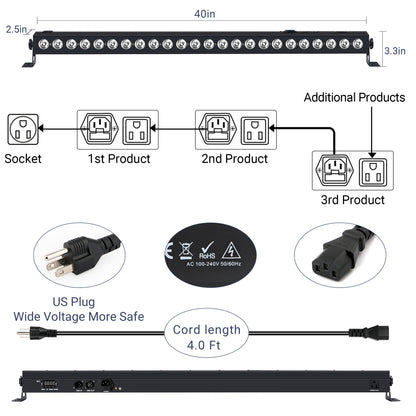

  • Product Size: 40 x 2.5 x 3.3 in (100 x 6.5 x 8.5 cm)
  • Weight: 4.4 lb / 2.0 kg
Installation, Cleaning & Maintenance
Installation
  • Safety: Keep this equipment away from rain, moisture, and liquids.
  • Setup: Ensure there is no damage caused during transportation before initial start-up.
Cleaning
  • Lens: The lens needs to be cleaned once every week to maintain brightness. Use a soft cloth and be careful as the surface is easy to damage.
  • Fans: Clean the fans once every month to ensure proper cooling.
  • Method: Use a vacuum cleaner or air compressor to remove dust from the exterior.
  • Warning: Always cut the power source before taking the light apart or cleaning. Never use liquid to clean the PCB to avoid short circuits.
Maintenance
  • Routine Check: Periodically check screws and spare parts to ensure they are tight and in good condition.
  • Dust Removal: Clear dust and fragments from the inner light to prevent overheating and corrosion.

For detailed instructions, check out the user guide.

Compliance & Certification

The 96W RGBA LED Wash Light Bar is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Installation Kit

  • Bracket

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

What colors can this light produce?

It produces RGBA colors, meaning it mixes Red, Green, Blue, and Amber. The Amber LED allows for creating warm whites and golden tones that standard RGB lights cannot achieve.

Can I control individual sections of the bar?

Yes. In higher channel modes (like 30CH or 58CH), you can control multiple segments of the bar individually for dynamic chase effects.

Is this unit waterproof?

No. The manual explicitly states to keep the equipment away from rain, moisture, and liquids. It is intended for indoor use.

How do I set it to Sound Active mode?

Press the MENU button until you reach the Sound Control mode, where you can also adjust the sound sensitivity.

Didn’t find your answer?

Don't hestitate to contact us

  • 5 stars: 43 (83%)
  • 4 stars: 9 (17%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
R
RXMan75
Impressive Light Output with Impressive Control Features

Solid construction from extruded aluminum for good heat dissipation from the 48, 4-bead LEDs of RGBA. These are not the wimpy surface mount LED beads, but full-fledged high-end LEDs. VERY powerful light output with excellent options for lighting configuration. As an example, stage lighting with this unit can be et for a "background" color, on top of which you can select another color, or sequence. That way, the stage is never completely dark (unless you want it to be). Linking is arranged via forethought with an AC socket at the opposite end of the AC input IEC connection (NOT PowerCon). I wish the DMX output connection would be on the opposite end as well.........The options for chases and scenes are truly impressive, and the documentation in the included User Manual is extremely comprehensive to create your own DMX computer control profile. Arrangement for the RGBA LEDs are 2 rows of 24 LEDs which total 48 LEDs. The control segmentation is 3 columns of 2 rows, or 6 LEDs per segment, resulting in 8 segments of 6 LEDs. This breakdown is visually very appealing to create the light bar "chases" similar to the way you would setup PAR light chase scenes. DMX control followed the User Manual documentation completely, as well as the control panel operation. The "Auto Mode" appears to be comprised of a conglomeration of all the "Show Modes" and is very, very good. Entertaining and eye-appealing. I would not use these modes in uplighting as much as I would use them for head-on, or blinder on-stage applications. Therefore, this fixture is designed to be flexible for both applications.Summary: VERY HIGHLY RECOMMENDED

V
Victoria
Great product.

Great item. Functions well.

D
Daniel V.
Great wash and easy to use

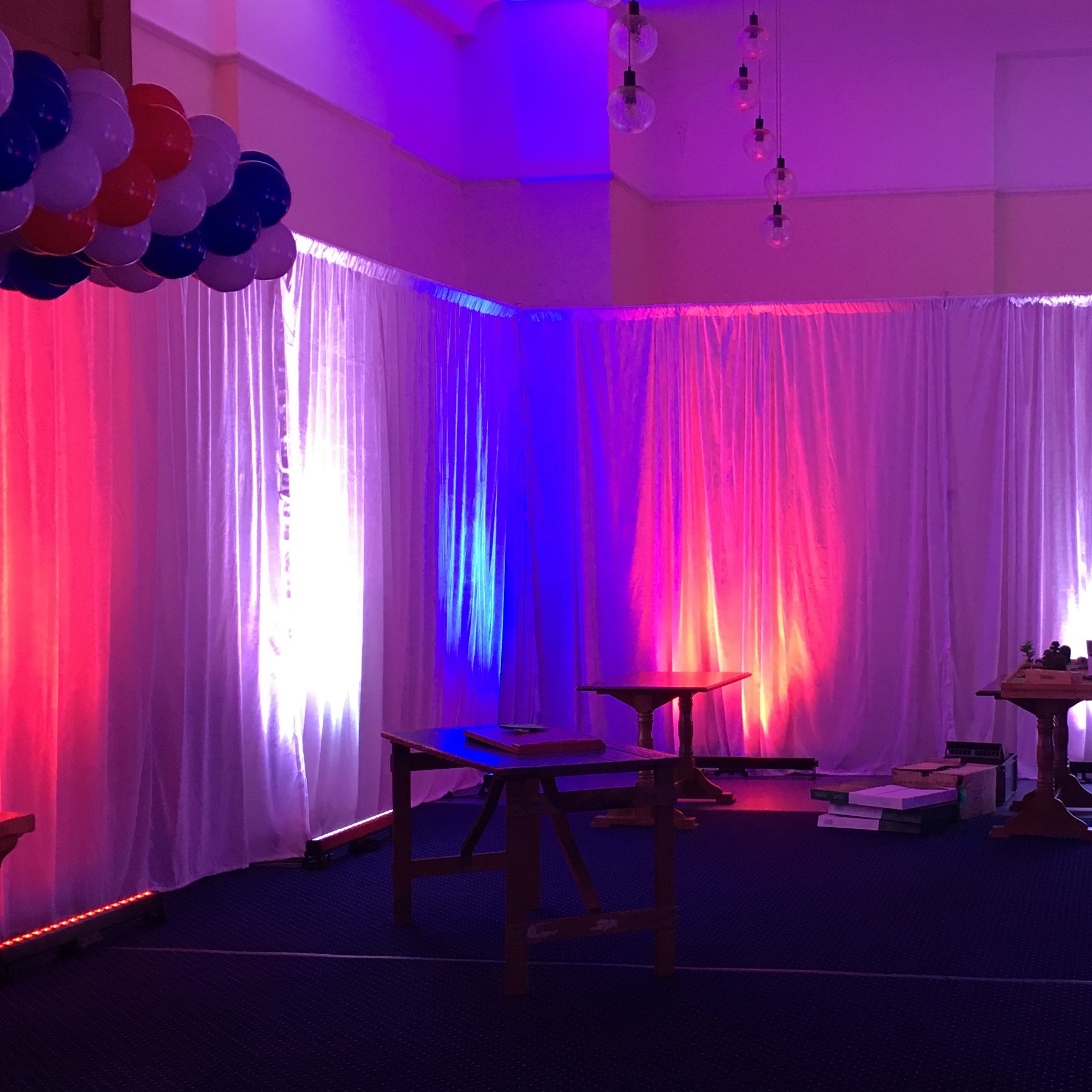

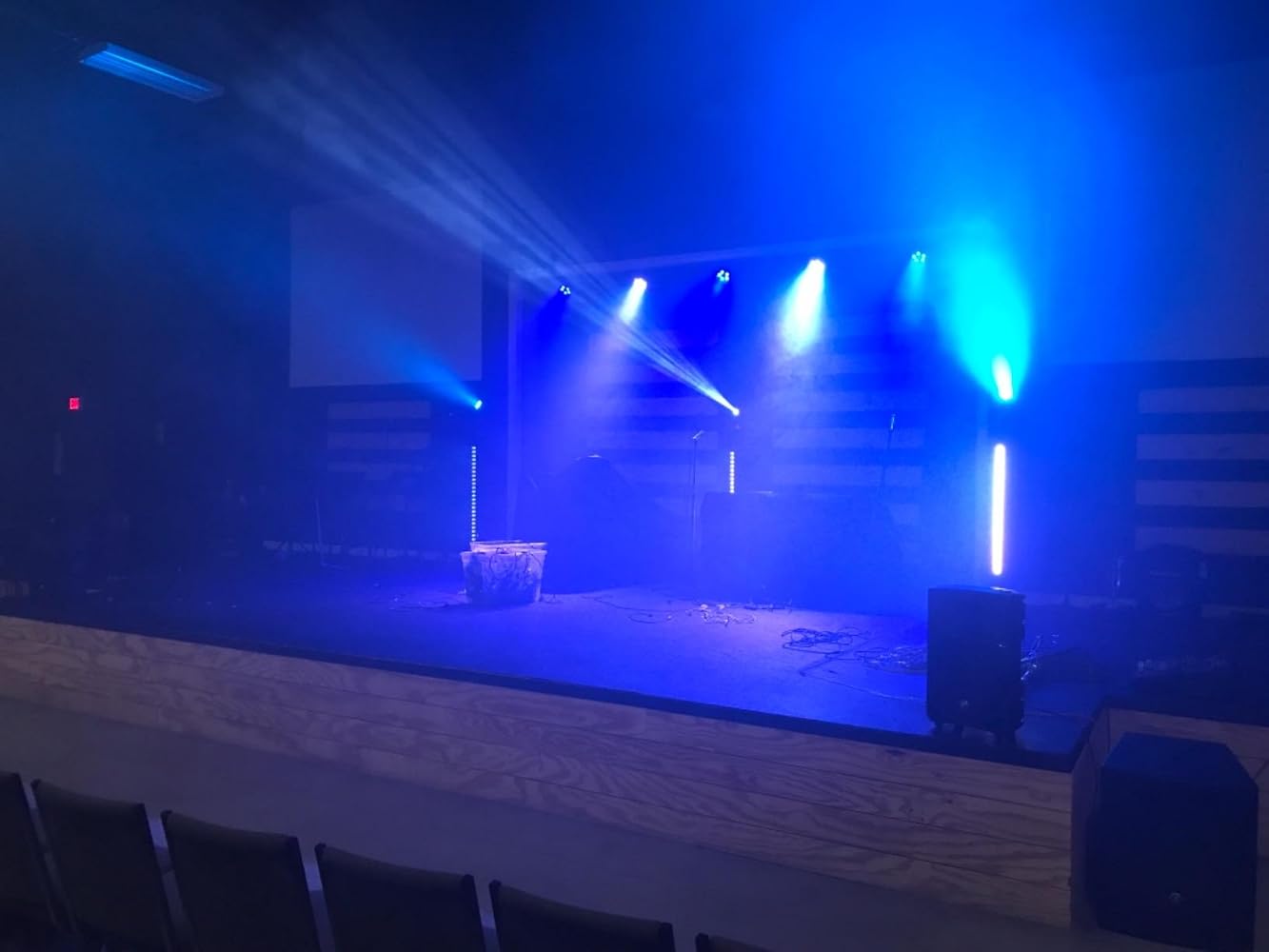

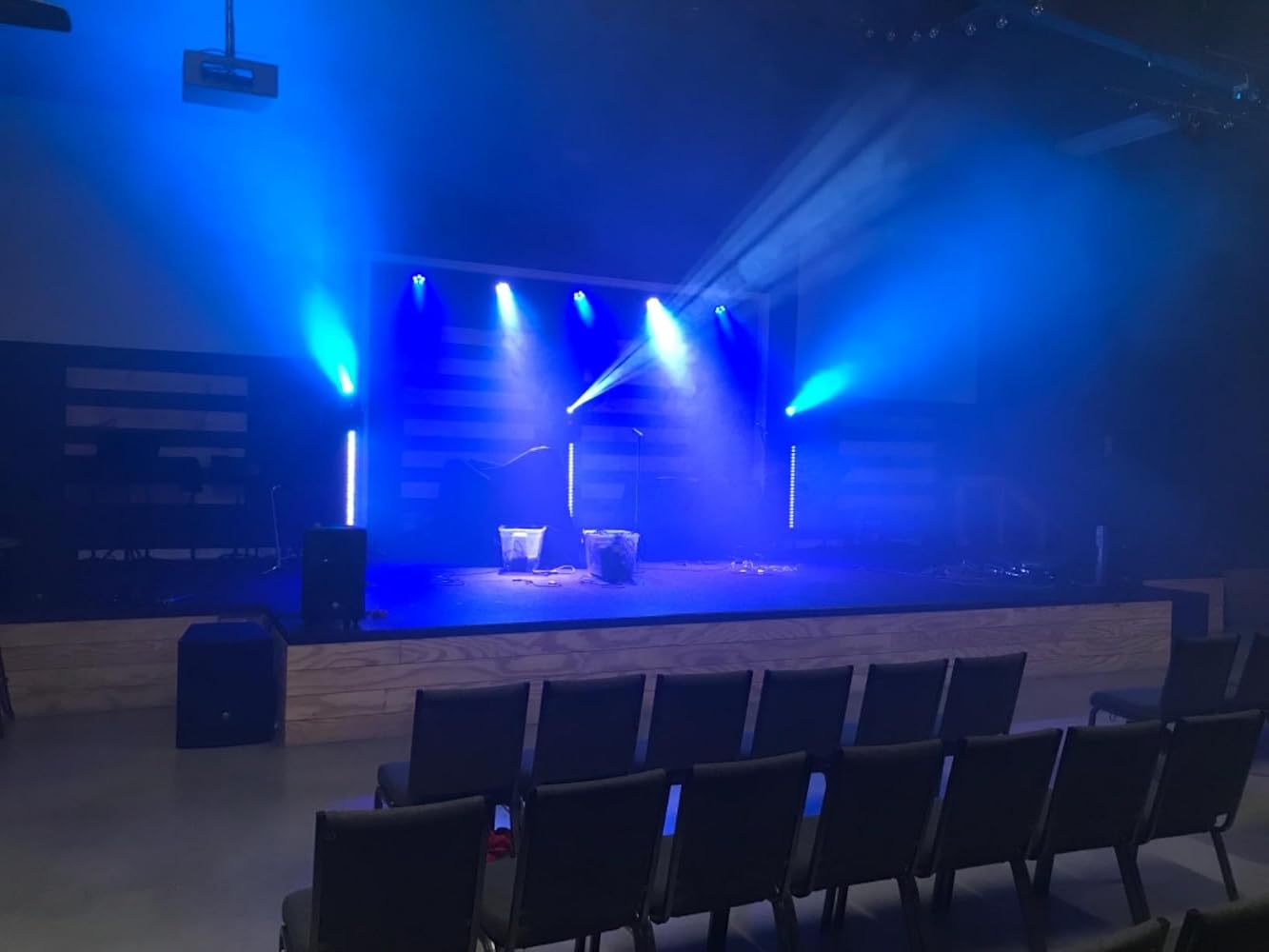

Used these as wash lights for our stage design at church, left/right front of stage in picture. They work great. Nice and bright with a good wide wash. The color mixing and DMX configuration options make them very versatile. We have been using them for a few months now without any issues.

D
D-J
Can’t go wrong

Great lights! Easy function!

J
Jonathan
Really impressive light bar

Incredibly bright and easy to program with tons of options. Take some time to play with it and get used to whatever your using to control them.

c
christine m.
Damaged but works great

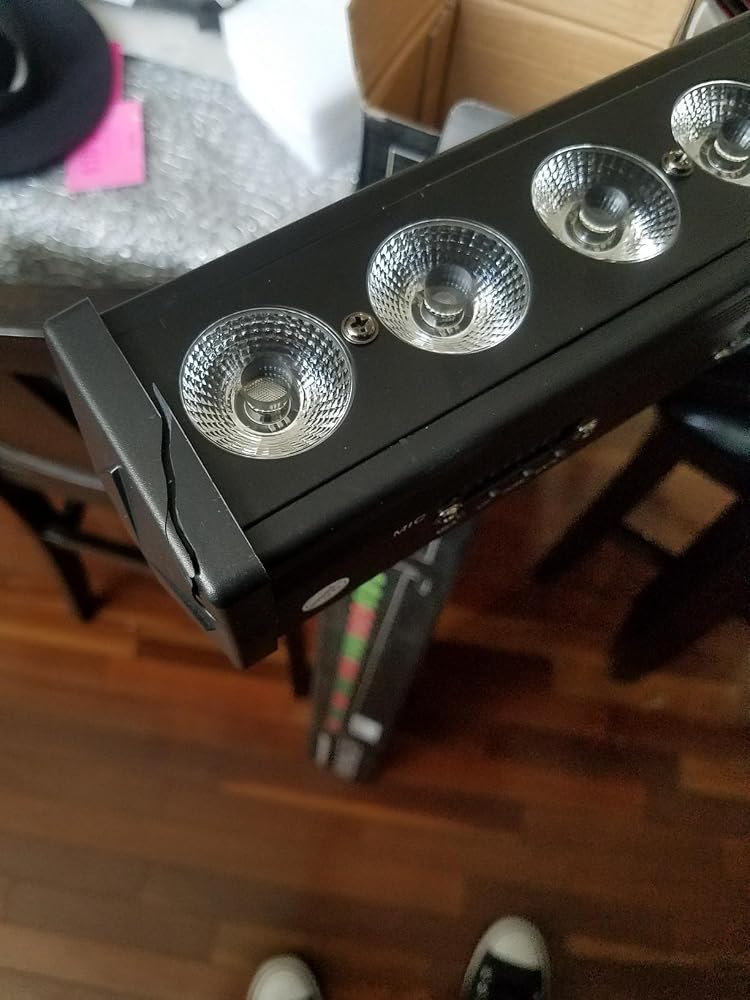

the light works great but did come with a end cap that was cracked

K
Kelly N.S.
Amazing Fizture for any application

24LEDThis light goes beyond my expectations. I love how bright and compatible this light is to many areas. This light works well in theater, for a DJ, or even a party.

m
milton r.
Nice LED projection

I use these at my events and couldn't be happier. The lights are very bright and can use different patterns making it look cool.

t
tim

Great product, decent price and quick shipping.

G
Greg K.
Best 24 LED RGBWA fixed bar lights

Great lights. Best of the fixed bar led. cool macros, bright. I used on side walls, behind, in front of and on the side of bands for great show! Like this brand a lot!

M
Mikeh727
Great wash light!!

This light is awesome! Very bright and versatile, will enhance any performance or display that requires lights. We'll be using this for outdoor displays in the holidays and this will really step up our game. Very nice light! Will work with DMX but doesn't require DMX to work. Love it!!

D
David S.
Beautiful 48LED bar with lots of options

This light bar is well made with a metal case and sturdy attachment brackets. The colors are bright and provide a brilliant wash down to subtle color effects with dimmable LEDs for controlling intensity. If you just take it out of the box and plug it in, it starts up in the Auto mode where it just cycles through many of its attractive effects - making it a great way to draw attention for advertising. The DMX interface offers 4, 6, 9, 32 and 36 channel options for anywhere from the simplest all on or off colors to beautiful chasing patterns or even individual control of sixteen three light triplets going across row-wise. I did a quick test of the 9 channel mode and all worked perfectly. Frankly, I’ve tested a lot of DMX lights and other than one that had an issue with the sound mode (probably a faulty mic), I’ve never seen an issue with the DMX interface.This fixture is silent in operation (no noisy fans) and can be put right to work. I really like sound mode 2 where the entire bar acts like a digital vue meter displaying a bouncing bar of changing colors based on the sounds it “hears” with its built in mic. All around a great value for the money!

R
Resto_Dad
Great for the dance studio

We got to put this to good use at the kids dance recital. We like to use blue lighting between songs so that the little ones can see where they are going. This was easy to set up and use. Very plug and play. I am very happy with my purchase. Would recommend.

J
Jayme
Awesome

I have 3 of these and so far they work perfectly

D
D. B.
Works well and is lightweight

Liked. Nice gift

v
victor s.
EXCELENTE ARTÍCULO

EXCELENTE MERCADERÍA EL DELIVERY VINO SIN NINGUN DAŃO

d
doug p.
Great product

Confusing to use with controller

J
Juan
Its a good solid light bar

Compared to others in similar price range it does the job no issues

s
samuel s.
Muy bueno

Muy bueno

f
fredy b.
Great

Very good

T
Thom G.
IT LIGHTS

IT LIGHTS AND EASY TO WORK

D
DublC
Not pro but good for parties/dj use. Worth the price.

Pros: Very bright, dmx controllable, daisy chainable power, sound active. Can't comment on longevity yet.Cons: Slave modes don't work, LED's change color when dimming/flicker when fading Chases, can't dim during chases- even with master.So to have fading, you'll need to save color scenes and add to cue lists.

T
Tommy P.
So far so good

It very brighter than you think i am very happy bought 2 of them

D
DAVID M.
Awsome

Very good light

R
Ramiro D.
RB-DMX1 compatible, IMPRESSIVE

Beyond impressed, only regret is not ordering two as they are the price of one of the competitors, RB-DMX1 compatible, highly recommend for any small setup Mobile DJ.

B
Brett
Tremendous light for the price and quality to brighten your entertainment needs.

I bought two lights unfortunately one was opened on my porch and damaged, something w the hardware. The other fixture was missing its power cord. Not the worst thing in the world.I contacted the company's and their service department rectified my issues and sent out a new fixture fast. I was impressed by the level of customer service.These are brilliant strip lights, they have chases in a combination of colors and patterns. the color pallets are vibrant. Not a heavy fixture with an aluminum outer shell and is worth purchasing for your design, entertainment, or DJ needs.If you were to experience an issue the company will work to satisfy its customers.I'd buy from this company again.

h
heli h.
GOOD PRODUCT

I CAN'T WAIT TO GET 2 MORE

D
Derek
Cool.

I love it. Lights up a good area.

J
Jerry C.
Easy to use

Worked just fine

E
Eric F.
Great light for the money

Great light, easy to program DMX. Using for wall wash in a church.
