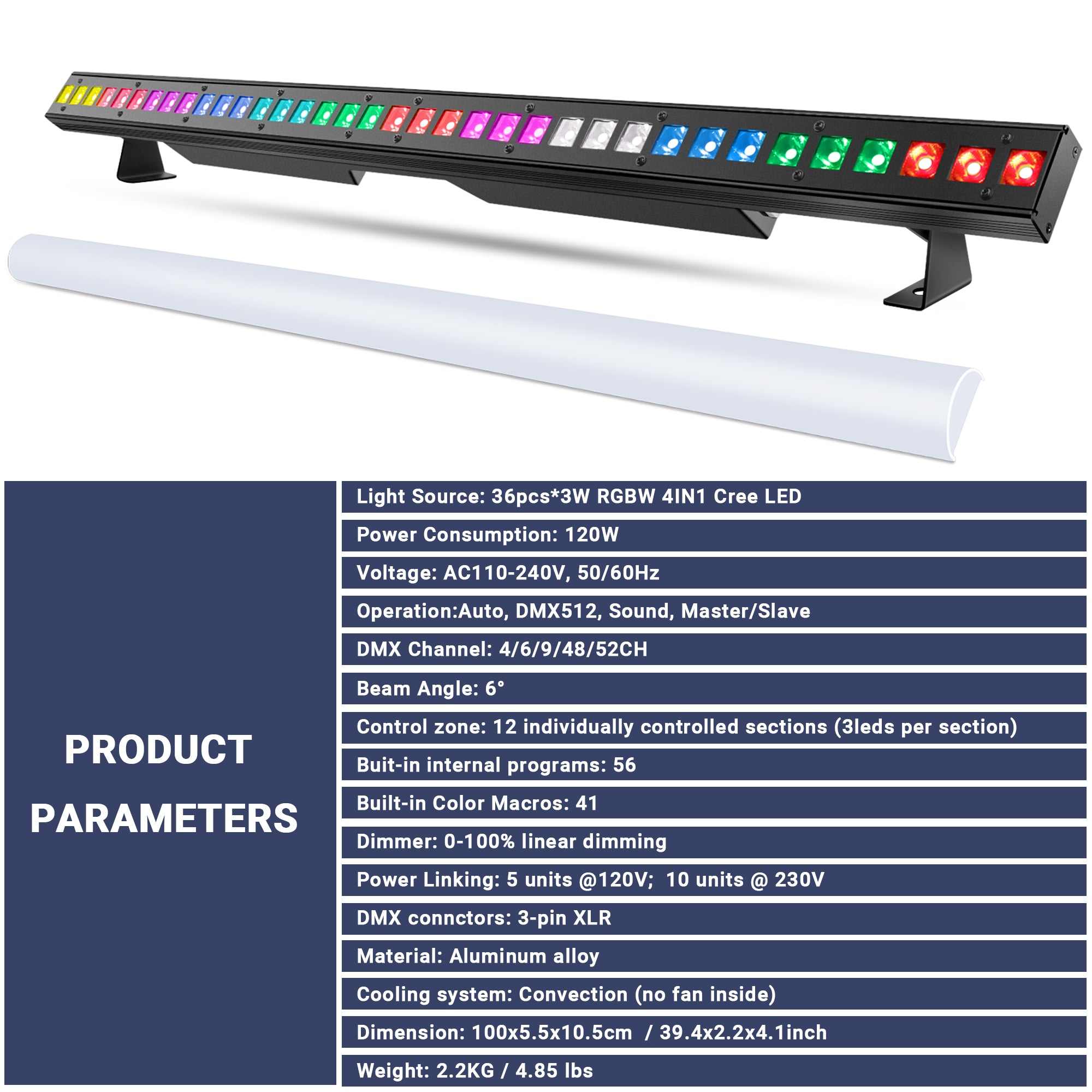

120W RGBW LED Wash Light Bar

Light Source & Optical

• LED Configuration: 36x 3W RGBW LEDs
• Color Mixing: RGBW (Red, Green, Blue, White)
• Pixel Zones: 12 Controllable Zones (in 48/52CH Mode)
• Beam Effect: Hard Edge (No Cover) / Soft Pixel Diffusion (With Cover)

Control & Connections

• Control Modes: DMX-512, Auto Run, Sound Active, Master/Slave, Static Color
• DMX Channels: 4, 6, 9, 48, or 52 Channels
• Built-in Programs: 56 Auto Shows, 41 Static Colors

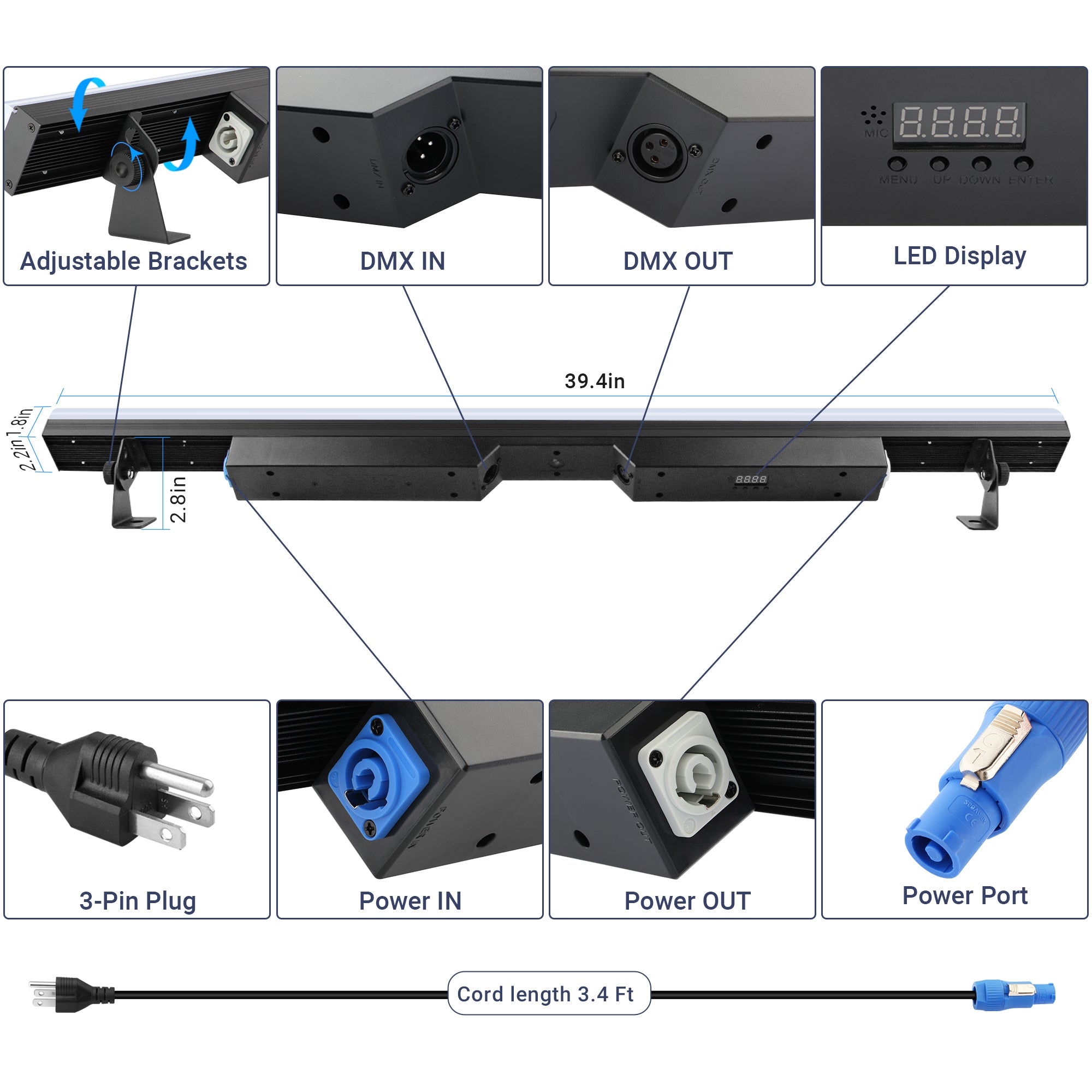

• Data Connectors: 3-Pin XLR In/Out
• Display: Digital LED Menu

Electrical & Physical

• Input Voltage: AC110-240V, 50/60Hz
• Power Consumption: 120W
• Protection: Temperature protection (50~65°C) reduces power if overheating occurs
• IP Rating: Indoor Use Only (Keep away from rain/moisture)
• Dimensions: 39.4 x 2.2 x 4.1 in (100 x 5.5 x 10.5 cm)
• Weight: 4.85 lbs / 2.2 kg

Installation

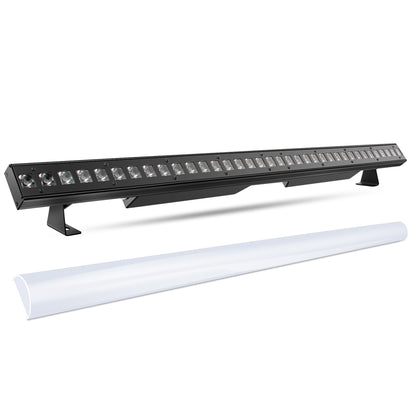

• Cover Assembly: Add the included cover to transform the fixture into a pixel light; remove it to use as a beam light.
• Mounting: Ensure the unit is securely mounted and has adequate ventilation.
• Power Linking: Connectors are available for DMX signal; ensure proper voltage matching.

Cleaning

• Frequency: Clean the product at least twice a month to maintain optimum light output.
• Method: Use a vacuum or soft brush for vents, and a mild soap solution for the lens/cover.
• Caution: Never use alcohol, solvents, or ammonia-based cleaners on the transparent surfaces.

Maintenance

• Safety: Always unplug the product and let it cool to room temperature before cleaning.
• Dust: Dust build-up reduces performance and causes overheating; keep vents clear.

For detailed instructions, check out the user guide.
