Dive Deeper

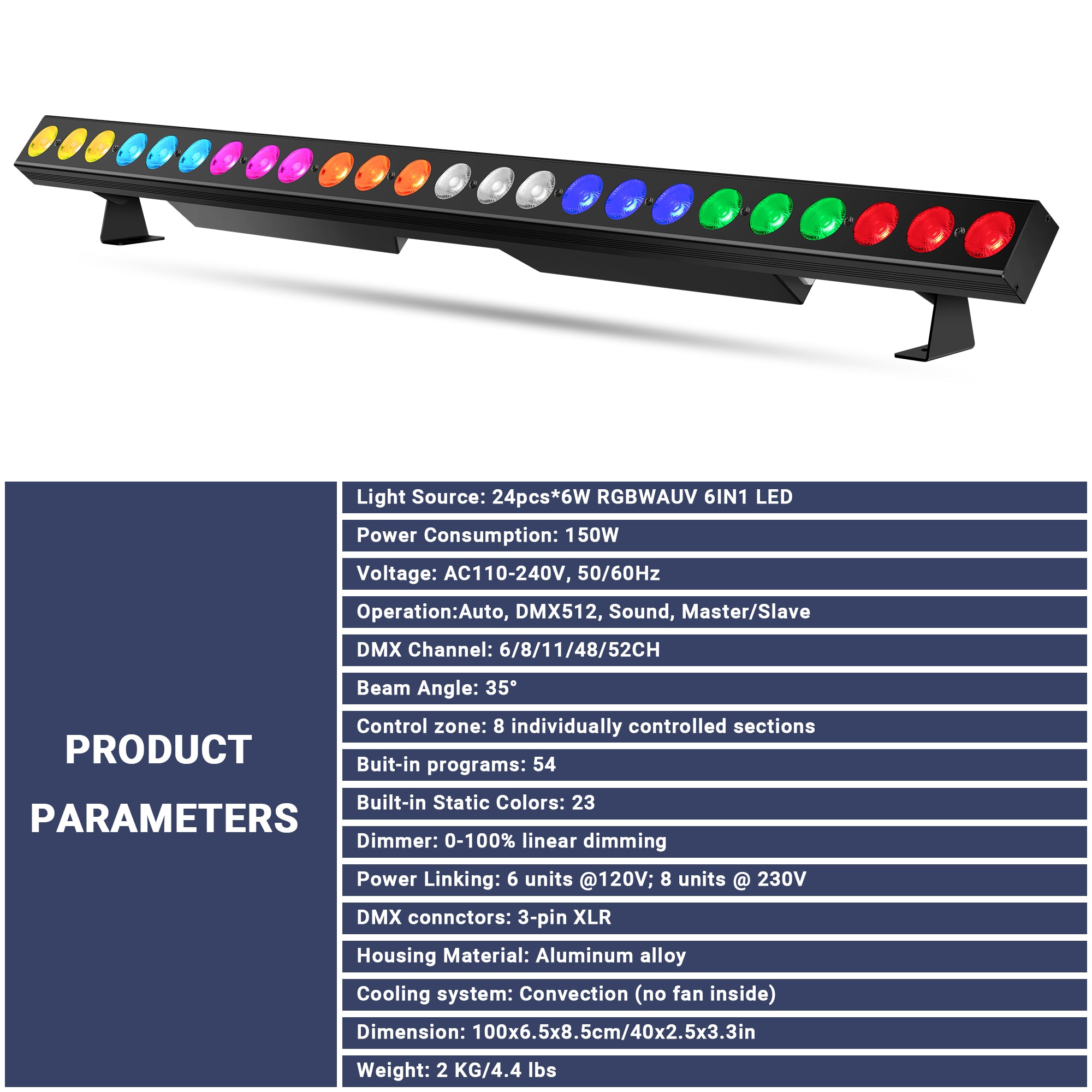

Tech Specs
Light Source & Optical
  • LED Configuration: 24x 6W RGBWA+UV (6-in-1) LEDs
  • Colors: Red, Green, Blue, White, Amber, UV

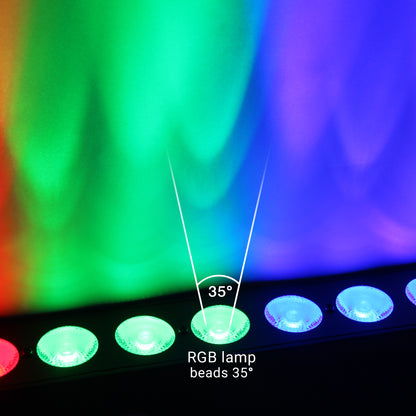

  • Beam Angle: 35 Degrees
  • Dimming: 0-100% Linear Dimming

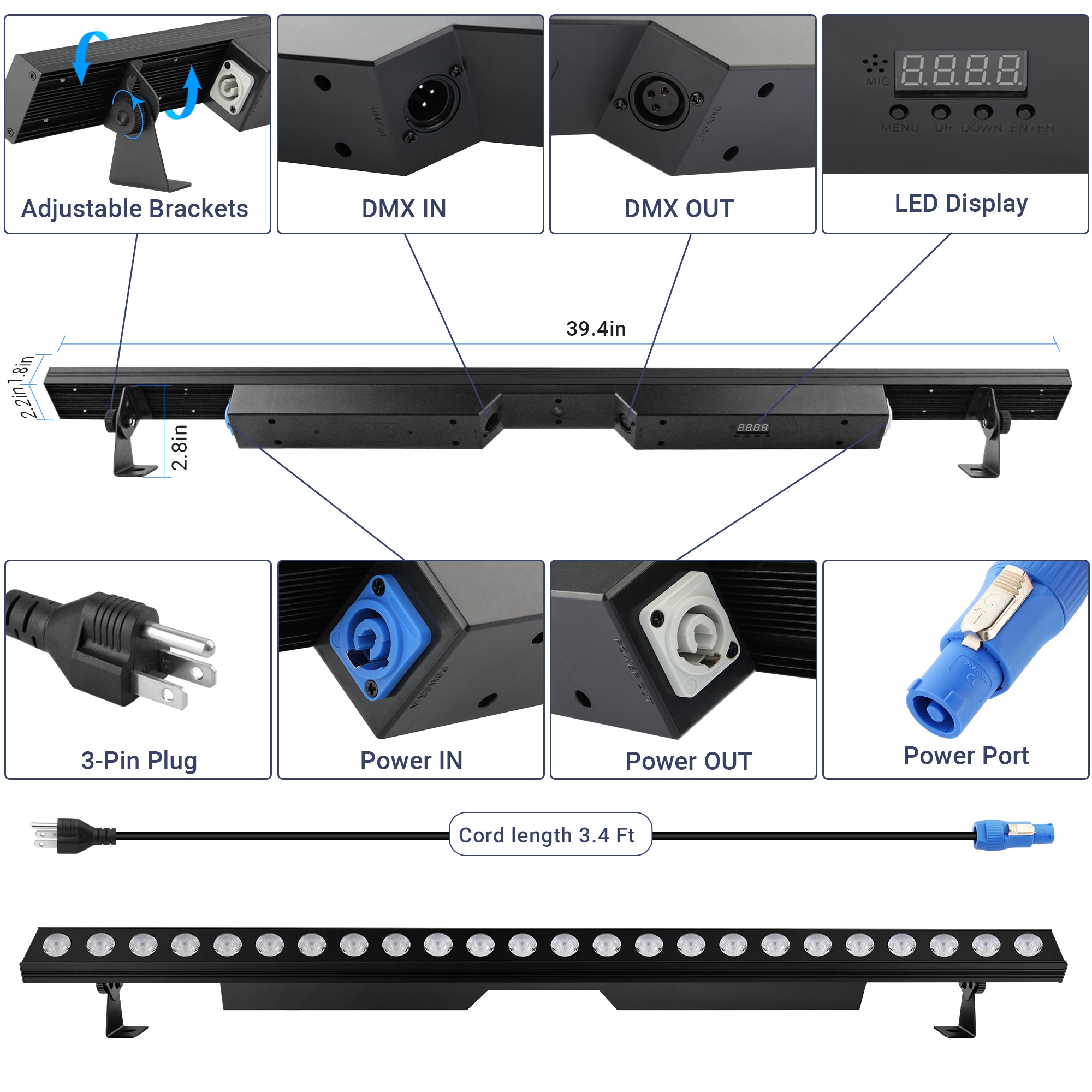

Control & Connections
  • Control Modes: DMX-512, RDM, Auto Run, Sound Active, Master/Slave, Static Color
  • DMX Channels: 6, 8, 11, 48, or 52 Channels
  • Pixel Zones: 8 Groups (3 LEDs per group)
  • Display: LED Display with 4-buttons
  • Data Connectors: 3-Pin XLR In/Out
Electrical & Physical
  • Input Voltage: AC 100V-240V 50/60Hz
  • Power Consumption: 150W
  • Power Linking: Up to 6 units @ 110V
  • Dimensions: 41 x 4.3 x 4.3 in (105 x 11 x 11 cm)
  • Weight: 5.80 lbs / 2.65 kg
  • IP Rating: IP20 (Indoor Use Only)
Installation, Cleaning & Maintenance
Installation
  • Mounting: The fixture includes 2 brackets and knobs for floor standing or truss mounting.
  • Ventilation: Allow approximately 20 inches (50cm) between the fixture and other devices or walls for proper cooling.
  • Safety: Always attach a safety cable when installing in a suspended environment.
Cleaning
  • Lens: Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.
  • Prohibited Cleaners: NEVER use alcohol, solvents, or ammonia-based cleaners.
Maintenance
  • Routine Check: Every three months, check electrical contacts and ensure all screws and fasteners are securely tightened.
  • Cables: Ensure power supply cables do not show damage or material fatigue.

For detailed instructions, check out the user guide.

Compliance & Certification

The 144W RGBWA+UV LED Wash Light Bar is designed to comply with applicable CE and RoHS requirements.

In The Box

  • The Light

  • Installation Kit

  • Bracket

  • Power Cable

  • User Guide

Free shipping and returns

FAQs

Please read our FAQs page to find out more.

What is the advantage of 6-in-1 LEDs?

This fixture uses RGBWA+UV LEDs. Unlike standard lights, it includes Amber for warm tones and UV for glowing blacklight effects, all mixed from a single lens.

Can I link the power for multiple units?

Yes. You can daisy-chain up to 6 units together when using 110V power, reducing the need for multiple wall outlets.

Does it allow for pixel mapping?

Yes. In 48-Channel or 52-Channel modes, you can control 8 individual zones (groups of 3 LEDs) to create chasing effects.

Is this unit waterproof?

No. It is IP20 rated, meaning it is protected against solid objects larger than 12mm but is not protected against water. It is for indoor use only.

Didn’t find your answer?

Don't hestitate to contact us
